SB520-SB5100
SB520 - SB5100
Features
•
•
Metal to silicon rectifier, majority
carrier conduction.
For use in low voltage, high
frequency inverters free
wheeling, and polarity
protection applications.
Low power loss, high efficiency.
High current capability, low V
F.
High surge capacity.
Glass passivated
•
•
•
•
DO-201AD
COLOR BAND DENOTES CATHODE
Schottky Rectifiers
Absolute Maximum Ratings*
Symbol
V
RRM
I
F(AV)
I
FSM
T
stg
T
J
T
A
= 25°C unless otherwise noted
Parameter
520
Maximum Repetitive Reverse Voltage
Average Rectified Forward Current
.375 " lead length @ T
A
= 75°C
Non-repetitive Peak Forward Surge Current
8.3 ms Single Half-Sine-Wave
Storage Temperature Range
Operating Junction Temperature
20
530
30
540
40
Value
550
50
5.0
150
-50 to +150
-50 to +150
560
60
580
80
5100
100
Units
V
A
A
°C
°C
*
These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
Thermal Characteristics
Symbol
P
D
R
θJA
Parameter
Power Dissipation
Thermal Resistance, Junction to Ambient
Value
5.0
25
Units
W
°C/W
Electrical Characteristics
Symbol
V
F
I
R
C
T
T
A
= 25°C unless otherwise noted
Parameter
520
Forward Voltage @ 5.0 A
Reverse Current @ rated V
R
Total Capacitance
V
R
= 4.0 V, f = 1.0 MHz
T
A
= 25°C
T
A
= 100°C
50
500
530
0.55
Device
540
550
0.5
25
380
560
580
5100
0.67
0.85
Units
V
mA
mA
pF
2001
Fairchild Semiconductor Corporation
SB520 - SB5100, Rev. C
SB520-SB5100
Schottky Rectifiers
(continued)
Typical Characteristics
Average Rectified Forward Current, I
F
[A]
4
SB520-SB540
SB550-SB5100
Peak Forward Surge Current, I
FSM
[A]
5
150
120
3
SINGLE PHASE
HALF WAVE
60HZ
RESISTIVE OR
INDUCTIVE LOAD
.375" (9.00mm) LOAD
LENGTHS
90
2
60
1
30
0
0
25
50
75
100
125
Ambient Temperature [ºC]
150
175
0
1
2
5
10
20
50
Number of Cycles at 60Hz
100

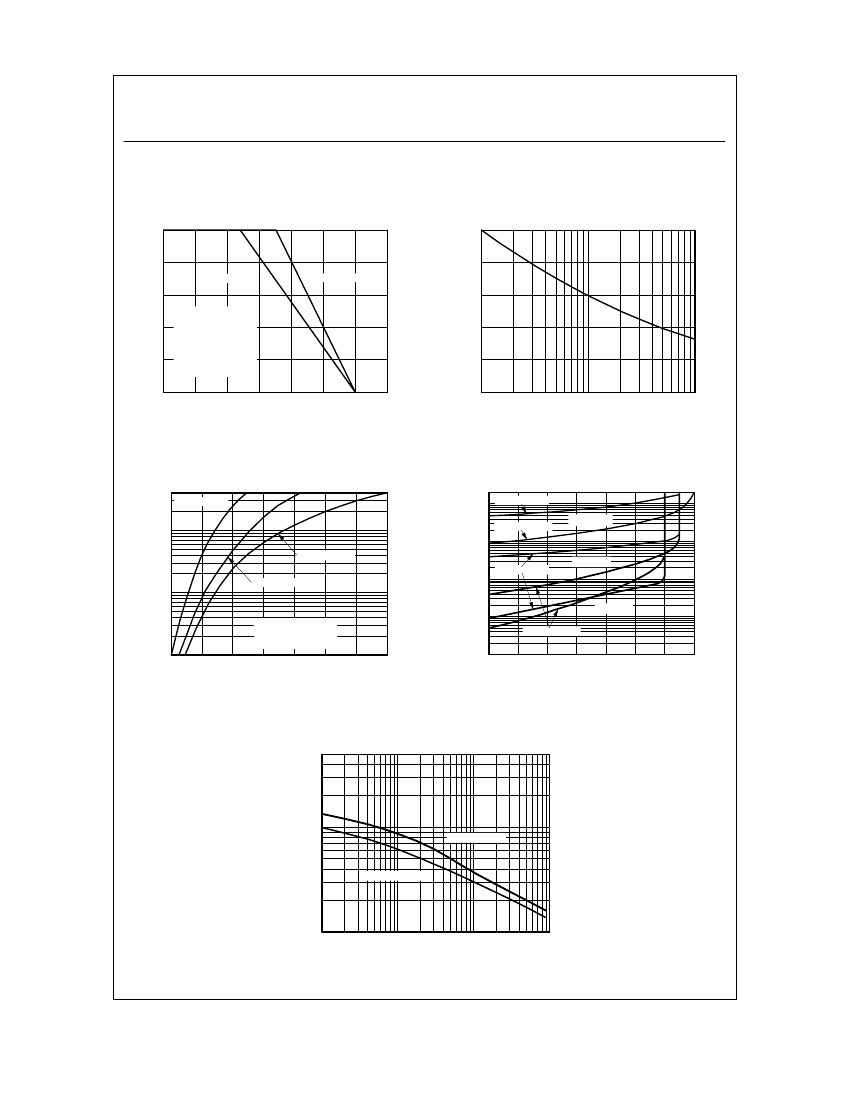

Figure 1. Forward Current Derating Curve
Figure 2. Non-Repetitive Surge Current
40
SB520-SB540
20
10
Reverse Current, I
R
[mA]
SB520-SB540
SB550-SB5100
T
A
= 100
º
C
Forward Current, I
F
[A]
10
SB580-SB5100
1
SB520-SB540
T
A
= 75
º
C
SB550-SB560
0.1
T
A
= 25
º
C
SB550-SB5100
1
T
A
= 25
º
C
Pulse Width = 300µS
µ
2% Duty Cycle
0.01
0.1
0.4
0.5
0.6
0.7
0.8
0.9
Forward Voltage, V
F
[V]
1
1.1
0.001
0
20
40
60
80
100 120 140
Percent of Rated Peak Reverse Voltage [%]
Figure 3. Forward Voltage Characteristics
Figure 4. Reverse Current vs Reverse Voltage
5000
Total Capacitance, C
T
[pF]
2000
1000
SB520-SB540
500
SB550-SB5100
200
100
0.1
1
10
Reverse Voltage, V
R
[V]
100
Figure 5. Total Capacitance
