C-1570A-DFB-E-LA-NT datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Optical fiber> C-1570A-DFB-E-LA-NT

C-1570A-DFB-E-LA-NT: DescriptionDFB Laser Diode Emitter, 1567nm Min, 1573nm Max, Through Hole Mount,; CategoryWireless rf/communication Optical fiber; File Size1MB，3 Pages; ManufacturerSource Photonics

Download Datasheet Parametric View All

C-1570A-DFB-E-LA-NT Overview

DFB Laser Diode Emitter, 1567nm Min, 1573nm Max, Through Hole Mount,

C-1570A-DFB-E-LA-NT Parametric

Parameter Name	Attribute value
Maker	Source Photonics
Reach Compliance Code	unknown
body height	3.3 mm
Body length or diameter	3.85 mm
maximum descent time	0.5 ns
Fiber optic equipment types	DFB LASER DIODE EMITTER
Installation features	THROUGH HOLE MOUNT
Number of channels	2
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum operating wavelength	1573 nm
Minimum operating wavelength	1567 nm
Nominal operating wavelength	1570 nm
Rise Time	0.5 ns
Maximum supply voltage	1.7 V
surface mount	NO
Minimum threshold current	20 mA
Transmission type	DIGITAL

Preview

Download Datasheet

View All

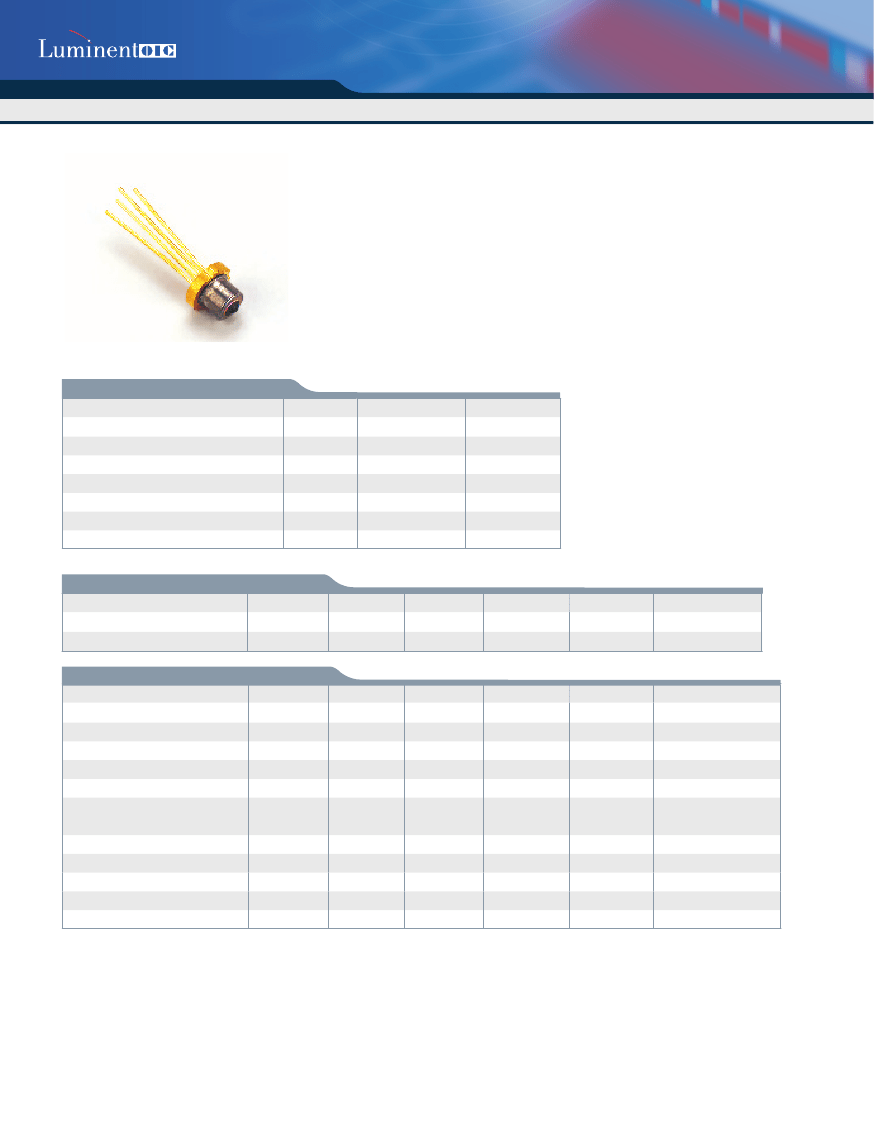

1.27um-1.61um MQW-DFB Laser Diodes for CWDM

C-1XXXA-DFB-E-XX-NT

Absolute Maximum Rating (Tc=25ºC)

Parameter

Optical Output Power

LD Reverse Voltage

LD Forward Current

PD Reverse Voltage

PD Forward Current

Operating Temperature

Storage Temperature

Symbol

RLD

FLD

RPD

FPD

opr

stg

Value

8(CW)

150

0 to +70

-40 to +85

Unit

ºC

Optical and Electrical Characteristics( Tc=70ºC )

Parameter

Threshold Current

Optical Output Power

Symbol

Min

Typical

Max

Unit

Test Condition

CW, I=I

+60mA

Optical and Electrical Characteristics( Tc=25ºC)

Parameter

Threshold Current

Optical Output Power

Peak Wavelength*

Side Mode Suppression Ratio

Forward Voltage

Temperature dependence of

peak wavelength

Rise/Fall Time

Spectral Width

PD Monitor Current

PD Dark Current

PD Capacitance

Symbol

∆λ

/∆Τ

/ t

∆λ

DARK

Min

n-3

100

Typical

0.1

0.3

Max

n+3

1.7

0.12

0.5

1200

1.0

Unit

nm/ºC

µA

Test Condition

CW, I=I

+20mA

CW,P

=5mW

CW,P

=5mW (0 to 70ºC)

CW,P

=5mW (0 to 70ºC)

bias

, 20-80%

CW,P

=5mW, -20dB

CW,P

=5mW, V

RPD

=5V

RPD

1MH

* Peak wavelength n=1270nm,1290nm,1310nm,1330nm,1350nm,1370nm,1390nm,1410nm,1430nm,1450nm,1470nm,1490nm, 1510nm,1530nm,1550nm,

1570nm,1590nm,1610nm

* Precaution:

1.Avoid eye or skin exposure to laser radiations.

2.The device is sensitive to the electro-static damages (ESD). The device should be handled with ESD proof tools. To assemble the device on PCB, proper grounding

is required to prevent ESD

3.The performance and reliability of the device are not guaranteed when it is operated under environment with strong vibration .

LUMINENTOIC.COM

20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486

9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213

LUMNDS513-SEP2204

rev. A.1

1.27um-1.61um MQW-DFB Laser Diodes for CWDM

C-1XXXA-DFB-E-XX-NT

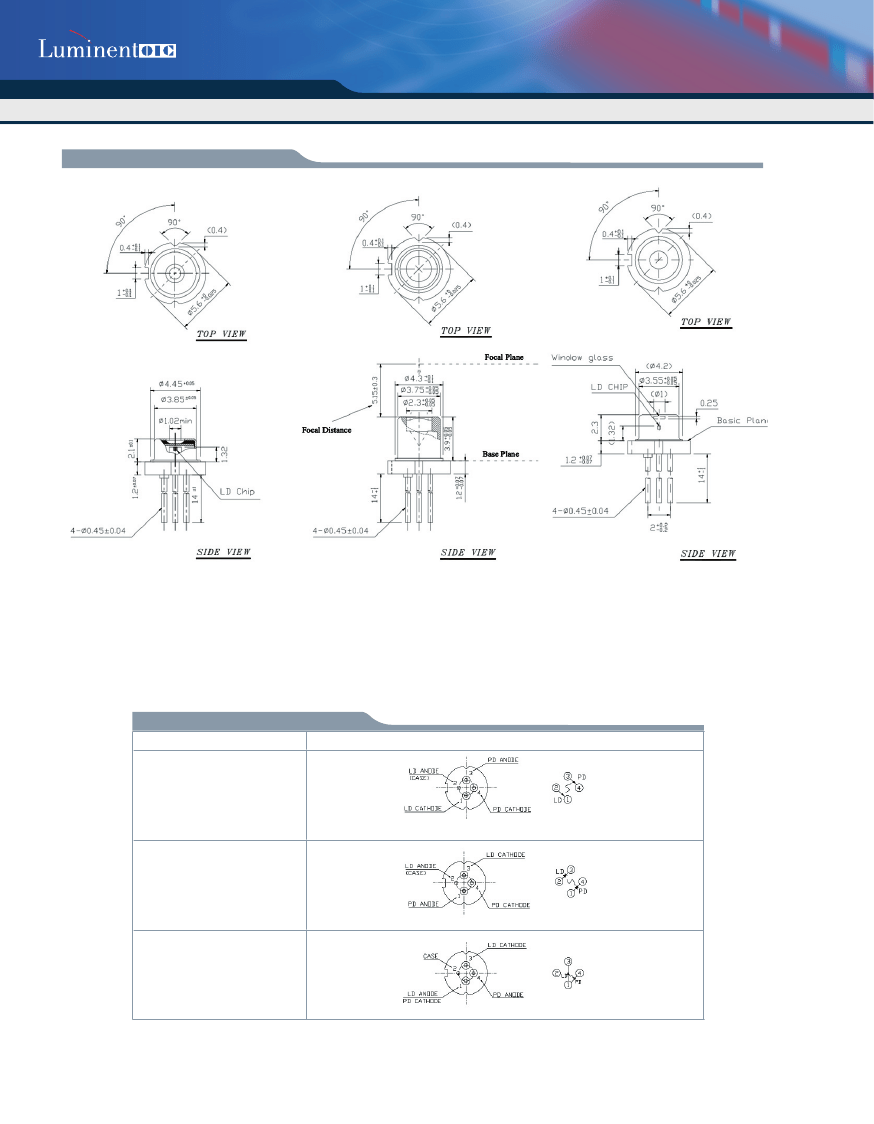

Ordering Information

Available Options:

C-1XXXA-DFB-E-LA-NT

C-1XXXA-DFB-E-LAB-NT

C-1XXXA-DFB-E-LAD-NT

C-1XXXA-DFB-E-H-NT

C-1XXXA-DFB-E-HB-NT

C-1XXXA-DFB-E-HD-NT

C-1XXXA-DFB-E-A-NT

C-1XXXA-DFB-E-AB-NT

C-1XXXA-DFB-E-AD-NT

Note : 1XXXA : 1270A ~ 1610A

Warnings

Handling Precautions:

This device is susceptible to damage as a result of electrostatic discharge (ESD). A static free environment is highly recommended. Follow

guidelines according to proper ESD procedures.

Laser Safety:

Radiation emitted by laser devices can be dangerous to human eyes. Avoid eye exposure to direct or indirect radiation.

Legal Notice

IMPORTANT NOTICE!

All information contained in this document is subject to change without notice, at LuminentOIC’s sole and absolute discretion. LuminentOIC warrants performance

of its products to current specifications only in accordance with the company’s standard one-year warranty; however, specifications designated as “preliminary” are

given to describe components only, and LuminentOIC expressly disclaims any and all warranties for said products, including express, implied, and statutory warran-

ties, warranties of merchantability, fitness for a particular purpose, and non-infringement of proprietary rights. Please refer to the company’s Terms and Conditions of

Sale for further warranty information.

LuminentOIC assumes no liability for applications assistance, customer product design, software performance, or infringement of patents, services, or intellectual

property described herein. No license, either express or implied, is granted under any patent right, copyright, or intellectual property right, and LuminentOIC makes

no representations or warranties that the product(s) described herein are free from patent, copyright, or intellectual property rights. Products described in this docu-

ment are NOT intended for use in implantation or other life support applications where malfunction may result in injury or death to persons. LuminentOIC customers

using or selling products for use in such applications do so at their own risk and agree to fully defend and indemnify LuminentOIC for any damages resulting from

such use or sale.

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROVIDED ON AN “AS IS” BASIS. Customer agrees that LuminentOIC is not liable for any

actual, consequential, exemplary, or other damages arising directly or indirectly from any use of the information contained in this document. Customer must contact

LuminentOIC to obtain the latest version of this publication to verify, before placing any order, that the information contained herein is current.

LUMINENTOIC.COM

20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486

9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213

LUMNDS513-SEP2204

rev. A.1
