INTERNET DATA SHEET for Article Number 7000-PS201-8211000
M23 SERVO CABLE
Specification: 6FX8002-5DA01-1BA0
Power cable with brake wires for SINAMICS S120 and motors with M23 connection and holding brake
Female straight – pre-wired terminals
M23, 6-pole
shielded
Further cable lengths on request. Plastic housings with good resistance against chemicals and oils. The resistance to
aggressive media should be individually tested for your application. Further details on request.
Link to Product

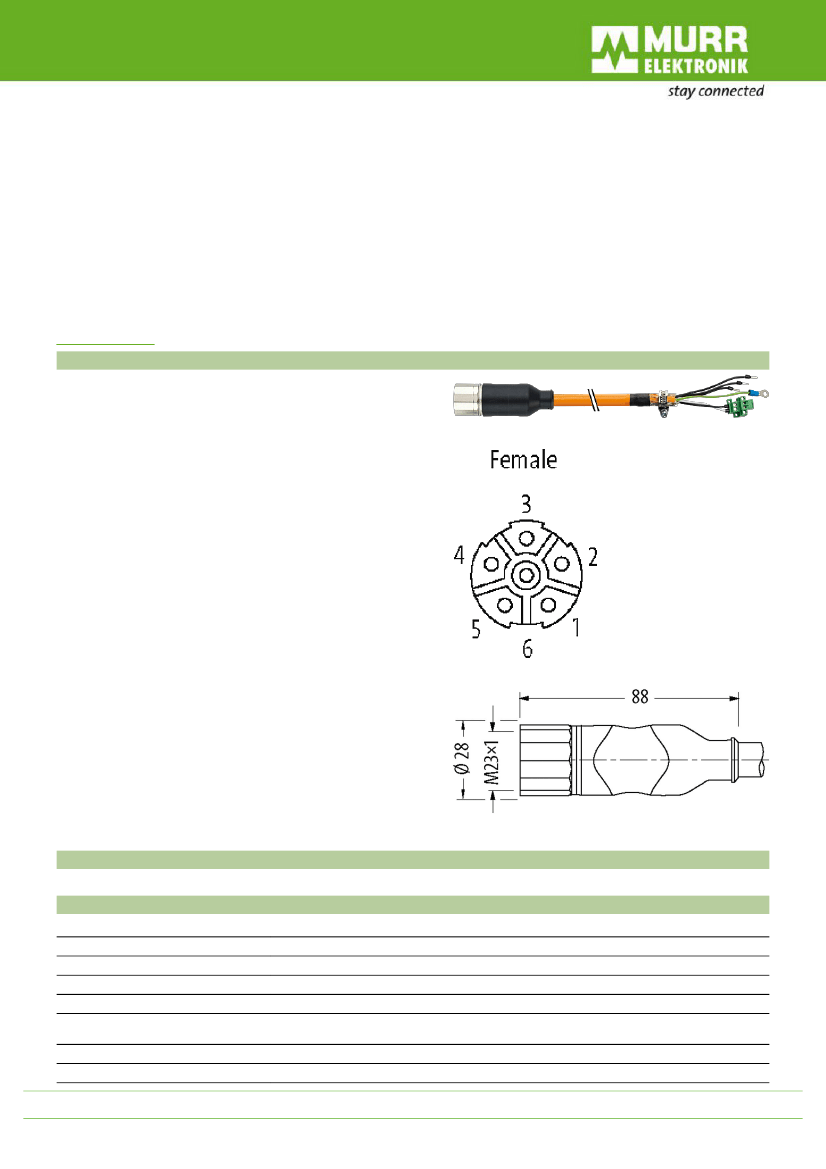

Illustration
Product may differ from Image
Form
Form
Cables
Cable number
No./diameter of wires
Wire isolation
C-track properties
Torsion stress
Jacket Color
Material (jacket)
Specification
821
(4G1.5 + (2× 1.5)C)-C
TPM (bk num, gnye)
10 Mio.
±30°/m
orange
PUR (UL/CSA) (=MC800+)
6FX8008-1BA11
PS201
The information in this brochure has been compiled with the utmost care.
Liability for the correctness completeness and topicality of the information is restricted to gross negligence. Version: 03/20
Murrelektronik GmbH | Falkenstraße 3 | 71570 Oppenweiler | Fon +49 (71 91) 47-0 | Fax +49 (71 91) 47-491000 | shop@murrelektronik.com | shop.murrelektronik.com
INTERNET DATA SHEET for Article Number 7000-PS201-8211000
Outer Ø
Bend radius (fixed)
Bend radius (moving)
Temperature range (fixed)
Temperature range (mobile)
Shield
Approval (cable)
Diameter (core)
Technical Data
Operating voltage
Rated surge voltage
Operating current per contact
Material group
Locking of ports
Compression gland
Protection
Locking material
Material
suitable for corrugated tube (internal Ø)
General data
Pollution Degree
Temperature range
Commercial data
country of origin
customs tariff number
EAN
eClass
Packaging unit
11.6 mm ±5%
5× outer Ø
7.5× outer Ø
-50...+80 °C
-35...+70 °C
yes
cRUus (AWM-Style 21223/10492)
4× 2.5 + 2× 1.5 mm²
600 V AC/DC (PIN 1/2/3/6); 250 V AC/DC (PIN 4/5)
4 kV (PIN 1/2/3/6); 2 kV (PIN 4/5)
Power cores: 12 A (1.5 mm²), 15 A (2.5 mm²); brake cores: 5 A (1.5 mm²)
IEC 60664-1, category I
Screw thread (M23×1 mm) recommended torque 2.0 Nm, self-securing
M23 (SW27)
IP65 and IP67 when plugged and screwed down (EN 60529)
Brass, nickel plated
PUR
16 mm
3
-25...+85 °C, depending on cable quality
DE
85444290
4048879484015
27279218
1
