WB9-1LSD

Description
RF Transformer, 0.125MHz Min, 125MHz Max, ROHS COMPLIANT
CategoryPower management    transformer
File Size182KB，5 Pages
ManufacturerCOILCRAFT
Websitehttp://www.coilcraft.com/
Environmental Compliance
Download Datasheet Parametric View All

WB9-1LSD Overview

RF Transformer, 0.125MHz Min, 125MHz Max, ROHS COMPLIANT

WB9-1LSD Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerCOILCRAFT
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresIMPEDANCE RATIO IS 1 : 9
maximum cutoff frequency125 MHz
minimum cutoff frequency0.125 MHz
high5.72 mm
Insertion loss0.57 dB
JESD-609 codee3
length8.26 mm
Installation featuresSURFACE MOUNT
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
method of packingTAPE & REEL
physical sizeL8.26XB7.24XH5.72 (mm)
Primary inductance25 µH
surface mountYES
Terminal surfaceMatte Tin (Sn) - with Nickel (Ni) barrier
Transformer typeRF TRANSFORMER
width7.24 mm

WB9-1LSD Preview

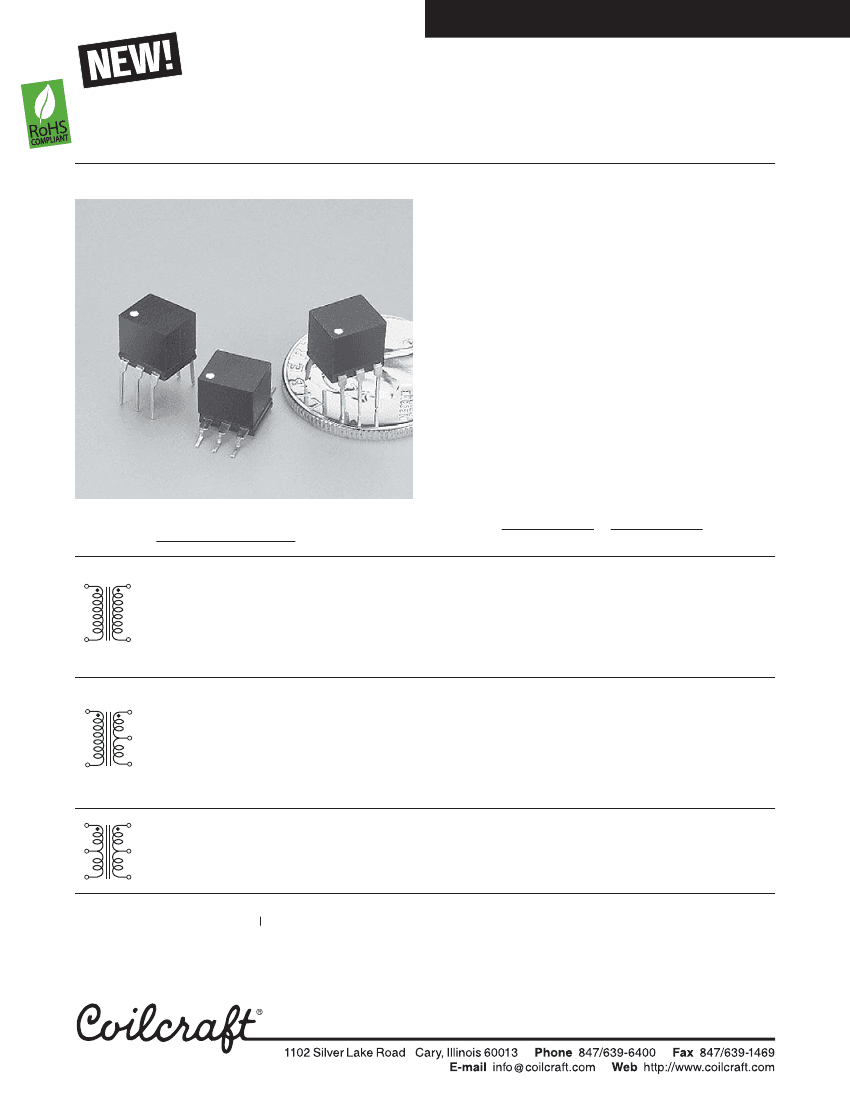

Document 425-1
Wideband Transformers
These wideband transformers are offered in tapped or
untapped configurations in a low-profile DIP-style plastic
case. They are available in a through-hole version com-
patible with standard DIP sockets and a surface mount
version that is packaged in tape and reel. All parts feature
500 V isolation, 250 mA current handling capability and a
1/4 Watt RF power rating. (For a smaller package size,
see our WBC Series.)
Applications include impedance matching, voltage or
current transformation, DC isolation, balanced/unbalanced
mixing, matching, power splitting, coupling and signal
inversion.
Custom wideband transformers with special combinations
of impedance ratio, insertion loss, frequency response
and current handling are also available.
Free evaluation samples are available by contacting
Coilcraft or by visiting
www.coilcraft.com.
Part number
1
SM
TH
WB1-1LS_
WB1-1L
WB1-6LS_
WB1-6L
WB1.18-3LS_
WB1.18-3L
WB1.5-6LS_
WB1.5-6L
WB2-1-2WLS_ WB2-1-2WL
WB2.5-6LS_
WB2.5-6L
WB4-6LS_
WB4-6L
WB9-1LS_
WB9-1L
WB16-1LS_
WB16-1L
WB36-1LS_
WB36-1L
WB1-1TLS_
WB1-1TL
WB1-6TLS_
WB1-6TL
WB2-1TLS_
WB2-1TL
WB2.5-6TLS_
WB2.5-6TL
WB3-1TLS_
WB3-1TL
WB4-1HLS_
WB4-1HL
WB4-6TLS_
WB4-6TL
WB5-1TLS_
WB5-1TL
WB8-1TLS_
WB8-1TL
WB13-1TLS_
WB13-1TL
WB16-6TLS_
WB16-6TL
WBT1-6LS_
WBT1-6L
WBT1.5-1LS_
WBT1.5-1L
WBT2.5-6LS_
WBT2.5-6L
WBT4-1LS_
WBT4-1L
WBT4-1ALS_
WBT4-1AL
WBT16-1LS_
WBT16-1L
WBT25-1LS_
WBT25-1L
Impedance
ratio
pri : sec
1
:
1
1
:
1
1
:
1.18
1
:
1.5
1
:
2
1
:
2.5
1
:
4
1
:
9
1
:
16
1
:
36
1
:
1
1
:
1
1
:
2
1
:
2.5
1
:
3
1
:
4
1
:
4
1
:
5
1
:
8
1
:
13
1
:
16
1
:
1
1
:
1.5
1
:
2.5
1
:
3
1
:
4
1
:
16
1
:
25
Pins 4 – 6
Insertion
loss max L min
2
DCR max
3
(dB)
(µH) (mOhm)
0.70
27
75
0.50
25
100
0.50
90
300
0.26
56
120
1.00
38
100
0.26
30
100
0.50
25
100
0.57
25
100
0.60
56
75
0.50
25
50
0.51
25
100
0.20
70
150
1.00
38
100
0.28
56
120
0.40
96
110
0.50
25
120
0.50
43
120
0.30
48
220
0.76
18
100
0.72
17
90
0.60
56
75
0.25
70
150
0.30
60
150
0.26
70
150
0.26
45
120
0.40
96
110
0.50
25
100
0.50
25
100
Pins 1 – 3
DC
L min
2
DCR max
3
imbalance
4
(µH) (mOhm)
max (mA)
27
75
—
25
100
—
108
330
—
84
150
—
75
150
—
75
130
—
100
200
—
225
250
—
896
330
—
900
180
—
25
100
30
70
150
18
75
150
29
140
200
13
270
200
4.0
100
160
15
172
160
5.0
240
500
13
144
270
17
221
200
10
896
330
25
70
150
19
90
180
19
175
200
11
135
160
13
384
220
3.5
400
300
7.5
625
350
6.0
Schematic
1
6
4
3
6
1
2
4
3
6
5
4
1
2
3
Bandwidth
(MHz)
0.150 – 500
0.100 – 350
0.040 – 300
0.050 – 325
0.080 – 700
0.080 – 225
0.100 – 125
0.125 – 125
0.050 – 100
0.100 – 45
0.100 – 375
0.050 – 200
0.070 – 400
0.050 – 125
0.040 – 500
0.100 – 500
0.050 – 200
0.050 – 400
0.150 – 400
0.150 – 125
0.050 – 100
0.040 – 200
0.040 – 350
0.050 – 100
0.040 – 150
0.040 – 350
0.100 – 100
0.100 – 65
1. When ordering, please specify
packaging
code:
WB25-1LSD
Packaging: D
= 13″ machine-ready reel. EIA-481 embossed plastic
tape (500 parts per full reel).
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge),
use code letter D instead.
2. Inductance measured at 100 kHz, 0.1 V, 0 Adc on an Agilent/
HP 4192 or equivalent.
3. DCR measured on a micro-ohmmeter.
4. DC imbalance is the maximum difference in current measured at pins
1 and 3 with the source at pin 2. Inductance drop is 15% at maximum
imbalance.
5. Operating temperature range -40°C to +85°C.
6. Electrical specifications at 25°C.
Specifications subject to change without notice.
Document 425-1
Revised 11/03/05
© Coilcraft, Inc. 2005
Document 425-2
Wideband Transformers
Dimensions – surface mount parts
0.325 max
8,26
0.225 max
5,72
0.100
typ
2,54
0.004 /0,10
0.025max
0,64
Dot indicates
pin 1
0.285 max
7,24
Dimensions – through hole parts
0.325 max
8,26
Dot indicates
pin 1
0.225 max
5,72
0.120
min
3,05
0.100
typ
2,54
0.010 × 0.020 typ
0,25 × 0,51
0.285 max
7,24
0.400
typ
10,16
0.520 ±0.010
13,21 ±0,25
90
°
-105
°
0.300 ±0.010
7,62 ±0,25
0.06
1,52
1
2
3
0.40
10,2
0.520
13,2
0.10
2,5
0.10
2,5
6
5
4
0.30
7,6
0.100
2,54
0.100
2,54
1
2
3
6
5
4
0.03
0,76
Recommended
Land Pattern
Terminations:
Nickel/tin
Packaged 54 per tube.
0.025 dia typ
0,64
Recommended
Board Layout
Terminations:
Nickel/tin
Tape and reel:
500/13″ reel 24 mm tape width
For packaging data see Tape and Reel Specifications section.
Specifications subject to change without notice.
Document 425-2
Revised 12/29/05
© Coilcraft, Inc. 2005

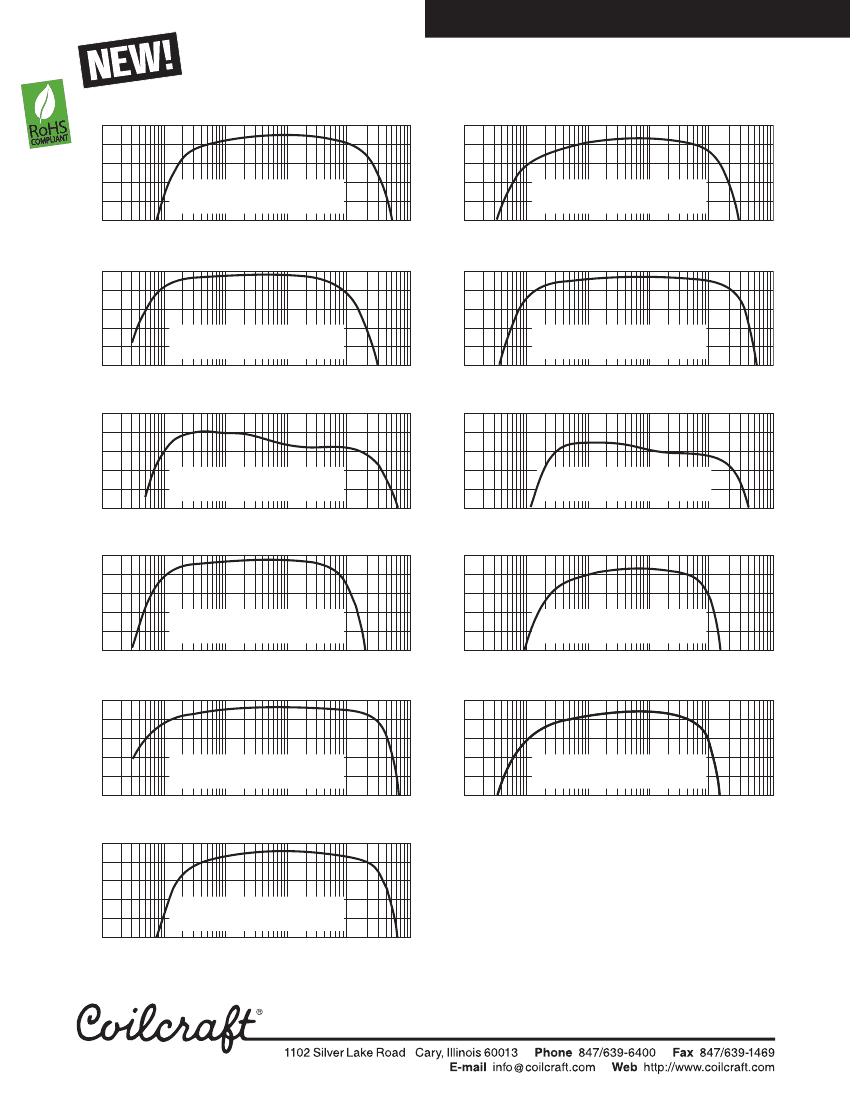

Document 425-3
Transformers with no center taps
Attenuation (dB)
1
2
3
4
5
0.01
0.1
1
10
100
1000
Attenuation (dB)
0
0
1
2
3
4
5
0.01
0.1
1
10
100
1000
WB1-1
3 dB bandwidth: 0.150 – 500 MHz
Frequency (MHz)
WB2.5-6
3 dB bandwidth: 0.080 – 225 MHz
Frequency (MHz)
Attenuation (dB)
1
2
3
4
5
0.01
0.1
1
10
100
1000
Attenuation (dB)
0
0
1
2
3
4
5
0.01
0.1
1
10
100
1000
WB1-6
3 dB bandwidth: 0.100 – 350 MHz
Frequency (MHz)
WB4-6
3 dB bandwidth: 0.100 – 125 MHz
Frequency (MHz)
Attenuation (dB)
1
2
3
4
5
0.01
0.1
1
10
100
1000
Attenuation (dB)
0
0
1
2
3
4
5
0.01
0.1
1
10
100
1000
WB1.18-3
3 dB bandwidth: 0.040 – 300 MHz
Frequency (MHz)
WB9-1
3 dB bandwidth: 0.125 – 125 MHz
Frequency (MHz)
Attenuation (dB)
1
2
3
4
5
0.01
0.1
1
10
100
1000
Attenuation (dB)
0
0
1
2
3
4
5
0.01
0.1
1
10
100
1000
WB1.5-6
3 dB bandwidth: 0.050 – 325 MHz
Frequency (MHz)
WB16-1
3 dB bandwidth: 0.150 – 100 MHz
Frequency (MHz)
Attenuation (dB)
1
2
3
4
5
0.01
0.1
1
10
100
1000
Attenuation (dB)
0
0
1
2
3
4
5
0.01
0.1
1
10
100
1000
WB2-1-2W
3 dB bandwidth: 0.080 – 700 MHz
Frequency (MHz)
WB36-1
3 dB bandwidth: 0.100 – 45 MHz
Frequency (MHz)
Specifications subject to change without notice.
Document 425-3
Revised 11/03/05
© Coilcraft, Inc. 2005

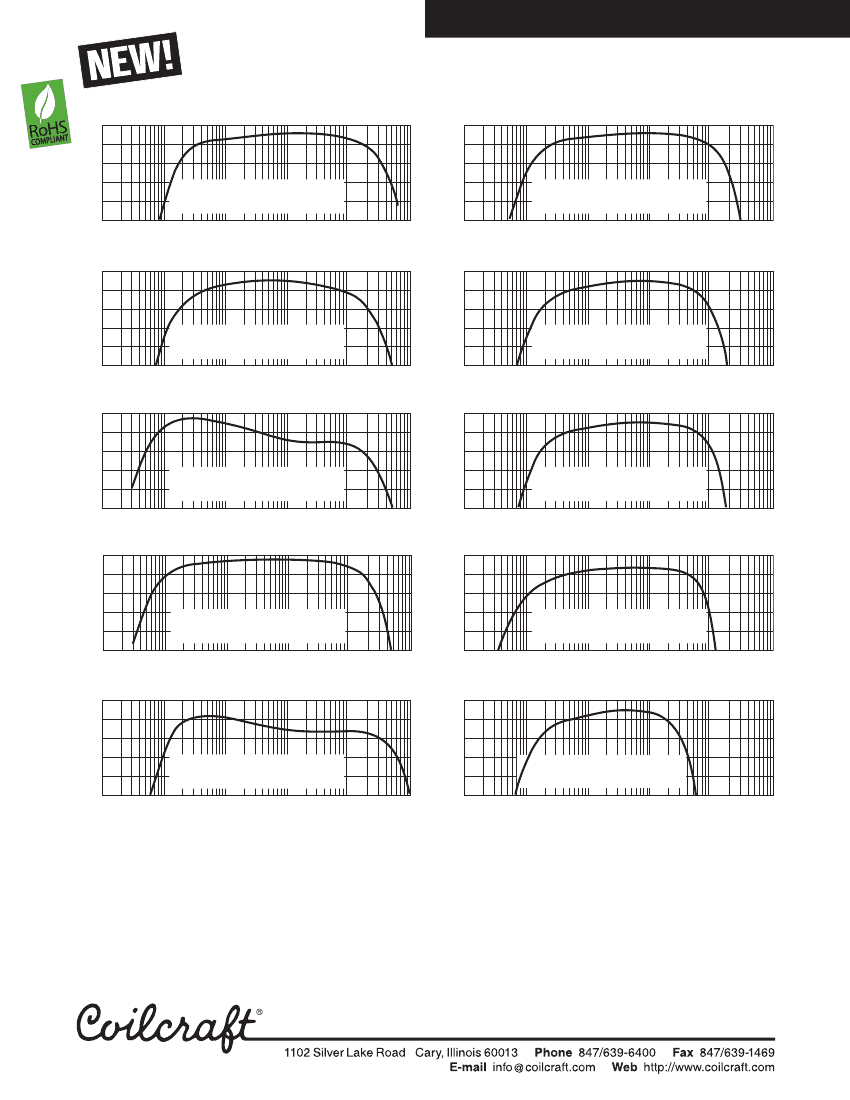

Document 425-4
Transformers with secondary center tap
Attenuation (dB)
1
2
3
4
5
0.01
0.1
1
10
100
1000
Attenuation (dB)
0
0
1
2
3
4
5
0.01
0.1
1
10
100
1000
WB1-1T
3 dB bandwidth: 0.100 – 375 MHz
Frequency (MHz)
WB4-6T
3 dB bandwidth: 0.050 – 200 MHz
Frequency (MHz)
Attenuation (dB)
1
2
3
4
5
0.01
0.1
1
10
100
1000
Attenuation (dB)
0
0
1
2
3
4
5
0.01
0.1
1
10
100
1000
WB1-6T
3 dB bandwidth: 0.050 – 200 MHz
Frequency (MHz)
WB5-1T
3 dB bandwidth: 0.050 – 400 MHz
Frequency (MHz)
Attenuation (dB)
1
2
3
4
5
0.01
0.1
1
10
100
1000
Attenuation (dB)
0
0
1
2
3
4
5
0.01
0.1
1
10
100
1000
WB2-1T
3 dB bandwidth: 0.070 – 400 MHz
Frequency (MHz)
WB8-1T
3 dB bandwidth: 0.150 – 400 MHz
Frequency (MHz)
Attenuation (dB)
1
2
3
4
5
0.01
0.1
1
10
100
1000
Attenuation (dB)
0
0
1
2
3
4
5
0.01
0.1
1
10
100
1000
WB2.5-6T
3 dB bandwidth: 0.050 – 125 MHz
Frequency (MHz)
WB13-1T
3 dB bandwidth: 0.150 – 125 MHz
Frequency (MHz)
Attenuation (dB)
1
2
3
4
5
0.01
0.1
1
10
100
1000
Attenuation (dB)
0
0
1
2
3
4
5
0.01
0.1
1
10
100
1000
WB3-1T
3 dB bandwidth: 0.040 – 500 MHz
Frequency (MHz)
WB16-6T
3 dB bandwidth: 0.050 – 100 MHz
Frequency (MHz)
Attenuation (dB)
0
1
2
3
4
5
0.01
0.1
1
10
100
1000
WB4-1H
3 dB bandwidth: 0.100 – 500 MHz
Frequency (MHz)
Specifications subject to change without notice.
Document 425-4
Revised 11/03/05
© Coilcraft, Inc. 2005

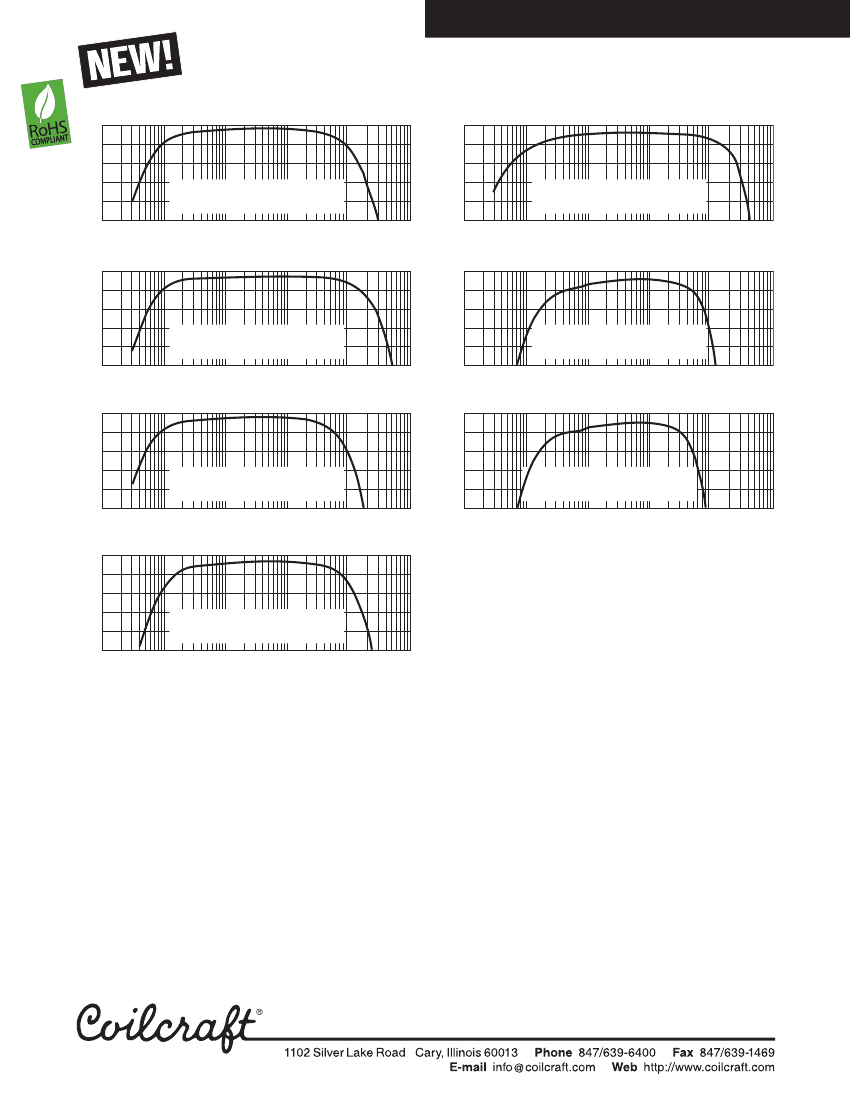

Document 425-5
Transformers with primary and secondary center taps
Attenuation (dB)
1
2
3
4
5
0.01
0.1
1
10
100
1000
Attenuation (dB)
0
0
1
2
3
4
5
0.01
0.1
1
10
100
1000
WBT1-6
3 dB bandwidth: 0.040 – 200 MHz
Frequency (MHz)
WBT4-1A
3 dB bandwidth: 0.040 – 350 MHz
Frequency (MHz)
Attenuation (dB)
1
2
3
4
5
0.01
0.1
1
10
100
1000
Attenuation (dB)
0
0
1
2
3
4
5
0.01
0.1
1
10
100
1000
WBT1.5-1
3 dB bandwidth: 0.040 – 350 MHz
Frequency (MHz)
WBT16-1
3 dB bandwidth: 0.100 – 100 MHz
Frequency (MHz)
Attenuation (dB)
1
2
3
4
5
0.01
0.1
1
10
100
1000
Attenuation (dB)
0
0
1
2
3
4
5
0.01
0.1
1
10
100
1000
WBT2.5-6
3 dB bandwidth: 0.050 – 100 MHz
Frequency (MHz)
WBT25-1
3 dB bandwidth: 0.100 – 65 MHz
Frequency (MHz)
Attenuation (dB)
0
1
2
3
4
5
0.01
0.1
1
10
100
1000
WBT4-1
3 dB bandwidth: 0.050 – 150 MHz
Frequency (MHz)
Specifications subject to change without notice.
Document 425-5
Revised 11/03/05
© Coilcraft, Inc. 2005
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

Motor PLC control ladder diagram

TDA1510 power amplifier application 02

Video game time bomb circuit

Sawtooth wave oscillator composed of integrating circuit and comparator

Constant current/constant voltage (CC/CV) charging circuit

Internal structural block diagram of MCP component (MMl521XV) and its protection circuit

Fluke-279FC——New World
The "visible light" band that the human eye can see is actually only a very narrow section of the entire electromagnetic spectrum. Let's use the Fluke-279FC to take a look at what the world of infrare...
tianshuihu Test/Measurement
Detailed analysis of the power-on sequence of TMS320F28335 and TMS320F2812
Nowadays, with the continuous development of semiconductor technology and the increasingly stringent requirements of electronic products for power consumption, major chip manufacturers generally adopt...
zhscumt DSP and ARM Processors
Looking for graduation project~~~ Title: "Automatic monitoring system for liquid dripping"
...
barbara520025
I need help. The same program is downloaded to two STM8 three-in-one boards. The results are different.
Can anyone explain to me why the same program and cosmic are downloaded to two STM8 three-in-one boards of the same series, but the results are so different?I use STM8s207sb. When I used the 12864 dri...
jxpxlee stm32/stm8
The timing problem encountered during vga transmission is urgently needed to be solved
This is my code: module VGA(clk,rst_n,vgar,vgab,vgag,vga_vs,vga_hs); input clk,rst_n; //50Mhz output [3:0] vgar; output [3:0] vgag; output [3:0] vgab; output vga_vs; output vga_hs; reg [10:0]ths; //ro...
若华 FPGA/CPLD
I can't deny that the things I changed are all very different. If you don't believe me, look.
[font=微软雅黑][size=5]I cannot deny that the things I changed are all very different. If you don’t believe me, take a look. [/size][/font]{:1_137:}...
cardin6 Talking
Shortcut:   00 01 02 03 04 05 06 07 08 09 0A 0C 0F 0J 0L 0M 0R 0S 0T 0Z 10 11 12 13 14 15 16 17 18 19 1A 1B 1C 1D 1E 1F 1H 1K 1M 1N 1P 1S 1T 1V 1X 1Z 20 21 22 23 24 25 26 27 28 29 2A 2B 2C 2D 2E 2F 2G 2K 2M 2N 2P 2Q 2R 2S 2T 2W 2Z 30 31 32 33 34 35 36 37 38 39 3A 3B 3C 3D 3E 3F 3G 3H 3J 3K 3L 3M 3N 3P 3R 3S 3T 3V 40 41 42 43 44 45 46 47 48 49 4A 4B 4C 4D 4M 4N 4P 4S 4T 50 51 52 53 54 55 56 57 58 59 5A 5B 5C 5E 5G 5H 5K 5M 5N 5P 5S 5T 5V 60 61 62 63 64 65 66 67 68 69 6A 6C 6E 6F 6M 6N 6P 6R 6S 6T 70 71 72 73 74 75 76 77 78 79 7A 7B 7C 7M 7N 7P 7Q 7V 7W 7X 80 81 82 83 84 85 86 87 88 89 8A 8D 8E 8L 8N 8P 8S 8T 8W 8Y 8Z 90 91 92 93 94 95 96 97 98 99 9A 9B 9C 9D 9F 9G 9H 9L 9S 9T 9W

Popular Components

  1. CD214L-T9.0ALF
  2. D12/CRCW08052001R65%ET1E3
  3. MF50-7232-CB50W
  4. SMBJ60CA-13-F
  5. 1200DGG3004B26B
  6. HL9A-680-KBW
  7. MBF21E12W08SY
  8. 0805N222J101VHTM
  9. BZQ5239B
  10. 1.5KE150CA_B0_00001
  11. 1.5SMCJ180A_R1_00001
  12. A1257WV-S-5P-LE

Popular Articles

  1. Teledyne launches new Geospatial service, a comprehensive solution for ocean and land
  2. Chip shortage leads to poor performance of most Korean fabless companies in Q2, but a few companies grow against the trend
  3. Nidec's electric vehicle drive hub motor is adopted by Yadea's "Battery-Swapping Beast 01"
  4. How do you view the development of in-vehicle monitoring systems?
  5. ATmega168 ALU
  6. Apple and Google have too much control over the smartphone market
  7. Renesas Electronics Launches New Automotive Actuator and Sensor Control MCU
  8. How to measure noise coefficients using spectrum analyzers, preamplifiers, and signal generators
  9. How to use a multimeter to determine whether a light-emitting diode/LED is good or bad
  10. Multiple ways to realize free port communication between Siemens S7-200PLC and PC

Technical ResourceMore

  1. Zero Voltage Switching Multi-Resonant Three-Level DC-DC Converter
  2. Common knowledge documents for digital IC circuit design written test and interview
  3. ascii quick search tool
  4. Fudan University Open Source Chip Design--H.265/HEVC Encoder IP Core V2.0
  5. How to use long integer variables in COSMIC
  6. Protues simulation example (8051) -Max7221 dynamic display.rar
  7. Protues simulation example (8051)-8051+Leaf.rar
  8. Altium Designer schematic library battery and power supply.SCHLIB
  9. Altium-Common 3D Package Library (Step) [Common Patch] PQFP-52.rar
  10. Introduction to switching power supply design knowledge

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 1615  633  2405  55  2429  33  13  49  2  14
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
