CTRJG33S1GYU1223C datasheet, PDF

Datasheet> All Categories > The connector> The connector> CTRJG33S1GYU1223C

CTRJG33S1GYU1223C: DescriptionTelecom and Datacom Connector, ROHS COMPLIANT; CategoryThe connector The connector; File Size2MB，20 Pages; ManufacturerCT [ Central Technologies ]; Environmental Compliance

Download Datasheet Parametric View All

CTRJG33S1GYU1223C Overview

Telecom and Datacom Connector, ROHS COMPLIANT

CTRJG33S1GYU1223C Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CT [ Central Technologies ]
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	TELECOM AND DATACOM CONNECTOR

Preview

Download Datasheet

View All

Integrated RJ45 Magnetic Connectors

ctparts.com

Not shown at actual size.

10/100/1000 Gigabit Ethernet RJ45

Integrated Modular Jack

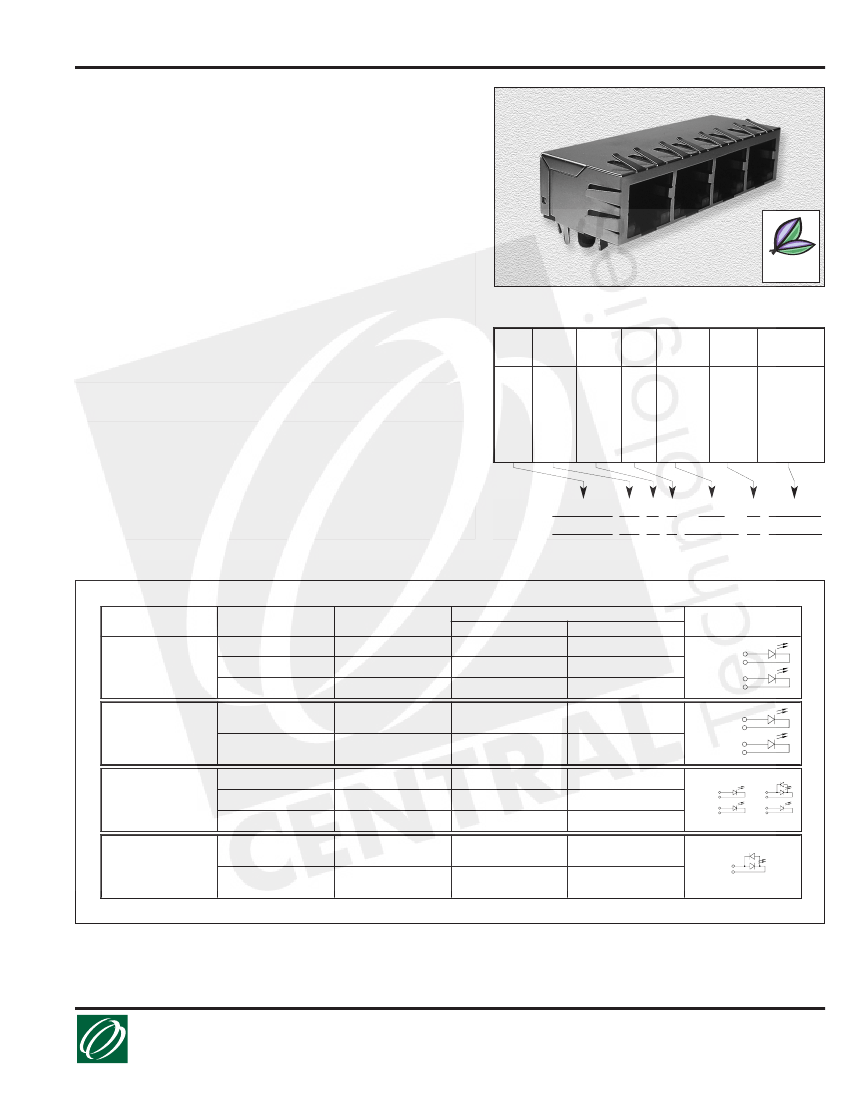

CHARACTERISTICS

Options: 1x2, 1x4, 1x6,1x8 & 2x1, 2x4, 2x6, 2x8 Port

Meets or exceeds IEEE 802.3 standard for 10/100/1000 Base-TX

Suitable for CAT 5 & 6 Fast Ethernet Cable of better UTP

350 µH minimum OCL with 8mA DC bias current

Available with or without LEDs

Minimum 1500Vrms isolation per IEEE 802.3 requirement

Operating temperature 0°C to +70°C

Storage temperature -40°C to +85°C

RoHS Compliant

CTRJG Series

Compliant

RoHS

PART NUMBER CONFIGURATION

Series

Size

Code

Layers

Port

(Each

Layer)

LED

(L/R)

Tab

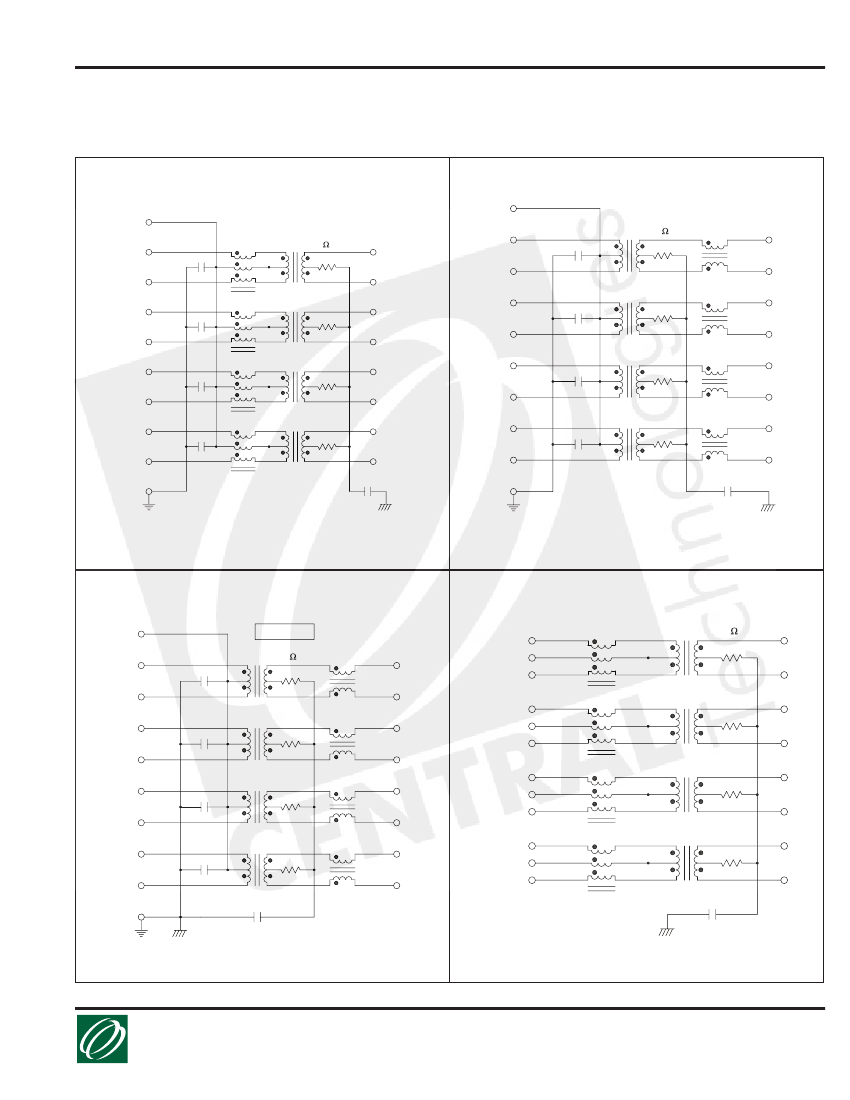

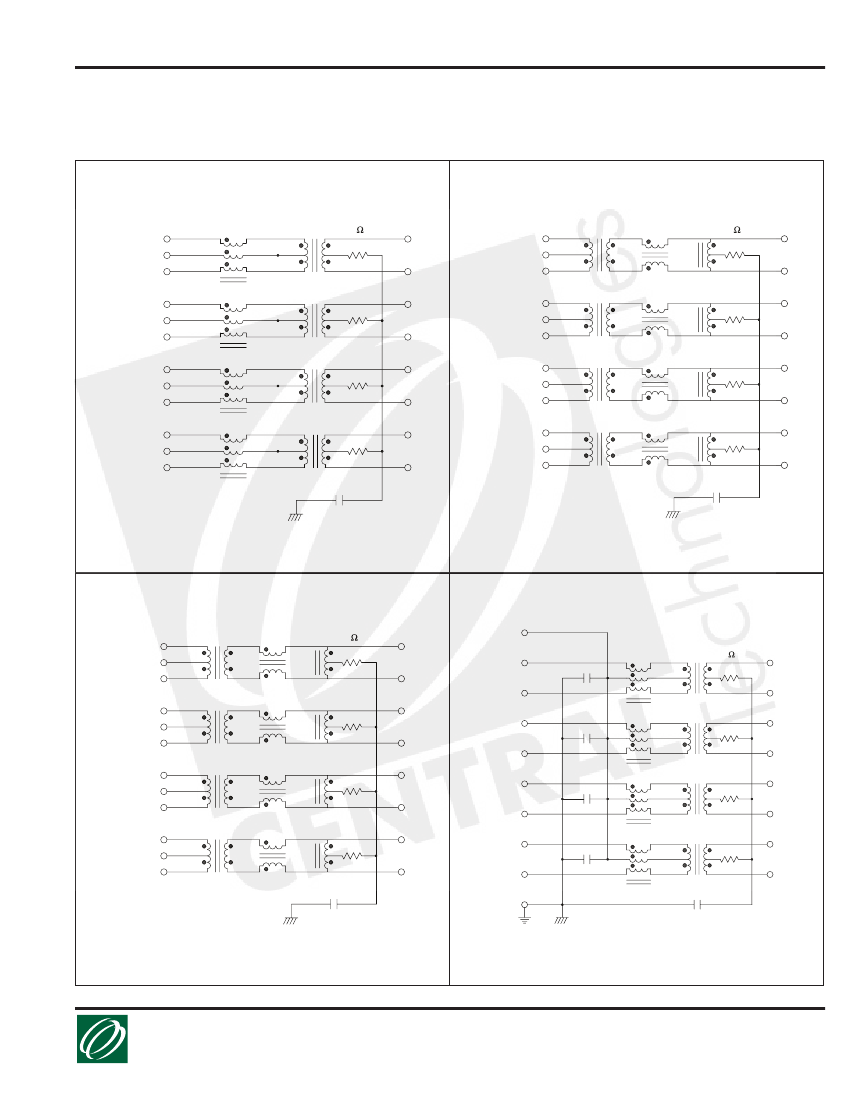

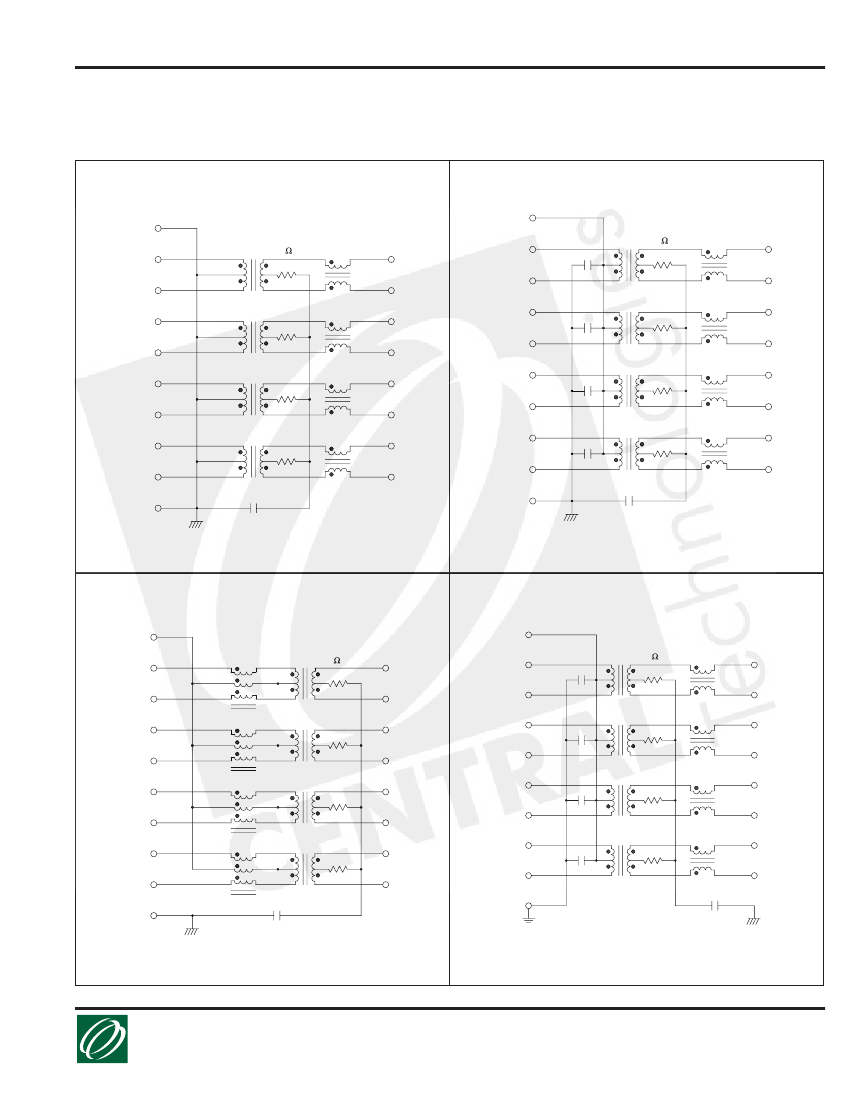

Schematic

Transformer electrical specifications @ 25°C

CTRJG

MATERIAL SPECIFICATION

Metal Shell:

Copper Alloy, Finish: 50µ" Nickel

Housing:

Thermoplastic, UL 94V-0, Color Black

Insert:

Thermoplastic , UL 94V-0, Color Black

Contact Terminal / Phosphor Bronze, 15µ" Gold on Contact Area,

100µ" Tin on Solder, Both over 50µ", Nickel Under-Plated

Coil Base:

Phenolic/LCP , UL 94V-0, Color Black

S = Single

D = Double

N = None

G = Green

Y = Yellow

O = Orange

N = N/A

D = Down

U = Up

1001A, 1002A

1003A, 1012A

1013A, 1012B

1015B, 1223C

1224C, 1226C

1227C, 1013D

1015D

Single Layer:

Double Layer:

CTRJG 26 S 1 GY U 1001A

CTRJG 31 D 1 GONN N 1013D

LED CONFIGURATION

V / IF= 20 mA

Max.

2.5V

Typ.

2.1V

Left LED

Schematic

1001A

1002A

1003A

1012A

1013A

Standard LED

Yellow

Green

Orange

Yellow

Green

Yellow

Green

Orange

Green

Orange

Wavelength (λ)

585nm

570nm

605nm

585nm

570nm

585nm

570nm

605nm

570nm

605nm


P14

P13

P12

2.1V

P16

Right LED

P11

P12

Left LED

P11

P14

Right LED

P13

1012B

1015B

1223C

1224C

1226C

1227C

P16

P15

P14

P13

2.1V

Left LED

P15

P14

P13

Right LED

1013D

1015D

Green

P11

LEDs

P12

Orange

2.1V

06.06.07

Technologies

Manufacturer of Passive and Discrete Semiconductor Components

800-684-5322

Inside US

949-453-1811

Outside US

CT Magnetics reserves the right to make improvements or change specifications without notice

CENTRAL
