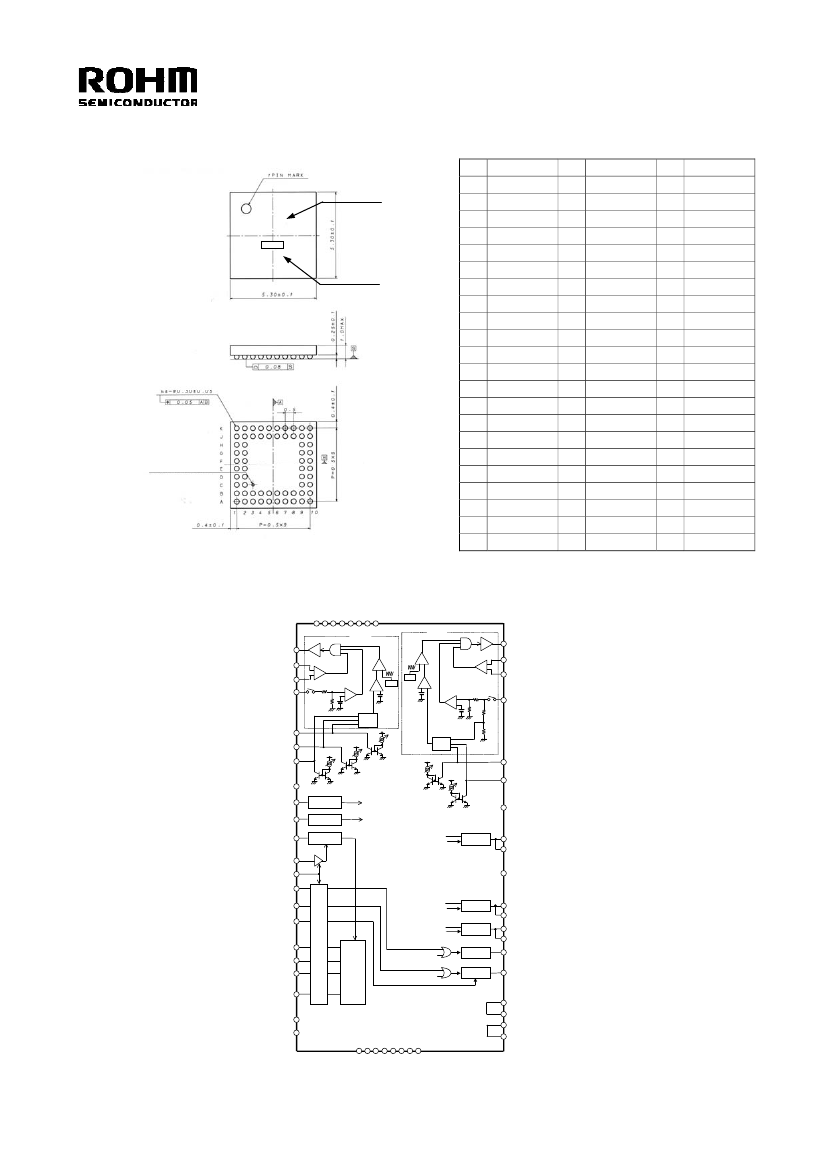

1/4

Structure

Product Name

Silicon Monolithic Integrated Circuit

Power supply for CCD camera / White LED driver / RGB LED driver

for mobile phone

Type

BD6025GU

A system power supply for the CCD camera module

Built-in white LED driver and RGB LED driver

Features

○Absolute

Maximum Ratings (Ta=25 C)

Parameter

Symbol

Rating

Unit

Condition

Maximum Applied Voltage 1

VMAX1

20(*1)

Maximum Applied Voltage 2

VMAX2

16(*2)

Maximum Applied Voltage 3

VMAX3

15(*3)

Maximum Applied Voltage 4

VMAX4

-13.5(*4)

Maximum Applied Voltage 5

VMAX5

6(*5)

Power Dissipation

2413(*6)

Operating Temperature Range

Topr

-30 to 85

Storage Temperature Range

Tstg

-55 to 150

(*1) VPLUS11, VPLUS12, SBD, SBDSENS, VPLUS2 pin

(*2) CAMP, CAMPS pin

(*3) LEDR, LEDG, LEDB, BKLED, FLED1 pin (*4) VNEG, CAMN, CAMNS pin

(*5) Except Note1~Note4 pin

(*6) Power dissipation deleting is 19.3mW/ C, when it’s used in over 25 C.

(It’s deleting is on the board that is ROHM’s standard)）

○Recommended

operating conditions (VBAT≥VIO, Ta=-30 to 85 C)

Rating

Min.

Typ.

Max.

VBAT input voltage

VBAT

2.7

3.6

4.5

VIO input voltage

VIO

1.62

3.3

This product isn’t designed to protect itself against radioactive rays.

Parameter

Symbol

Unit

Condition

REV. C

4/4

○Cautions

on use

(1) Absolute Maximum Ratings

An excess in the absolute maximum ratings, such as supply voltage, temperature range of operating conditions, etc., can

break down devices, thus making impossible to identify breaking mode such as a short circuit or an open circuit. If any

special mode exceeding the absolute maximum ratings is assumed, consideration should be given to take physical safety

measures including the use of fuses, etc.

(2) Power supply and GND line

Design PCB pattern to provide low impedance for the wiring between the power supply and the GND lines. Pay attention

to the interference by common impedance of layout pattern when there are plural power supplies and GND lines.

Especially, when there are GND pattern for small signal and GND pattern for large current included the external

circuits, please separate each GND pattern. Furthermore, for all power supply terminals to ICs, mount a capacitor

between the power supply and the GND terminal. At the same time, in order to use a capacitor, thoroughly check to be

sure the characteristics of the capacitor to be used present no problem including the occurrence of capacity dropout at a

low temperature, thus determining the constant.

(3) GND voltage

Make setting of the potential of the GND terminal so that it will be maintained at the minimum in any operating state.

Furthermore, check to be sure no terminals are at a potential lower than the GND voltage including an actual electric

transient.

(4) Short circuit between terminals and erroneous mounting

In order to mount ICs on a set PCB, pay thorough attention to the direction and offset of the ICs. Erroneous mounting can

break down the ICs. Furthermore, if a short circuit occurs due to foreign matters entering between terminals or between

the terminal and the power supply or the GND terminal, the ICs can break down.

(5) Operation in strong electromagnetic field

Be noted that using ICs in the strong electromagnetic field can malfunction them.

(6) Input terminals

In terms of the construction of IC, parasitic elements are inevitably formed in relation to potential. The operation of the

parasitic element can cause interference with circuit operation, thus resulting in a malfunction and then breakdown of the

input terminal. Therefore, pay thorough attention not to handle the input terminals, such as to apply to the input terminals a

voltage lower than the GND respectively, so that any parasitic element will operate. Furthermore, do not apply a voltage to

the input terminals when no power supply voltage is applied to the IC. In addition, even if the power supply voltage is

applied, apply to the input terminals a voltage lower than the power supply voltage or within the guaranteed value of

electrical characteristics.

(7) External capacitor

In order to use a ceramic capacitor as the external capacitor, determine the constant with consideration given to a

degradation in the nominal capacitance due to DC bias and changes in the capacitance due to temperature, etc.

(8) Thermal shutdown circuit (TSD)

This LSI builds in a thermal shutdown (TSD)circuit. A thermal shutdown circuit works when the junction temperature

is beyond detection temperature. Then, a part of the LSI or all is made a state of off. The thermal shutdown circuit,

which is aimed at isolating the LSI from thermal runaway as much as possible, is not aimed at the protection or

guarantee of the LSI. Therefore, do not continuously use the LSI with this circuit operating or use the LSI assuming

its operation.

(9) Thermal design

Perform thermal design in which there are adequate margins by taking into account the permissible dissipation (Pd)

in actual states of use.

(10) LDO

Use each output of LDO by the independence. Don’t use under the condition that each output is short-circuited

because it has the possibility that a operation becomes unstable.

(11) DC/DC converter

Please select the low DCR inductors to decrease power loss for DC/DC converter. Please choose the external parts

not to exceed "Maximum Ratings" of the coil, the switching transistor, the diode and the resistance for the electric

current detection".

(12) Other cautions on use

Please consult supplementary documents such as technical notebook, function manual and application notebook of

this LSI.

REV. C

Notice

Notes

No copying or reproduction of this document, in part or in whole, is permitted without the

consent of ROHM Co.,Ltd.

The content specified herein is subject to change for improvement without notice.

The content specified herein is for the purpose of introducing ROHM's products (hereinafter

"Products"). If you wish to use any such Product, please be sure to refer to the specifications,

which can be obtained from ROHM upon request.

Examples of application circuits, circuit constants and any other information contained herein

illustrate the standard usage and operations of the Products. The peripheral conditions must

be taken into account when designing circuits for mass production.

Great care was taken in ensuring the accuracy of the information specified in this document.

However, should you incur any damage arising from any inaccuracy or misprint of such

information, ROHM shall bear no responsibility for such damage.

The technical information specified herein is intended only to show the typical functions of and

examples of application circuits for the Products. ROHM does not grant you, explicitly or

implicitly, any license to use or exercise intellectual property or other rights held by ROHM and

other parties. ROHM shall bear no responsibility whatsoever for any dispute arising from the

use of such technical information.

The Products specified in this document are intended to be used with general-use electronic

equipment or devices (such as audio visual equipment, office-automation equipment, commu-

nication devices, electronic appliances and amusement devices).

The Products specified in this document are not designed to be radiation tolerant.

While ROHM always makes efforts to enhance the quality and reliability of its Products, a

Product may fail or malfunction for a variety of reasons.

Please be sure to implement in your equipment using the Products safety measures to guard

against the possibility of physical injury, fire or any other damage caused in the event of the

failure of any Product, such as derating, redundancy, fire control and fail-safe designs. ROHM

shall bear no responsibility whatsoever for your use of any Product outside of the prescribed

scope or not in accordance with the instruction manual.

The Products are not designed or manufactured to be used with any equipment, device or

system which requires an extremely high level of reliability the failure or malfunction of which

may result in a direct threat to human life or create a risk of human injury (such as a medical

instrument, transportation equipment, aerospace machinery, nuclear-reactor controller,

fuel-controller or other safety device). ROHM shall bear no responsibility in any way for use of

any of the Products for the above special purposes. If a Product is intended to be used for any

such special purpose, please contact a ROHM sales representative before purchasing.

If you intend to export or ship overseas any Product or technology specified herein that may

be controlled under the Foreign Exchange and the Foreign Trade Law, you will be required to

obtain a license or permit under the Law.

Thank you for your accessing to ROHM product informations.

More detail product informations and catalogs are available, please contact us.

ROHM Customer Support System

http://www.rohm.com/contact/

www.rohm.com

R0039A
