UWP-12/500-D48

Description
DC-DC Regulated Power Supply Module, 1 Output, 3W, Hybrid, ROHS COMPLIANT, PLASTIC, DIP-24/12
CategoryPower/power management    The power supply circuit
File Size599KB，4 Pages
ManufacturerMurata
Websitehttps://www.murata.com
Download Datasheet Parametric Compare View All

UWP-12/500-D48 Overview

DC-DC Regulated Power Supply Module, 1 Output, 3W, Hybrid, ROHS COMPLIANT, PLASTIC, DIP-24/12

UWP-12/500-D48 Parametric

Parameter NameAttribute value
MakerMurata
Parts packaging codeDIP
package instruction,
Contacts24/12
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresSEATED HGT CALCULATED
Analog Integrated Circuits - Other TypesDC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage72 V
Minimum input voltage18 V
Nominal input voltage48 V
JESD-30 codeR-PDMA-T12
length31.75 mm
Maximum load regulation0.5%
Number of functions1
Output times1
Number of terminals12
Maximum operating temperature75 °C
Minimum operating temperature-40 °C
Maximum output voltage12.12 V
Minimum output voltage11.88 V
Nominal output voltage12 V
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formMICROELECTRONIC ASSEMBLY
Certification statusNot Qualified
Maximum seat height12.07 mm
surface mountNO
technologyHYBRID
Temperature levelOTHER
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum total power output3 W
Fine-tuning/adjustable outputNO
width20.32 mm

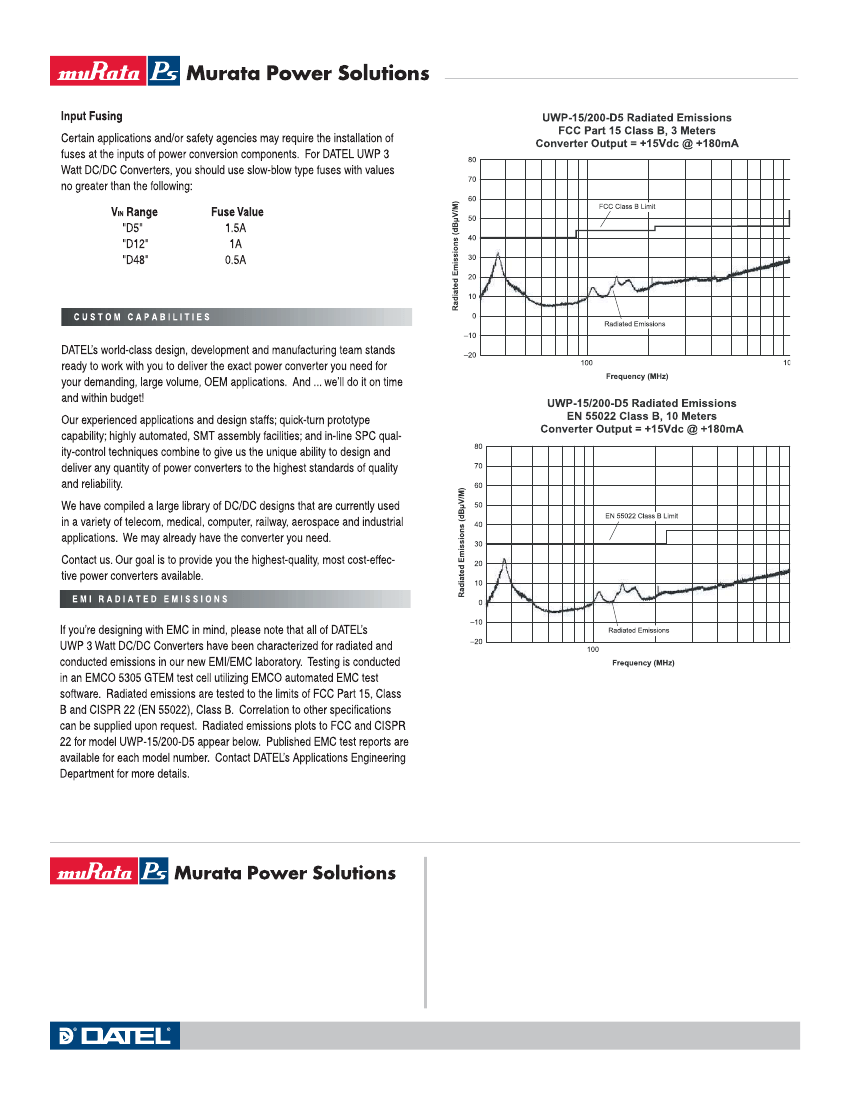

Preview

Download Datasheet
www.murata-ps.com
UWP Models
DIP-Packaged, Standard Pinout 3-Watt DC/DC Converters
OBSOLETE PRODUCT
Contact Factory for Replacement Model
　
For full details go to
www.murata-ps.com/rohs
www.murata-ps.com
Technical enquiries
email: sales@murata-ps.com, tel:
+1 508 339 3000
MDC_RBC.17.A01 Draft 2
Page 1 of 4

UWP-12/500-D48 Related Products

UWP-12/500-D48 UWP-12/500-D5 UWP-12/250-D48 UWP-15/500-D5 UWP-12/500-D12 UWP-15/500-D48 UWP-5/500-D12 UWP-5/500-D5 UWP-5/500-D48
Description DC-DC Regulated Power Supply Module, 1 Output, 3W, Hybrid, ROHS COMPLIANT, PLASTIC, DIP-24/12 DC-DC Regulated Power Supply Module, 1 Output, 3W, Hybrid, ROHS COMPLIANT, PLASTIC, DIP-24/12 DC/DC converter and regulator 3W 12v TO 48v 250ma DC-DC Regulated Power Supply Module, 1 Output, 3W, Hybrid, ROHS COMPLIANT, PLASTIC, DIP-24/12 DC-DC Regulated Power Supply Module, 1 Output, 3W, Hybrid, ROHS COMPLIANT, PLASTIC, DIP-24/12 DC-DC Regulated Power Supply Module, 1 Output, 3W, Hybrid, ROHS COMPLIANT, PLASTIC, DIP-24/12 DC-DC Regulated Power Supply Module, 1 Output, 2.5W, Hybrid, PLASTIC, DIP-24/12 DC-DC Regulated Power Supply Module, 1 Output, 2.5W, Hybrid, PLASTIC, DIP-24/12 DC-DC Regulated Power Supply Module, 1 Output, 2.5W, Hybrid, PLASTIC, DIP-24/12
Parts packaging code DIP DIP DIP DIP DIP DIP DIP DIP DIP
Contacts 24/12 24/12 24 24/12 24/12 24/12 24/12 24/12 24/12
Reach Compliance Code compliant compli unknown compliant compliant compliant unknown unknown unknown
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Analog Integrated Circuits - Other Types DC-DC REGULATED POWER SUPPLY MODULE DC-DC REGULATED POWER SUPPLY MODULE DC-DC REGULATED POWER SUPPLY MODULE DC-DC REGULATED POWER SUPPLY MODULE DC-DC REGULATED POWER SUPPLY MODULE DC-DC REGULATED POWER SUPPLY MODULE DC-DC REGULATED POWER SUPPLY MODULE DC-DC REGULATED POWER SUPPLY MODULE DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage 72 V 9 V 72 V 9 V 18 V 72 V 18 V 9 V 72 V
Minimum input voltage 18 V 4.5 V 18 V 4.5 V 9 V 18 V 9 V 4.5 V 18 V
Nominal input voltage 48 V 5 V 48 V 5 V 12 V 48 V 12 V 5 V 48 V
JESD-30 code R-PDMA-T12 R-PDMA-T12 R-PDMA-T24 R-PDMA-T12 R-PDMA-T12 R-PDMA-T12 R-PDMA-T12 R-PDMA-T12 R-PDMA-T12
length 31.75 mm 31.75 mm 31.75 mm 31.75 mm 31.75 mm 31.75 mm 31.75 mm 31.75 mm 31.75 mm
Maximum load regulation 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5% 0.5%
Number of functions 1 1 1 1 1 1 1 1 1
Output times 1 1 1 1 1 1 1 1 1
Number of terminals 12 12 24 12 12 12 12 12 12
Maximum operating temperature 75 °C 75 °C 75 °C 75 °C 75 °C 75 °C 75 °C 75 °C 75 °C
Minimum operating temperature -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C
Maximum output voltage 12.12 V 12.12 V 12.12 V 15.15 V 12.12 V 15.15 V 5.05 V 5.05 V 5.05 V
Minimum output voltage 11.88 V 11.88 V 11.88 V 14.85 V 11.88 V 14.85 V 4.95 V 4.95 V 4.95 V
Nominal output voltage 12 V 12 V 12 V 15 V 12 V 15 V 5 V 5 V 5 V
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
Maximum seat height 12.07 mm 12.07 mm 11.43 mm 12.07 mm 12.07 mm 12.07 mm 12.07 mm 12.07 mm 12.07 mm
surface mount NO NO NO NO NO NO NO NO NO
technology HYBRID HYBRID HYBRID HYBRID HYBRID HYBRID HYBRID HYBRID HYBRID
Temperature level OTHER OTHER OTHER OTHER OTHER OTHER OTHER OTHER OTHER
Terminal form THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE
Terminal pitch 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm
Terminal location DUAL DUAL DUAL DUAL DUAL DUAL DUAL DUAL DUAL
Maximum total power output 3 W 3 W 3 W 3 W 3 W 3 W 2.5 W 2.5 W 2.5 W
Fine-tuning/adjustable output NO NO NO NO NO NO NO NO NO
width 20.32 mm 20.32 mm 20.32 mm 20.32 mm 20.32 mm 20.32 mm 20.32 mm 20.32 mm 20.32 mm
Other features SEATED HGT CALCULATED SEATED HGT CALCULATED - SEATED HGT CALCULATED SEATED HGT CALCULATED SEATED HGT CALCULATED SEATED HGT CALCULATED SEATED HGT CALCULATED SEATED HGT CALCULATED
Base Number Matches - 1 1 1 1 1 1 1 -
