YFW-40-09-H-08-SB-K-TR datasheet, PDF

Datasheet> All Categories > The connector> The connector> YFW-40-09-H-08-SB-K-TR

YFW-40-09-H-08-SB-K-TR: DescriptionBoard Stacking Connector, 320 Contact(s), 8 Row(s), Male, Straight, Surface Mount Terminal,; CategoryThe connector The connector; File Size624KB，4 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

YFW-40-09-H-08-SB-K-TR Overview

Board Stacking Connector, 320 Contact(s), 8 Row(s), Male, Straight, Surface Mount Terminal,

YFW-40-09-H-08-SB-K-TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	SAMTEC
Reach Compliance Code	not_compliant
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	BRASS
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	8
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	320

Preview

Download Datasheet

View All

REVISION X

DO NOT

SCALE FROM

THIS PRINT

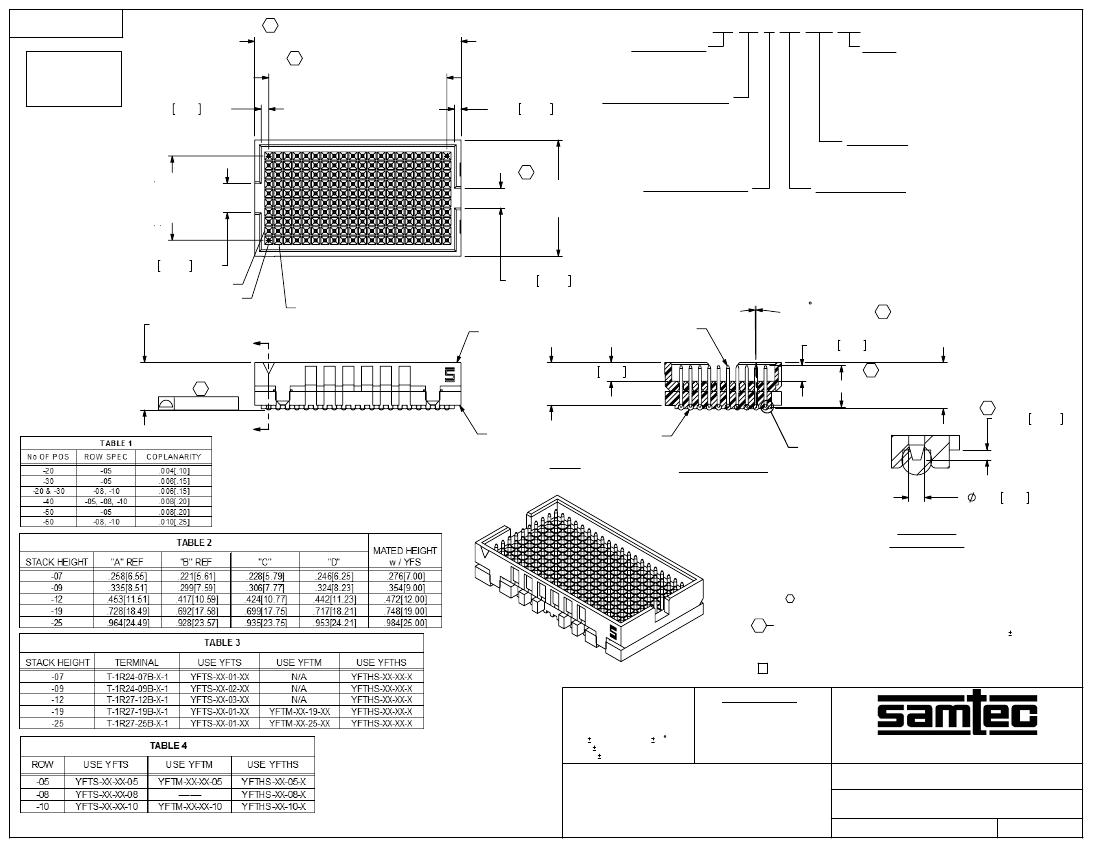

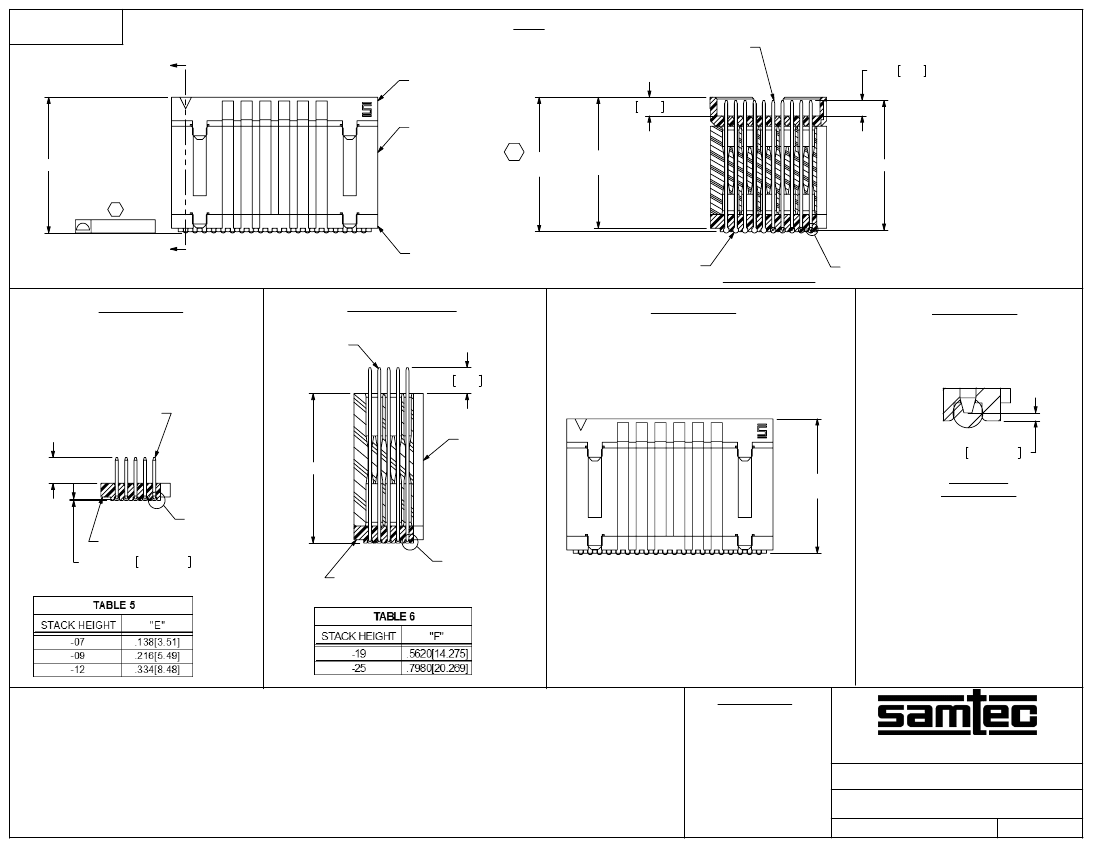

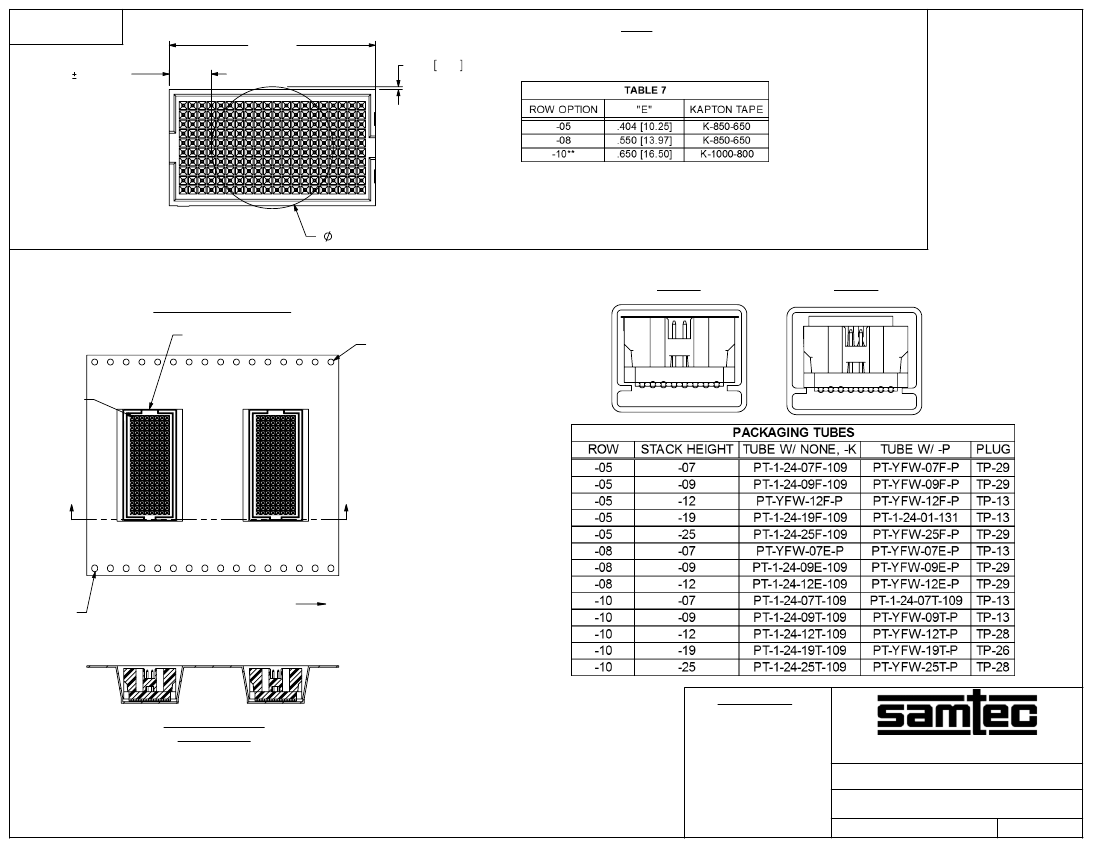

.040 1.02 REF

YFW-XX-XX-X-XX-XSB-XX

(No OF POS x .0500[1.270]) + .100[2.54]

(No OF POS -1) x .050[1.27]

[TOL NON-ACCUM]

.035 0.889 REF

No OF POSITIONS

-20 THRU -50

(MULTIPLES OF 10 ONLY)

MATED STACK HEIGHT w/ YFS

-07: 7mm

-09: 9mm

-12: 12mm

-19: 19mm (SEE FIG. 2)

-25: 25mm (SEE FIG. 2)

-K: KAPTON PAD (SEE FIG. 3)

OPTION

(AVAILABLE ON -07, -09 & -12

MATED STACKS ONLY)

-TR: TAPE & REEL

[STACK HEIGHT -07 & -09: ALL POSITIONS

-12: POSITIONS UP TO 40x10

-19 & -25: NOT AVAILABLE]

-P: PICK AND PLACE PAD (SEE FIG 4)

(No OF ROWS -1)

x .050[1.27]

[TOL NON-

ACCUM]

PLATING SPECIFICATION

-H: HEAVY GOLD

(USE T-1R2X-XXB-H-1)

-E: EXTRA GOLD

(USE T-1R2X-XXB-E-1)

SOLDER BALLS

-SB: SOLDER BALLS (USE SDB-030-6337)

-MSB: MODIFIED SOLDER BALLS- Pb FREE

(USE SDB-030-9653)

(No OF ROWS

x .0500[1.270])

+ .120[3.05]

ROW SPECIFICATION

-05: FIVE ROWS

-08: EIGHT ROWS

(AVAILABLE ON -07, -09 & -12

MATED STACKS ONLY)

-10: TEN ROWS

.155 3.937 REF

"A" REF

"A"

.105 2.667 REF

11 ( PIN # = NO OF ROWS + 1)

YFTS-XX-XX-XX

** DO NOT DESIGN IN FOR 10-ROW VERSION. ONLY EXISTING

CUSTOMERS, AS OF 2/10/06, WILL BE SUPPORTED. -P OPTION

SHOULD BE USED FOR 10-ROW VERSION.

T-1R2X-XXB-X-1

(SEE TABLE 3)

2.75 MAX SWAY

(ANY DIRECTION)

.083 2.11 REF

NOT RELEASE

= PRODUCTION.FOR

SEE TABLE 1

"A"

"C"

REF

.100 2.54 REF

"B" REF

"D"

(SEE TABLE 2)

YFTHS-XX-XX-X

.0100 0.254

SDB-030-XXXX

YFW-20-07-X-10-SB SHOWN

[STACK HEIGHT -09 & -12 SIMILAR]

FIG 1

'A'

SECTION "A-A"

.016 0.41 REF

DETAIL 'A'

SCALE 10 : 1

NOTES:

[SOLDER BALL REMOVED

FOR CLARITY]

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES.

TOLERANCES ARE:

DECIMALS

REPRESENTS A CRITICAL DIMENSION.

2. BURR ALLOWANCE: .0015[.038] MAX.

3. MINIMUM PUSHOUT FORCE; PRE-PROCESS: 8 OZ, POST-PROCESS: 5 OZ.

4. MAXIMUM ALLOWABLE BOW; TOP/BOTTOM: .006[.15], SIDE/SIDE: .003[.08].

5. ALL DIMS TO BE SYMMETRICAL ABOUT CENTERLINE WITHIN .002[.05].

6. BODY RETENTION BETWEEN WELDED BODIES TO BE 4 LBS MINIMUM TOTAL.

7. WELD FLASH: .020[.51] MAX.

8. -H PLATING MAY BE SUBSTITUTED FOR -G PLATING.

9. NOTE DELETED.

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

.XX: .01[.3]

.XXX: .005[.13]

.XXXX: .0020[.051]

ANGLES

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail: info@SAMTEC.com

code: 55322

DESCRIPTION:

DWG. NO.

MATERIAL:

DO NOT SCALE DRAWING

INSULATOR: LCP, COLOR: BLACK

TERMINAL: BRASS

SOLDER BALL: 63% TIN/ 37% LEAD

F:\DWG\MISC\MKTG\YFW-XX-XX-X-XX-XSB-XX-MKT.SLDDRW

SHEET SCALE: 1.875:1

FleX, Y, Z, .050 CENTERLINE TERMINAL ASSEMBLY

YFW-XX-XX-X-XX-XSB-XX

5/11/2001

SHEET

BY:

DEAN P
