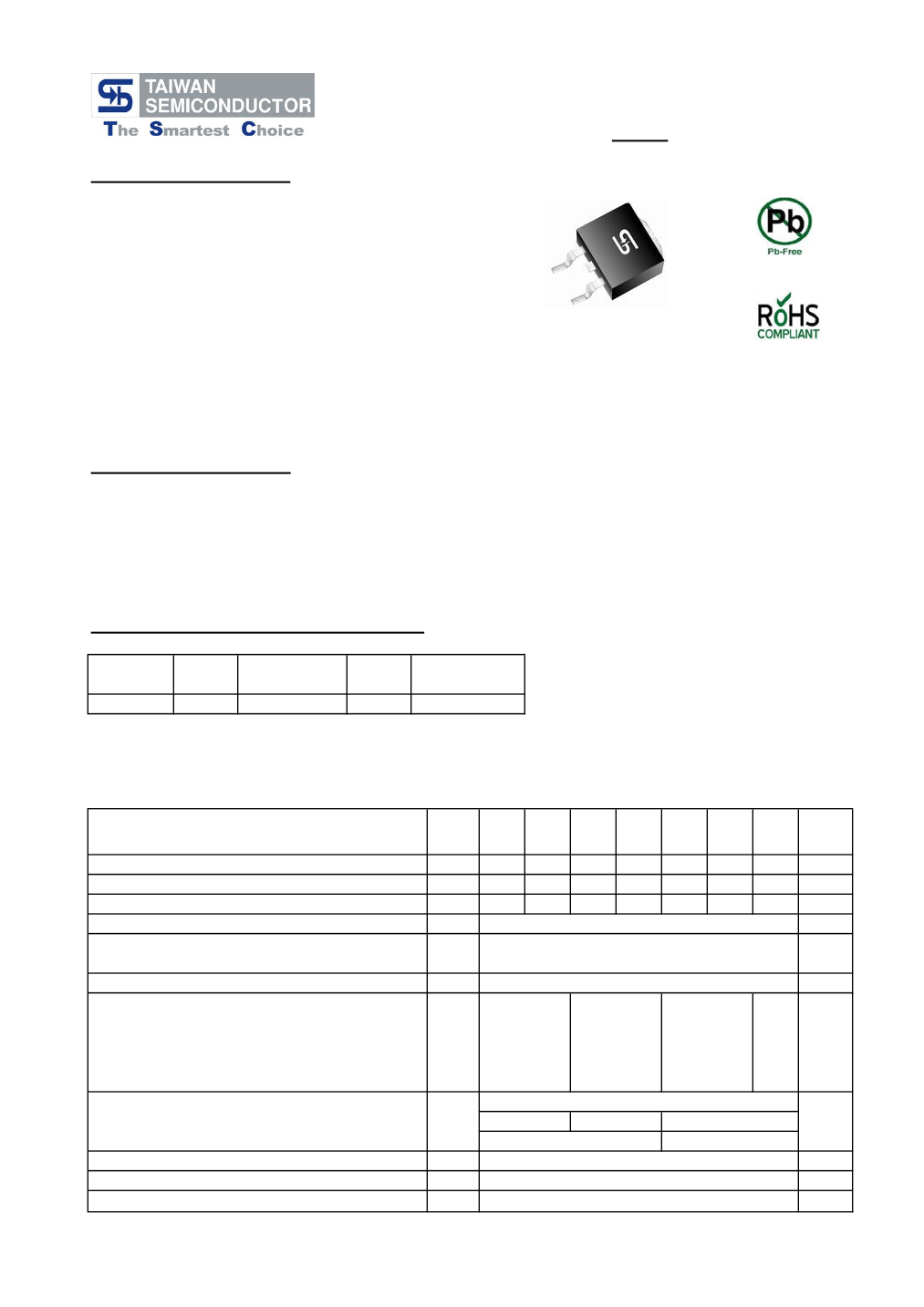

MBRS1035CT - MBRS10150CT
10.0AMPS Surface Mount Schottky Barrier Rectifiers
D
2
PAK
Features
UL Recognized File # E-326854
Plastic material used carriers Underwriters
Laboratory Classification 94V-0
Metal silicon junction, majority carrier conduction
Low power loss, high efficiency
High current capability, low forward voltage drop
High surge capability
For use in low voltage, high frequency inverters,
free wheeling, and polarity protection applications
Guard-ring for overvoltage protection
High temperature soldering guaranteed:
260℃/10 seconds/.25", (6.35mm) from case
Green compound with suffix "G" on packing
code & prefix "G" on datecode
Mechanical Data
Case: JEDEC D
2
PAK molded plastic body
Terminals: Pure tin plated, lead free, solderable
per MIL-STD-750, Method 2026
Polarity: As marked
Mounting position:Any
Mounting torque: 5 in. - lbs, max
Weight: 1.35 grams
Ordering Information
Part No.
MBRS10xxCT
Package
D2PAK
Packing
800 / 13" REEL
Packing
code
RN
Green Compound
Packing code
RNG
Note: "x" is Device Code from "35" thru "150".
Maximum Ratings and Electrical Characteristics
Rating at 25
℃
ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Type Number
Maximum Repetitive Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
Peak Forward Surge Current, 8.3 ms Single Half Sine-wave
Superimposed on Rated Load (JEDEC method)
Peak Repetitive Reverse Surge Current (Note 1)
Maximum Instantaneous Forward Voltage (Note 2)
IF=5A, T
A
=25℃
IF=5A, T
A
=125℃
IF=10A, T
A
=25℃
IF=10A, T
A
=125℃
Maximum Reverse Current @ Rated VR
T
A
=25
℃
T
A
=100
℃
T
A
=125℃
MBRS MBRS MBRS MBRS MBRS MBRS MBRS
Symbol 1035 1045 1050 1060 1090 10100 10150
CT
CT
CT
CT
CT
CT
CT
V
RRM
35
45
50
60
90
100
150
V
RMS
V
DC
I
F(AV)
I
FSM
I
RRM
0.70
V
F
0.57
0.80
0.67
I
R
R
θjC
T
J
T
STG
15
0.80
0.65
0.90
0.75
0.1
10
-
5
2
- 65 to + 150
- 65 to + 175
24
35
31
45
35
50
42
60
10
120
1
0.85
0.75
0.95
0.85
0.88
0.78
0.98
0.88
63
90
70
100
105
150
Unit
V
V
V
A
A
A
V
mA
O
-
Typical Thermal Resistance
Operating Temperature Range
Storage Temperature Range
Note 1: 2.0uS Pulse Width, f=1.0KHz
Note 2: Pulse Test : 300uS Pulse Width, 1% Duty Cycle
C/W
O
O
C
C
Version:G12

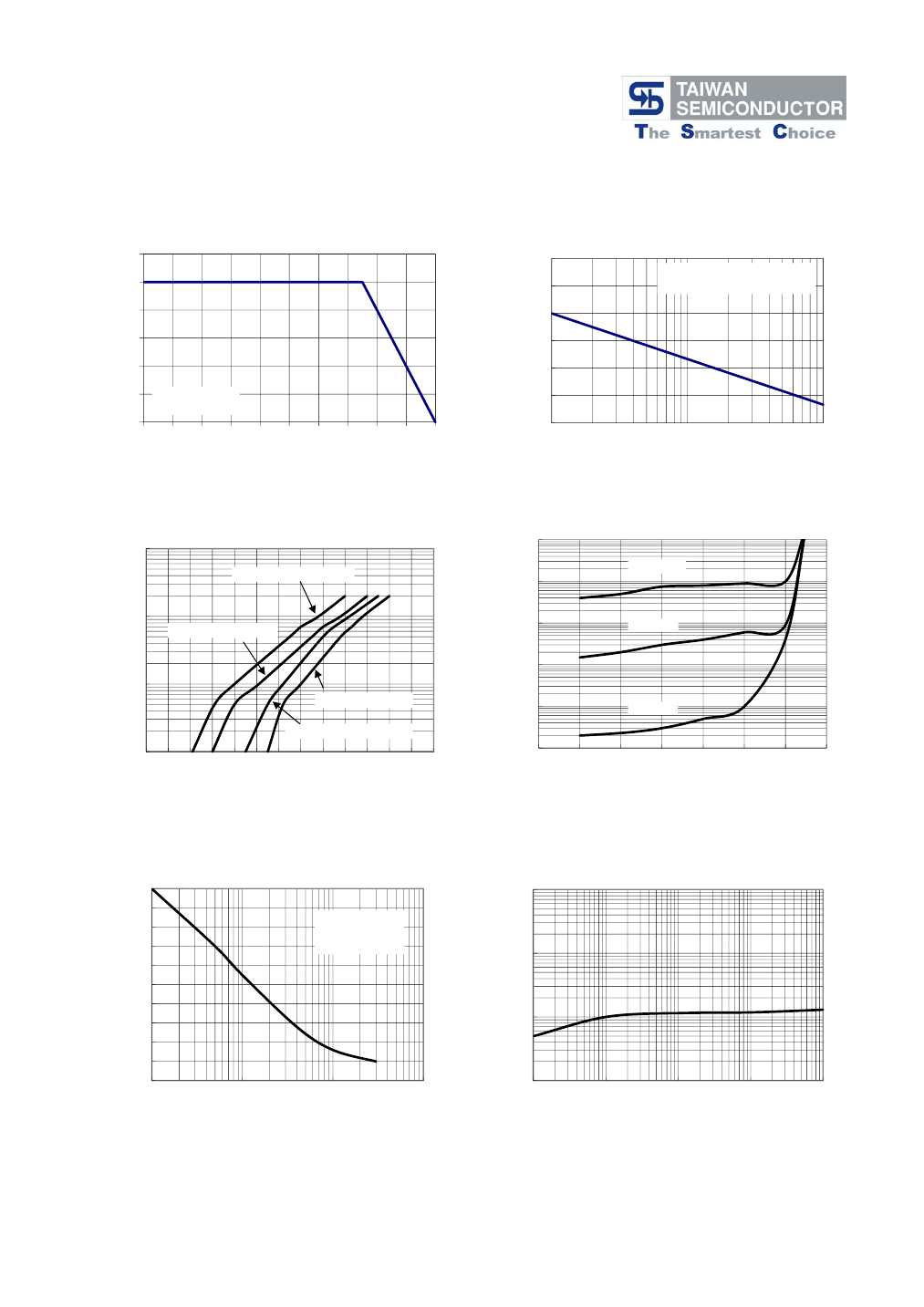

RATINGS AND CHARACTERISTIC CURVES (MBRS1035CT THRU MBRS10150CT)
FIG.1 FORWARD CURRENT DERATING CURVE
12
10
8
6
4
2
0
50
60
70
80
90
100
110
120
130
140
150
CASE TEMPERATURE (
o
C)
RESISTIVE OR
INDUCTIVELOAD
PEAK FORWARD SURGE CURRENT (A)
180
150
120
90
60
30
0
1
FIG. 2 MAXIMUM NON-REPETITIVE FORWARD SURGE
CURRENT PER LEG
8.3mS Single Half Sine Wave
JEDEC Method
AVERAGE FORWARD
A
CURRENT (A)
10
NUMBER OF CYCLES AT 60 Hz
100
FIG. 3 TYPICAL FORWARD CHARACTERISRICS
PER LEG
100
INSTANTANEOUS REVERSE
A
CURRENT (mA)
MBRS1035CT-1045CT
INSTANTANEOUS FORWARD
A
CURRENT (A)
FIG. 4 TYPICAL REVERSE CHARACTERISTICS PER LEG
100
TA=125℃
10
10
MBRS1050CT-
1
TA=75℃
0.1
1
MBRS10150CT
MBRS1090CT-10100CT
0.01
TA=25℃
0.1
0
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9
FORWARD VOLTAGE (V)
1
1.1 1.2 1.3
0.001
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
FIG. 5 TYPICAL JUNCTION CAPACITANCE
1000
900
JUNCTION CAPACITANCE (pF)
A
FIG. 6 TYPICAL TRANSIENT THERMAL IMPEDANCE PER
LEG
100
TA=25℃
f=1.0MHz
Vsig=50mVp-p
TRANSIENT THERMAL IMPEDANCE
A
(℃/W)
800
700
600
500
400
300
200
100
0
0.1
1
10
1
0.1
0.01
0.1
1
T-PULSE DURATION(s)
10
100
10
100
REVERSE VOLTAGE (V)
