V24B12H200BK

Description
DC-DC Regulated Power Supply Module, 1 Output, 200W, Hybrid, MODULE-9
CategoryPower/power management    The power supply circuit
File Size920KB,15 Pages
ManufacturerVICOR
Websitehttp://www.vicorpower.com/
Environmental Compliance
Download Datasheet Parametric View All

V24B12H200BK Overview

DC-DC Regulated Power Supply Module, 1 Output, 200W, Hybrid, MODULE-9

V24B12H200BK Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerVICOR
package instructionMODULE-9
Reach Compliance Codecompliant
ECCN codeEAR99
Analog Integrated Circuits - Other TypesAPSM DCDC
control modeVOLTAGE-MODE
Maximum input voltage36 V
Minimum input voltage18 V
Nominal input voltage24 V
JESD-609 codee4
Maximum grid adjustment rate0.2%
Maximum load regulation0.2%
Number of functions1
Output times1
Number of terminals9
Maximum operating temperature100 °C
Minimum operating temperature-40 °C
Maximum output voltage13.2 V
Minimum output voltage1.2 V
Nominal output voltage12 V
Package body materialUNSPECIFIED
encapsulated codeDFM
Package shapeRECTANGLE
Package formMICROELECTRONIC ASSEMBLY
surface mountNO
technologyHYBRID
Temperature levelINDUSTRIAL
Terminal surfaceGold (Au)
Terminal formPIN/PEG
Terminal locationDUAL
Maximum total power output200 W
Fine-tuning/adjustable outputYES

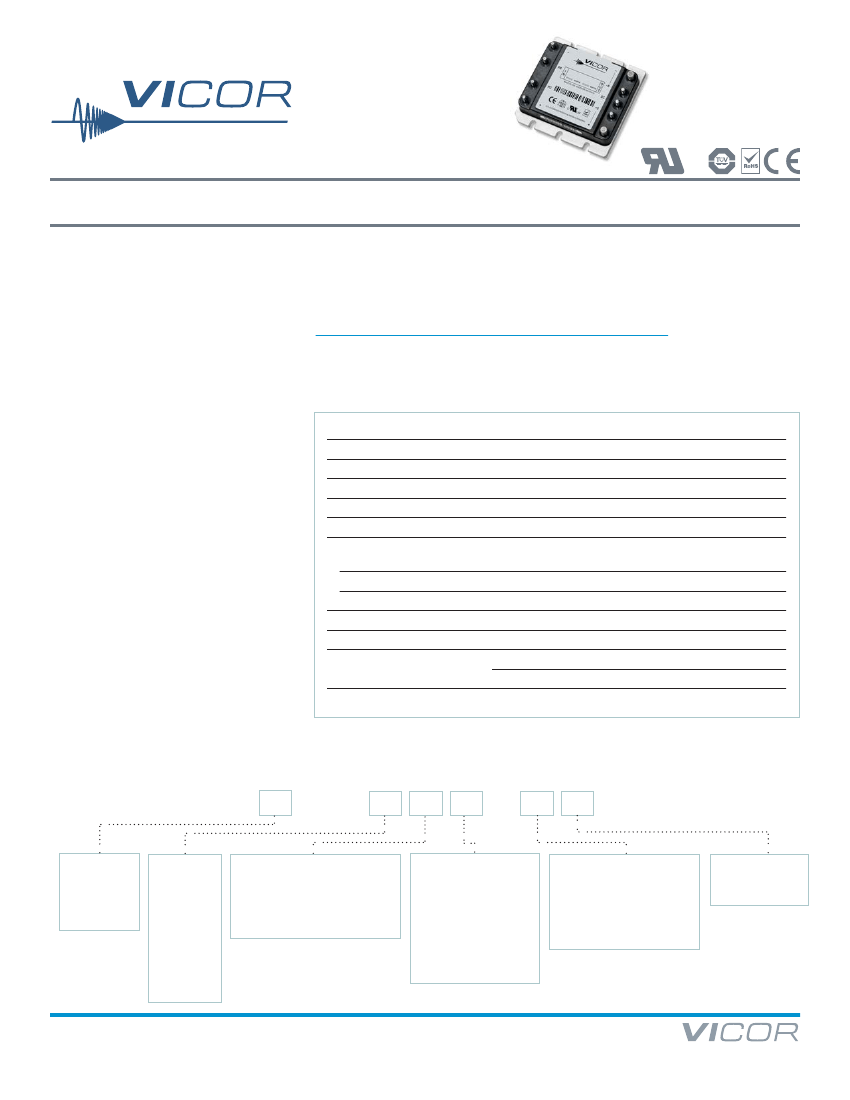

Mini Family
24V Input
Actual size:
2.28 x 2.2 x 0.5in
57,9 x 55,9 x 12,7mm
®
S
C
US
C
NRTL
US
DC-DC Converter Module
Features & Benefits
DC input range: 18 – 36V
Isolated output
Operation to 16V at 75% power
after startup
Input surge withstand: 50V for 100ms
DC output: 3.3 – 48V
Programmable output: 10 to 110%
Regulation: ±0.5% no load to full load
Efficiency: Up to 89%
Maximum operating temp: 100°C,
full load
Power density: up to 80 W per cubic inch
Height above board: 0.43in. (10,9mm)
Parallelable, with N+M fault tolerance
Low noise ZCS/ZVS architecture
RoHS Compliant (with F or G pin option)
Parameter
+IN to –IN voltage
PC to –IN voltage
PR to –IN voltage
SC to -OUT voltage
-Sense to -OUT voltage
Isolation voltage
IN to OUT
IN to base
OUT to base
Operating Temperature
Storage Temperature
Pin soldering temperature
Mounting torque
Rating
-0.5 to +53
-0.5 to +7.0
-0.5 to +7.0
-0.5 to +1.5
1.0
3000
1500
500
-55 to +100
-65 to +125
500 (260)
750 (390)
5 (0.57)
Unit
V
DC
V
DC
V
DC
V
DC
V
DC
V
RMS
V
RMS
V
RMS
°C
°C
°F (°C)
°F (°C)
in-lbs (N-m)
Test voltage
Test voltage
Test voltage
M-Grade
M-Grade
<5 sec; wave solder
<7 sec; hand solder
6 each
Notes
Applications
Industrial and process control, distributed power, medical, ATE, communications,
defense, and aerospace.
For details on proper operation please refer to the:
Design Guide & Applications Manual for Maxi, Mini, Micro Family.
Absolute Maximum Ratings
Product Overview
These DC-DC converter modules use advanced
power processing, control and packaging
technologies to provide the performance,
flexibility, reliability and cost effectiveness of a
mature power component.
High frequency ZCS/ZVS switching provides
high power density with low noise and
high efficiency.
Part Numbering
e.g. V24B12T200BL2
24B
Product Grade Temperatures (°C)
Grade
Operating
Storage
E
= - 10 to +100 - 20 to +125
C
= - 20 to +100 - 40 to +125
T
= - 40 to +100 - 40 to +125
H
= - 40 to +100 - 55 to +125
M
= - 55 to +100 - 65 to +125
B
Output Power
P
OUT
100W, 150W
150W, 200W
200W
200W
150W, 200W, 250W
150W, 200W
150W, 200W, 250W
150W, 200W, 250W
150W, 200W
150W, 200W, 250W
Pin Style
Finish
Blank:
Short
Tin/Lead
L:
Long
Tin/Lead
S:
Short ModuMate
Gold
N:
Long ModuMate
Gold
F:
Short RoHS
Gold
G:
Long RoHS
Gold
K:
Extra Long RoHS
Gold
Baseplate
Blank:
Slotted
2:
Threaded
3:
Through-hole
Product Type
V
= Standard
S
= Enhanced
efficiency
(avail.
≤12
V
OUT
only)
Output Voltage
3V3
= 3.3V
5
= 5V
6.5
= 6.5V
8
=
8V
12
=
12V
15
=
15V
24
=
24V
28
=
28V
36
=
36V
48
=
48V
V
OUT
3.3V
5V
6.5V
8V
12V
15V
24V
28V
36 V
48 V
24V Mini Family
Page 1 of 15
Rev 5.0
02/2017
vicorpower.com
800 927.9474
