HcMOs 3.2x2.5mm 3.3V sMD Oscillator
Model: F330A series
Page 1 of 2
Low Current
RoHs compliant / Pb Free
Rev. 7/23/2007
http://www.foxonline.com/need_a_sample.htm
FEAtuREs
• 3.3V Operation
• HCMOS Output
• Standby Function
• Tape and Reel
(2,000 pcs. STD)
• PARt nuMbER sElEctiOn
Learn More - Internet Required
Part Number
584A-Frequency-xxxxx
585A-Frequency-xxxxx
586A-Frequency-xxxxx
587A-Frequency-xxxxx
588A-Frequency-xxxxx
589A-Frequency-xxxxx
590A-Frequency-xxxxx
Model Frequency
Operating
Number Stability
1
Temperature (ºC)
±100PPM
F330A
-10 ~ +70
F330AR
±100PPM
-40 ~ +85
±50PPM
F335A
-10 ~ +70
F335AR
±50PPM
-40 ~ +85
±25PPM
F336A
-10 ~ +70
F336AR
±25PPM
-40 ~ +85
±20PPM
F338A
-10 ~ +70
Frequency
Range (MHz)
1.800 ~ 50.000
1.800 ~ 50.000
1.800 ~ 50.000
1.800 ~ 50.000
1.800 ~ 50.000
1.800 ~ 50.000
1.800 ~ 50.000
3 .2 ± 0.2
2 .5 ± 0.2
1 .2 M ax
• ElEctRicAl cHARActERistics
PARAMETERS
Frequency Range (F
o
)
Storage Temperature Range (T
stg
)
Supply Voltage (V
dd
)
Input Current
(I
dd
) (No Load)
1.800 ~ 32.000 MHz
32.000+ ~ 50.000 MHz
Output Symmetry (50% V
dd
)
Rise Time (10% ~ 90% V
dd
) (T
r
)
Fall Time (90% ~ 10% V
dd
) (T
f
)
Output Voltage
(V
ol
)
(V
oh
)
Output Current
(I
ol
)
(I
oh
)
Output Load
(HCMOS)
Standby Current
Start-up Time
(T
s
)
Output Disable Time
2
Output Enable Time
2
Reflow Soldering Temp
Moisture Sensitivity Level (MSL)
Termination Finish
1
MAX
(unless otherwise noted)
1.800 ~ 50.000 MHz
-55ºC ~ +125ºC
3.3V ± 5%
2.5mA
3.5mA
45% ~ 55%
12nS
12nS
10% V
dd
90% V
dd
Min
2mA Min
-2mA Min
15pF
1µA
5mS
150nS
5mS
260ºC / 10 Seconds
1
Au
#1
1.2
#2
#3
0.8
#4
0.7
0.9
Recommended
Solder Pad Layout
1.3
0.4
1.3
0.8
All dimensions are in millimeters.
Inclusive operating temperature range, input voltage change, load change, aging,
shock, and vibration.
2
An internal pullup resistor from pin 1 to pin 4 allows active output if pin 1 is left open.
Note: A 0.01µF bypass capacitor should be placed between VDD (Pin 4) and GND (Pin 2) to
minimize power supply line noise. All specifications subject to change without notice.
Drawing is for reference to critical specifications defined by size measurements.
Certain non-critical visual attributes, such as side castellations, reference pin shape, etc. may
vary. All specifications subject to change without notice.
Pin connection
#1 E/D**
#2 GND
#3 Output
#4 V
dd
• EnAblE / DisAblE FunctiOn
INH (Pin 1)
O
UTPUT (Pin 3)
OPEN
2
ACTIVE
'1' Level V
ih
≥ 70% V
dd
ACTIVE
'0' Level V
il
≤ 30% V
dd
High Z
FOXElectronics
5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554
http://www.foxonline.com
© 2009 FOX ELECTRONICS | ISO9001:2000 Certified
EMEA
Tel/Fax: +44 .1767.312632 |
Asia
Hong Kong Tel: +852.2854.4285 Fax +852.2854.4282
|
Japan
Tel: +81.3.3374/2079 Fax: +81.3.3374.5221
HcMOs
3.2x2.5mm
3.3V sMD Oscillator
Model: F330A sERiEs
Page 2 of 2
Low Current
RoHs compliant / Pb Free
Rev. 7/23/2007
http://www.foxonline.com/need_a_sample.htm

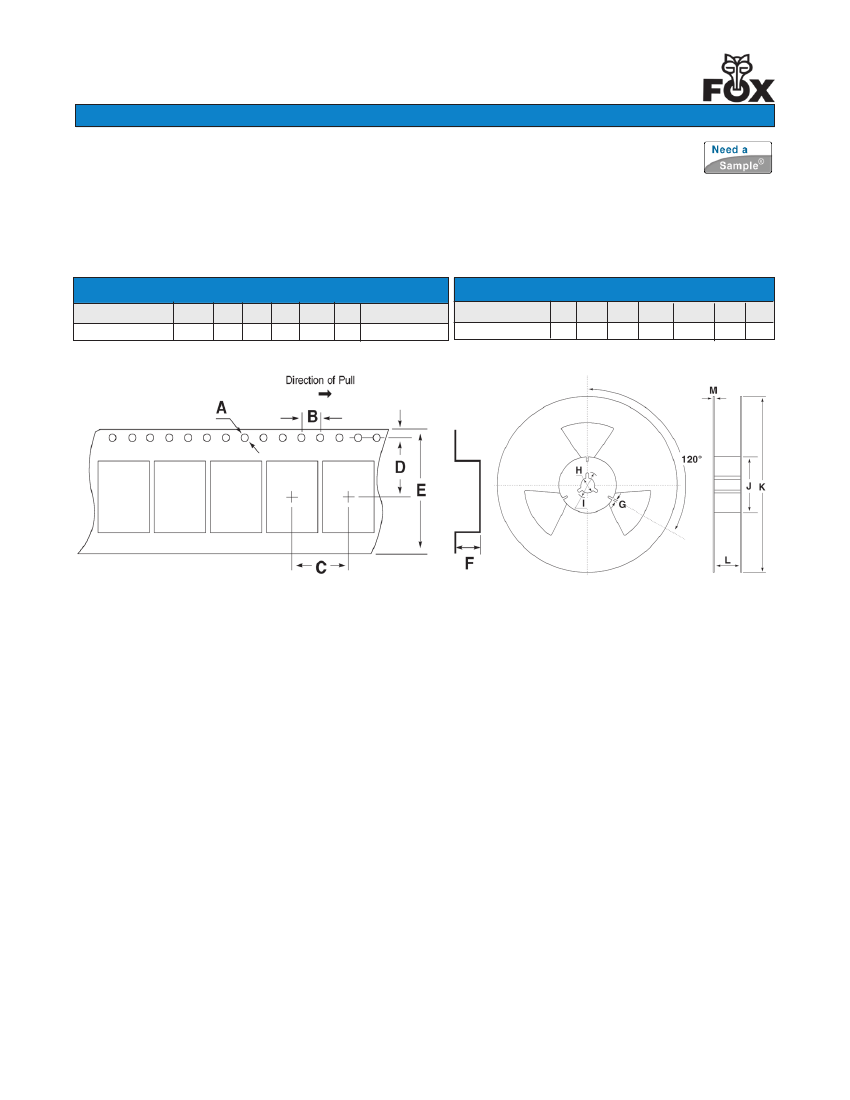

• tAPE sPEciFicAtiOns
(millimeters)
MODEl
F330A Series
• REEl sPEciFicAtiOns
(millimeters)
G H
i
J
K
l M
b
c D
E
F
STD Reel QTY
MODEl
A
F330A Series
2.0
∅13 ∅21 ∅60 ∅180
9.0 1.2
2,000
∅1.5
4.0 4.0 3.5 8.0 1.3
