TITLE
36 AWG Microribbon Cable
PART No.
REV
X1
PAGE
1 of 1

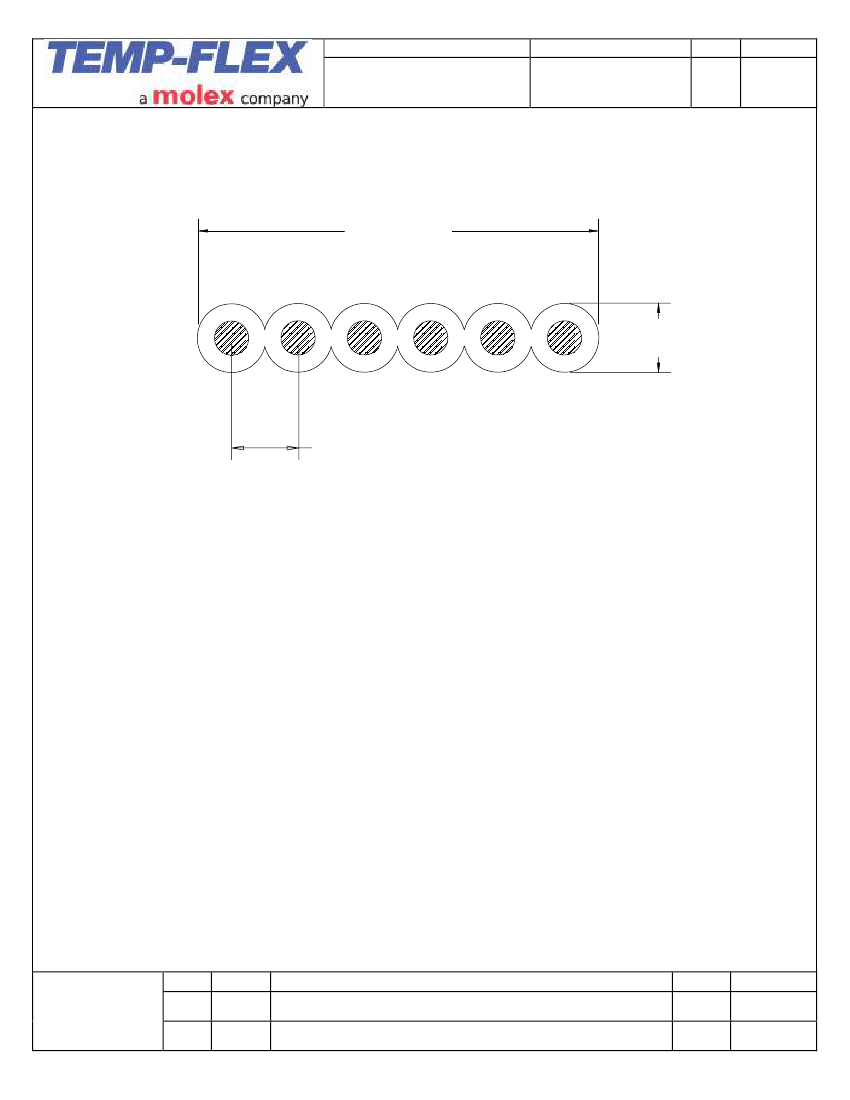

P3601S-6-0098-N
1.50+/-0.076mm
(0.059+/-0.003")
(1500+/-75um)
0.30mm Nom.
(0.0102") Nom.
(260um)
0.25mm Nom.
(0.0098") Nom.
(250um)
NOTES
Insulation: PFA, 0.0025" (63um) Wall Thickness
Conductor: 36 AWG Silver Plated Copper
Color: Natural
Insulation Shall be Pin Hole Free
This document is the
property of TEMP-FLEX.
It may not be disclosed,
reproduced, or otherwise
used without permission.
Rev
X1
X1
DCR
2667
3127
Description
Preliminary Release
Updated Specification Template
App’d
KP
KP
Date
7/15/11
11/9/12
