15
Accessories

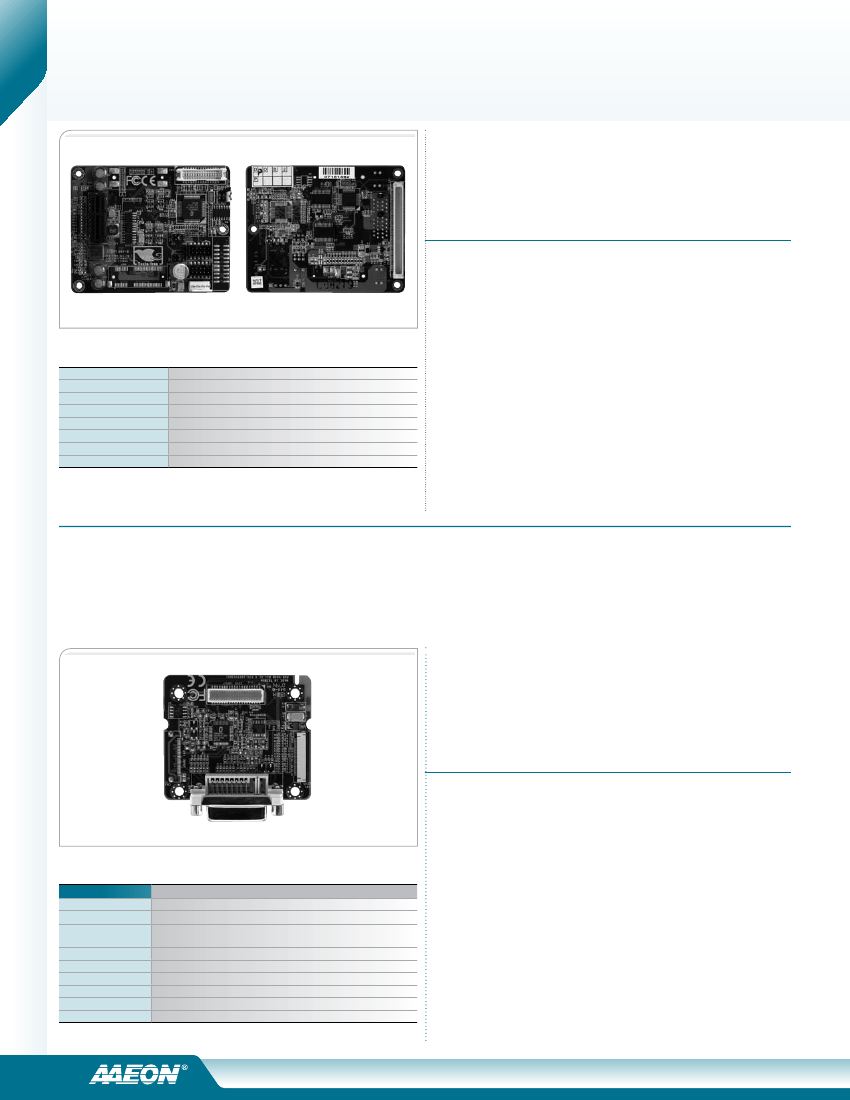

PER-T099
ECX Extension Board
ECX Proprietary Modules
Features
PCI-Express
[x1] (SINGLE LANE) Slot Or PCI-Express Mini
Card Slot
Up
To 24-bit Dual-channel LVDS Or DVI Feature
COM
Port x 2 (RS-232)
Packing List
•
PER-T099
ECX Extension Board
•
1701100206
COM Port Cable
Specifications
Form Factor
Controller
LCD Interface
DVI
Serial Port
Expansion
MTBF (Hours)
Board Size
ECX Extension Board (AAEON Proprietary)
Chrontel CH7308 (LVDS) / CH7307 (DVI)
Up to 24-bit Dual channel LVDS TFT LCD (LVDS version)
DVI-D x 1 (DVI version)
RS-232 x 2
PCI Express x 1 or Mini Card slot x 1
400,000
3.2”(L) x 2.57”(W) (81.41 x 65.28 mm)
•
Quick Installation Guide
•
CD-ROM for QIG (in PDF
format) & BIOS
•
1700200200
DVI Cable (For DVI version only)
Ordering Information
•
TF-PER-T099-A10
ECX Extension Board, LVDS, PCI-E, 2 COM, Rev.A1.0
ECX Extension Board, LVDS, Mini Card, 2 COM, Rev.A1.0
ECX Extension Board, DVI, PCI-E, 2 COM, Rev.A1.0
ECX Extension Board, DVI, Mini Card, 2 COM, Rev.A1.0
•
TF-PER-T099-A10-01
•
TF-PER-T099-A10-02
•
TF-PER-T099-A10-03
PER-V03B
SDVO To DVI Module
ECX Proprietary Modules
Features
Form
Factor 59.75mm x 50.95mm To Be Locked By Mini-PCI
Slot
DVI
Hot Plug Detection
Supports
Up to 1920 x 1080 Resolution Displays
Packing List
•
170340030F
SDVO Cable
Specifications
System
Form factor
Chipset
Input
Pixel Rate
Resolution
Power Management
Programming
Driver
59.75mm x 50.95mm to be locked by Mini-PCI slot
Chrontel CH7307C
High-speed SDVO* (1 G ~ 2 G bps) AC-coupled serial differential RGB
inputs
165M pixels/second
Up to 1920 x 1080
Programmable power management
Programmable via serial port
Complete windows driver support
•
Quick Installation Guide
•
TF-PER-V03B
Ordering Information
•
TF-PER-V03B-A10
SDVO to DVI module with Chrontel 7307C, for EMB-9458T, EMB-9658T
SDVO to DVI module with Chrontel 7307C, Metal Bracket, for EMB-9458T, EMB-9658T
SDVO to DVI module with Chrontel 7307C for XTX Modules
•
TF-PER-V03B-A10-01
•
TF-PER-V03B-A10-02
Operating Temperature 32°F ~ 140°F (0°C ~ 60°C )
15-3
Note: All specifications are subject to change without notice.
