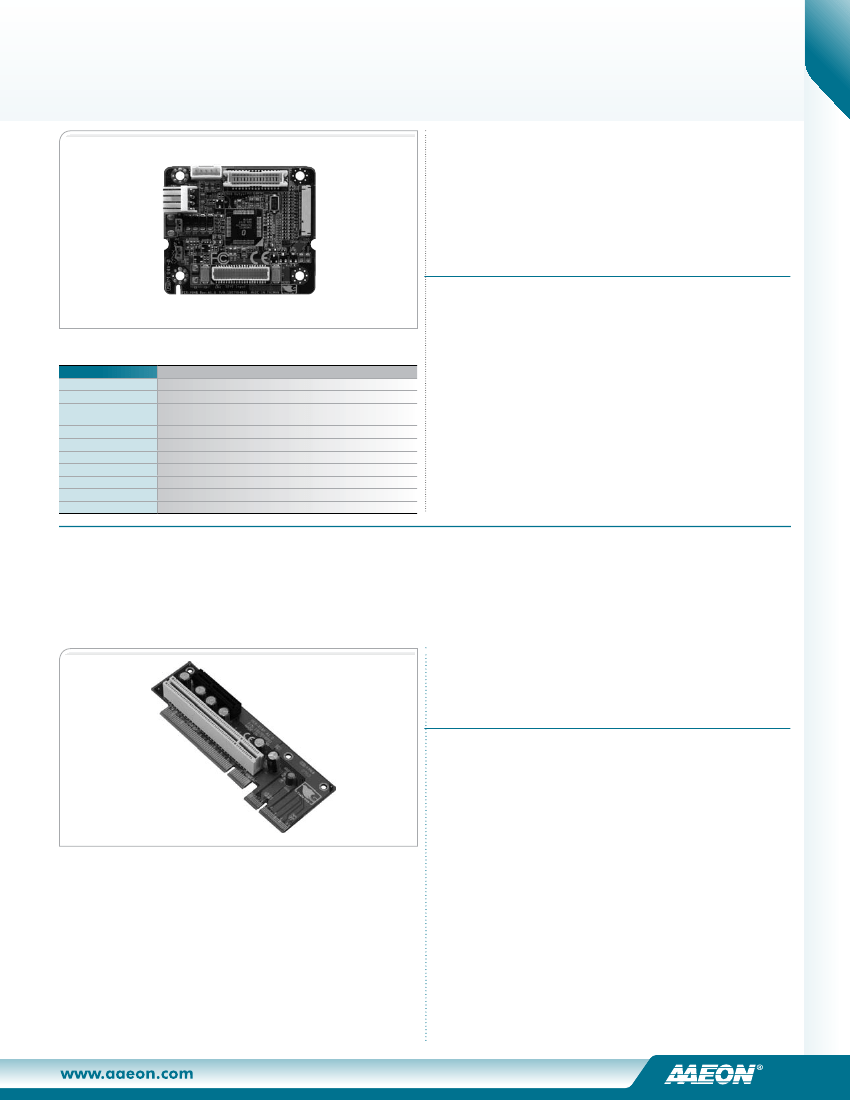

PER-V04B
SDVO To LVDS Module
ECX Proprietary Modules
Features
Form
Factor 59.75mm x 50.95mm To Be Locked By Mini-PCI
Slot
18/24-Bit
Dual-channel LVDS
Supports
Up To 1920 x 1080 Resolution Displays
Panel
Protection And Power Sequencing
Low
Voltage Interface Support To Graphics Device
Packing List
•
170340030F
Specifications
System
Form factor
Chipset
Input
Pixel Rate
Resolution
Graphic Engine
Power Management
Programming
Driver
Operating Temperature
59.75mm x 50.95mm to be locked by Mini-PCI slot
Chrontel CH7308B
High-speed SDVO (1 G ~ 2 G bps)AC-coupled serial differential RGB
inputs
165M pixels/second
Up to 1920 x 1080
2D dither engine
Programmable power management
Programmable via serial port
Complete windows driver support
32ºF ~ 140ºF (0ºC ~ 60ºC )
SDVO Cable
•
Quick Installation Guide
•
TF-PER-V04B
Ordering Information
•
TF-PER-V04B-A10
SDVO to LVDS module with Chrontel 7308B, for EMB-9458T, EMB-9658T
SDVO to LVDS module with Chrontel 7308B for XTX Modules
•
TF-PER-V04B-A10-02
PER-R16P
Riser Card
Riser Card For EMB-9658T/ 6908T/ 9458T/ 9459T/ 945T Rev.B
Features
PCI
Master Slot x 1
PCI-Express
[x4] Slot x 1 ( Can Be Used For [x1])
Ordering Information
•
TF-PER-R16P-A10
Riser Card, PCI + PCI-E [x4], for EMB-9458T TF-PER-V04B-A10-02
15-4
