L120CWB5 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> L120CWB5

Preview

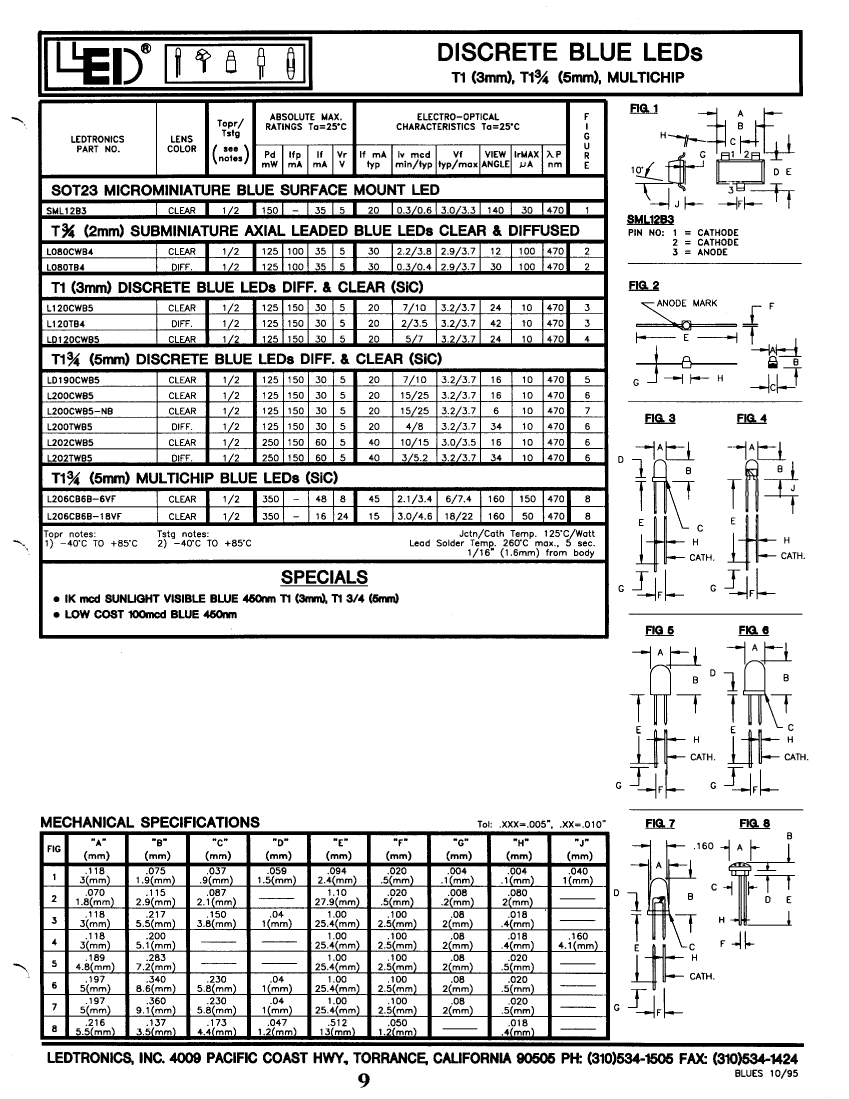

L120CWB5: DescriptionSingle Color LED, Blue, Clear, T-1, 3mm,; CategoryLED optoelectronic/LED photoelectric; File Size85KB，1 Pages; ManufacturerLEDtronics; Websitehttp://ledtronics.com.my

Download Datasheet Parametric Compare View All

L120CWB5 Overview

Single Color LED, Blue, Clear, T-1, 3mm,

L120CWB5 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	LEDtronics
Reach Compliance Code	unknown
color	BLUE
Configuration	SINGLE
Maximum forward current	0.03 A
JESD-609 code	e0
Lens type	CLEAR
Nominal luminous intensity	10 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	5.5 mm
method of packing	BULK
peak wavelength	470 nm
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
Terminal surface	Tin/Lead (Sn/Pb)
Terminal pitch	2.5 mm
perspective	24 deg

Preview

Download Datasheet

View All

L120CWB5 Related Products

	L120CWB5	L200CWB5	L200CWB5-NB	L200TWB5	L080TB4	L206CB6B-6VF	L080CWB4	L120TB4	L206CB6B-18VF
Description	Single Color LED, Blue, Clear, T-1, 3mm,	Single Color LED, Blue, Clear, T-1 3/4, 5mm,	Single Color LED, Blue, Clear, T-1 3/4, 5mm,	Single Color LED, Blue, Diffused, T-1 3/4, 5mm,	Single Color LED, Blue, Diffused, T-3/4, 2mm	Single Color LED Display Cluster, Blue, 5mm	Single Color LED, Blue, Clear, T-3/4, 2mm	Single Color LED, Blue, Diffused, T-1, 3mm	Single Color LED Display Cluster, Blue, 5mm
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
color	BLUE	BLUE	BLUE	BLUE	BLUE	BLUE	BLUE	BLUE	BLUE
Maximum forward current	0.03 A	0.03 A	0.03 A	0.03 A	0.035 A	0.048 A	0.035 A	0.03 A	0.016 A
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
Lens type	CLEAR	CLEAR	CLEAR	DIFFUSED	DIFFUSED	CLEAR	CLEAR	DIFFUSED	CLEAR
Number of functions	1	1	1	1	1	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED DISPLAY CLUSTER	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED DISPLAY CLUSTER
total height	5.5 mm	8.6 mm	9.1 mm	8.6 mm	2.9 mm	3.5 mm	2.9 mm	5.5 mm	3.5 mm
peak wavelength	470 nm	470 nm	470 nm	470 nm	470 nm	470 nm	470 nm	470 nm	470 nm
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maker	LEDtronics	-	-	LEDtronics	LEDtronics	LEDtronics	LEDtronics	LEDtronics	LEDtronics
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	-	SINGLE	SINGLE	-
Nominal luminous intensity	10 mcd	25 mcd	25 mcd	8 mcd	0.4 mcd	-	3.8 mcd	3.5 mcd	-
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	AXIAL MOUNT	-	AXIAL MOUNT	RADIAL MOUNT	-
Number of terminals	2	2	2	2	2	-	2	2	-
method of packing	BULK	BULK	BULK	BULK	BULK	-	BULK	BULK	-
shape	ROUND	ROUND	ROUND	ROUND	ROUND	-	ROUND	ROUND	-
size	3 mm	5 mm	5 mm	5 mm	2 mm	-	2 mm	3 mm	-
surface mount	NO	NO	NO	NO	NO	-	NO	NO	-
T code	T-1	T-1 3/4	T-1 3/4	T-1 3/4	T-3/4	-	T-3/4	T-1	-
Terminal pitch	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.1 mm	-	2.1 mm	2.5 mm	-
perspective	24 deg	16 deg	6 deg	34 deg	30 deg	-	12 deg	42 deg	-
color@wavelength	-	-	Blue	-	Blue	Blue	Blue	Blue	Blue
Maximum forward voltage	-	-	3.2 V	-	2.9 V	6 V	2.9 V	3.2 V	18 V
Maximum reverse voltage	-	-	5 V	-	5 V	8 V	5 V	5 V	24 V
