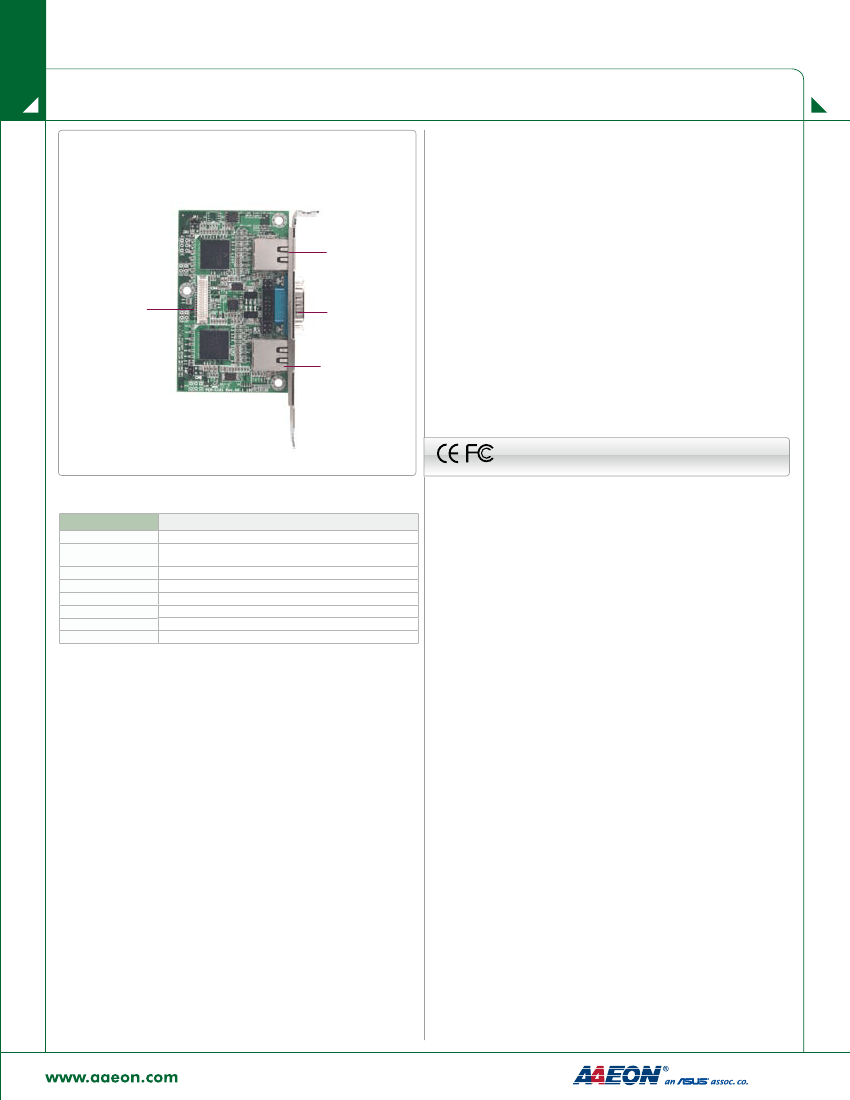

PER-C101
Broadcom BCM5721/51/89 Dual PCI-Express 10/100/1000Base-TX Ethernet Daughter Board
Features
■
■
Dual PCI-Express Host
LAN 1
Interface
■
■
Dual 10/100/1000Base-TX Triple-speed Ethernet Controllers
■
■
IPMI 1.5 Standard (BCM5751/BCM5721 Only)
■
■
ASF2.0 Standard (BCM5721 Only)
■
■
Teaming Function (BCM5721 Only)
■
■
Wake-on-LAN Function
PCI-Express (DF-13 Port)
COM
LAN 2
Specifications
System
Form Factor
Chipset
Expansion Interface
PCI-Express
Serial Port
Power Requirement
Operating Temperature
EMC
Dual PCI-Express 10/100/1000Base-TX Ethernet Daughter Board
PCI-Express 10/100/1000Base-TX Optional, RJ-45 x 2, Broadcom BCM5721/
BCM5751/BCM5789
Dual PCI-Express [x1] Interface x 1
I915G or I945G-based
One COM port: Internal 5x2 Box Header x 1, External D-sub x 1
From PCI-Express Connector (DF-13 30-pin)
32˚F~ 140˚F (0˚C ~ 60˚C)
CE/ FCC Class A
Packing List
•
9657666600
For All Series Jumper
•
170110030E
Flat Cable, 10P 2.0mm Pitch IDC, 10P 2.0mm Pitch IDC, 30cm
•
1700300200
PCI-Express Cable, 30P to 30P, 20cm, for FSB-866G to PCI-Express LAN Daughter board
•
Product CD
•
PER-C101
Note:
The PER-C101 has been tested by the following OS systems:
1. Windows® 2000 Professional English Version/ 5.00.2195 with Service Pack4
2. Windows® XP Professional English Version/ 2002 with Service Pack2
3. Linux 9.0 Kernel Version 2.4.20-8
Ordering Information
•
TF-PER-C101-A10-01 (BCM5789 x 2)
Ethernet board, Dual PCI-E Gigabit Ethernet, Entry-Level, Rev. A1.0
•
TF-PER-C101-A10-02 (BCM5751 x 2)
Ethernet board, Dual PCI-E Gigabit Ethernet, Workstation, Rev. A1.0
•
TF-PER-C101-A10-03 (BCM5789 x 1, BCM5721 x 1)
Ethernet board, Dual PCI-E Gigabit Ethernet, Server-Entry Level, Rev. A1.0
•
TF-PER-C101-A10-04 (BCM5721 x 1, BCM5751 x 1)
Ethernet board, Dual PCI-E Gigabit Ethernet, Server-Workstation, Rev. A1.0
