CVA-1512-20-NNN-79: DescriptionRF/Microwave Attenuator, 4000 MHz - 8000 MHz RF/MICROWAVE VARIABLE ATTENUATOR, 1 dB INSERTION LOSS-MAX, STAINLESS STEEL; CategoryWireless rf/communication Radio frequency and microwave; File Size85KB，1 Pages; ManufacturerArtysen Embedded Technologies

Download Datasheet Parametric Compare View All

CVA-1512-20-NNN-79 Overview

RF/Microwave Attenuator, 4000 MHz - 8000 MHz RF/MICROWAVE VARIABLE ATTENUATOR, 1 dB INSERTION LOSS-MAX, STAINLESS STEEL

CVA-1512-20-NNN-79 Parametric

Parameter Name	Attribute value
Maker	Artysen Embedded Technologies
Reach Compliance Code	unknown
Other features	N-F; N-M
Nominal attenuation	20 dB
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	40 dBm
Maximum insertion loss	1 dB
Maximum operating frequency	8000 MHz
Minimum operating frequency	4000 MHz
RF/Microwave Device Types	VARIABLE ATTENUATOR
Maximum voltage standing wave ratio	1.25

Preview

Download Datasheet

View All

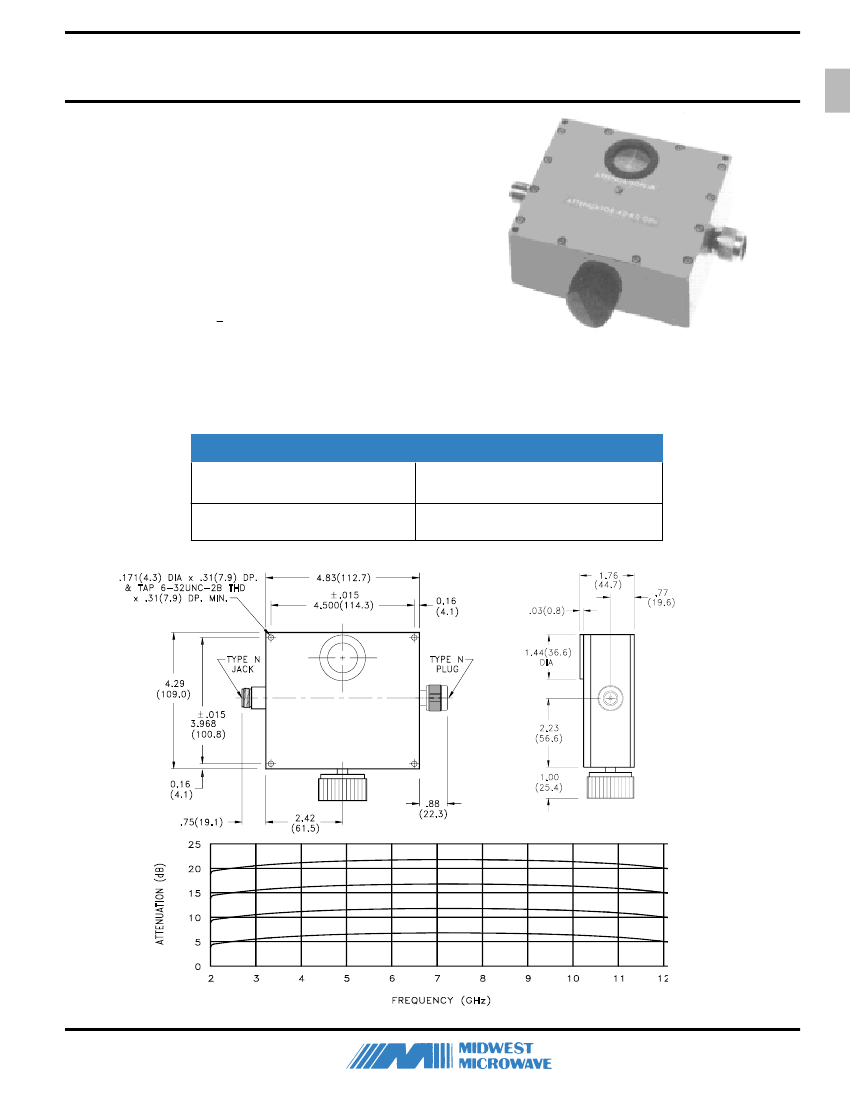

Attenuators

Calibrated Variable Attenuators

0 - 20 dB Precision Variable Attenuation

4.0 - 8.0 GHz Performance

Direct Dial Reading

Accurate Calibration

Flat Frequency Response

Panel Mounting Right Angle Drive Available

Specifications

Frequency:

4.0 - 8.0 GHz

Attenuation Range:

0 - 20 dB

Attenuation Accuracy:

+ 1.0 dB

Impedance:

50 Ohms

VSWR:

1.25

Zero Position Insertion Loss:

1.0 dB max

Power:

10 Watts average, 5 kW peak

Connectors:

Type N Male/Female Passivated Stainless Steel

4.0 - 8.0 GHz

Calibrated Variable Attenuator

0 - 20 dB

Bench Top

Side Panel Drive

CVA-1511-20-NNN-79

Front Panel

Right Angle Drive

CVA-1512-20-NNN-79

53

CVA-1512-20-NNN-79 Related Products

	CVA-1512-20-NNN-79	CVA-1511-20-NNN-79
Description	RF/Microwave Attenuator, 4000 MHz - 8000 MHz RF/MICROWAVE VARIABLE ATTENUATOR, 1 dB INSERTION LOSS-MAX, STAINLESS STEEL	RF/Microwave Attenuator, 4000 MHz - 8000 MHz RF/MICROWAVE VARIABLE ATTENUATOR, 1 dB INSERTION LOSS-MAX, STAINLESS STEEL
Maker	Artysen Embedded Technologies	Artysen Embedded Technologies
Reach Compliance Code	unknown	unknown
Other features	N-F; N-M	N-F; N-M
Nominal attenuation	20 dB	20 dB
Characteristic impedance	50 Ω	50 Ω
structure	COAXIAL	COAXIAL
Maximum input power (CW)	40 dBm	40 dBm
Maximum insertion loss	1 dB	1 dB
Maximum operating frequency	8000 MHz	8000 MHz
Minimum operating frequency	4000 MHz	4000 MHz
RF/Microwave Device Types	VARIABLE ATTENUATOR	VARIABLE ATTENUATOR
Maximum voltage standing wave ratio	1.25	1.25
