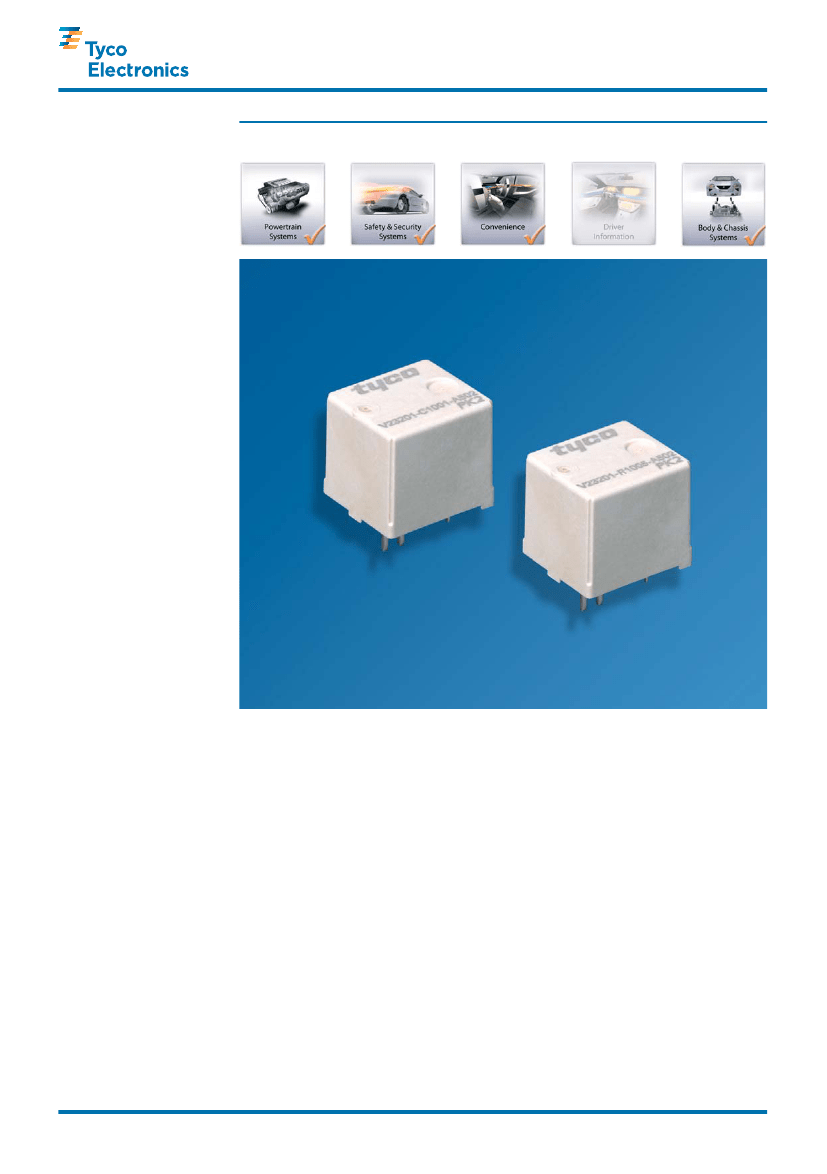

PCB Relays
Single Relays
Power Relay PK2 (THT – THR)
Catalog 1308028-2
Revised 3-2008

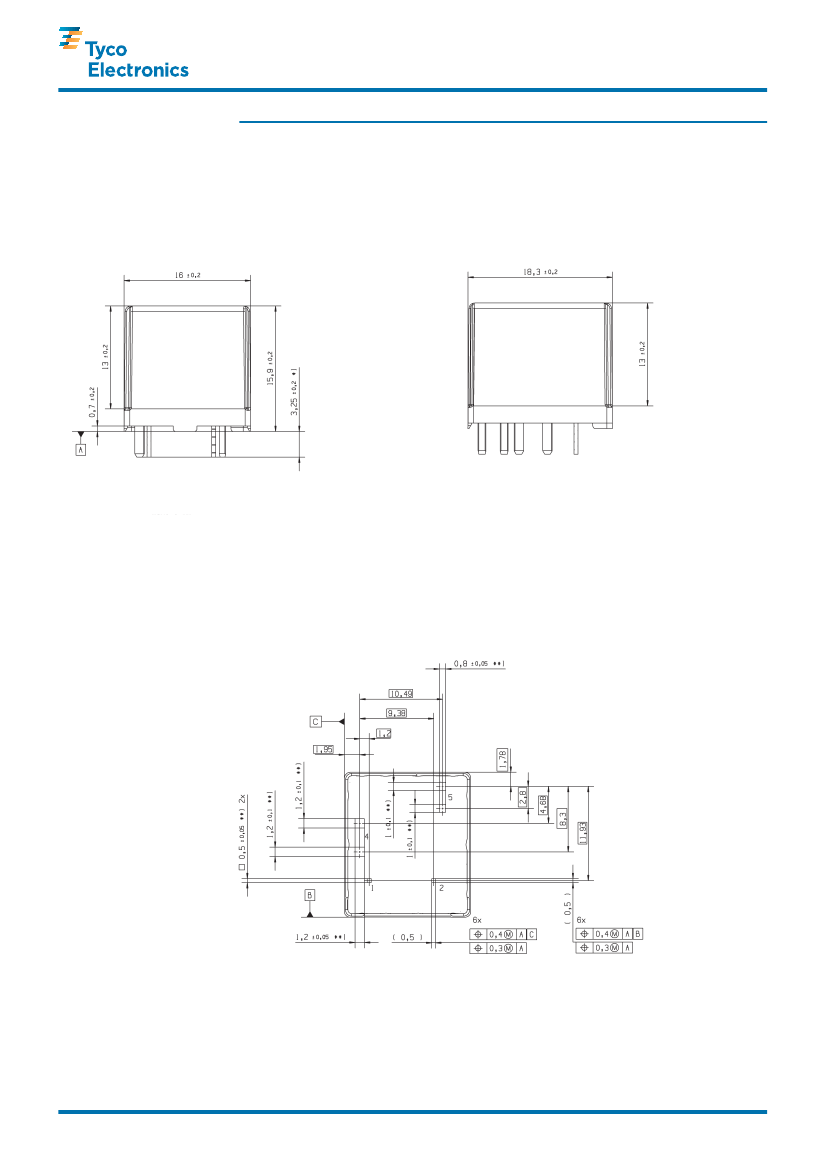

Dimensional Drawing
*) Additional tin tops max. 1 mm
201C_DD1
201C_DD2
View of the Terminals
(bottom view)
Remark: Positional tolerances according to DIN EN ISO 5458
**) without tinning (hop dip)
201C_VT1
All specifications subject to change. Consult Tyco Electronics for latest specifications.
135
PCB Relays
Single Relays
Power Relay PK2 (THT – THR)
Catalog 1308028-2
Revised 3-2008
Contact Data
Typical areas of application
Contact configuration
Resistive/inductive/capacitive load
1 Make contact/
1 Form A
5 (+)
4 (-)
12 V
33 A
23°C
85°C
105°C
Contact material
Max. switching voltage/power
Max. switching current
2)
On
Off
Min. recommended load
3)
Voltage drop at 10 A (initial)
NO contact
Mechanical endurance (without load)
Examples of electrical endurance
at cyclic temperature –40/+23/+85°C
and 13.5 V; 120 ms - on/4880 ms - off
Max. switching rate at nominal load
1)
2)
3)
Circuit Symbol
(see also Pin assignment)
Rated voltage
Rated current
1)
at
Limiting continuous current
1)
40 A
33 A
22 A
Silver based
See load limit curve
200 A
40 A
1 A at 5 V
Typ. 30 mV, 300 mV max.
> 2 x 10
6
operations
Inductive load: > 1 x 10
5
operations, 60 A on/35 A 0ff, L = 0.5 mH
Resistive load: > 1 x 10
5
operations, 40 A on/40 A 0ff
Capacitive load : > 1 x 10
5
operations, 200 A on/20 A 0ff
6 operations per minute (0.1 Hz)
Measured on 70 mm
x
70 mm
x
1.5 mm epoxy PCB FR4 with 52 cm
2
(double layer 140
μm
thick) copper area.
The values apply to a resistive or inductive load with suitable spark suppression and at maximum 13.5 V for 12 V load voltages.
See chapter Diagnostics of Relays in our Application Notes page 31 or consult the internet at http://relays.tycoelectronics.com/appnotes/

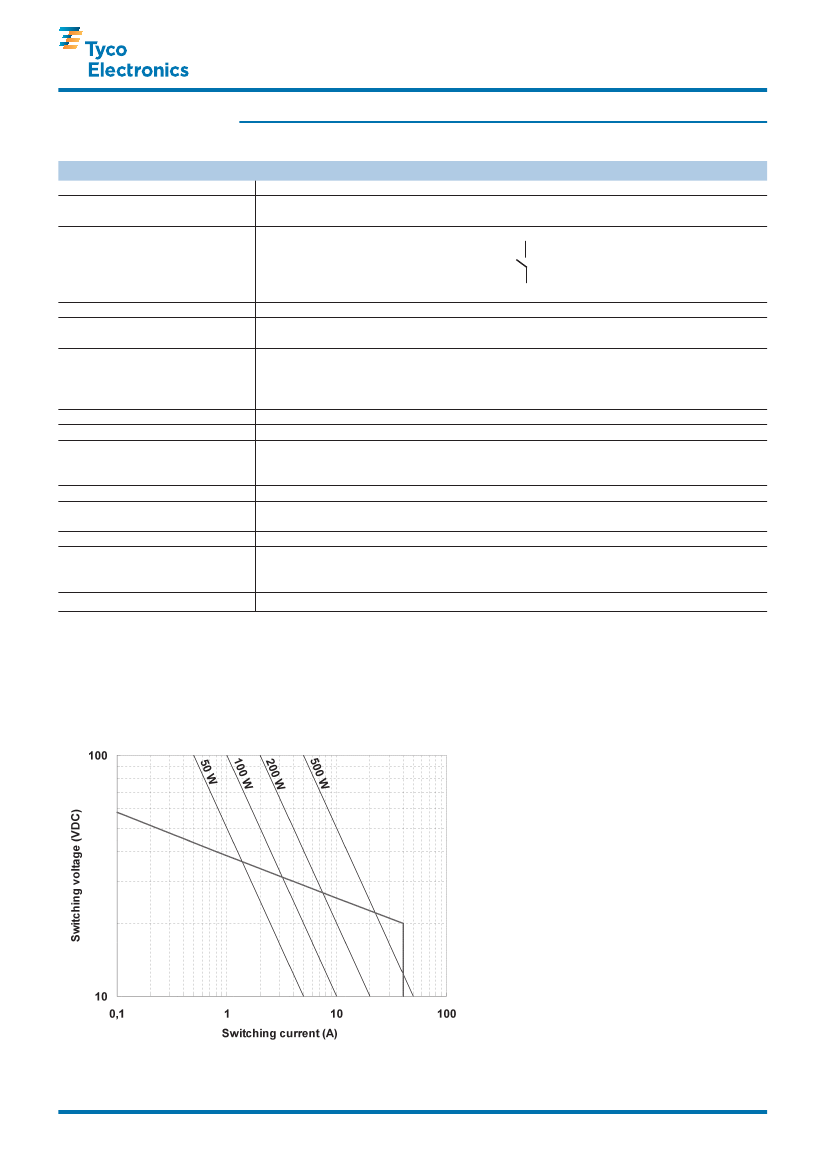

Load Limit Curve
201C_LLC3
Load limit curve
^
safe shutdown, no stationary
=
arc/make contact
136
All specifications subject to change. Consult Tyco Electronics for latest specifications.
PCB Relays
Single Relays
Power Relay PK2 (THT – THR)
Catalog 1308028-2
Revised 3-2008
Circuit Diagram
1 Make contact/1 Form A
5(+)
4(-)
1(-)
2(+)
201C_PA2
Coil Data
Available for nominal voltages
Nominal power consumption of the unsuppressed coil at nominal voltage (monostable)
Test voltage winding/contact
Maximum ambient temperature range
Operate time at nominal voltage
Release time at nominal voltage
2)
1)
2)
1)
12 V
0.8 W
500 VAC
rms
–40 to +105°C
Typ. 3 ms
Typ. 1.5 ms
See also operating voltage range diagram.
For unsuppressed relay coil.
Note:
A low resistive suppression device in parallel to the relay coil increases the release time and reduces
the lifetime caused by increased erosion and/or higher risk of contact tack welding (monostable version only).
Operating Voltage Range
201C_OVR1
Does not take into account
the temperature rise due to
the contact current
E = pre-energization
All specifications subject to change. Consult Tyco Electronics for latest specifications.
137
PCB Relays
Single Relays
Power Relay PK2 (THT – THR)
Catalog 1308028-2
Revised 3-2008
Environmental Conditions
Temperature range, storage
Test
Cold storage
Dry heat
Thermal shock
1)
Vibration resistance
Shock resistance
Solderability
THT
THR
Resistance to soldering heat
THT
THR
Sealing
THT
THR
1)
Refer to
Storage
in the “Glossary” catalog page 23 or http://relays.tycoelectronics.com/appnotes/
Relevant standard
Testing as per
Dimension
Comments
IEC 68-2-1
1000 h
–40°C
IEC 68-2-2
Ba
1000 h
125°C
IEC 68-2-14
Na
1000 cycles
–40/+125°C
Dwell time 15 min
IEC 68-2-6 (sine pulse form)
30 - 440 Hz
No change in the
> 20 g
switching state > 10
μs
IEC 68-2-27 (half sine form single pulses)
6 ms >30 g
Open contact will not close > 10
μs
11 ms > 100 g
Closed contact will not open > 10
μs
Hot dip 5 s
Aging 3 (4 h/155°C)
IEC 68-2-20
Ta, Method 1
215°C
for leaded process (Tm = 183°C)
IEC 68-2-58
245°C
for Pb-free process (Tm = 217°C)
Hot dip 10 s
with thermal screen
IEC 68-2-20
Tb, Method 1A
260°C
IEC 68-2-58
260°C
Preheating min 130°C
IEC 68-2-17
Qc, Method 2
1 min/70°C
Open vent hole
Only storage.
Ordering Information
Part Numbers
(see table below for coil data)
Relay Description
Part Number
V23201-C1001-A502
V23201-R1005-A502
5-1414782-7
6-1414932-3
Contact
Arrangement
Form A
Form A
Contact
Material
Silver based
Silver based
Enclosure
Sealed
Open vent hole
Soldering
Technology
THT
THR
Coil Versions
Coil Data
for
PK2 – THT/THR
V23201-***01-****
V23201-***05-****
1)
Rated Coil
Voltage
(V)
12
12
Coil Resistance
±10%
(Ω)
176
176
Must
Operate Voltage
(V)
6.9
2)
6.9
2)
Must
Release Voltage
(V)
1.5
1.5
Allowable Overdrive
1)
Voltage (V)
at 23°C
at 105°C
27
27
17
17
Allowable overdrive is stated with no load applied and minimum coil resistance.
Standard Delivery Packs
(orders in multiples of delivery pack)
PK2 – THT/THR:
600 pieces
138
All specifications subject to change. Consult Tyco Electronics for latest specifications.
