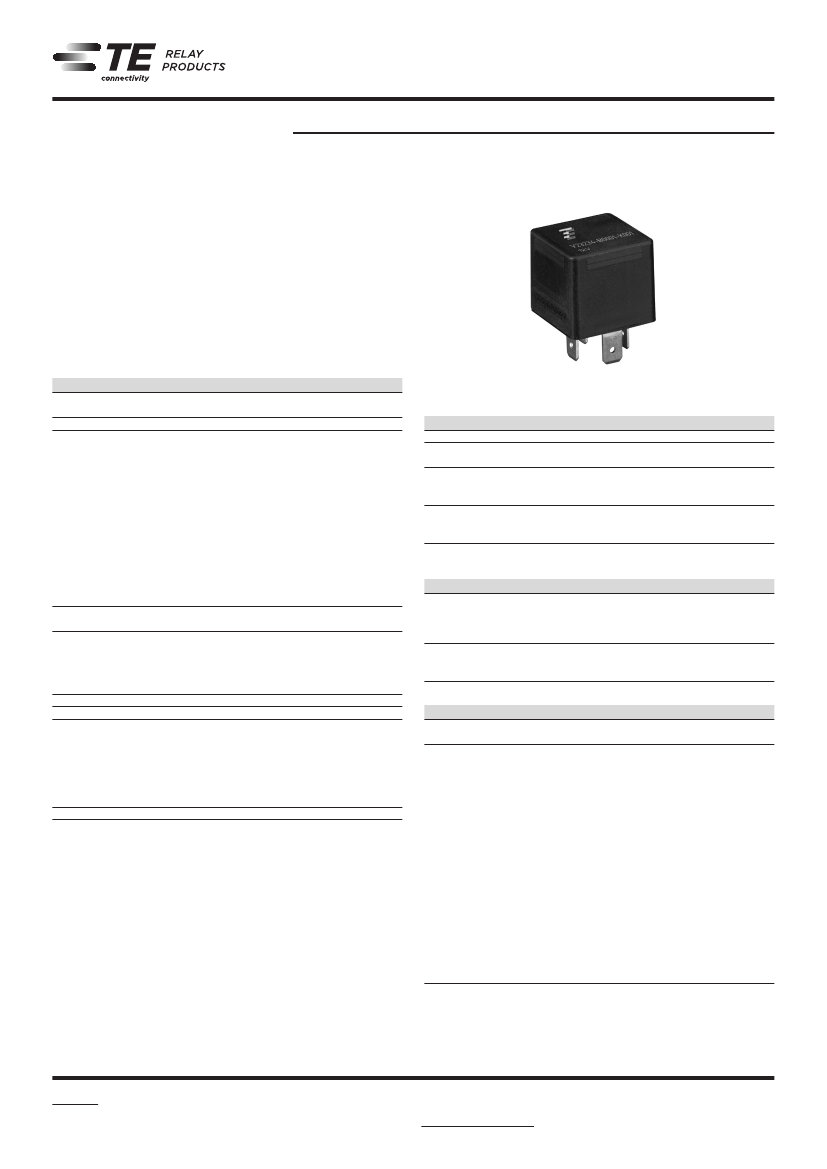

Automotive Relays
Plug-in Mini ISO Relays
Power Relay B
n
n
n
Pin assignment similar to ISO 7588 part 1
Plug-in terminals
Customized versions on request
– 24VDC versions with contact gap >0.8mm
– Integrated components (e.g. resistor, diode)
– Customized marking/color
– Special covers (e.g. notches, release features, brackets)
– Various contact arrangements and materials
Typical applications
Cross carline up to 35A for example: rear window defogger, battery
disconnection, power distribution (clamp 15)
F234_fcw1_bw
Contact Data
1 form A,
1 NO
Rated voltage
12VDC
Limiting continuous current
form A/form B (NO/NC)
23°C
50A
85°C
35A
125°C
15A
Limiting making current
1)
A/B (NO/NC)
120A
Limiting breaking current,
A/B (NO/NC)
30A
Limiting short-time current
overload current, ISO 8820-3
2)
Contact arrangement
1A
1 form A,
1 NO
24VDC
50A
35A
15A
120A
20A
1A
1 form C,
1 CO
12VDC
50/35A
35/25A
15/10A
120/45A
30/20A
1C
1 form C,
1 CO
24VDC
50/35A
35/25A
15/10A
120/45A
20/10A
1C
Coil Data
Rated coil voltage
Coil versions, DC coil
Coil
Rated
Operate
code
voltage
voltage
VDC
VDC
001
12
8
002
12
6.5
004
24
16
Release
voltage
VDC
1.5
1
3
12/24VDC
Coil
resistance
5)
Ω±10%
85
75
255
Rated coil
power
5)
W
1.7
1.9
2.3
Jump start test, ISO 16750-1
Contact material
Min. recommended contact load
3)
Initial voltage drop, at 10A, typ./max.
form A (NO)
15/300mV 15/300mV 15/300mV 15/300mV
form B (NC)
-
-
20/300mV 20/300mV
Frequency of operation, at nominal load
6 ops./min (0.1Hz)
Operate/release time typ.
10/10ms
4)
Electrical endurance, ops.
resistive load, A (NO) >2.5x10
5
>2.5x10
5
>2.5x10
5
>2.5x10
5
30A,
20A,
30A,
20A,
14VDC
28VDC
14VDC
28VDC
resistive load, B (NC)
-
-
>1x10
5
>2.5x10
5
20A,
10A,
14VDC
28VDC
Mechanical endurance
typ. 1x10
6
ops.
1) The values apply to a resistive or inductive load with suitable spark suppression and
at maximum 14VDC for 12VDC or 28VDC for 24VDC load voltages. For a load current
duration of maximum 3s for a make/break ratio of 1:10.
2) Current and time are compatible with circuit protection by a typical automotive fuse.
Relay will make, carry and break the specified current.
3) See chapter Diagnostics of Relays in our Application Notes or consult the internet at
http://relays.te.com/appnotes/
4) For unsuppressed relay coil. A low resistive suppression device in parallel to the relay
coil increases the release time and reduces the lifetime caused by increased erosion
and/or higher risk of contact tack welding.
1.35 x 35A, 1800s
2.00 x 35A, 5s
3.50 x 35A, 0.5s
6.00 x 35A, 0.1s
24VDC for 5min,
conducting nominal current at 23°C
Silver based
1A at 5VDC
5) Without components in parallel.
All figures are given for coil without pre-energization, at ambient temperature +23°C.
Insulation Data
Initial dielectric strength
between open contacts
between contact and coil
between adjacent contacts
Load dump test
ISO 7637-1 (12VDC), test pulse 5
ISO 7637-2 (24VDC), test pulse 5
500V
rms
500V
rms
500V
rms
V
s
=+86.5VDC
V
s
=+200VDC
Other Data
EU RoHS/ELV compliance
compliant
Protection to heat and fire according UL94
HB or better
6)
Ambient temperature
-40 to 125°C
Climatic cycling with condensation,
EN ISO 6988
6 cycles, storage 8/16h
Temperature cycling,
IEC 60068-2-14, Nb
10 cycles, -40/+85°C (5°C/min)
Damp heat cyclic,
IEC 60068-2-30, Db, Variant 1
6 cycles, upper air temp. 55°C
Damp heat constant, IEC 60068-2-3, Ca
56 days
Category of environmental protection,
IEC 61810
RT I – dustproof
Degree of protection, IEC 60529
IP54
Corrosive gas
IEC 60068-2-42
10±2cm
3
/m
3
SO
2
, 10 days
IEC 60068-2-43
1±0.3cm
3
/m
3
H
2
S, 10 days
Vibration resistance (functional)
IEC 60068-2-6 (sine sweep)
10 to 500Hz, min. 5g
7)
Shock resistance (functional)
IEC 60068-2-27 (half sine)
11ms, min. 20g
7)
Drop test, free fall, IEC 60068-2-32
1m onto concrete
06-2011, Rev. 0611
www.te.com
© 2011 Tyco Electronics Corporation,
a TE Connectivity Ltd. company.
Datasheets and product specification ac-
cording to IEC 61810-1 and to be used only
together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
1
Automotive Relays
Plug-in Mini ISO Relays
Power Relay B
(Continued)
Other Data
(continued)
Terminal type
Cover retention
axial force
pull force
push force
Terminal retention
8)
pull force
push force
resistance to bending
force applied to side
torque
Weight
Packaging unit
plug-in, QC
150N
200N
200N
100N
100N
10N
10N
0.3Nm
approx. 35g (1.2oz)
200 pcs.
Accessories
For details see datasheet
Connectors for Mini ISO Relays
6) Refers to used mateials.
7) No change in the switching state >10μs. Valid for NC contacts, NO contact values
significantly higher.
8) Values apply 2mm from the end of the terminal. When the force is removed, the terminal
must not have moved by more than 0.3mm.
Terminal Assignment
NO
1 form A, NO
NOR
1 form A, NO with resistor
NO_2x87
1 form A, 1 NO (2x87)
NOR_2x87
1 form A, 1 NO (2x87) with resistor
85
87
85
87
85
87 87
85
87 87
86
30
86
CO
1 form C, CO
30
86
30
86
30
NOD_2x87
1 form A, 1 NO (2x87) with diode
COR
1 form C, CO with resistor
COD
1 form C, CO with diode
85
87 87
85
87 87a
85
87 87a
85
87 87a
86
30
86
30
86
30
86
30
2
06-2011, Rev. 0611
www.te.com
© 2011 Tyco Electronics Corporation,
a TE Connectivity Ltd. company.
Datasheets and product specification ac-
cording to IEC 61810-1 and to be used only
together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
Automotive Relays
Plug-in Mini ISO Relays
Power Relay B
(Continued)

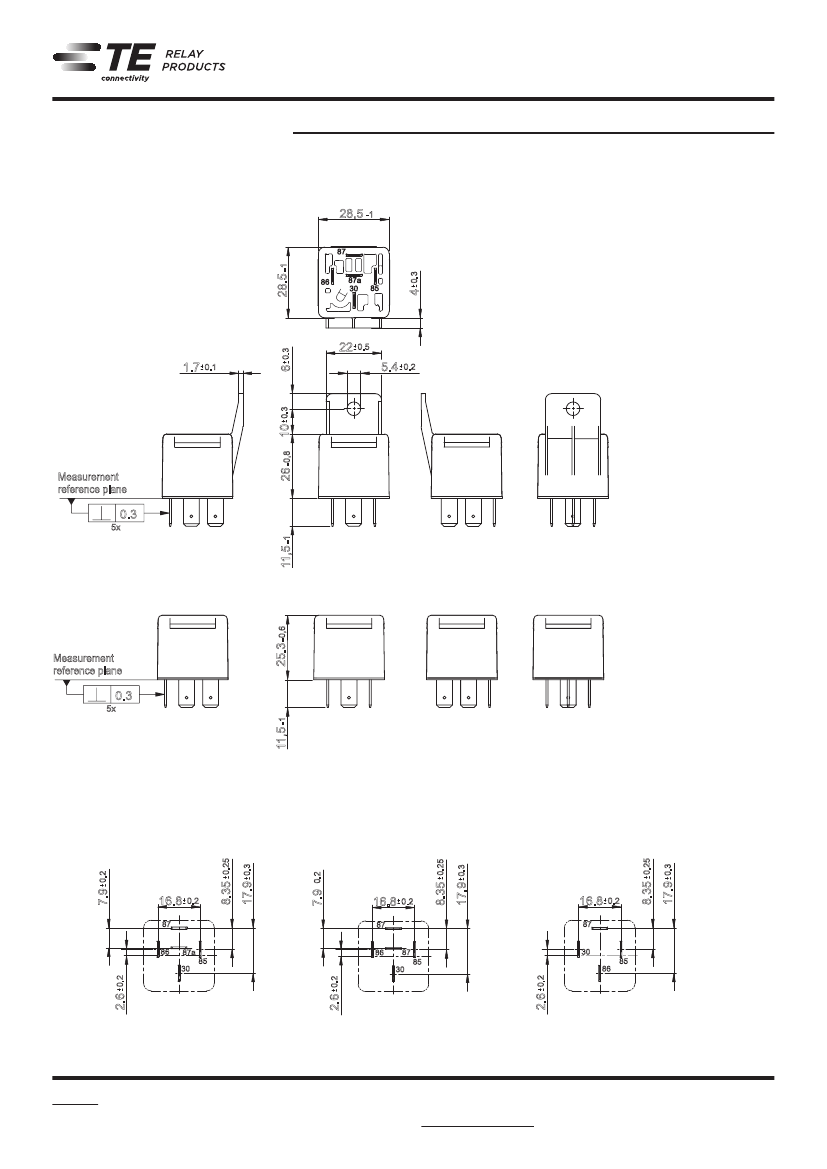

Dimensions
Power Relay B with bracket
28,5
-1
87
28.5
-1
86
0.3
22
0.5
1.7
0.1
5.4
0.2
Measurement
reference plane
5x
0.3
26
-0,8
10
0.3
6
4
87a
30
85
Shown is
1 form C
1 form A is without terminal 87a
0.3
Power Relay B without bracket
Measurement
reference plane
5x
0.3
234-nb_DD1
View of the terminals (bottom view)
1 form C
1 form A is without 87a
0.25
0.3
11,5
-1
25.3
-0,6
11,5
-1
234-b_DD1
1 form A (2x87)
1 form A non ISO
(Terminals 30 and 86 changed position)
0.25
0.25
0.3
0.3
0.2
8.35
0.2
8.35
17.9
8.35
7.9
17.9
7.9
16.8
87
86
0.2
16.8
87
0.2
16.8
87
0.2
87a
30
85
86
87
30
85
30
86
85
0.2
0.2
2.6
234_VT1
2.6
234_VT2
2.6
0.2
234_VT3
17.9
06-2011, Rev. 0611
www.te.com
© 2011 Tyco Electronics Corporation,
a TE Connectivity Ltd. company.
Datasheets and product specification ac-
cording to IEC 61810-1 and to be used only
together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
3
Automotive Relays
Plug-in Mini ISO Relays
Power Relay B
(Continued)
Product code structure
Type
V23234
Power Relay B
Contact arrangement
A
1 form C, 1 CO
C
1 form A, 1 NO (2x87)
Cover
0
Standard
Coil
001
12VDC
004
24VDC
Terminal/arrangement
Xnnn
Customized (nnn: version number)
Typical product code
V23234
-A
0
001 -X040
B
K
1
002
1 form A, 1 NO
1 form A, 1 NO (non ISO)
Bracket near terminal 30 ISO
12VDC
V23234-A0001-X032
1 Form C,
V23234-A0001-X038
1 CO
V23234-A0001-X040
V23234-A0004-X055
V23234-A0004-X051
V23234-A0004-X053
V23234-A1001-X033
V23234-A1001-X036
V23234-A1001-X041
V23234-A1004-X050
V23234-A1004-X054
V23234-B0001-X001
1 Form A,
V23234-B0002-X012
1 NO
V23234-B1001-X004
V23234-B1001-X010
V23234-C0001-X003
1 Form A,
V23234-C0001-X006 1 NO (2x87)
V23234-C0004-X018
V23234-C0004-X020
V23234-C1001-X005
V23234-C1004-X017
V23234-C1004-X085
V23234-K1001-X024 1 Form A, 1 NO
Product code
Arrangement Cover
Standard
Resistor 680Ω
Diode (cathode 86)
Diode (cathode 86)
Resistor 1400Ω
Resistor 680Ω
Coil suppr.
Circuit
1)
COR
COD
CO
COD
COR
12VDC
24VDC
12VDC
24VDC
12VDC
Coil
Cont. material
Silver based
Terminals
Plug-in, QC
Part number
1-1904020-2
1-1904020-5
4-1904020-7
2-1904025-6
2-1904025-3
2-1904025-5
1-1904022-1
3-1904022-2
2-1904022-3
1-1904027-1
3-1904027-2
5-1904006-1
1-1904008-2
1-1904007-1
1-1904007-2
2-1904011-1
2-1904011-2
2-1904015-1
1-1904015-3
5-1904012-1
5-1904014-1
1904015-5
5-1904018-1
Bracket
Standard
Bracket
Standard
Bracket
CO
Diode (cathode 86)
COD
CO
Resistor 1400Ω
COR
Resistor 680Ω
NOR
NO
Resistor 680Ω
NOR
NO
Diode (cathode 86) NOD_2x87
NO_2x87
Resistor 1400Ω NOR_2x87
NO_2x87
Resistor 1400Ω NOR_2x87
Resistor 680Ω NOR (non ISO)
24VDC
12VDC
24VDC
12VDC
Plug-in, QC /non ISO
1) See terminal assignment diagrams.
Other types on request.
This list represents the most common types and does not show all variants covered by this datasheet.
4
06-2011, Rev. 0611
www.te.com
© 2011 Tyco Electronics Corporation,
a TE Connectivity Ltd. company.
Datasheets and product specification ac-
cording to IEC 61810-1 and to be used only
together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
