AEC-6810
06
BOXER Series - Fanless Embedded Controller Solutions
06-39

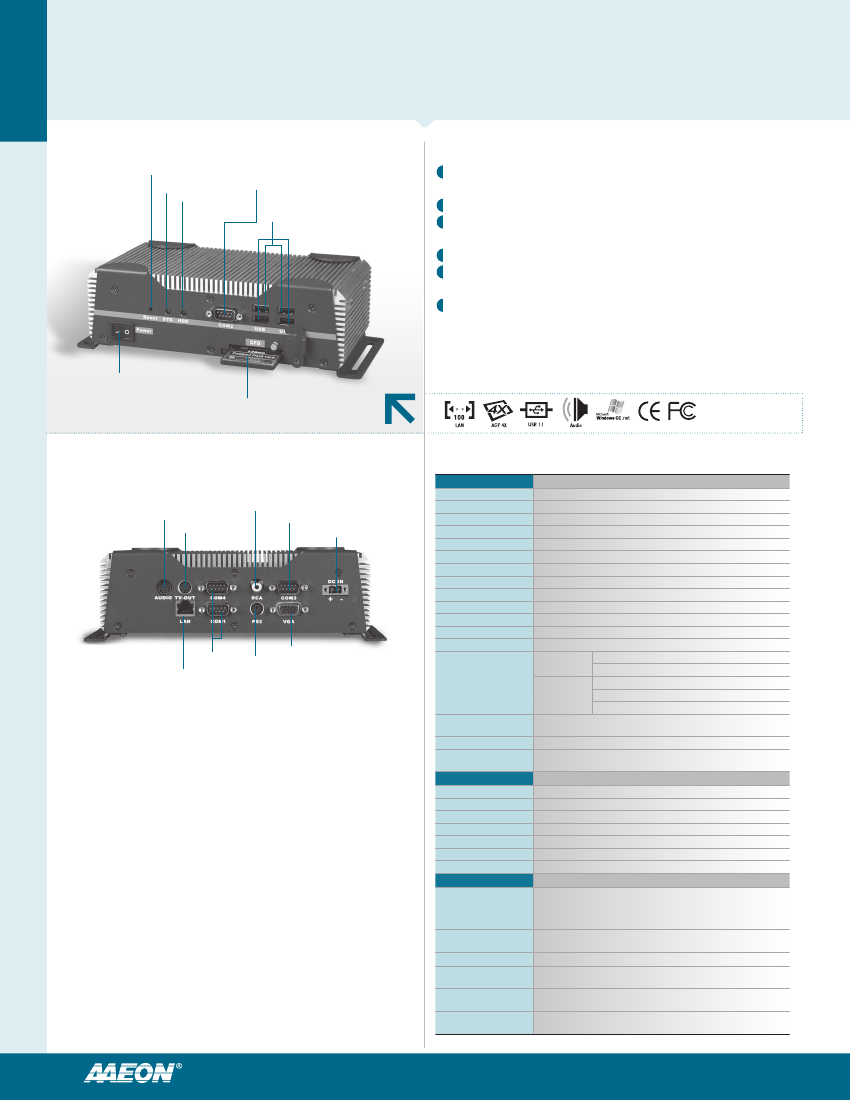

Fanless Embedded Controller with VIA Eden™ 667MHz/ C3™ 1GHz Processor
Features
Reset
System LED
Hard Disk Drive LED
COM
USB x 4
Fanless Design with VIA Eden™ 667MHz/ C3™ 1GHz
Processor
Embedded OS Windows® CE .Net Porting
Supports CompactFlash™ Memory and Optional
Hard Disk Drive Module
DIN Rail or Wallmount Design for Simple Installation
10/100Base-TX Ethernet x 1, COM x 4, USB x 4, TV-out
x 1, Audio x 1
AT Power Function
Power Switch
CompactFlash™
Specifications
System
Processor
Audio
S-video
RCA
COM
DC Power Input
Memory (Optional)
VGA/ Keyboard/ Mouse
Ethernet
SSD
Hard Disk Storage
COM
Audio
USB
TV-out
System Control
LED Indicator
COM
VGA
Keyboard/ Mouse
Watchdog Timer
VIA Eden™ 667MHz/ C3™ 1 GHz CPU
144-pin SDRAM SODIMM x 1, Max. 512MB (Optional)
DB-15 VGA, PS/2 Keyboard & Mouse x 1
10/100Base-TX Ethernet, RJ-45 x 1
Type II CompactFlash™ x 1
Optional 2.5” Slim Hard Disk Drive Module
RS-232 x 3, RS-232/422/485 x 1
Mic-in/ Line-in/ Line-out , by extension cable
USB 1.1 x 4
S-video and RCA output
Power on/ off switch x 1, Reset button x 1
Power LED x1, Hard Disk Drive active LED x 1
Generates a time-out system reset, setting via software
1. DC Input
Power Supply
2. AC Input
VIA C3™ 1GHz
2.37A@9V
60,000
Windows® CE .NET 4.2, Windows® XP Embedded,
Windows® XP, Windows® 2000
Rugged Aluminum Alloy chassis
Dark Blue
Wallmount (Default), DIN Rail
8.4” (W) x 2.5” (H) x 4.2” (D) (212mm x 64mm x 107mm)
12” (W) x 7.87” (H) x 9.4” (D) (305mm x 200mm x 240mm)
4.75 lb (2.16 kg)
8.36 lb (3.8 kg)
5ºF ~ 140ºF (-15ºC ~ 60ºC) — 667MHz (CompactFlash™)
32ºF ~ 122ºF (0ºC ~ 50ºC) — 667MHz (Hard Disk Drive)
5ºF ~ 113ºF (-15ºC ~ 45ºC) — 1GHz (CompactFlash™)
32ºF ~ 104ºF (0ºC ~ 40ºC) — 1GHz (Hard Disk Drive)
-4ºF ~ 158ºF (-20ºC ~ 70ºC) — (CompactFlash™)
-4ºF ~ 140ºF (-20ºC ~ 60ºC) — (Hard Disk Drive)
5~95%@40ºC, non-condensing
5 g rms/ 5 ~ 500Hz/ random operation (CompactFlash™)
1 g rms/ 5 ~ 500Hz/ random operation (Hard Disk Drive)
100g peak acceleration (11 msec. duration) (CompactFlash™)
15g peak acceleration (11 msec. duration) (Hard Disk Drive)
CE/ FCC class A
UL (Supports 9~18V DC input Only)
Internal DC-DC Converter (Standard)
Input voltage: 9V DC ~ 30V DC
External Power Adapter (Optional)
Input voltage: 100V AC ~ 240V AC @ 50 ~ 60Hz
Output rating: 36W (+12V@3A)
Power Consumption
MTBF (Hours)
OS Support
Mechanical
Construction
Color
Mounting

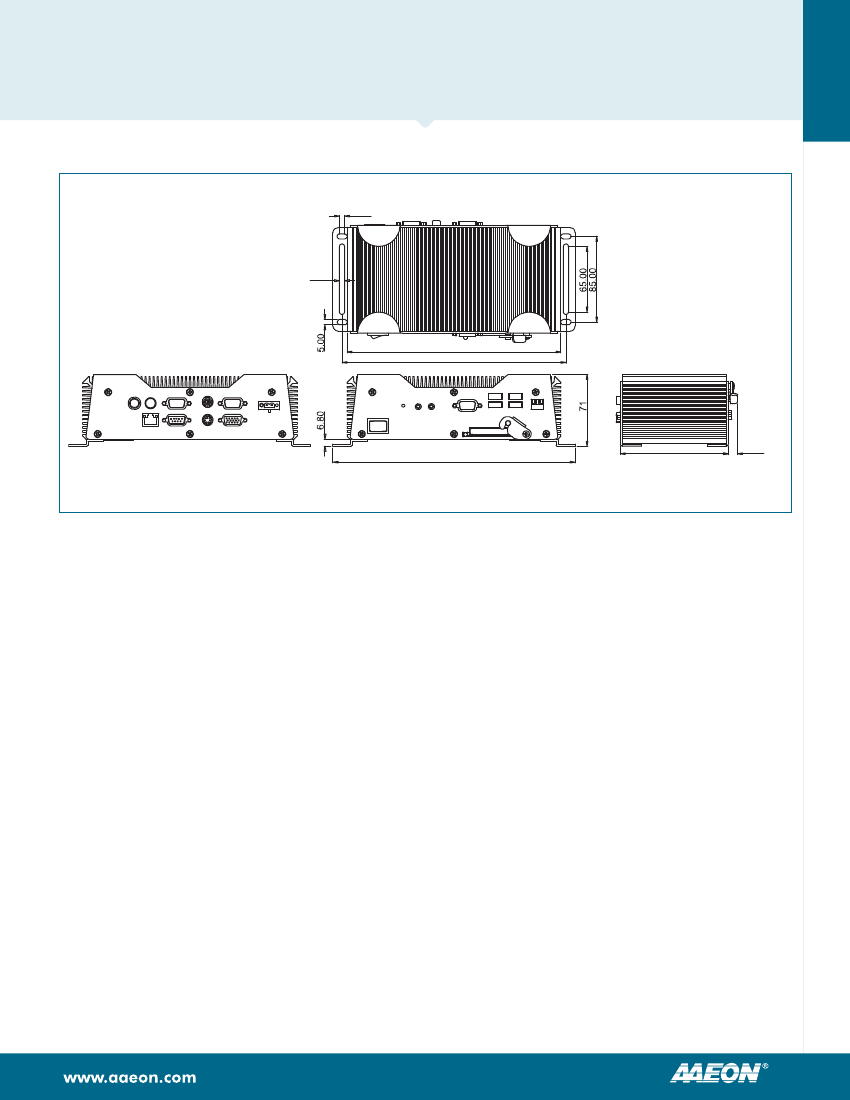

Dimension
Carton Dimension
Net Weight
Gross Weight
Environmental
Operating Temperature
10/100Base-TX Ethernet,
RJ-45
Storage Temperature
Storage Humidity
Vibration
Shock
EMC
Note: All specifications are subject to change without notice.
