Z86C0508SSC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> Z86C0508SSC

Z86C0508SSC: DescriptionMicrocontroller, 8-Bit, MROM, Z8 CPU, 8MHz, CMOS, PDSO18, SOIC-18; CategoryThe embedded processor and controller Microcontrollers and processors; File Size868KB，29 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/

Download Datasheet Parametric Compare View All

Z86C0508SSC Overview

Microcontroller, 8-Bit, MROM, Z8 CPU, 8MHz, CMOS, PDSO18, SOIC-18

Z86C0508SSC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Zilog, Inc.
Parts packaging code	SOIC
package instruction	SOP, SOP18,.4
Contacts	18
Reach Compliance Code	unknown
Has ADC	NO
Address bus width
bit size	8
CPU series	Z8
maximum clock frequency	8 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PDSO-G18
JESD-609 code	e0
length	11.55 mm
Number of I/O lines	14
Number of terminals	18
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP18,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240
power supply	3.3/5 V
Certification status	Not Qualified
RAM (bytes)	124
rom(word)	1024
ROM programmability	MROM
Maximum seat height	2.65 mm
speed	8 MHz
Maximum slew rate	11 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.5 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

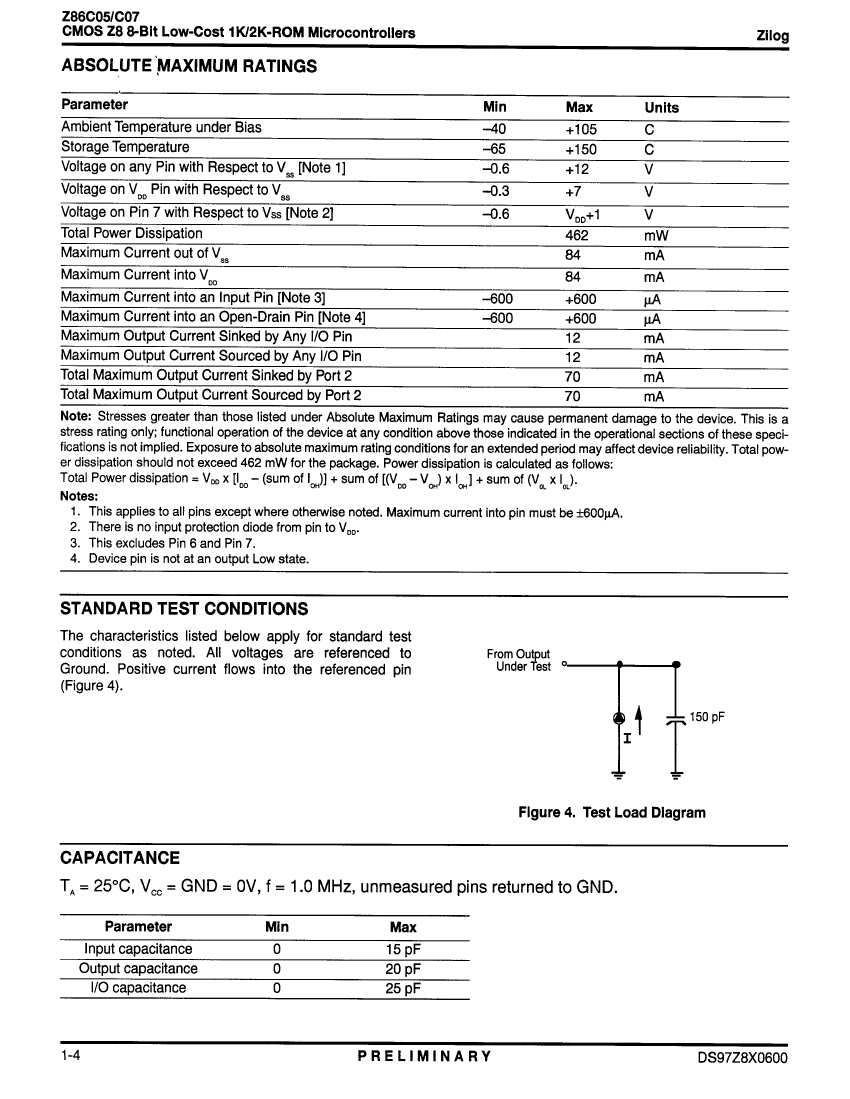

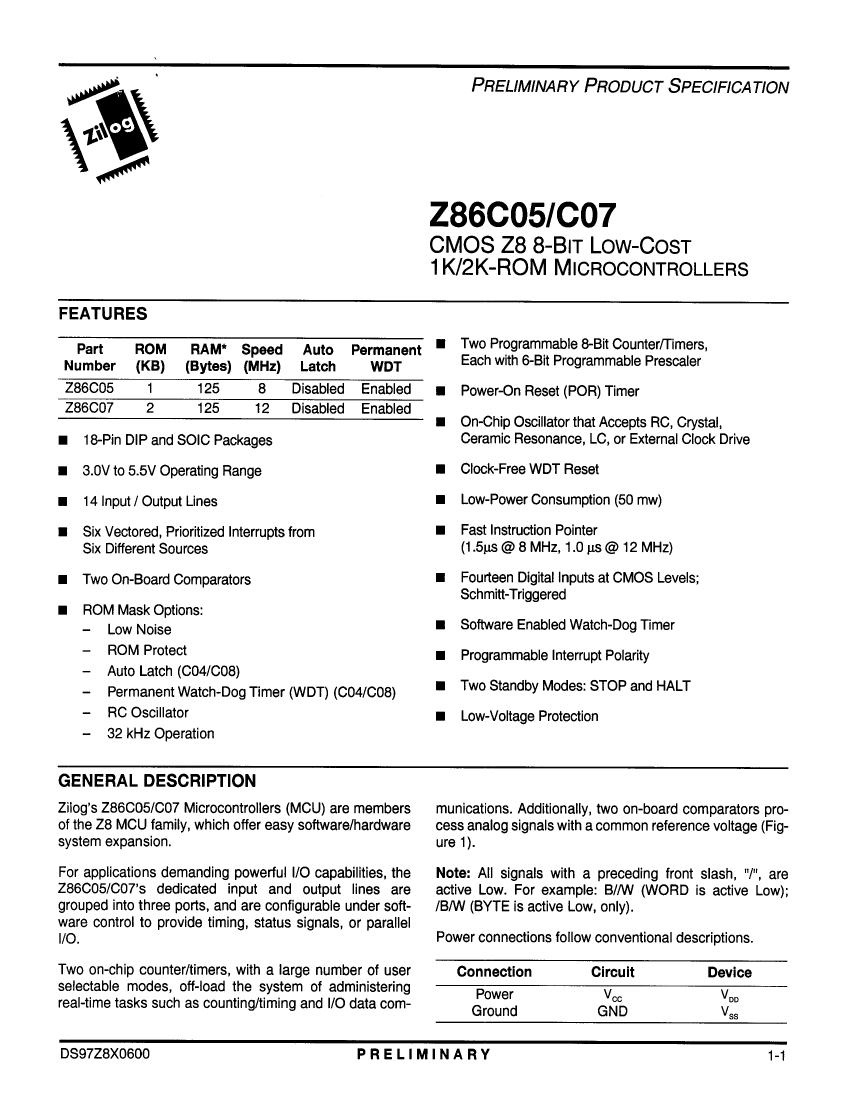

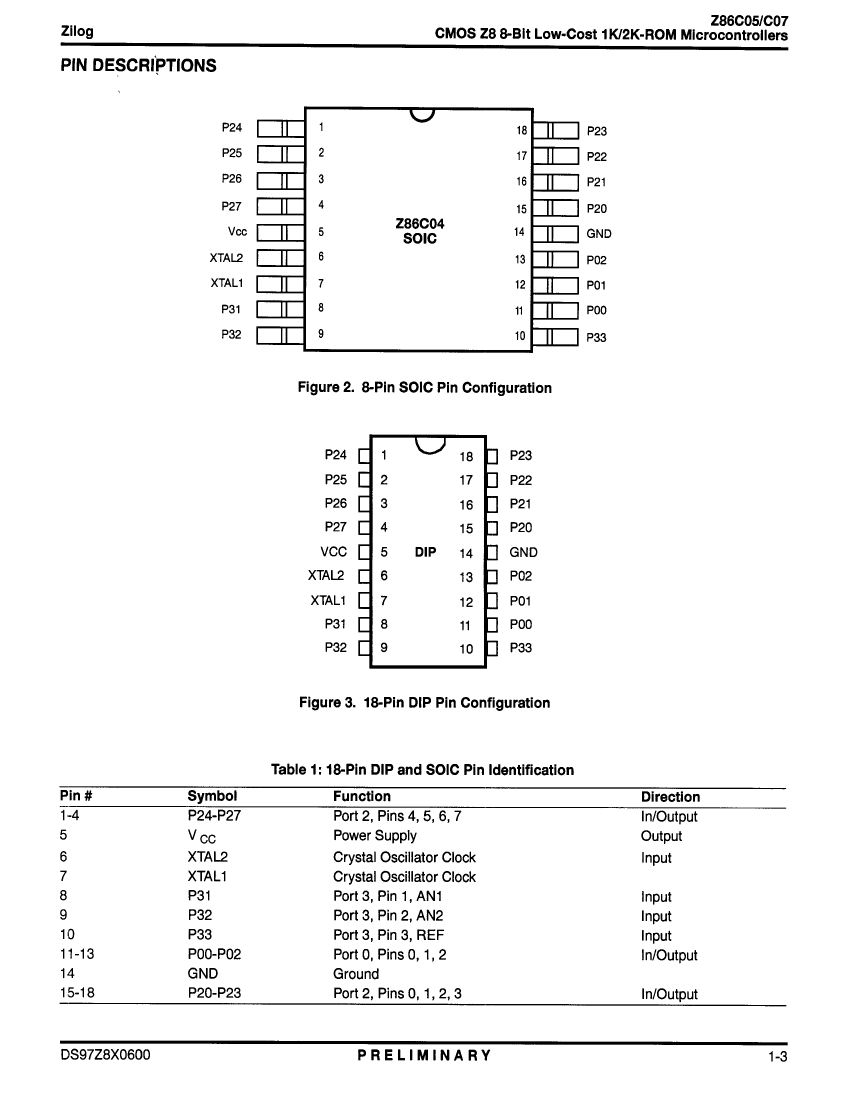

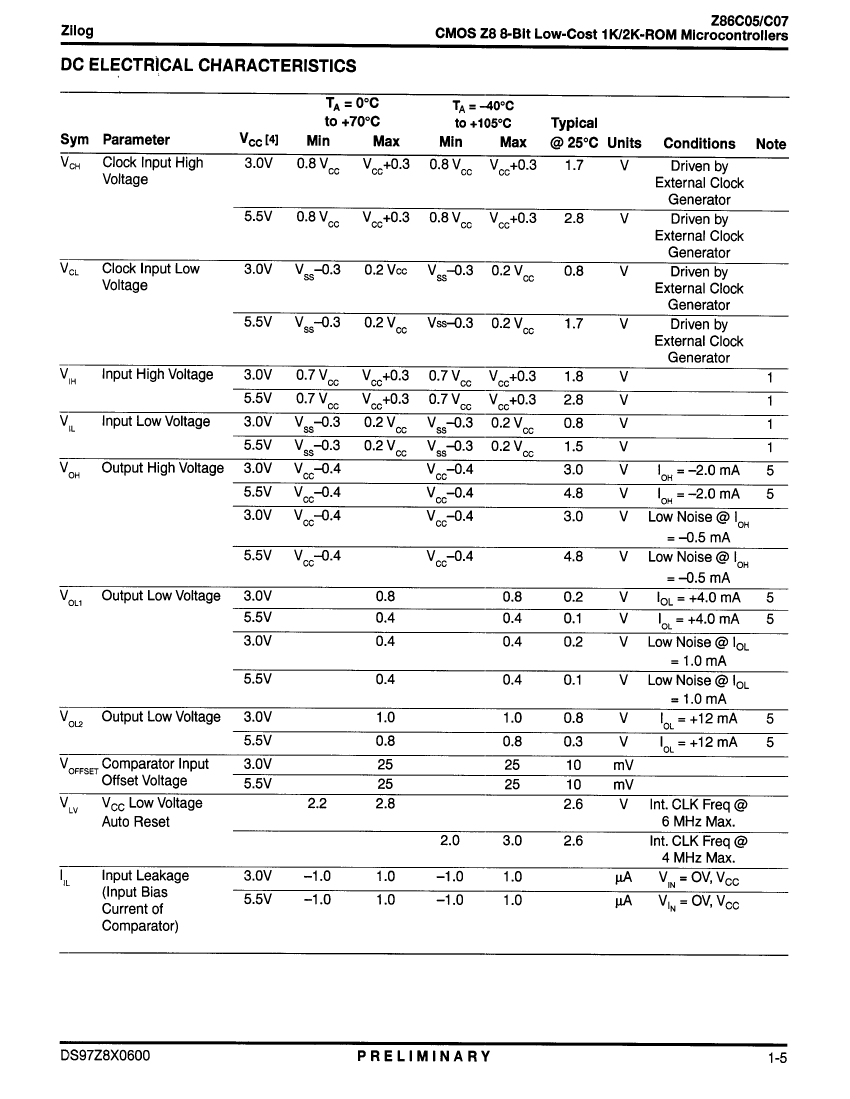

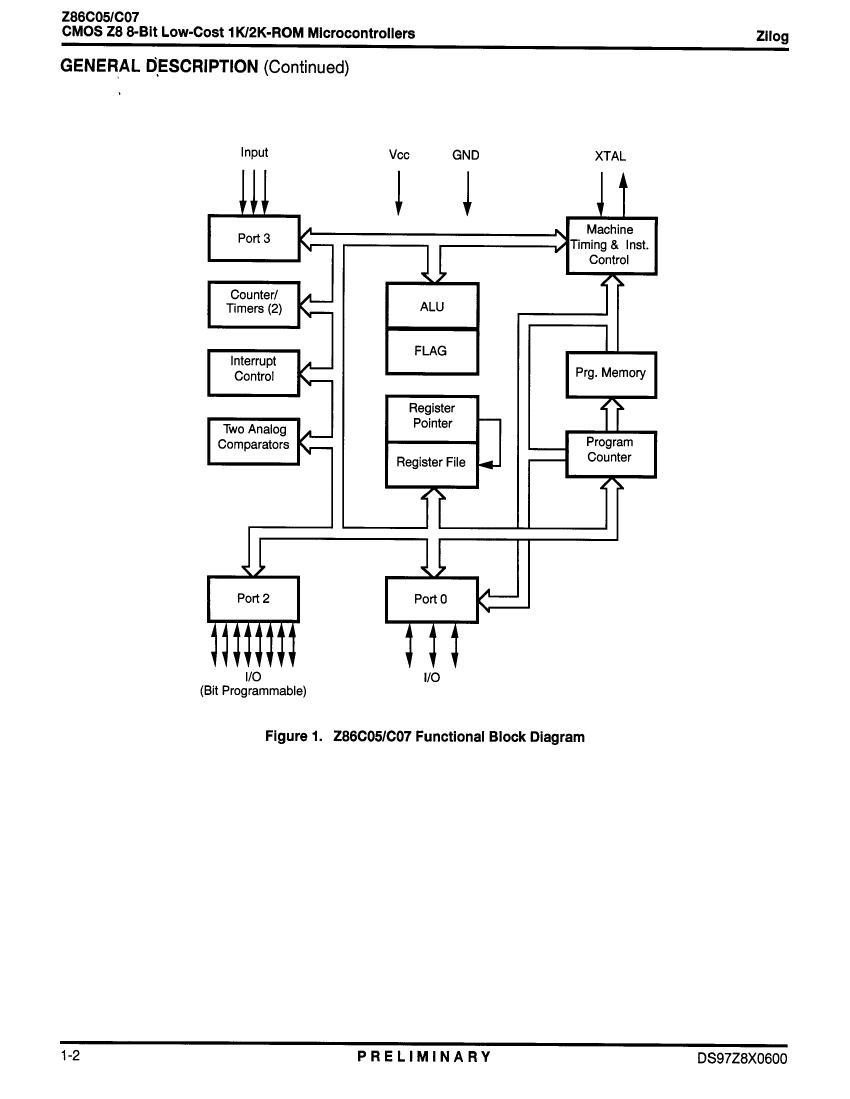

Z86C0508SSC Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Z86C0508SSC Related Products

	Z86C0508SSC	Z86C0712PEC	Z86C0712PSC	Z86C0712SSC	Z86C0508SEC
Description	Microcontroller, 8-Bit, MROM, Z8 CPU, 8MHz, CMOS, PDSO18, SOIC-18	Microcontroller, 8-Bit, MROM, Z8 CPU, 12MHz, CMOS, PDIP18, DIP-18	Microcontroller, 8-Bit, MROM, Z8 CPU, 12MHz, CMOS, PDIP18, DIP-18	Microcontroller, 8-Bit, MROM, Z8 CPU, 12MHz, CMOS, PDSO18, SOIC-18	Microcontroller, 8-Bit, MROM, Z8 CPU, 8MHz, CMOS, PDSO18, SOIC-18
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	SOIC	DIP	DIP	SOIC	SOIC
package instruction	SOP, SOP18,.4	DIP, DIP18,.3	DIP, DIP18,.3	SOP, SOP18,.4	SOP, SOP18,.4
Contacts	18	18	18	18	18
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Has ADC	NO	NO	NO	NO	NO
bit size	8	8	8	8	8
CPU series	Z8	Z8	Z8	Z8	Z8
maximum clock frequency	8 MHz	12 MHz	12 MHz	12 MHz	8 MHz
DAC channel	NO	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO	NO
JESD-30 code	R-PDSO-G18	R-PDIP-T18	R-PDIP-T18	R-PDSO-G18	R-PDSO-G18
JESD-609 code	e0	e0	e0	e0	e0
length	11.55 mm	22.86 mm	22.86 mm	11.55 mm	11.55 mm
Number of I/O lines	14	14	14	14	14
Number of terminals	18	18	18	18	18
Maximum operating temperature	70 °C	105 °C	70 °C	70 °C	105 °C
PWM channel	NO	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	DIP	SOP	SOP
Encapsulate equivalent code	SOP18,.4	DIP18,.3	DIP18,.3	SOP18,.4	SOP18,.4
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240	240	240	240	240
power supply	3.3/5 V	3.3/5 V	3.3/5 V	3.3/5 V	3.3/5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	124	124	124	124	124
rom(word)	1024	2000	2000	2000	1024
ROM programmability	MROM	MROM	MROM	MROM	MROM
Maximum seat height	2.65 mm	4.24 mm	4.24 mm	2.65 mm	2.65 mm
speed	8 MHz	12 MHz	12 MHz	12 MHz	8 MHz
Maximum slew rate	11 mA	15 mA	15 mA	15 mA	11 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	NO	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	7.5 mm	7.62 mm	7.62 mm	7.5 mm	7.5 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Maker	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.	-
Other features	-	OPTIONAL LOW EMI MODE; ROM PROTECT; TWO STANDBY MODES	OPTIONAL LOW EMI MODE; ROM PROTECT; TWO STANDBY MODES	OPTIONAL LOW EMI MODE; ROM PROTECT; TWO STANDBY MODES	-
boundary scan	-	NO	NO	NO	-
Format	-	FIXED POINT	FIXED POINT	FIXED POINT	-
Integrated cache	-	NO	NO	NO	-
low power mode	-	YES	YES	YES	-
Number of external interrupt devices	-	6	6	6	-
Number of timers	-	2	2	2	-
On-chip data RAM width	-	8	8	8	-
On-chip program ROM width	-	8	8	8	-
RAM (number of words)	-	124	124	124	-
