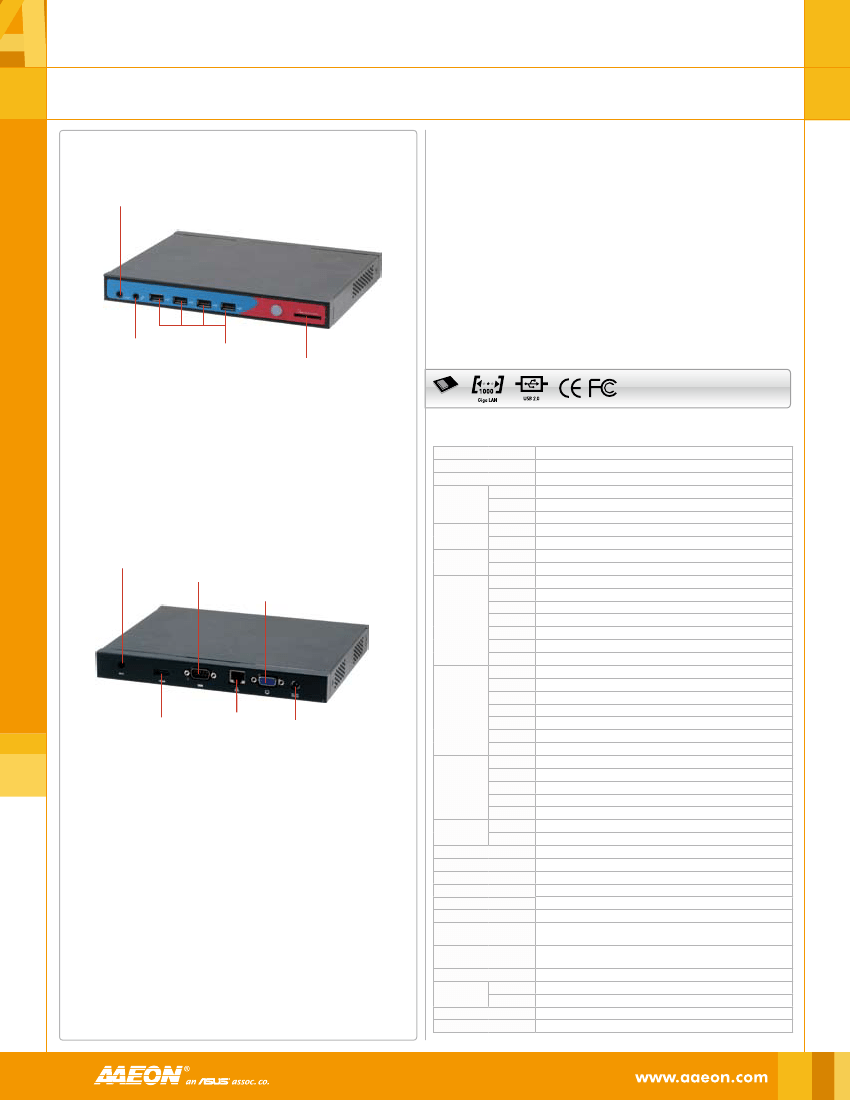

DSS-CV20

16

Digital Signage Systems

16-1

Compact Digital Signage System with Intel® Atom™ D2550 Platform

Front View

Features

■

Intel® Atom™ Processor D2550

Audio

Mic

(1M Cache, 1.86GHz)

■

204-pin Dual Channel DDR3 1066MHz x 2 up to 4GB

■

Intel® Integrated Graphics Engine GMA3650 Supports Dual

View by VGA, HDMI

■

Optional Wireless LAN (Wi-Fi 802.11b/g/n)

■

Gigabit Ethernet x 1

■

215mm(W) x 25mm(H) x 172mm(D)

■

HDD/SSD x 1; SD/SDHC/SDXC/MMC x 1

■

Max. Power Consumption 22W

■

VESA Mount Supported

USB x 4

SD Slot

DDR

3

Specifications

CPU

Onboard Intel® Dual-Core Atom™ D2550

Intel® NM10

204-pin DDR3 1066MHz SODIMM x 2, up to 4GB

VGA

DVI

Others

SSD

HDD

LAN

Wireless

USB Host

VGA

Front I/O

LAN

Serial Port

DIO

Audio

KB/MS

Others

USB Host

LAN

Serial Port

Rear I/O

HDMI

LAN

DC-in

DIO

Audio

KB/MS

Others

PCIe

PCI

Expansion

Mini Card

Mini PCI

Others

Indicator

Front

Rear

DB-15 x 1

—

HDMI x 1

SD/SDHC/SDXC/MMC x 1

2.5” SATA HDD bay x 1

Gigabit Ethernet

Optional by Mini Card

USB2.0 x 4

—

S/PDIF x 1, Mic-in x 1

—

Power Switch x 1

—

RJ-45 x 1

RS-232 x 1

—

Power input x 1

—

Half-size Mini Card x 1

—

PWR

—

19V DC-in

Max. 25W

Thermal Module

VESA Mount Holes

32°F ~ 104°F (0°C ~ 40°C)

-40°F ~ 176°F (-40°C ~ 80°C)

0.5g rms / 5 ~ 500Hz / operation – HDD type

3.5g rms / 5~ 500Hz / operation – SSD

10 G peak acceleration (11 msec. duration) – HDD

20 G peak acceleration (11 msec. duration) – SSD

—

EMC

Safety

CE/ FCC class A

—

8.46" x 0.98" x 6.77" (215mm x 25mm x 172mm)

—

Rear View

Chipset

System Memory

Display

Interface

Storage Device

WiFi

COM

Network

Power Requirement

Power Consumption

System Cooling

Mounting

Operating temperature

Storage Temperature

Anti-Vibration

Anti-Shock

MTBF

Certification

Dimension (W x H x D)

Gross Weight
