C1608C0G1H070DT datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> C1608C0G1H070DT

C1608C0G1H070DT: DescriptionCeramic Capacitor, Multilayer, Ceramic, 50V, 7.14% +Tol, 7.14% -Tol, C0G, 30ppm/Cel TC, 0.000007uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size320KB，9 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com; Environmental Compliance

Download Datasheet Parametric View All

C1608C0G1H070DT Overview

Ceramic Capacitor, Multilayer, Ceramic, 50V, 7.14% +Tol, 7.14% -Tol, C0G, 30ppm/Cel TC, 0.000007uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT

C1608C0G1H070DT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TDK Corporation
package instruction	, 0603
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.000007 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.8 mm
JESD-609 code	e3
length	1.6 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	7.14%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, PAPER, 7/13 INCH
positive tolerance	7.14%
Rated (DC) voltage (URdc)	50 V
size code	0603
surface mount	YES
Temperature characteristic code	C0G
Temperature Coefficient	30ppm/Cel ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	0.8 mm

Preview

Download Datasheet

View All

Capacitance

Range Chart

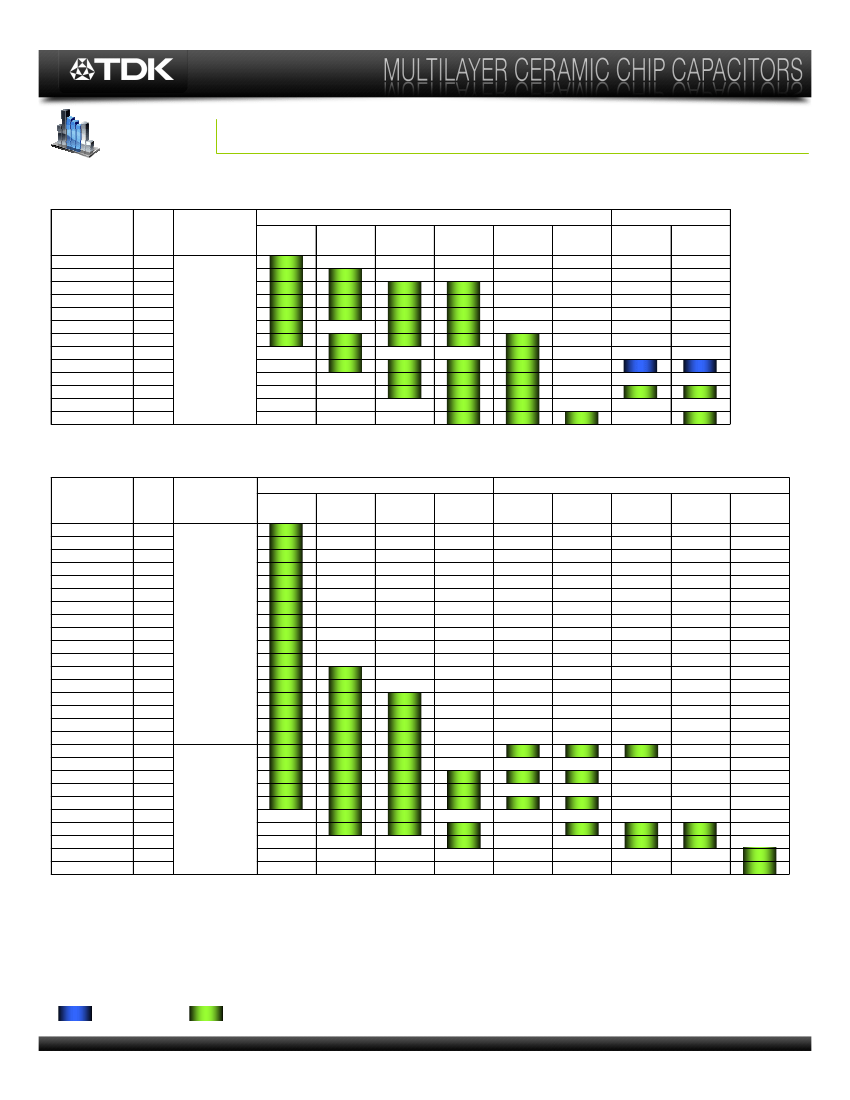

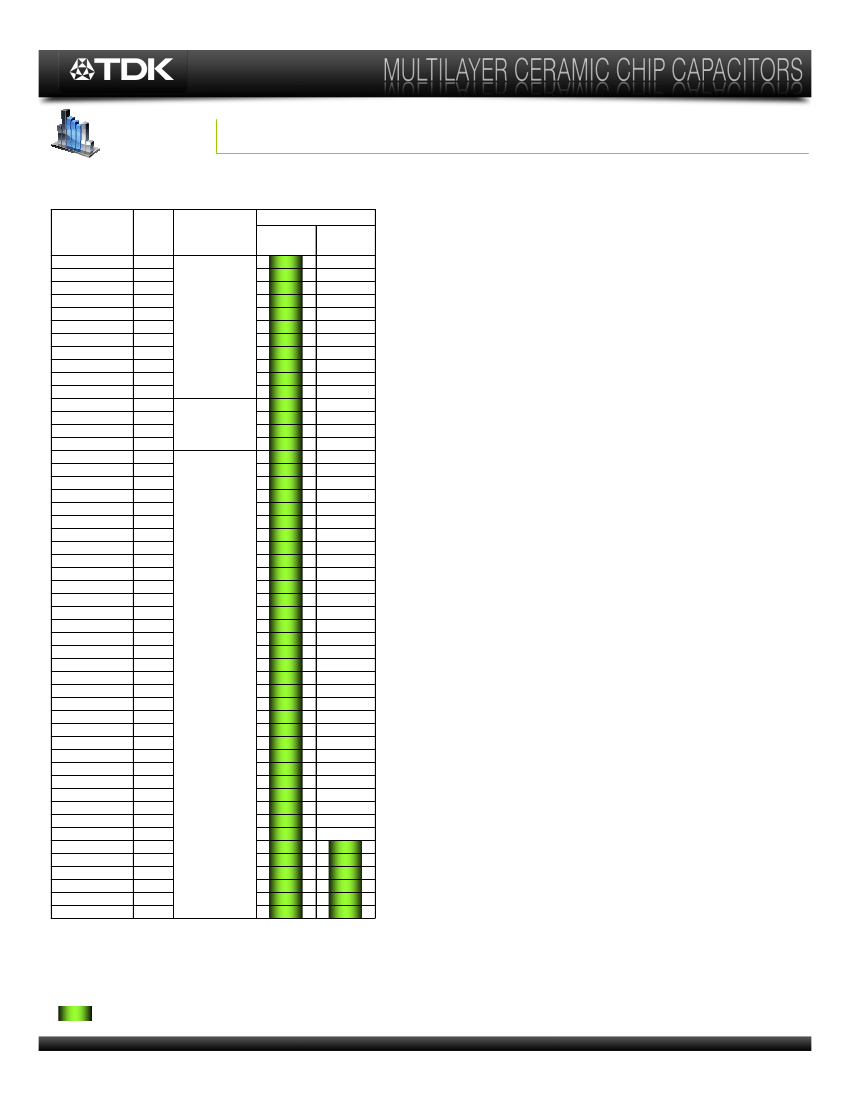

Capacitance Range Chart

Temperature Characteristics: C0G (0

30ppm/ºC)

Rated Voltage: 50V (1H), 25V (1E)

C1608 [EIA CC0603]

C0G

Capacitance

(pF)

0.50

0.75

1.0

1.2

1.5

1.8

2.2

2.7

3.3

3.9

4.7

5.6

6.8

8.2

100

120

150

180

220

270

330

390

470

560

680

820

1,000

1,200

1,500

1,800

2,200

2,700

3,300

3,900

4,700

5,600

6,800

8,200

10,000

Cap

Code

0R5

R75

010

1R2

1R5

1R8

2R2

2R7

3R3

3R9

4R7

5R6

6R8

8R2

100

120

150

180

220

270

330

390

470

560

680

820

101

121

151

181

221

271

331

391

471

561

681

821

102

122

152

182

222

272

332

392

472

562

682

822

103

Tolerance

B: ± 0.1pF

C: ± 0.25pF

(50V)

(25V)

C: ± 0.25pF

D: ± 0.5pF

J: ± 05%

Standard Thickness

0.80

0.15 mm

• All specifications are subject to change without notice. Please read the precautions before using the product.
