VCO2027B: DescriptionVoltage Controlled Oscillator, 530MHz Min, 670MHz Max; CategoryPassive components oscillator; File Size188KB，5 Pages; ManufacturerCTS

Download Datasheet Parametric View All

VCO2027B Overview

Voltage Controlled Oscillator, 530MHz Min, 670MHz Max

VCO2027B Parametric

Parameter Name	Attribute value
Maker	CTS
Reach Compliance Code	unknown
Maximum control voltage	4.5 V
Minimum control voltage	1 V
Modulation sensitivity	50 MHz/V
Installation features	SURFACE MOUNT
offset frequency	1 kHz
Maximum operating frequency	670 MHz
Minimum operating frequency	530 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	VOLTAGE CONTROLLED OSCILLATOR
Output Power	-3 dBm
phase noise	-76 dBc/Hz
physical size	12.7mm x 12.7mm x 3.3mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES

Preview

Download Datasheet

View All

VCO Data Sheet: VCO2027B

Application: Infrastructure VCO

1.0

DESCRIPTION AND APPLICATION

Single band Voltage-Controlled Oscillator

2.0

ELECTRICAL CHARACTERISTICS

Specification

2.1

2.2

2.3

2.4

2.5

2.6

2.7

2.8

2.8.1

2.8.2

2.9

2.10

2.11

2.12

2.13

Supply Voltage

Current Drain

Frequency

Operating Temperature

Tuning voltage range

Tuning sensitivity

Power output @

Phase noise @

1 kHz offset

10 kHz offset

Harmonics

Pushing figure (5.0V ± .3V)

Pulling figure (VSWR =1.67:1)

Spurious response

Control line capacitance

-5

-76

-103

-73

-100

-8

-90

dBc/Hz

dBc

MHz/V

MHz

dBc

-3

530

-40

1.0

Minimum

4.75

Typical

5.00

Maximum

5.25

670

4.5

Units

V DC

MHz

deg C

MHz/V

dBm

Revision. “4”

Page 1 of 5

1/21/04

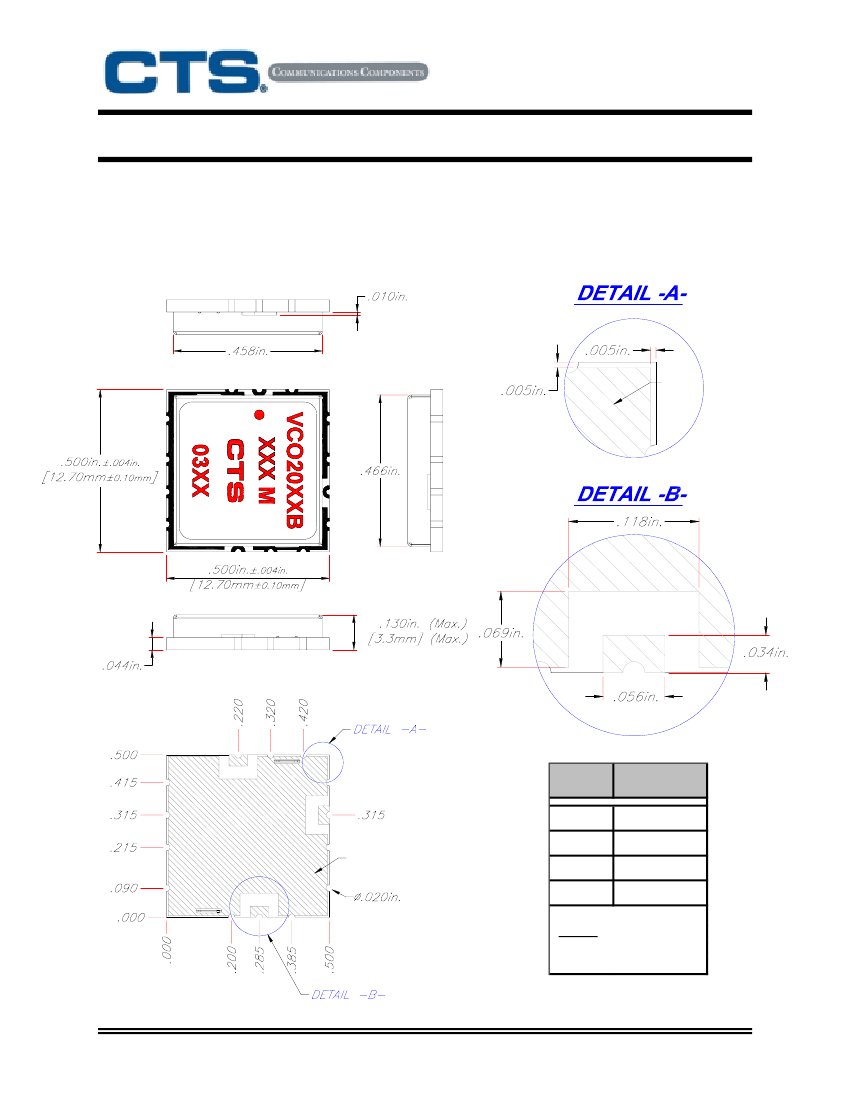

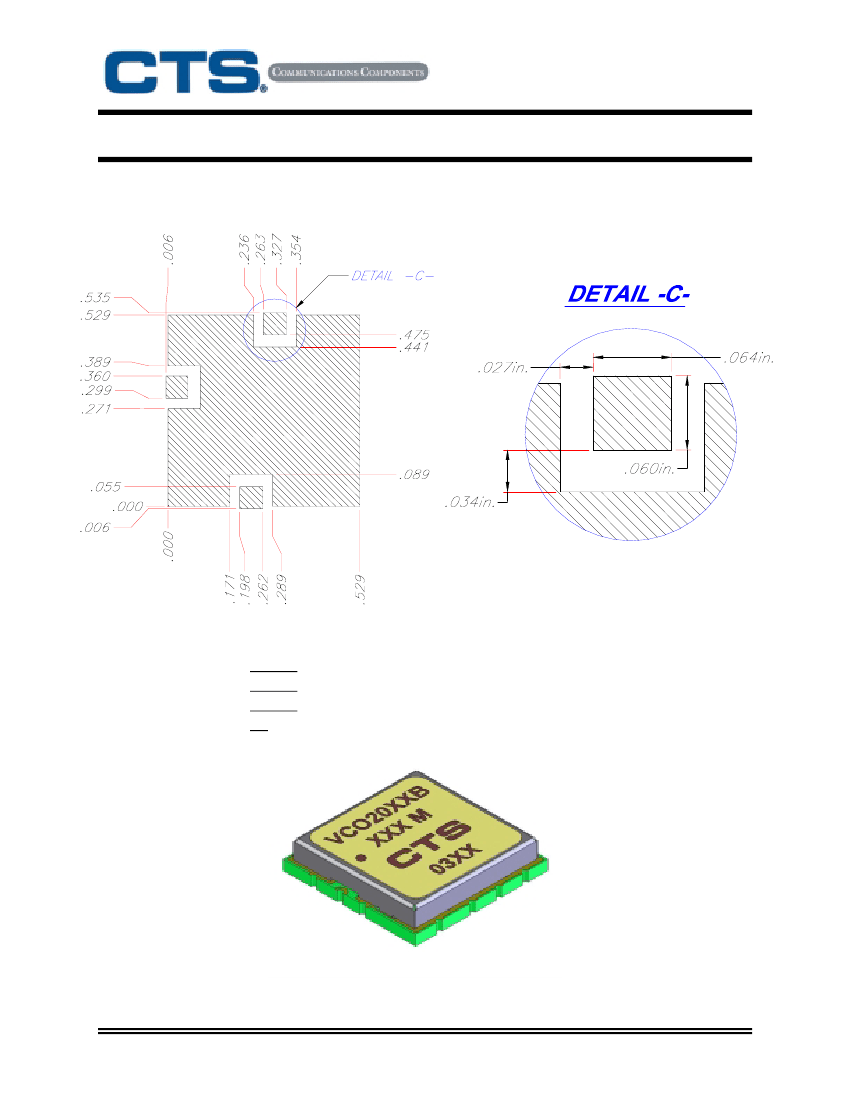

VCO Data Sheet: VCO2027B

Application: Infrastructure VCO

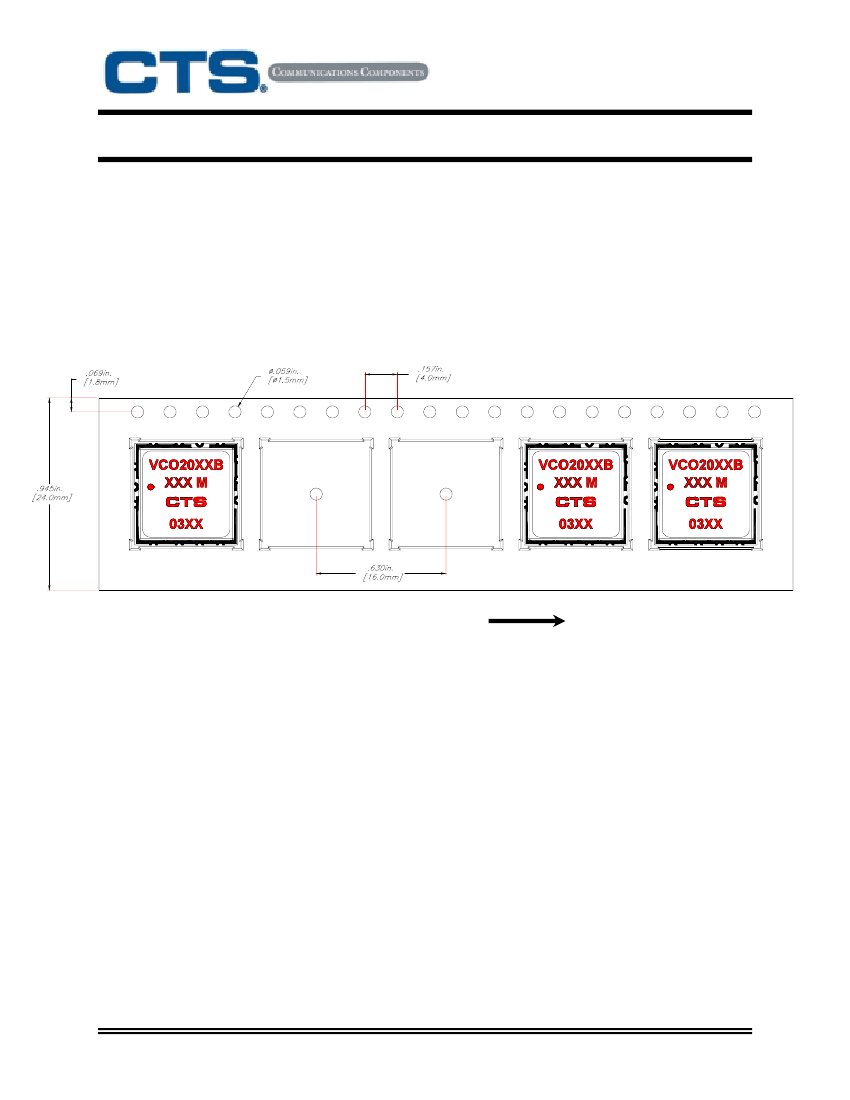

5.0

MAXIMUM SOLDERING PROFILE

This product can withstand a maximum reflow temperature of 260°C for 20 seconds.

6.0

COMPONENT SOLVENT RESISTIVITY

This product is capable of passing MIL-STD-202F, Notice 12, Method 215J.

CTS - Communications Components reserves the right to make changes without further notice to any products herein. CTS -

Communications Components makes no warranty, representation, or guarantee regarding the suitability of its products for any

particular purpose, nor does CTS - Communications Components assume any liability arising out of the application or use of any

product or circuit, and specifically disclaims any and all liability, including without limitation consequential or incidental damages.

“Typical” parameters can and do vary in different applications. All operating parameters, including “Typicals” must be validated for

each customer application by customer’s technical experts. This product may be covered by one or more patents in the patent

portfolio of CTS - Wireless Components. CTS - Communications Components does not convey any license under its patent rights

nor the rights of others. CTS - Communications Components products are not designed, intended, or authorized for use as

components in systems intended for surgical implant into the body, or other applications intended to support or sustain life, or for

any other application in which the failure of the CTS - Wireless Components' product could create a situation where personal injury

or death may occur. Should Buyer purchase or use CTS - Communications Components products for any such unintended or

unauthorized application, Buyer shall indemnify and hold CTS - Communications Components and its officers, employees,

subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees

arising out of, directly, or indirectly, any claim of personal injury or death associated with such unintended.

and

Employer.

are registered trademarks of CTS Corporation.

CTS Corporation is an Equal Opportunity/Affirmative Action

Revision. “4”

Page 5 of 5

1/21/04
