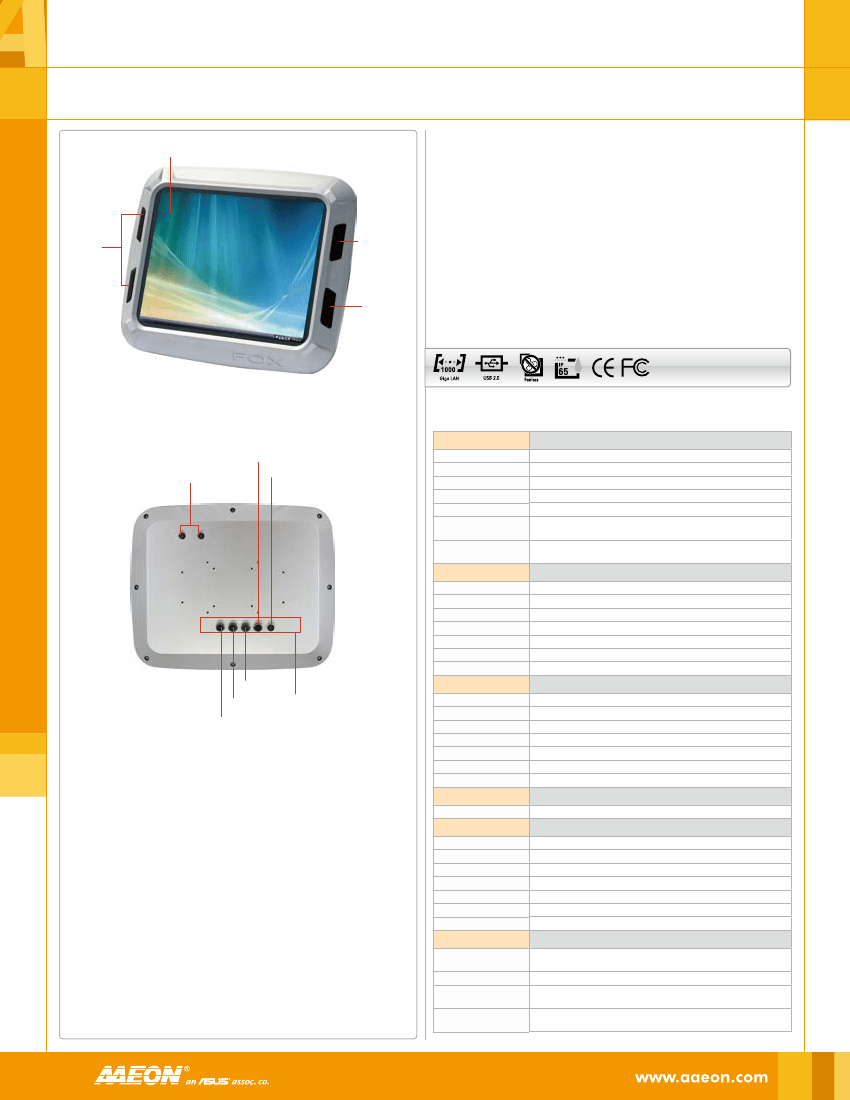

FOX-151
05
Multi-Purpose and Water-Proof Panel Solutions
05-1
IP-67 15” Multi-Purpose & Water-Proof Panel PC With Intel® Atom™ N270 Processor
Sunlight Readable Touch Screen
Features
■
■
Onboard Intel®
Reserved
for Wireless
Antennas
Day/ Night Mode
Display Button
Atom™ N270 1.6 GHz Processor
■
■
IP-67 Water-Proof Sealing Enclosure
■
■
Marine Standard Test Procedure: IEC60945 ed.4 Compliant
■
■
Anti-Fog Design: Optical Bonding
■
■
Wide Temperature Support: -20
˚C
~ 55˚C
■
■
Backlight On/Off & Brightness Adjustment
Note: IEC60945 ed.4 Compliant with the conditions: 8.2.1/ 8.2.2/ 8.3/ 8.4.2.6/
8.7/ 8.8
On/Off
Button
Specifications
System
Power
Antenna (Optional)
LAN
Processor
System Memory
LCD/CRT Controller
Ethernet
Water-Proof I/O Port
Solid Storage Disk
OS Support
Intel® Atom™ N270 1.6 GHz Processor
DDR 2 SODIMM x 1, Max. 2 GB
Intel® 945GSE
10/100/1000 Base-TX, RJ-45 connector x 1 (optional)
RS-232 x 1, RS-232/422/485 x 1, USB2.0 x 2, Audio Line out x 1 (optional)
SATA 2.5” Hard Disk Drive Bay (Anti-vibration)/ CompactFlash™ (Internal)
Windows® XP Pro for Embedded, Windows® XP Embedded,
Windows® 7
Mechanical
Construction
Color
Mounting
Dimension
Carton Dimension
Gross Weight
Net Weight
COM1
COM2
USB1/2
Water-Proof Connectors
(M12 Screw Type)
Sealed Aluminum Alloy Chassis
Silver Gray
VESA 100/ 75mm
16.14" x 14.41" x 2.36" (410mm x 366mm x 60mm)
20.39” x 18.62” x 8.74” (518mm x 473mm x 222mm)
22.05 lb (10 kg)
13.2 lb (6 kg)
Environmental
Operating Temperature
Storage Temperature
Storage Humidity
Vibration
Shock
Safety
EMC
-4°F ~ 131°F (-20°C ~ 55°C)
-4°F ~ 140°F (-20°C ~ 60°C)
10 ~ 90%@35°C, non-condensing
3 grms/ 5 ~ 500MHz/ Random Operation
15G peak acceleration (11m sec. duration) / operation
All sides of IP-65 Certificated, IEC 60945 ed.4 compliant
CE/FCC Class A
Power Supply
DC-DC Input, 90W
Input Range: 9 ~30 V DC
LCD
Display Type
Max. Resolution
Max. Color
Dot Size
Luminance (Typical)
View Angle
Back Light MTBF (Hours)
15” TFT- LCD
1024 x 768
16.7M colors
0.297 x 0.297
450 nits
160°(H)/160°(V)
50,000
Touchscreen
Type
Resolution
Light Transmission
Lifetime
Low Reflection Analog Resistive (FOX-151STT)
5-wire, Analog Resistive (FOX-151HTT)
2048 x 2048
> 74% (8-wire analog resistive)
> 80% (5-wire analog resistive)
2 million activations (8-wire analog resistive)
35 million activations (5-wire analog resistive)
FOX-151

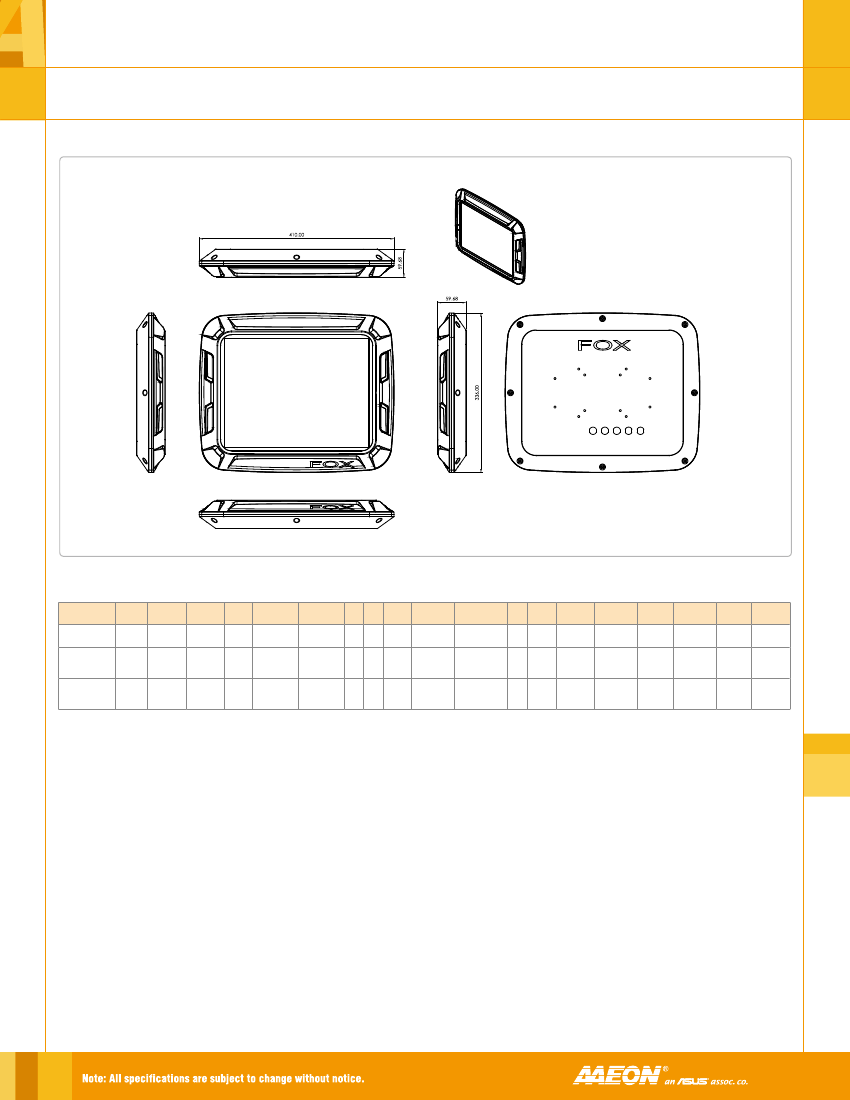

Dimension
Unit: mm
Ordering Information
Part Number
TF-FOX-
151ST-A1-1011
TF-FOX-
151HTT-A1-1011
TF-FOX-
151STT-A1-1012
Display
Type
15" TFT-
LCD
15" TFT-
LCD
15" TFT-
LCD
Max
Resolution
1024 x 768
Luminance
450 cd/m
2
View
Angle
160(H),
160(V)
160(H),
160(V)
160(H),
140(V)
Backlight
MTBF (Hours)
50,000
CPU
Intel® Atom™
N270, 1.6GHz
Intel® Atom™
N270, 1.6GHz
Intel® Atom™
N270, 1.7GHz
LAN
1
USB
2
RS-232
1
RS-
485/422/232
1
Storage
RAM
Display
_
Expansion
Mini PCI x 1
Mounting
VESA 75/100
Power
DC 9~30V
Temp.
-20°C~55°C
( w/o air )
-20°C~55°C
( w/o air )
-20°C~55°C
( w/o air )
Touch
5-wire
resistive
5-wire
resistive
5-wire
resistive
Other
GbE LAN
GbE LAN,
Touch
Screen
GbE LAN,
Touch
Screen
CF Kit x 1
1G
SATA-HDD Kit x 1
CF Kit x 1
1G
SATA-HDD Kit x 1
CF Kit x 1
1G
SATA-HDD Kit x 1
1024 x 768
450 cd/m
2
50,000
1
2
1
1
_
Mini PCI x 1
VESA 75/100
DC 9~30V
1024 x 768
800 cd/m
2
60,000
1
2
1
1
_
Mini PCI x 1
VESA 75/100
DC 9~30V
Packing List
•
USB Cable with Water Proof Connector
•
COM Cables with Water Proof Connectors
•
Waterproof Connector for DC–in (Female)
•
Waterproof Connector for LAN (optional)
•
Waterproof Connector for Audio–Line-Out (Optional)
•
Easy Stand
•
CD-ROM for Manual (in PDF format) and Drivers
•
FOX-151
Optional Accessories
•
9761F15001
Wireless LAN Kits with Internal Antenna
•
1757910004
AC Adapter (100W)
•
1702031802
AC Adapter Power Cord (US Type)
•
1702031803
AC Adapter Power Cord (European Type)
Accessories in Packing
•
1700090208
COM (D-SUB) Cable with Waterproof M12 Connector (FOX series)
•
170203180E
AC Adapter Power Cord (Japanese Type)
•
1709080251
Two USB Y Cables with Waterproof M12 Connector (FOX series)
•
M990FOX001
3-pin Water-proof Cap Connector for DC-in or Audio Line-out Port (FOX series)
•
P990FOX001
Water-proof Cap Connector for LAN Port of FOX Series (RJ-45-compliance)
05-2
