TC74HC670AF-TP1EL datasheet, PDF

TC74HC670AF-TP1EL: DescriptionIC 4 X 4 STANDARD SRAM, 49 ns, PDSO16, 0.200 INCH, PLASTIC, SOIC-16, Static RAM; Categorystorage storage; File Size134KB，6 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

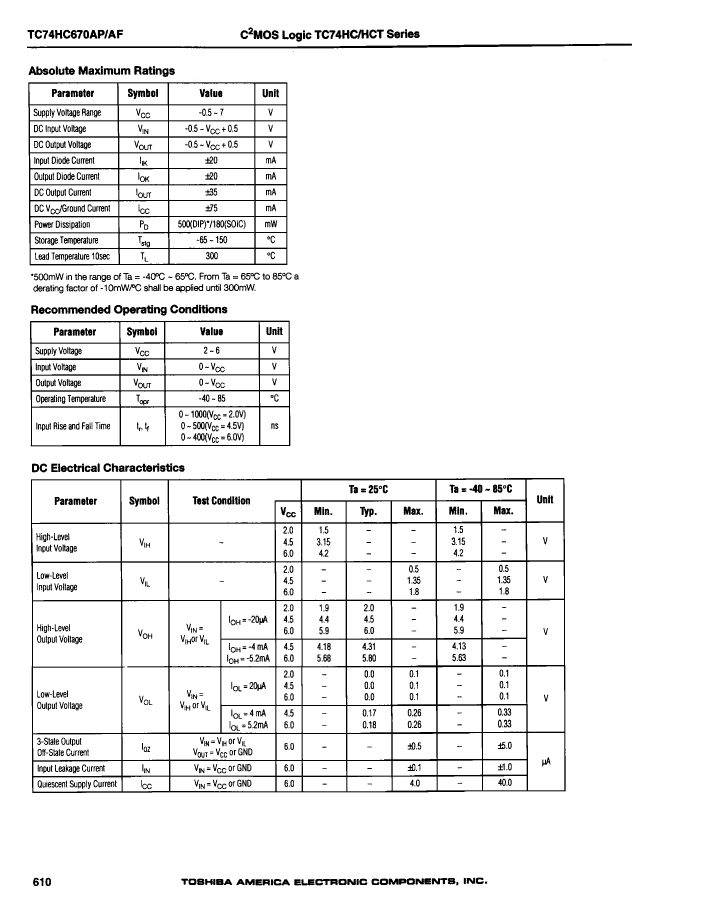

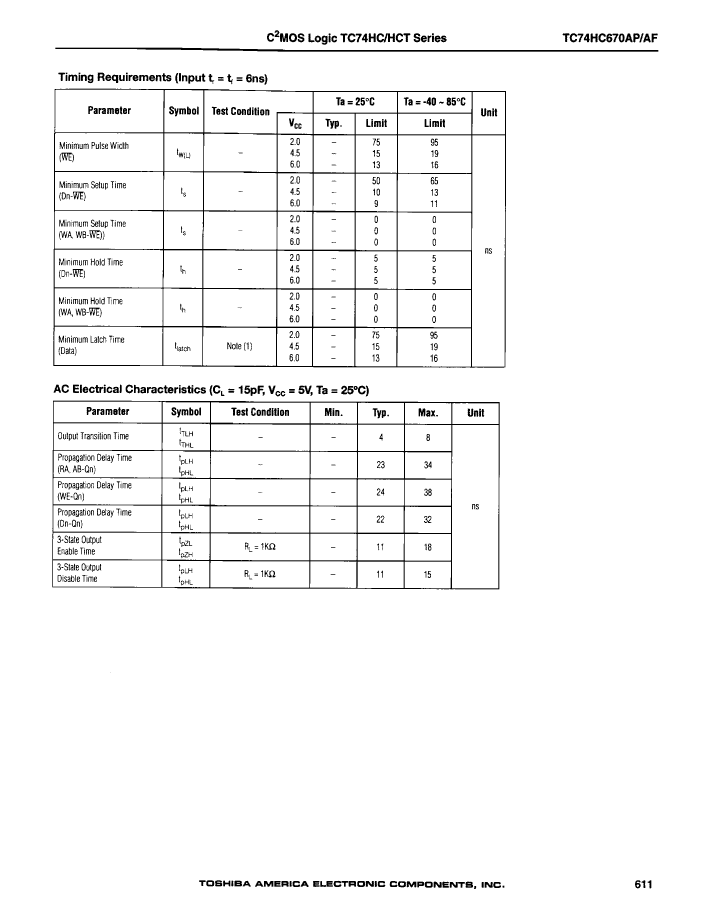

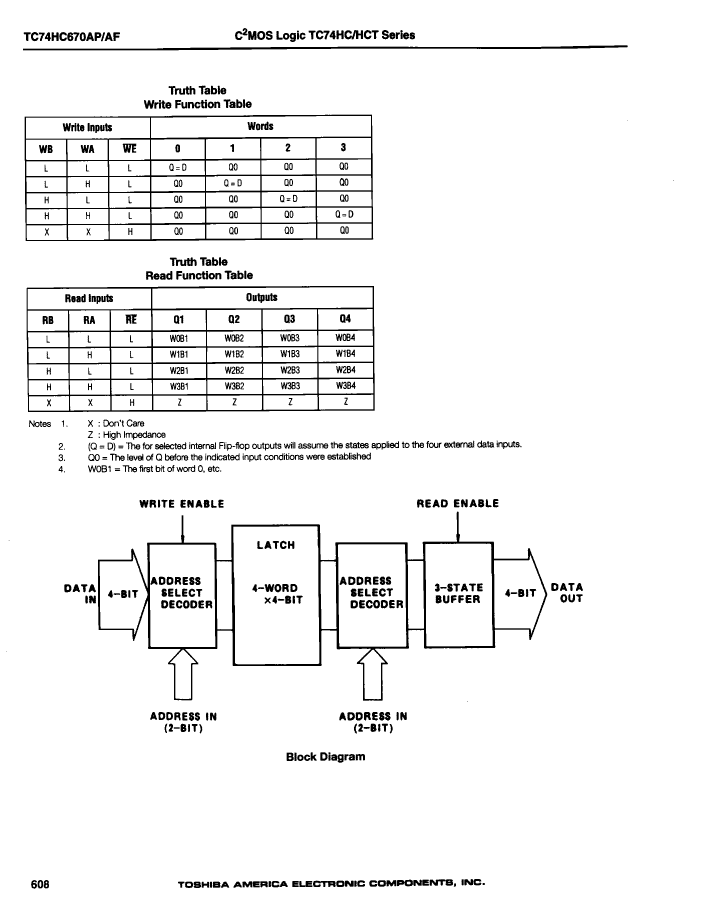

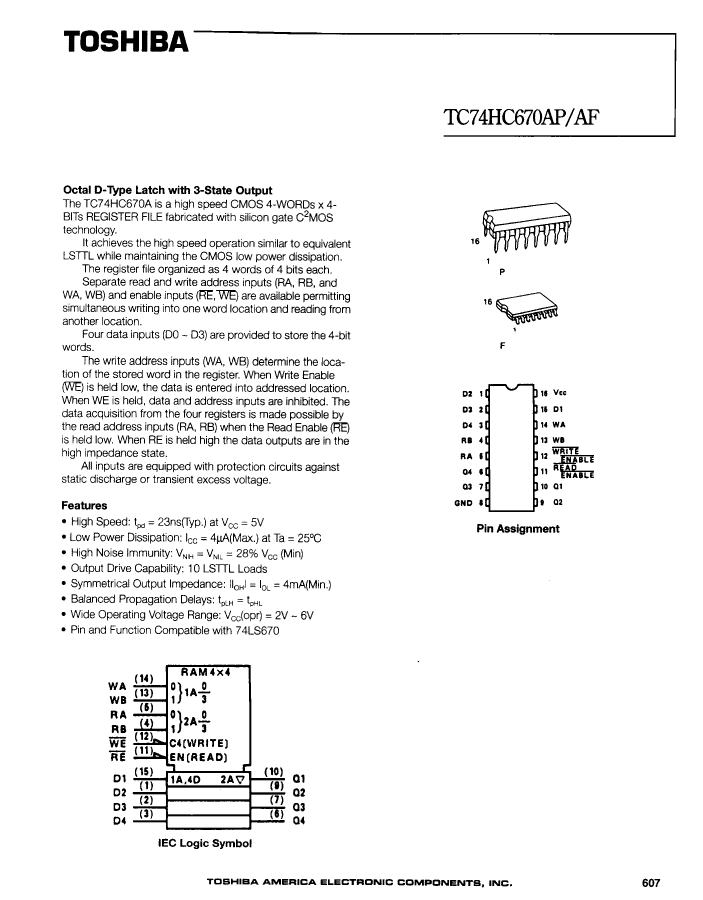

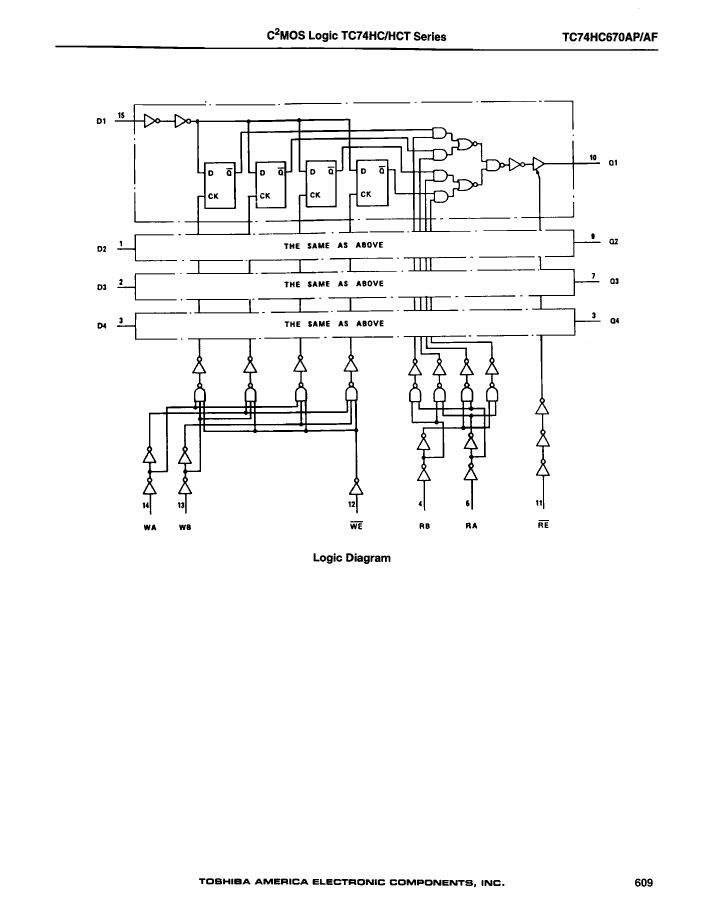

TC74HC670AF-TP1EL Overview

IC 4 X 4 STANDARD SRAM, 49 ns, PDSO16, 0.200 INCH, PLASTIC, SOIC-16, Static RAM

Parameter Name	Attribute value
Maker	Toshiba Semiconductor
Parts packaging code	SOIC
package instruction	SOP,
Contacts	16
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	49 ns
JESD-30 code	R-PDSO-G16
length	10.3 mm
memory density	16 bit
Memory IC Type	STANDARD SRAM
memory width	4
Number of functions	1
Number of ports	1
Number of terminals	16
word count	4 words
character code	4
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	4X4
Output characteristics	3-STATE
Exportable	NO
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	1.9 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	5.3 mm

	TC74HC670AF-TP1EL	TC74HC670AF-TP2EL
Description	IC 4 X 4 STANDARD SRAM, 49 ns, PDSO16, 0.200 INCH, PLASTIC, SOIC-16, Static RAM	IC 4 X 4 STANDARD SRAM, 49 ns, PDSO16, 0.200 INCH, PLASTIC, SOIC-16, Static RAM
Maker	Toshiba Semiconductor	Toshiba Semiconductor
Parts packaging code	SOIC	SOIC
package instruction	SOP,	SOP,
Contacts	16	16
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Maximum access time	49 ns	49 ns
JESD-30 code	R-PDSO-G16	R-PDSO-G16
length	10.3 mm	10.3 mm
memory density	16 bit	16 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM
memory width	4	4
Number of functions	1	1
Number of ports	1	1
Number of terminals	16	16
word count	4 words	4 words
character code	4	4
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
organize	4X4	4X4
Output characteristics	3-STATE	3-STATE
Exportable	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Parallel/Serial	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.9 mm	1.9 mm
Maximum supply voltage (Vsup)	6 V	6 V
Minimum supply voltage (Vsup)	2 V	2 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
width	5.3 mm	5.3 mm
