35R-0.8JFCK-TF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 35R-0.8JFCK-TF

35R-0.8JFCK-TF: DescriptionBoard Stacking Connector, 35 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Receptacle,; CategoryThe connector The connector; File Size108KB，2 Pages; ManufacturerJST

Download Datasheet Parametric Compare View All

35R-0.8JFCK-TF Overview

Board Stacking Connector, 35 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Receptacle,

35R-0.8JFCK-TF Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	JST
Reach Compliance Code	unknown
ECCN code	EAR99
Body/casing type	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	TIN OVER COPPER
Contact completed and terminated	TIN OVER COPPER
Contact point gender	FEMALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	JFC
Plug information	35P-0.8JFCK-TF
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	35
UL Flammability Code	94V-0

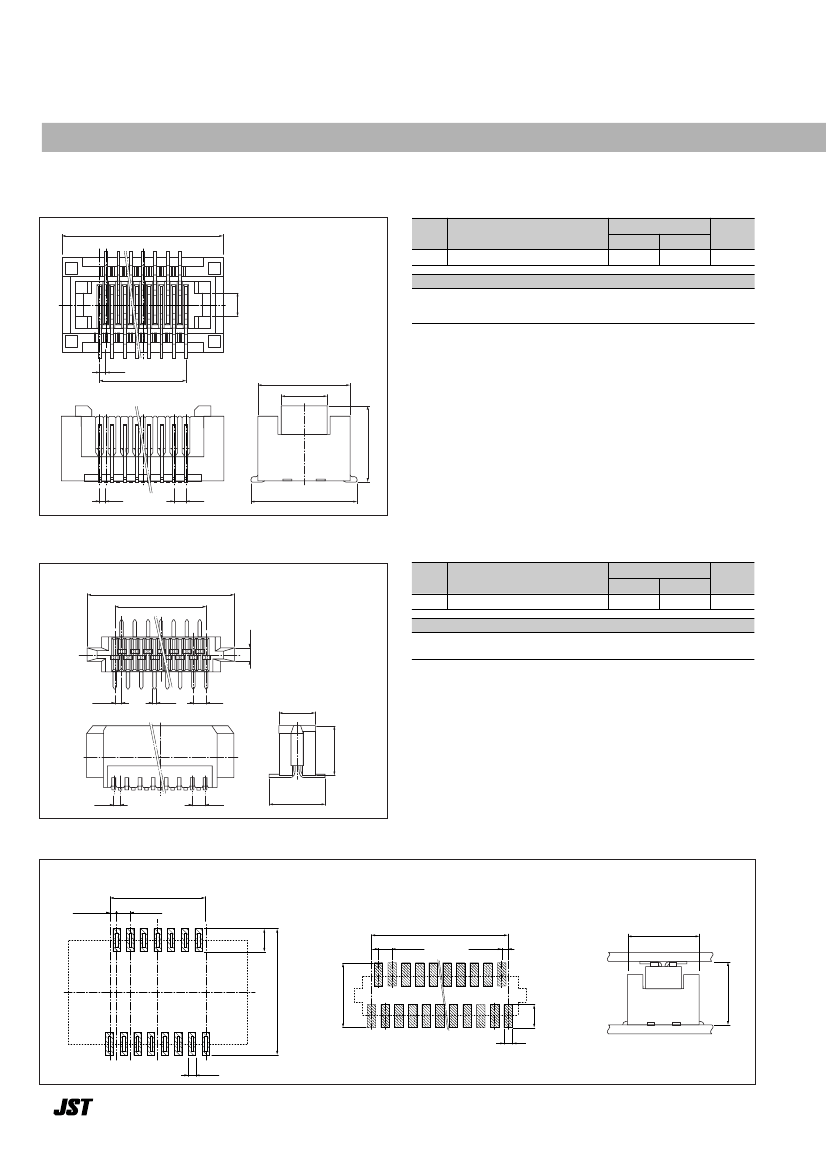

Preview

Download Datasheet

View All

JFC

CONNECTOR

0.8mm

pitch

Emboss Tape

Board-to-board connectors

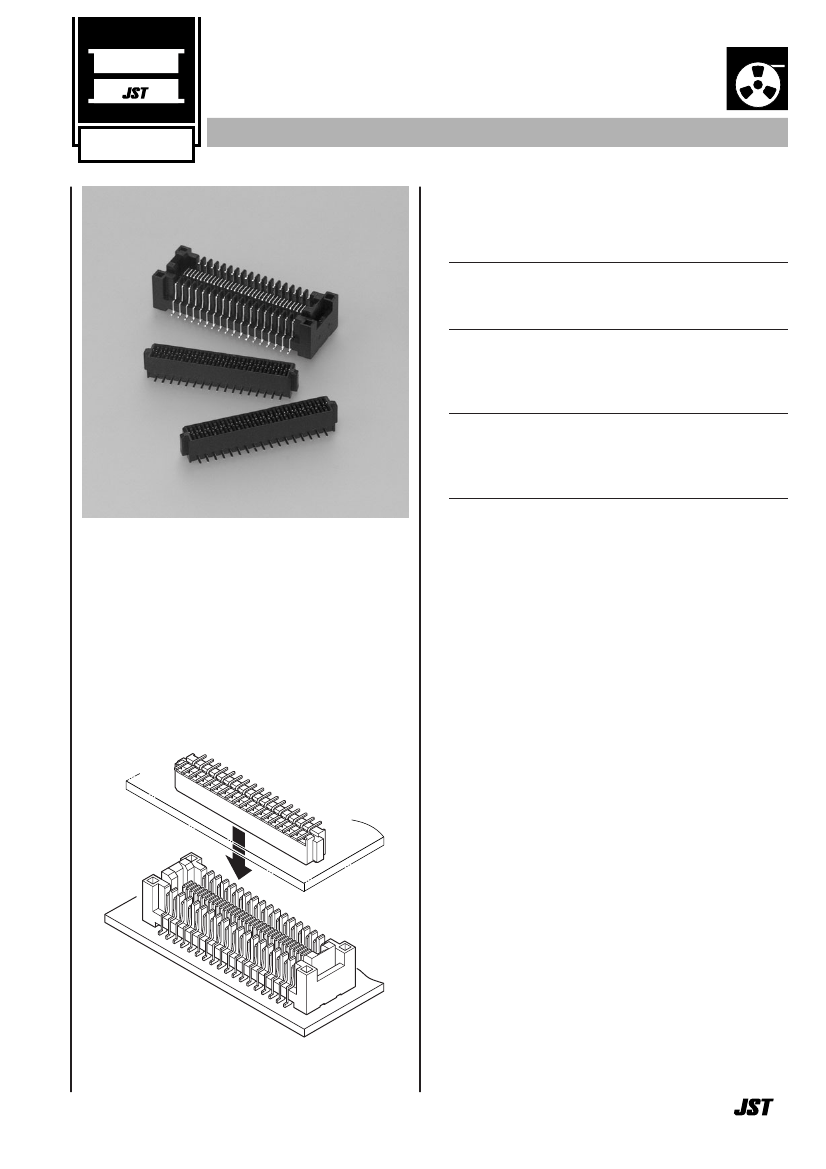

Features ––––––––––––––––––––––––

• 0.8mm pitch, 35-circuits and 10.5mm stacking

height

The pitch and circuit number are designed to meet miniaturized

multifunctional car audio and navigation equipment.

• Compensates for misalignment

To make the assembly process at customers’ site easier,

misalignment of 0.5mm on X, Y and Z axes will be

compensated for.

• Realized current rating of 1.3 Amps

Realized 1.3A of current rating by having selected a high

conductivity material for the contact.

• Applicable to automatic surface mounting

technology

By providing a suction cap on the plug this embossed tape

This 0.8mm pitch connector is developed

for the car audio industry and is able to

compensate for misalignment of up to

0.5mm on all three directions of X, Y and Z

axes between the plug and receptacle

when they are mating.

packaging connector series is applicable to automatic surface

mounting.

Specifications –––––––––––––––––––

• Current rating: 1.3A AC, DC

• Voltage rating: 125V AC, DC

• Temperature range: -40˚C to +85˚C

(including temperature rise in applying

electrical current)

• Contact resistance: Initial value/50m

Ω

max.

After environmental testing/30m

Ω

max.

(variation from initial value)

• Insulation resistance: 500M

Ω

min.

• Withstanding voltage: 500V AC/minute

* Compliant with RoHS.

* Refer to "General Instruction and Notice when using

Terminals and Connectors" at the end of this catalog.

* Contact JST for details.

35R-0.8JFCK-TF Related Products

	35R-0.8JFCK-TF	35P-0.8JFCK-TF
Description	Board Stacking Connector, 35 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Receptacle,	Board Stacking Connector, 35 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, Plug,
Is it lead-free?	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible
Maker	JST	JST
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Body/casing type	RECEPTACLE	PLUG
Connector type	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR
Contact to complete cooperation	TIN OVER COPPER	TIN OVER COPPER
Contact completed and terminated	TIN OVER COPPER	TIN OVER COPPER
Contact point gender	FEMALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
JESD-609 code	e3	e3
MIL compliance	NO	NO
Manufacturer's serial number	JFC	JFC
Plug information	35P-0.8JFCK-TF	35R-0.8JFCK-TF
Mixed contacts	NO	NO
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of rows loaded	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	0.8 mm	0.8 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	35	35
UL Flammability Code	94V-0	94V-0
