UZ5770E3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> UZ5770E3

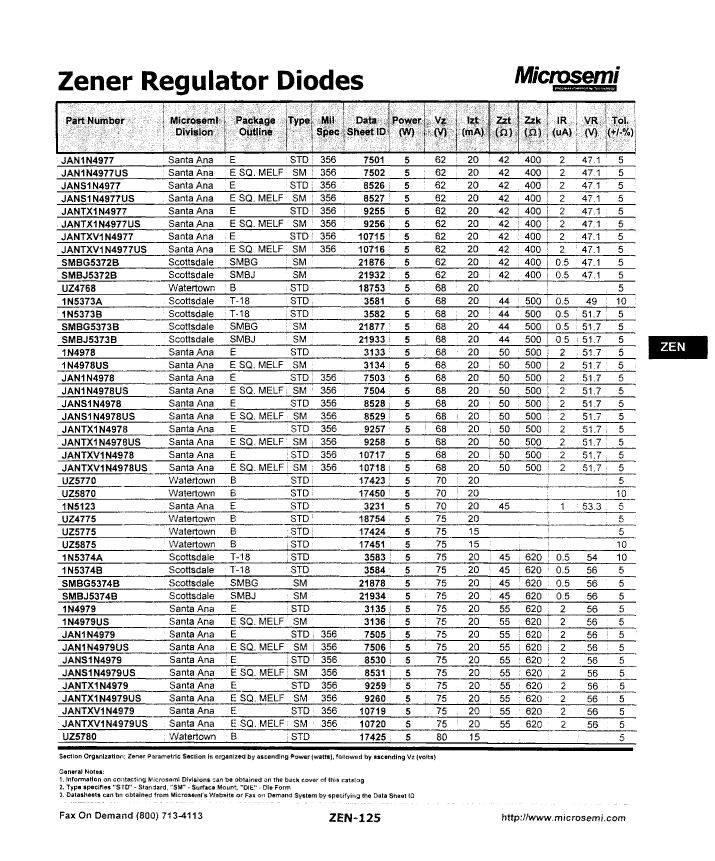

UZ5770E3: DescriptionZener Diode, 70V V(Z), 5%, 5W, Silicon, Unidirectional,; CategoryDiscrete semiconductor diode; File Size108KB，1 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

UZ5770E3 Overview

Zener Diode, 70V V(Z), 5%, 5W, Silicon, Unidirectional,

UZ5770E3 Parametric

Parameter Name	Attribute value
Maker	Microsemi
package instruction	O-LALF-W2
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	METALLURGICALLY BONDED
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JESD-30 code	O-LALF-W2
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
polarity	UNIDIRECTIONAL
Maximum power dissipation	5 W
Nominal reference voltage	70 V
surface mount	NO
technology	ZENER
Terminal form	WIRE
Terminal location	AXIAL
Maximum voltage tolerance	5%
Working test current	20 mA

Preview

Download Datasheet

View All

UZ5770E3 Related Products

	UZ5770E3	1N5123E3	UZ5870E3	UZ5875E3	UZ4775E3	UZ5775E3	UZ4768E3	UZ5780E3
Description	Zener Diode, 70V V(Z), 5%, 5W, Silicon, Unidirectional,	Zener Diode, 70V V(Z), 5%, 5W, Silicon, Unidirectional,	Zener Diode, 70V V(Z), 10%, 5W, Silicon, Unidirectional,	Zener Diode, 75V V(Z), 10%, 5W, Silicon, Unidirectional,	Zener Diode, 75V V(Z), 5%, 5W, Silicon, Unidirectional,	Zener Diode, 75V V(Z), 5%, 5W, Silicon, Unidirectional,	Zener Diode, 68V V(Z), 5%, 5W, Silicon, Unidirectional,	Zener Diode, 80V V(Z), 5%, 5W, Silicon, Unidirectional,
package instruction	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2
Reach Compliance Code	compliant	compli	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE
JESD-30 code	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2
Number of components	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2
Package body material	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
polarity	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL
Maximum power dissipation	5 W	5 W	5 W	5 W	5 W	5 W	5 W	5 W
Nominal reference voltage	70 V	70 V	70 V	75 V	75 V	75 V	68 V	80 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
technology	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Maximum voltage tolerance	5%	5%	10%	10%	5%	5%	5%	5%
Working test current	20 mA	20 mA	20 mA	15 mA	20 mA	15 mA	20 mA	15 mA
Maker	Microsemi	-	Microsemi	Microsemi	Microsemi	Microsemi	Microsemi	Microsemi
Other features	METALLURGICALLY BONDED	METALLURGICALLY BONDED	METALLURGICALLY BONDED	METALLURGICALLY BONDED	-	METALLURGICALLY BONDED	-	METALLURGICALLY BONDED
