TDK EMC Technology
Common Mode Filter ACP3225 Series
FEATURES
ACP3225 Series corresponds to a large current with low RDC.
These are useful for the power-supply noise of a portable equipment.
APPLICATION
For Portable PC,DVC,Game machine,Telephone,
CD/DVD-ROM, etc.

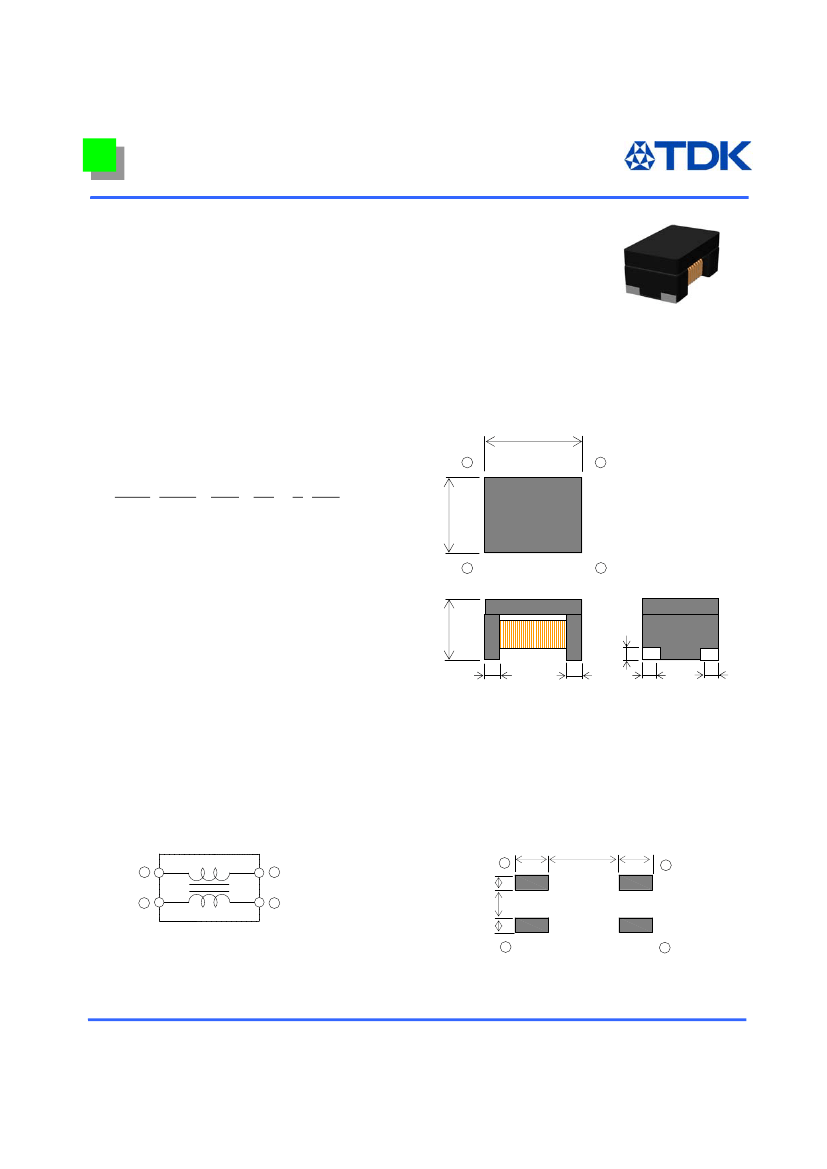

SHAPES AND DIMENSIONS
3.2±0.2
PRODUCT IDENTIFICATION
(1)
(2)
(3)
(4)
(5)
(6)
2.5±0.2
1
4
ACP 3225 - 102 - 2P – T 000
(1) Series name
(2) Case size
(3) Impedance
102 : 1000
(at 100MHz)
(4) Numbers of lines
2P : 2 Lines
(5) Packing style
T : Taping
180mm reel 1,000pcs.
TL : Taping
330mm reel 5,000pcs.
(6)Remarks
2
3
1.9±0.1
0.4
0.65
0.65
0.8
0.8
Unit : mm
EQUIVALENT CIRCUIT
RECOMMENDED
PATTERNS ON PC BOARD
0.9
1
1.9
0.9
4
2
3
No directionality
0.4 0.75 0.4
2
1
4
3
These products are only for reflow soldering. Unit : mm
2011.7
Ver.8
TDK EMC Technology
Common Mode Filter ACP3225 Series
ELECTRICAL CHARACTERISTICS
Operating temperature range : -25deg.C to +85deg.C
Part No.
ACP3225-102-2P-*
Common-mode /Z/
( at 100MHz）
1000
±25%
DC resistance
(/Line) max.
0.10
Rated current
(A) max.
1.2
Rated voltage
(V) max.
60
/Z/ vs. FREQUENCY CHARACTERISTICS
10000
Common mode
Impedance(ohm)
1000
100
10
Differential mode
1
1
10
100
Frequency(MHz)
1000
10000
2011.7
Ver.8
