C7D15PF29132 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> C7D15PF29132

C7D15PF29132: DescriptionCard Edge Connector, 30 Contact(s), 2 Row(s), Female, Straight, 0.125 inch Pitch, Press Fit Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size64KB，2 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/

Download Datasheet Parametric View All

C7D15PF29132 Overview

Card Edge Connector, 30 Contact(s), 2 Row(s), Female, Straight, 0.125 inch Pitch, Press Fit Terminal, Black Insulator, Receptacle

C7D15PF29132 Parametric

Parameter Name	Attribute value
Maker	Thomas & Betts Corporation
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	OPTIONAL POLARIZATION KEY
body width	0.365 inch
subject depth	0.55 inch
body length	2.16 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN LEAD (100)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	1000VDC V
Filter function	NO
IEC compliance	NO
maximum insertion force	2.224 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED THERMOPLASTIC
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	C7D
Plug contact pitch	0.125 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	6.35 mm
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.67 inch
Terminal pitch	3.17 mm
Termination type	PRESS FIT
Total number of contacts	30
UL Flammability Code	94V-0
Evacuation force-minimum value	.556 N

Preview

Download Datasheet

View All

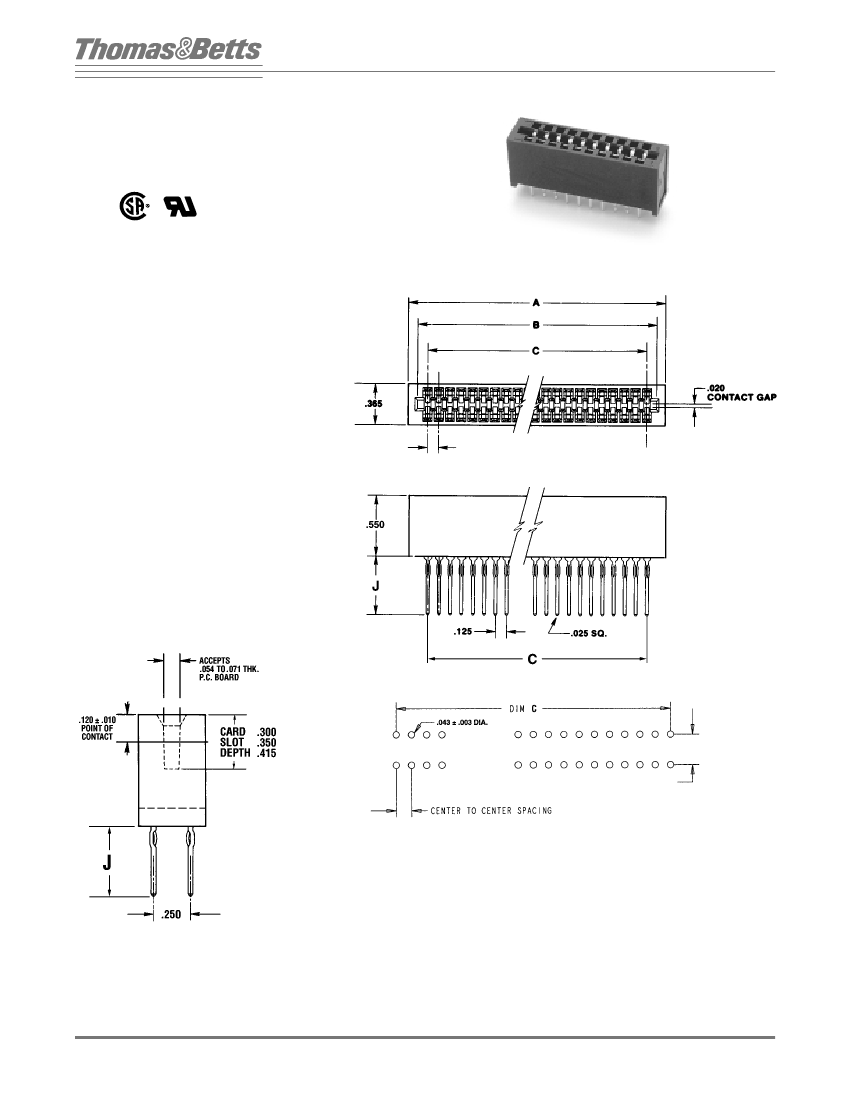

Cardedge

Press-Fit

.125" CENTER-TO-CENTER

.250" ROW-TO-ROW

WITH STANDOFFS

LR49571

E60980

HYSICAL

ROPERTIES

NSULATION

ESISTANCE

5000 megohms minimum.

ONTACT

ETENTION

NTO

PCB:

5 lbs.

NSERTION

ITHDRAWAL

ORCE

8 oz./2 oz. average

contact pair using .0620 steel blade.

NSULATOR

ODY

Glass filled thermoplastic,

UL rating 94V-O

OLOR

Black

ONTACTS

High strength copper alloy.

ONTACT

LATING

50 microinches nickel

underplate with 30 microinches gold in the mating

area, tin/lead on tails, 100 microinches minimum

LECTRICAL

ROPERTIES

PERATING

OLTAGE

1000 VDC (sea level)

URRENT

ATING

3 Amperes

NITIAL

ONTACT

ESISTANCE

10 milliohms

.125

NVIRONMENTAL

ROPERTIES

PERATING

EMPERATURE

-55˚C to +125˚C

EMPERATURE

YCLING

MIL-STD-202 method 107

IBRATION

MIL-STD-202, method 204

PPLICATION

OOLING

NSERTION

OOL

Cat. # 98230, see page 380

AUGHTER

ARD

See page 347 for layout

.250

.125

Openends and open/closed ends are available. Consult factory.

Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312

Dimensions shown are for reference only. Dimensions are in inches.
