SHB20F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SHB20F

SHB20F: DescriptionRectifier Diode, 1 Element, 0.08A, 2000V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size188KB，2 Pages; ManufacturerSSDI; Websitehttp://www.ssdi-power.com/

Download Datasheet Parametric Compare View All

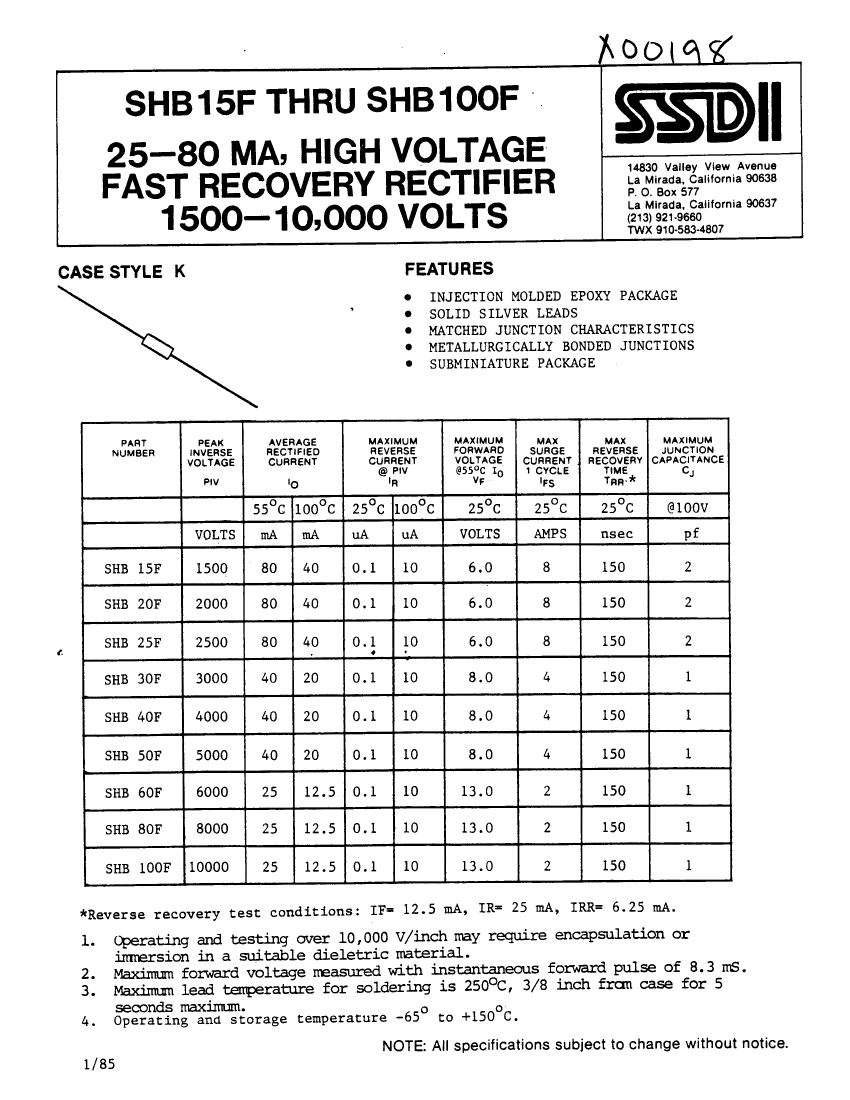

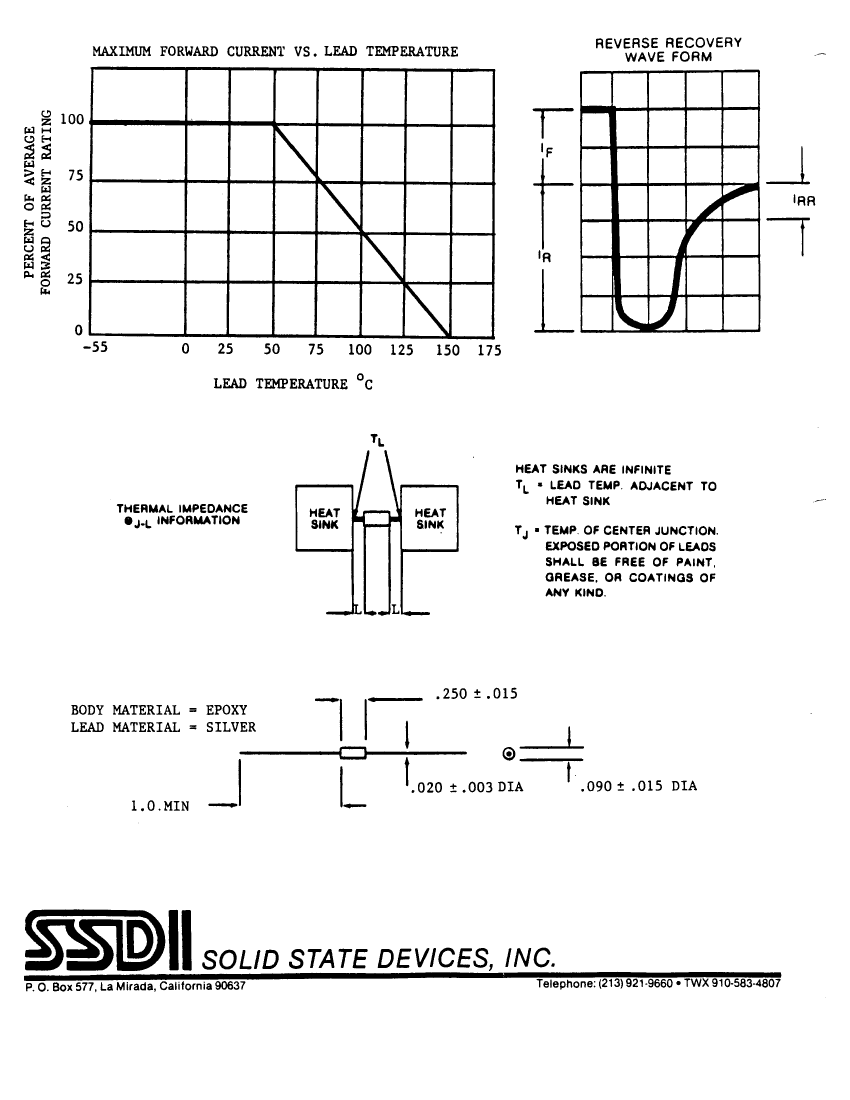

SHB20F Overview

Rectifier Diode, 1 Element, 0.08A, 2000V V(RRM), Silicon,

SHB20F Parametric

Parameter Name	Attribute value
Maker	SSDI
package instruction	O-PALF-W2
Reach Compliance Code	compliant
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	6 V
JESD-30 code	O-PALF-W2
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Maximum output current	0.08 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	2000 V
Maximum reverse recovery time	0.15 µs
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL

Preview

Download Datasheet

View All

SHB20F Related Products

	SHB20F	SHB15F	SHB30F	SHB40F	SHB100F
Description	Rectifier Diode, 1 Element, 0.08A, 2000V V(RRM), Silicon,	Rectifier Diode, 1 Element, 0.08A, 1500V V(RRM), Silicon,	Rectifier Diode, 1 Element, 0.04A, 3000V V(RRM), Silicon,	Rectifier Diode, 1 Element, 0.04A, 4000V V(RRM), Silicon,	Rectifier Diode, 1 Element, 0.025A, 10000V V(RRM), Silicon,
package instruction	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	6 V	6 V	8 V	8 V	13 V
JESD-30 code	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Number of components	1	1	1	1	1
Number of terminals	2	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	0.08 A	0.08 A	0.04 A	0.04 A	0.025 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	2000 V	1500 V	3000 V	4000 V	10000 V
Maximum reverse recovery time	0.15 µs	0.15 µs	0.15 µs	0.15 µs	0.15 µs
surface mount	NO	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Base Number Matches	-	1	1	1	-
