2.0x1.25mm SMD CHIP LED LAMP

Part Number: KPHCM-2012CGCK

Green

Features

2.0X1.25mm SMT LED,0.5mm max. thickness.

Low power consumption.

Wide viewing angle.

Ideal for backlight and indicator.

Various colors and lens types available.

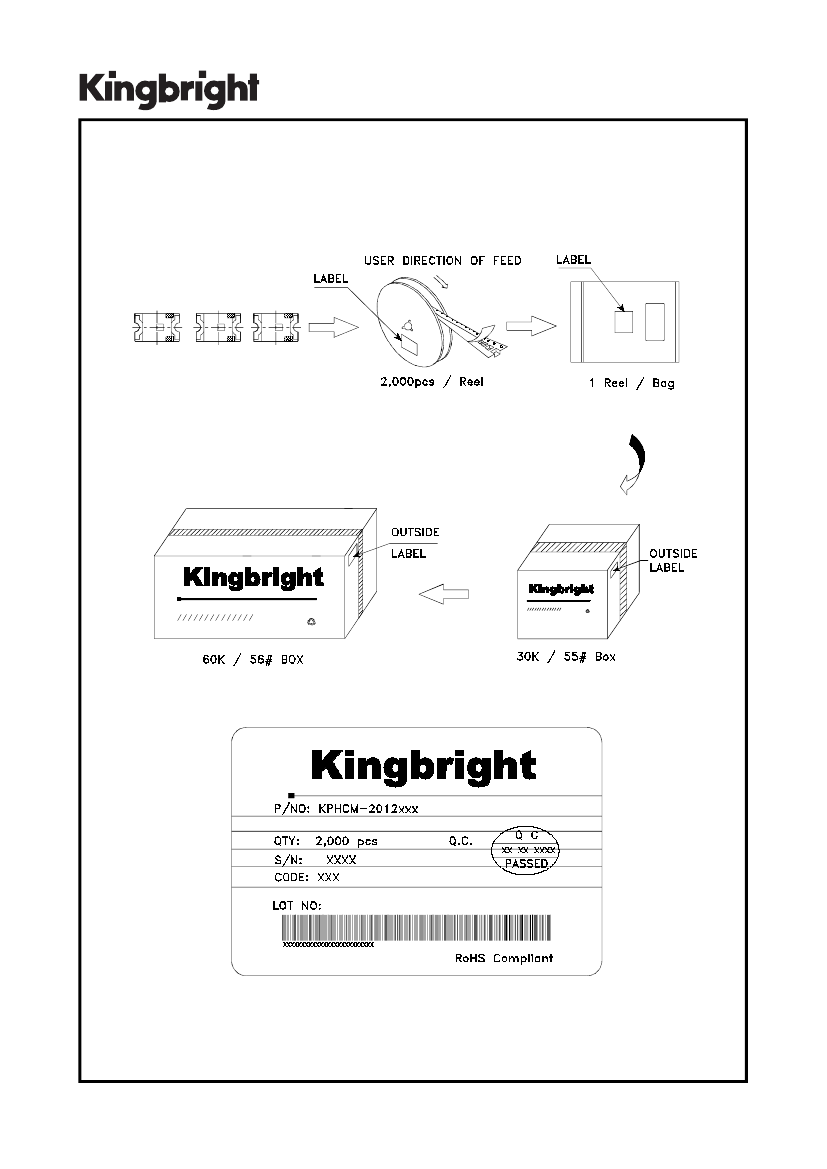

Package : 2000pcs / reel.

Moisture sensitivity level : level 3.

RoHS compliant.

Description

The Green source color devices are made with AlGaInP on

GaAs substrate Light Emitting Diode.

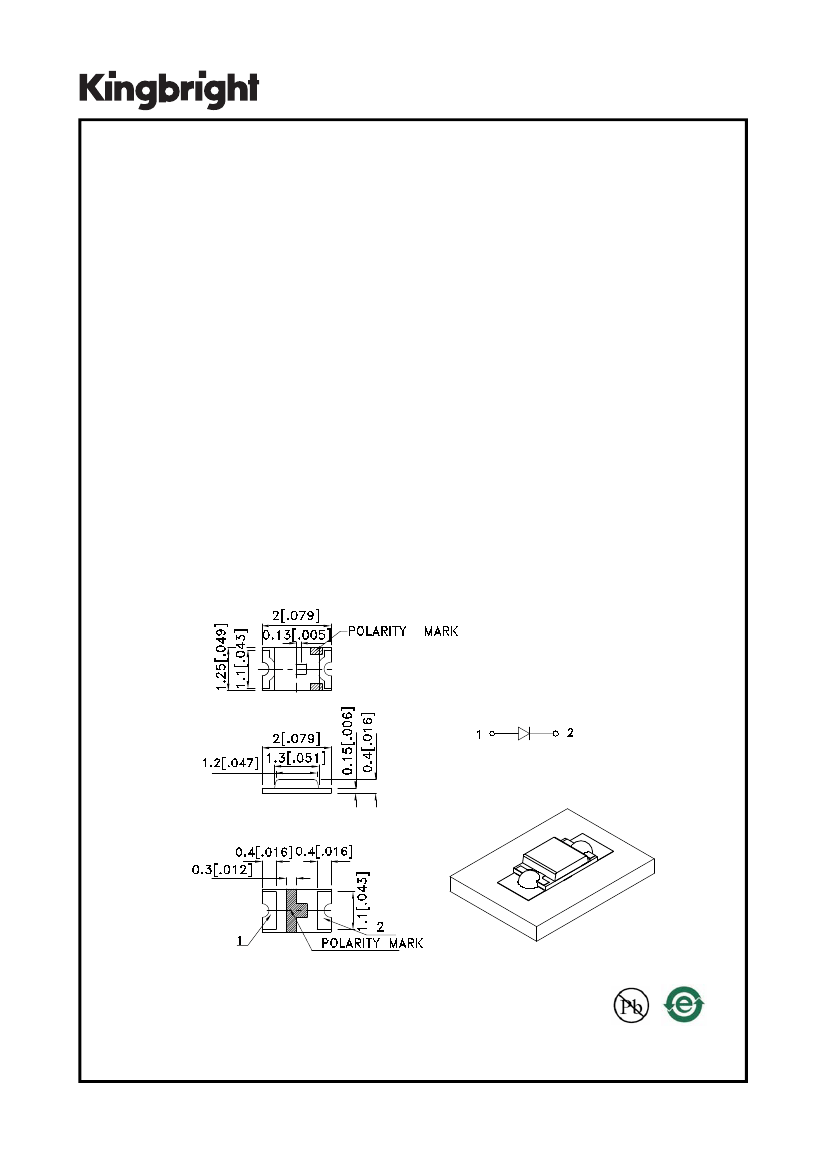

Package Dimensions

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ±0.1(0.004") unless otherwise noted.

3. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.

4. The device has a single mounting surface. The device must be mounted according to the specifications.

SPEC NO: DSAE5995

APPROVED: WYNEC

REV NO: V.6

CHECKED: Allen Liu

DATE: JAN/12/2010

DRAWN: Z.Q.NI

PAGE: 1 OF 5

ERP: 1203003839
