RVS2.2M50 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> RVS2.2M50

RVS2.2M50: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum, 50V, 20% +Tol, 20% -Tol, 2.2uF; CategoryPassive components capacitor; File Size150KB，1 Pages; ManufacturerYELLOW STONE CORP.; Websitehttp://www.ystone.com.tw/

Download Datasheet Parametric Compare View All

RVS2.2M50 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum, 50V, 20% +Tol, 20% -Tol, 2.2uF

RVS2.2M50 Parametric

Parameter Name	Attribute value
Maker	YELLOW STONE CORP.
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	2.2 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	4 mm
dielectric materials	ALUMINUM
length	5.3 mm
Manufacturer's serial number	RVS(50V)
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package form	SMT
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	50 V
series	RVS(50V)

Preview

Download Datasheet

View All

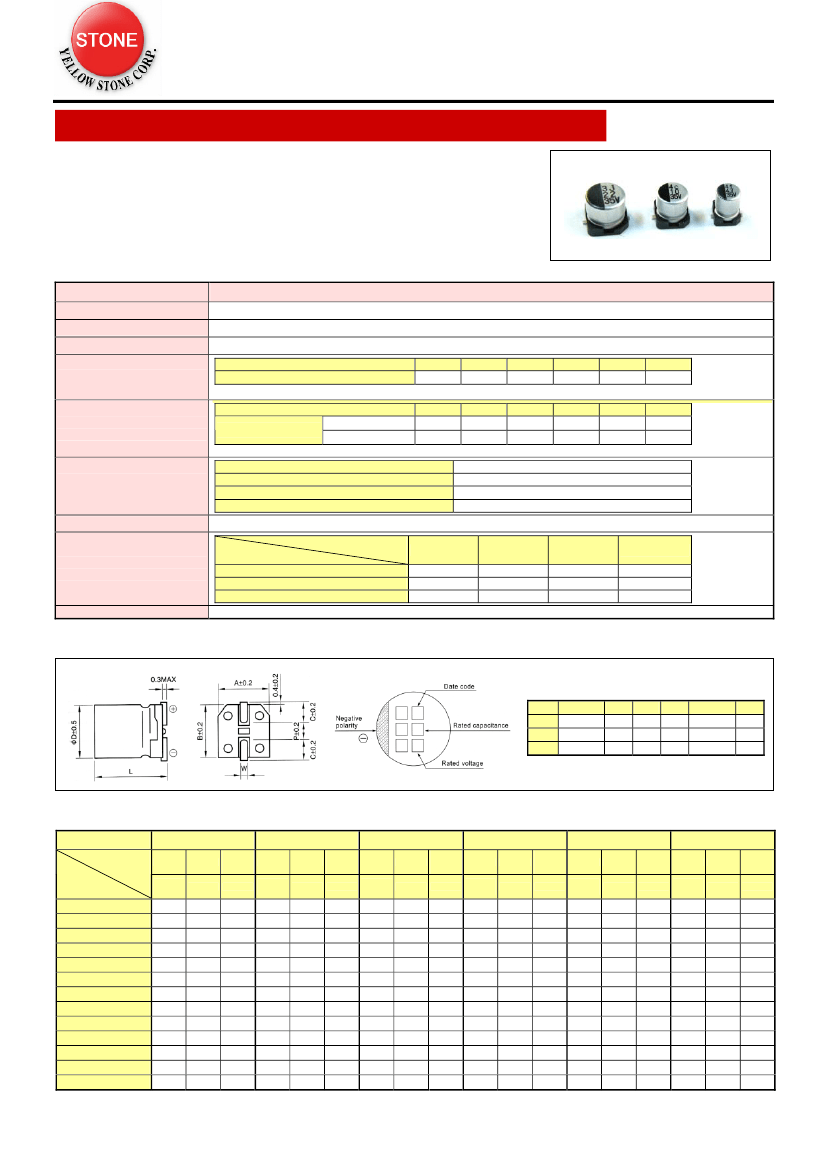

RVS

Chip Type 105℃ Capacitors (height:5.5mm)

Compatible with surface mounting for 5.5mm high capacitors.

Supplied with carrier taping.

Guarantees 1000 hours at 105

℃.

■

SPECIFICATIONS

Item

Category temperature range (℃)

Tolerance at rated capacitance (%)

Leakage current (µA)

Tangent of loss angle (tan

δ)

Rated voltage (V)

tan

(max.)

Rated voltage (V)

Z25℃/Z+20℃

Impedance ratio (max.)

Z40℃/Z+20℃

Test time

Leakage current

Percentage of capacitance change

Tangent of the loss angle

Frequency (Hz)

Coefficient of Frequency

for Rated Ripple Current

Applicable standards

Rated voltage (V)

6.3 to 16

25 to 35

6.3

0.30

6.3

Marking color：Black print

Performance

−55~+105℃

±20

Less than 0.01CV or 3 whichever is larger (after 2 minutes) C：Rated capacitance (µF)；V：Rated voltage (V)

0.26

0.22

0.16

0.13

0.12

(20℃, 120Hz)

(120Hz)

(20℃, 120Hz)

(20℃)

Characteristics at high

and low temperature

Endurance (105℃)

(Applied ripple current)

Shelf life (105℃)

1000 hours

The initial specified value or less

Within

±20%

of initial value

200% or less of the initial specified value

Test time：1000 hours; other items are the same as those for the endurance. Voltage application treatment：According to JIS C5101-1

120

10k−100k

1.25

1.40

1.50

0.80

1.15

0.80

1.25

0.80

1.35

JIS C5101-1, -18 1998 (IEC 60384-1 1992, -18 1993)

■

OUTLINE DRAWING

Unit：mm

φD

6.3

5.3

0.2

5.3

0.2

5.3

0.2

4.3

5.3

6.6

4.3

5.3

6.6

2.0

2.3

2.7

0.5 to 0.8

1.0

1.5

2.0

■

STANDARD RATINGS

Rated voltage (V)

Item

Case

φD

(mm)

6.3

ESR

Ω

Rated

ripple

current

mArms

Case

φD

(mm)

ESR

Ω

Rated

ripple

current

mArms

Case

φD

(mm)

ESR

Ω

Rated

ripple

current

mArms

Case

φD

(mm)

ESR

Ω

Rated

ripple

current

mArms

Case

φD

(mm)

ESR

Ω

Rated

ripple

current

mArms

Case

φD

(mm)

ESR

Ω

Rated

ripple

current

mArms

Rated

capacitance (µF)

0.1

0.22

0.33

0.47

2.2

3.3

4.7

100

─

4×5.3

5×5.3

6.3×5.3

─

5.0

─

4×5.3

5×5.3

6.3×5.3

─

9.2

─

4×5.3

5×5.3

6.3×5.3

─

7.8

─

4×5.3

5×5.3

6.3×5.3

─

8.0

─

4×5.3

5×5.3

6.3×5.3

─

4×5.3

5×5.3

6.3×5.3

─

1190

905

603

424

199

─

(Note) Rated ripple current：105

℃

, 120Hz；ESR：20

℃

, 120Hz

NOTE

Design, Specifications are subject to change without notice.

Ask factory for technical specifications before purchase and/or use.

RVS2.2M50 Related Products

	RVS2.2M50	RVS4.7M25
Description	Aluminum Electrolytic Capacitor, Polarized, Aluminum, 50V, 20% +Tol, 20% -Tol, 2.2uF	Aluminum Electrolytic Capacitor, Polarized, Aluminum, 25V, 20% +Tol, 20% -Tol, 4.7uF
Maker	YELLOW STONE CORP.	YELLOW STONE CORP.
Reach Compliance Code	unknown	unknow
ECCN code	EAR99	EAR99
capacitance	2.2 µF	4.7 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	4 mm	4 mm
dielectric materials	ALUMINUM	ALUMINUM
length	5.3 mm	5.3 mm
Manufacturer's serial number	RVS(50V)	RVS(25V)
negative tolerance	20%	20%
Number of terminals	2	2
Maximum operating temperature	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C
Package form	SMT	SMT
polarity	POLARIZED	POLARIZED
positive tolerance	20%	20%
Rated (DC) voltage (URdc)	50 V	25 V
series	RVS(50V)	RVS(25V)
