XRT7295AT DS3 SONET STS1 Integrated Line Receiver
General Description:
The XRT7295AT DS3/SONET STS-1 integrated line
receiver is a fully integrated receive interface that
terminates a bipolar DS3 (44.736Mbps) or Sonet STS-1
(51.84Mbps) signal transmitted over coaxial cable.
The device also provides the functions of receive
equalization (optional), automatic-gain control (AGC),
clock-recovery and data retiming, loss-of-signal and
loss-of-frequency-lock
detection.
The
digital
system
interface is dual-rail, with received positive and negative 1s
appearing as unipolar digital signals on separate output leads. The on-chip equalizer is designed for cable
distances of 0 to 450ft. from the cross-connect frame to the device. The receive input has a variable input
sensitivity control, providing three different sensitivity settings, to adapt longer cables. High input sensitivity
allows for significant amounts of flat loss within the system.

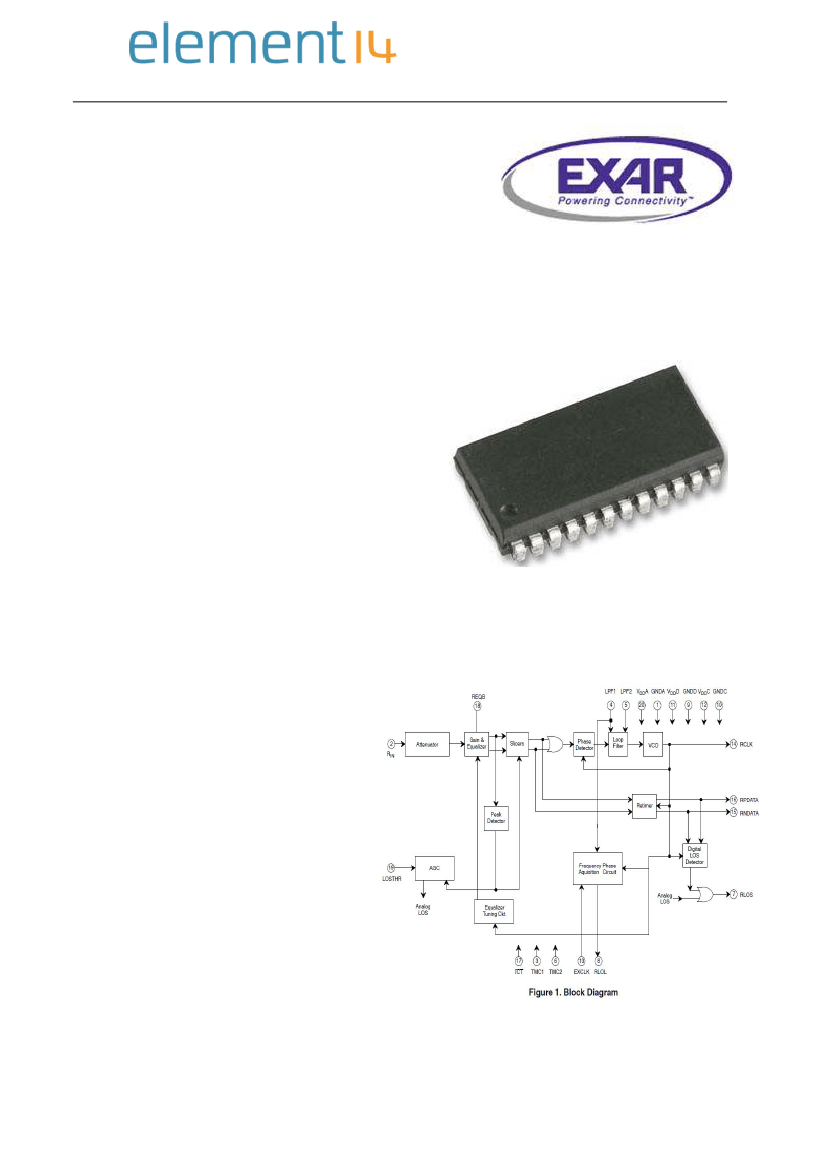

Figure 1
shows the block diagram of the device.
The XRT7295AT device is manufactured using
linear CMOS technology. The XRT7295AT is
available in a 20-pin plastic SOJ package for
surface mounting. Two versions of the chip are
available, one is for either DS3 or STS-1
operation (the XRT7295AT, this data sheet),
and
the
other
is
forE3
operation
(the
XRT7295AE, refer to the XRT7295AE data
sheet). Both versions are pin compatible. For
either DS3 or STS-1, an input reference clock
at 44.736MHz or 51.84MHz provides the
frequency reference for the device.
Key Features:
Fully Integrated Receive Interface for DS3 and
STS-1 Rate Signals
Legal Disclaimer:
The content of the pages of this website is for your general information and use only. It is subject to change without notice. From time to time, this website may
also include links to other websites. These links are provided for your convenience to provide further information. They do not signify that we endorse the website(s). We have no
responsibility for the content of the linked website(s). Your use of any information or materials on this website is entirely at your own risk, for which we shall not be liable. It shall
be your own responsibility to ensure that any products, services or information available through this website meet your specific requirements.
Your Electronic Engineering Resource
Integrated Equalization (Optional) and Timing
Recovery
Loss-of-Signal and Loss-of-Lock Alarms
Variable Input Sensitivity Control
5V Power Supply
Pin Compatible with XRT7295AE and XRT7295AC
Companion Device to T7296 Transmitter
Applications:
Interface to DS-3 Networks
Digital Cross-Connect Systems
CSU/DSU Equipment
PCM Test Equipment
Fiber Optic Terminals
Related Products Information:
Mfr Part #
XRT7295ATIW-F
Farnell #
1798681
Newark #
24R1756
SOJ package
Description
DS3/Sonet STS1 Integrated Line Receiver-20 Lead JEDEC
