ZSTMM-105-75-L-D-285 datasheet, PDF

Datasheet> All Categories > The connector> The connector> ZSTMM-105-75-L-D-285

ZSTMM-105-75-L-D-285: DescriptionBoard Stacking Connector, 10 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size753KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

ZSTMM-105-75-L-D-285 Overview

Board Stacking Connector, 10 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT

ZSTMM-105-75-L-D-285 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	2 weeks
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	MATTE TIN OVER NICKEL (50)
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	ZSTMM
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	10

Preview

Download Datasheet

View All

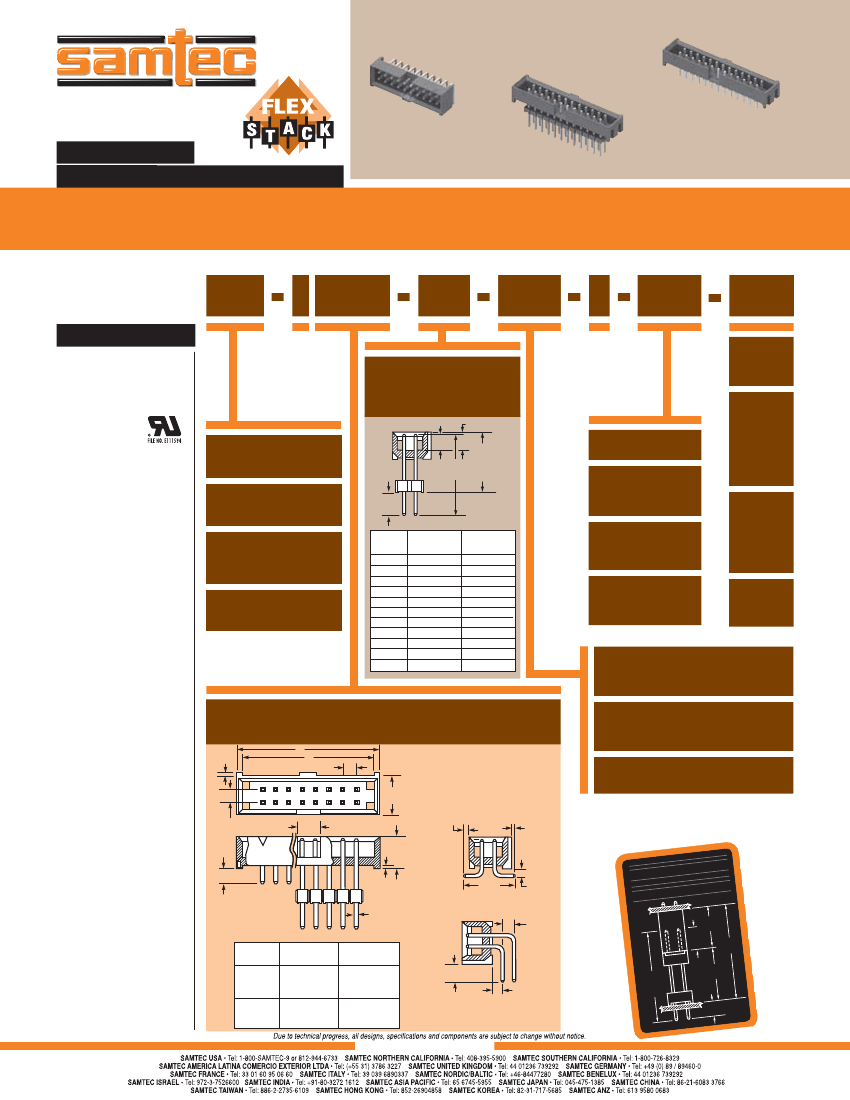

F-212

ZSTMM–112–75–L–D–285

LTMM–110–02–F–D–RA

STMM–113–02–T–D

(2,00mm) .0787"

STMM, LTMM, ZSTMM, ZLTMM SERIES

SHROUDED IDC HEADER & STACKER

Mates with:

SQT, SQW, ESQT,

SMM, TCSD

TYPE

STRIP

NO. PINS

PER ROW

LEAD

STYLE

PLATING

OPTION

BODY

HEIGHT

OTHER

OPTION

SPECIFICATIONS

For complete speciﬁcations and

recommended PCB layouts

see www.samtec.com?STMM,

www.samtec.com?LTMM,

www.samtec.com?ZSTMM or

www.samtec.com?ZLTMM

Insulator Material:

High Temperature

Nylon

Terminal Material:

Phosphor Bronze

Plating:

Sn or Au over 50µ"

(1,27µm) Ni

Current Rating:

3A @ 80°C ambient

Operating Temp Range:

-55°C to +105°C with Tin;

-55°C to +125°C with Gold

RoHS Compliant:

Yes

–02

= STMM & LTMM

Specify ZSTMM & ZLTMM

from chart

(3,18) .125

–“XX”

= Polarized

Position

–LC

Leave blank for

Through-hole

= Locking

Clip

(-SM only)

(Manual

placement

required)

STMM

= Cable Strip

(3,05)

.120

BODY

HEIGHT

(6,35)

(OAL) .250

MIN

–RA

= Right Angle

(STMM & LTMM only)

LTMM

= Connector Strip

(2,29)

.090

MIN

–K

= (7,50mm)

.295" DIA

Film Pick &

Place Pad

(-SM only)

ZSTMM

= Elevated

Cable Strip

Processing:

Lead–Free Solderable:

Yes

SMT Lead Coplanarity:

(0,10mm) .004" max

ZLTMM

= Elevated Connector Strip

LEAD

STYLE

-75

-62

-65

-73

-63

-66

-69

-74

-70

-71

-72

(OAL)

(9,58) 0.377

(10,08) 0.397

(10,49) 0.413

(12,09) 0.476

(14,10) 0.555

(15,09) 0.594

(15,60) 0.614

(17,09) 0.673

(17,60) 0.693

(21,08) 0.830

(21,62) 0.851

MAX BODY

HEIGHT

(7,42) 0.292

(7,92) 0.312

(8,33) 0.328

(9,93) 0.391

(11,94) 0.470

(12,93) 0.509

(13,44) 0.529

(14,94) 0.588

(15,44) 0.608

(18,92) 0.745

(19,46) 0.766

–SM

= Surface Mount

(STMM & LTMM only)

–“XXX”

= ZSTMM & ZLTMM

Body Height

–TR

= Tape & Reel

(–SM only)

–F

= Gold ﬂash on post,

Matte Tin on tail

05, 08, 10, 12, 13, 15, 17, 20, 22, 25

(Call Samtec for other sizes)

(0,51)

.020

02 04

–L

= 10µ" (0,25µm) Gold on post,

Matte Tin on tail

(2,00) .0787

(6,00)

.237

–T

= Matte Tin

(0,89)

.035

(4,80)

.190

(0,38)

.015

(0,51)

.020 SQ

(7,79)

.307

(1,27)

.050

(0,38)

.015

(2,00)

.0787

01 03

Note:

Other Gold plating options available.

Contact Samtec.

(3,55)

.140

(2,97)

.117

STMM

LTMM

ZSTMM / ZLTMM

TYPE

STRIP

B o a rd

S t a ck i n g

SO C KE T

PR O FI LE

PO ST

BO A RD

SP A C E

(2,00)

.0787

(2,29)

.090

(1,52)

.060

O V ER A LL

TH RU HO LE

PI N

(O A L)

LTMM/

(2,00) .0787 x (2,00) .0787 x

of Positions

ZLTMM

No. of Positions No.(2,39) .094

+ (0,61) .024 +

Note:

This Series is

non-standard, non-returnable.

(2,00) .0787 x

STMM/

No. of Positions (2,00) .0787 x

of Positions

ZSTMM

+ (4,39) .173 No.(6,17) .243

ST A C KE R

HE IG H T

–RA

TA IL

WWW.SAMTEC.COM
