88952-917

Description
Board Connector, 48 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Natural Insulator, Receptacle,
CategoryThe connector    The connector
File Size788KB，6 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

88952-917 Overview

Board Connector, 48 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Natural Insulator, Receptacle,

88952-917 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Objectid2129260574
Reach Compliance Codecompliant
ECCN codeEAR99
YTEOL8.7
Other featuresPOLARIZED
body width0.622 inch
subject depth0.669 inch
body length0.942 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedTin/Lead (Sn/Pb)
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage1000VAC V
Durability250 Cycles
Filter functionNO
IEC complianceNO
Insulation resistance1000000000 Ω
Insulator colorNATURAL
insulator materialGLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 codee0
MIL complianceNO
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number4
Number of rows loaded4
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.0066 mm
Plating thickness30u inch
polarization keyPOLARIZING PEG
Rated current (signal)1 A
GuidelineUL, CSA
Terminal length0.167 inch
Terminal pitch2 mm
Termination typeSOLDER
Total number of contacts48
UL Flammability Code94V-0

Preview

Download Datasheet
1
2
3
4

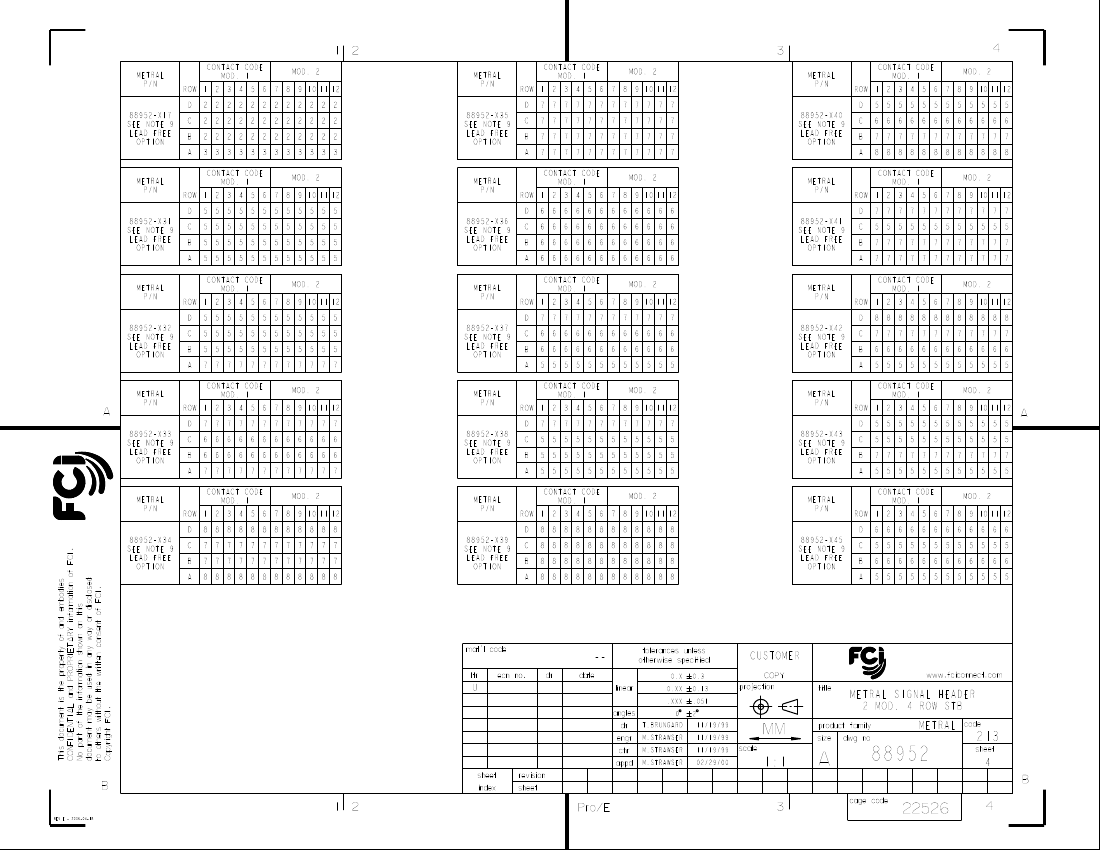

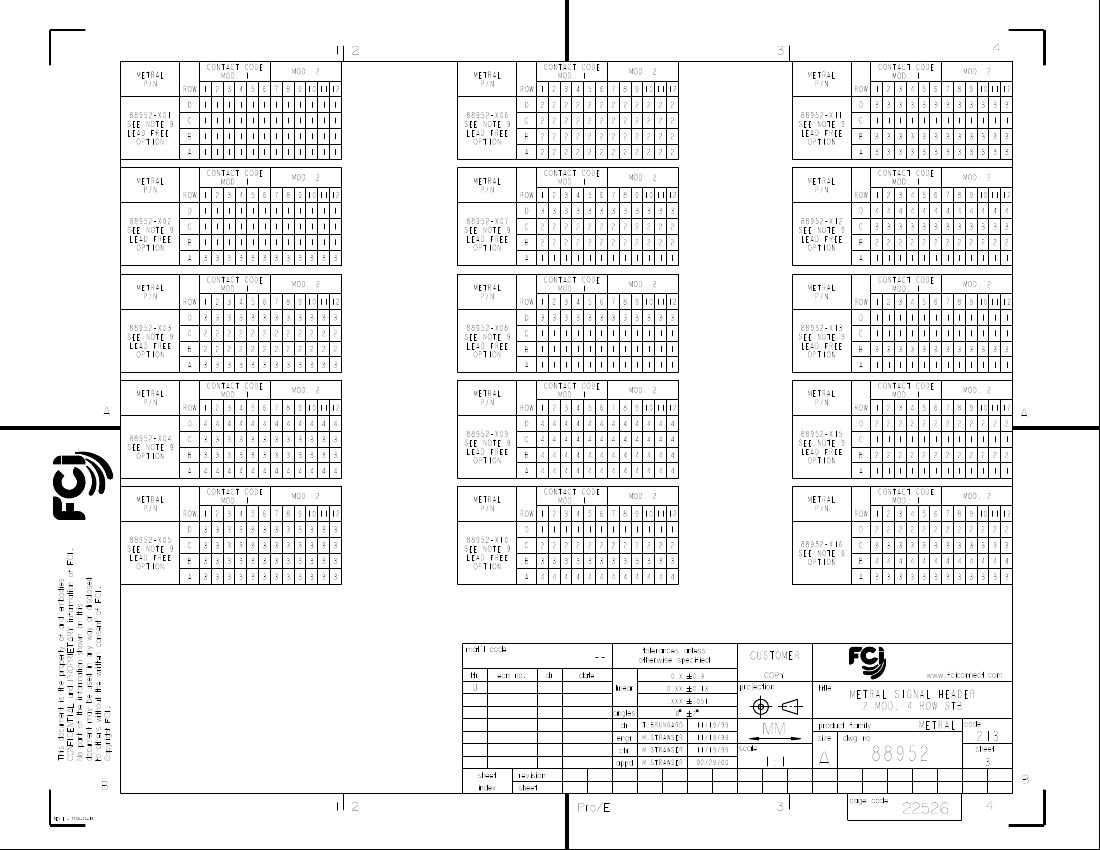

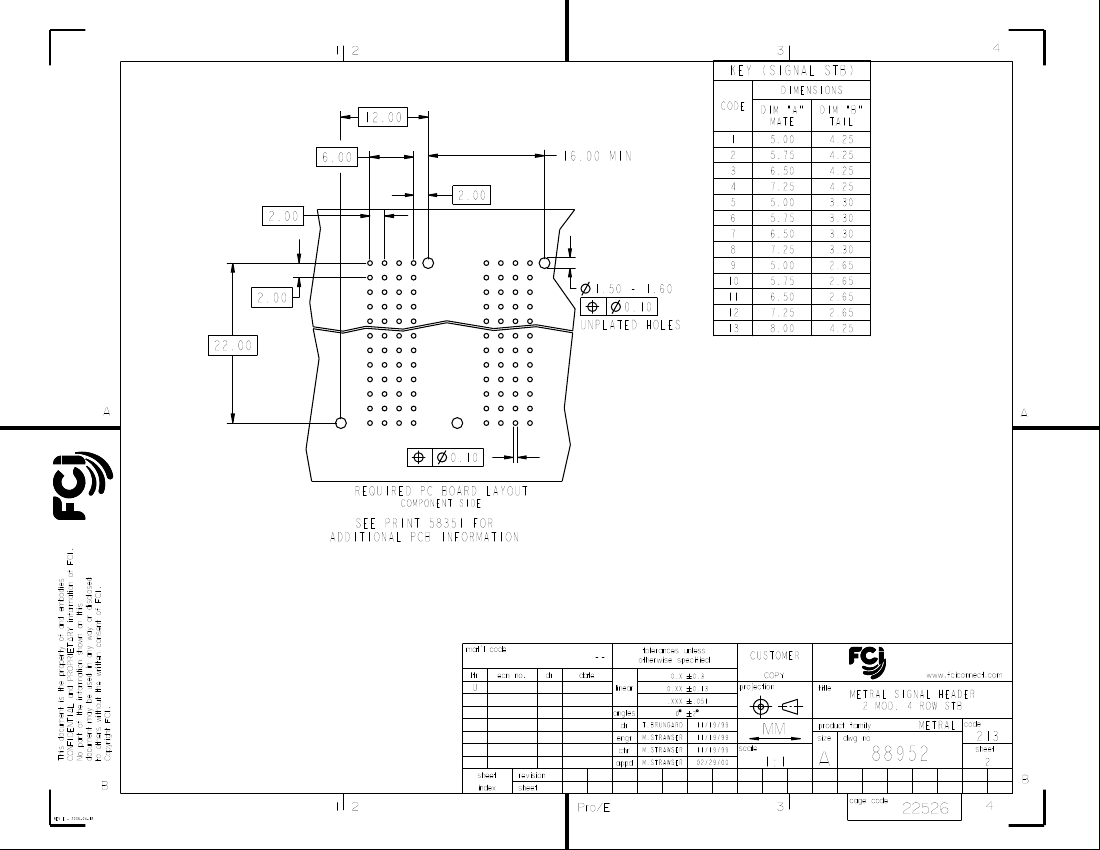

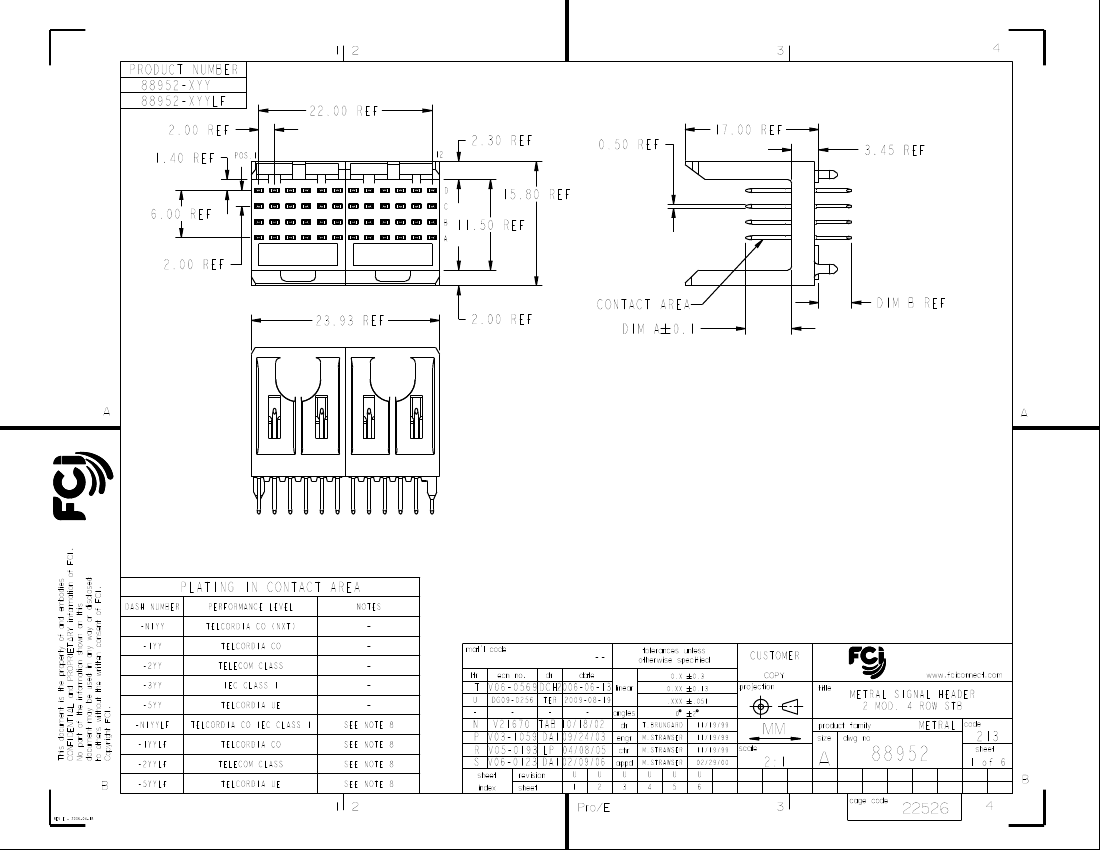

PRODUCT NUMBER
88952-XYY
88952-XYYLF
2.00 REF
1.40 REF
POS.1
22.00 REF
2.30 REF
12
17.00 REF
0.50 REF
3.45 REF
D
15.80 REF
11.50 REF
6.00 REF
C
B
A
2.00 REF
CONTACT AREA
23.93 REF
2.00 REF
DIM A 0.1
DIM B REF
A
A
PLATING IN CONTACT AREA
DASH NUMBER
CONFIDENTIAL and PROPRIETARY information of FCI.
This document is the property of and embodies
to others without the written consent of FCI.
document may be used in any way or disclosed
PERFORMANCE LEVEL
TELCORDIA CO (NXT)
TELCORDIA CO
TELECOM CLASS
IEC CLASS I
TELCORDIA UE
TELCORDIA CO IEC CLASS I
TELCORDIA CO
TELECOM CLASS
TELCORDIA UE
1
NOTES
-N1YY
-1YY
-2YY
-3YY
-5YY
Copyright FCI.
-
-
-
-
-
SEE NOTE 8
SEE NOTE 8
SEE NOTE 8
SEE NOTE 8
2
mat'l code
No part of the information shown on this
--
ecn no.
dr
date
tolerances unless
otherwise specified
CUSTOMER
COPY
projection
title
www.fciconnect.com
ltr
0.X
0.XX
.XXX
angles
dr
engr
chr
appd
0.3
0.13
.051
2
linear
T V06-0569 DCH2006-06-13
U
-
DG09-0256
-
TER 2009-08-19
-
-
0
METRAL SIGNAL HEADER
2 MOD. 4 ROW STB
METRAL
code
dwg no
-N1YYLF
-1YYLF
-2YYLF
-5YYLF
N V21670 TAB 10/18/02
P V03-1059 DAI 09/24/03
R V05-0193 LP 04/08/05
S V06-0123 DAI 02/09/06
sheet
revision
sheet
T.BRUNGARD
M.STRAWSER
M.STRAWSER
M.STRAWSER
11/19/99
11/19/99
11/19/99
02/29/00
scale
MM
product family
size
2:1
A
88952
cage code
213
sheet
1 of 6
B
U
1
U
2
Pro/E
U
3
U
4
U
5
U
6
3
B
index
22526
4
REV E - 2006-04-18
PDM: Rev:U
STATUS:
Released
Printed: Sep 16, 2009
.
