HN Male Connector Crimp/Solder Attachment
For RG55, RG142, RG223, RG400
TECHNICAL DATA SHEET
HN Male Connector Crimp/Solder Attachment For RG55, RG142, RG223, RG400
Configuration
Connector
Connector Specification
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
HN Male
MIL-C-39012
RG55,RG142,RG223,RG400
Crimp/Solder
Straight
PE4477
Electrical Specifications
Impedance, Ohms
50
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
.
1.613 [40.97]
0.9 [23]
0.096 [43.54]
HN Male
Brass, Gold
3µ - 5µ in. minimum
Brass, Nickel
70µ in. minimum
Brass, Nickel
70µ in. minimum
Teflon
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Contact Plating Specification
Coupling Nut Material and Plating
Coupling Nut Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
HN Male Connector Crimp/Solder Attachment For RG55, RG142, RG223, RG400 PE4477
PE4477 REV
1
HN Male Connector Crimp/Solder Attachment
For RG55, RG142, RG223, RG400
TECHNICAL DATA SHEET
PE4477
HN Male Connector Crimp/Solder Attachment For RG55, RG142, RG223, RG400 from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and
are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
HN Male Connector Crimp/Solder Attachment For RG55, RG142, RG223, RG400 PE4477
URL:
http://www.pasternack.com/hn-male-standard-rg55-rg142-rg223-rg400-connector-pe4477-p.aspx
PE4477 REV
2
© 2013 Pasternack Enterprises All Rights Reserved
DWG TITLE
PE4477

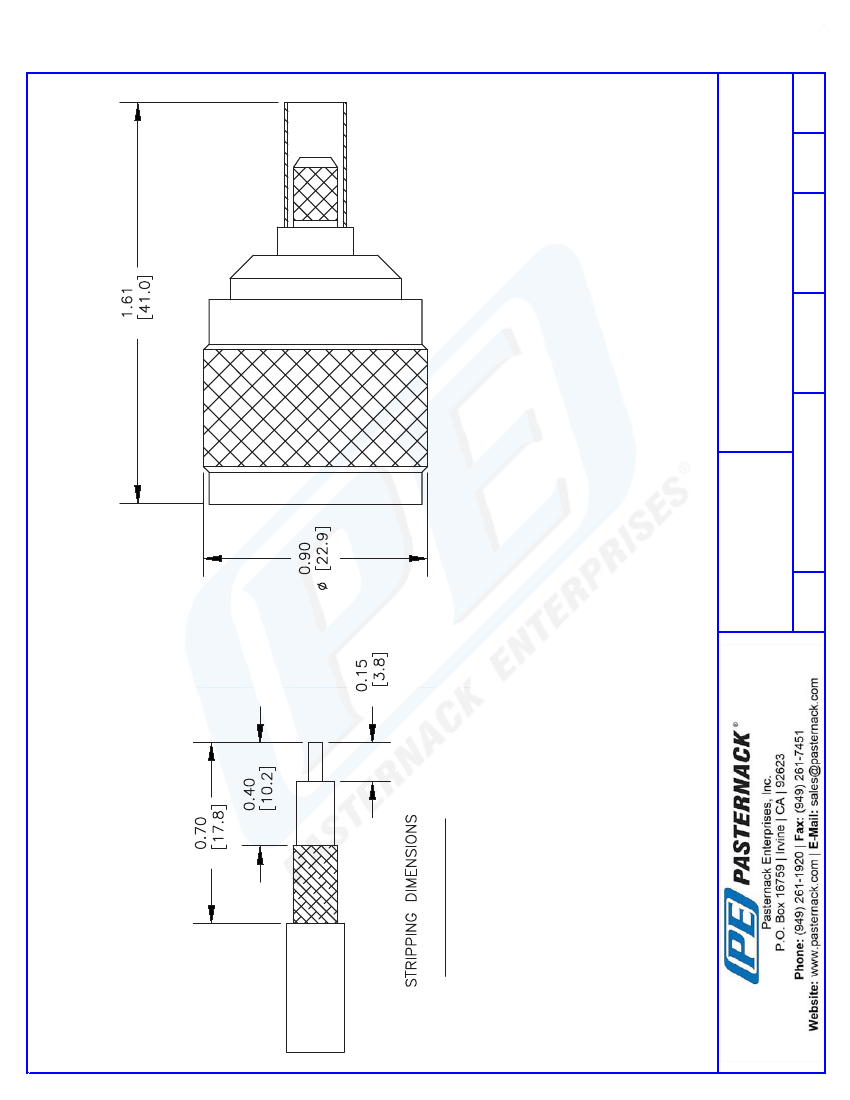

CAD Drawing
HN Male Connector Crimp/Solder Attachment For RG55, RG142, RG223, RG400
PE4477 REV
CRIMP SIZE REQUIRED
CONTACT: .100" HEX CRIMP TOOL
FERRULE: .213" HEX CRIMP TOOL
PE4477
REV. -
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. FITS MIL-C-17 AND EQUIVALENT CABLES.
FSCM NO. 53919
CAD FILE
051602
SCALE N/A
SIZE A
2233
3
