LT1035MK datasheet, PDF - EEWORLD Datasheet

LT1035MK: DescriptionFixed Positive Standard Regulator; CategoryPower/power management The power supply circuit; File Size2MB，12 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

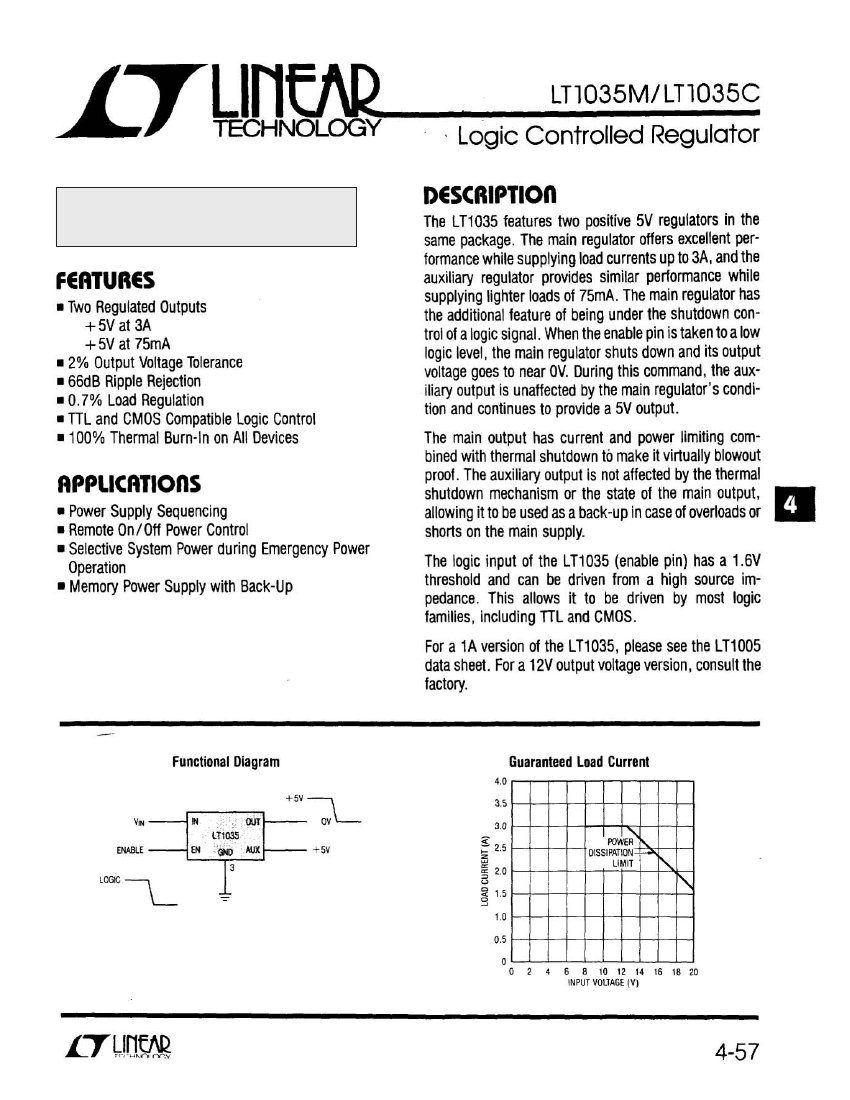

LT1035MK Overview

Fixed Positive Standard Regulator

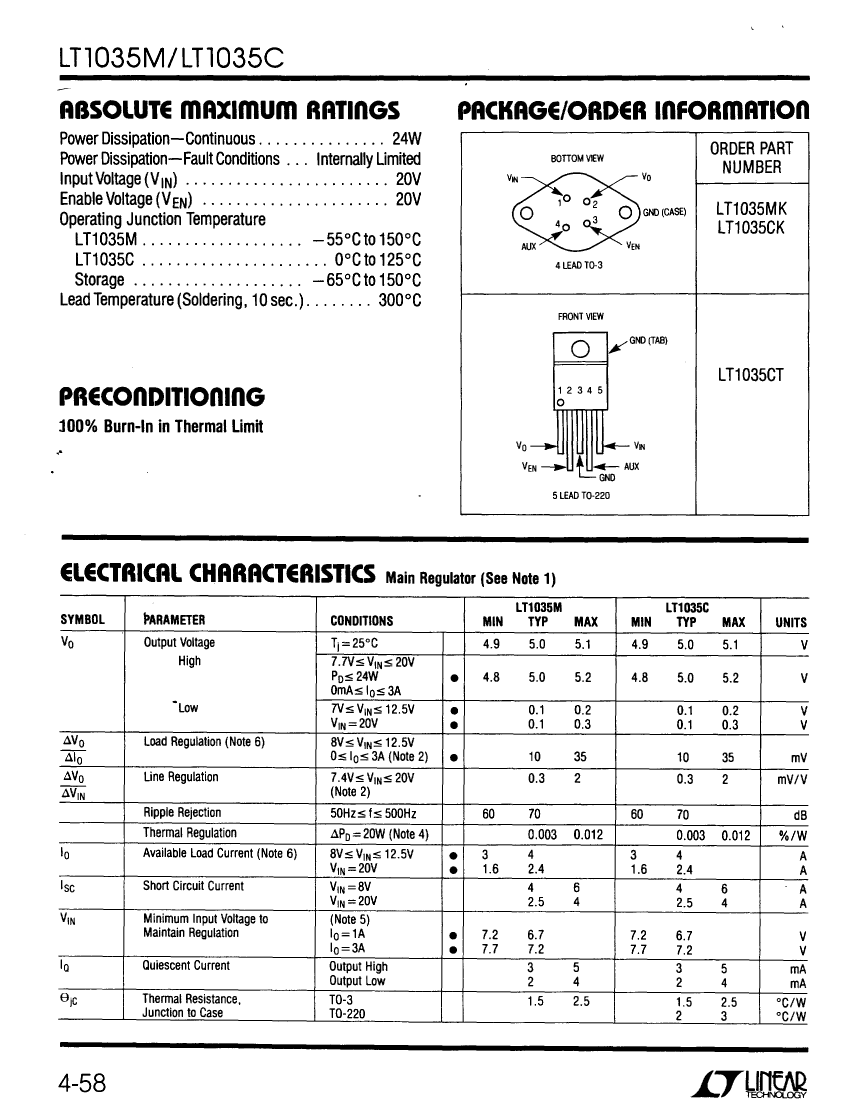

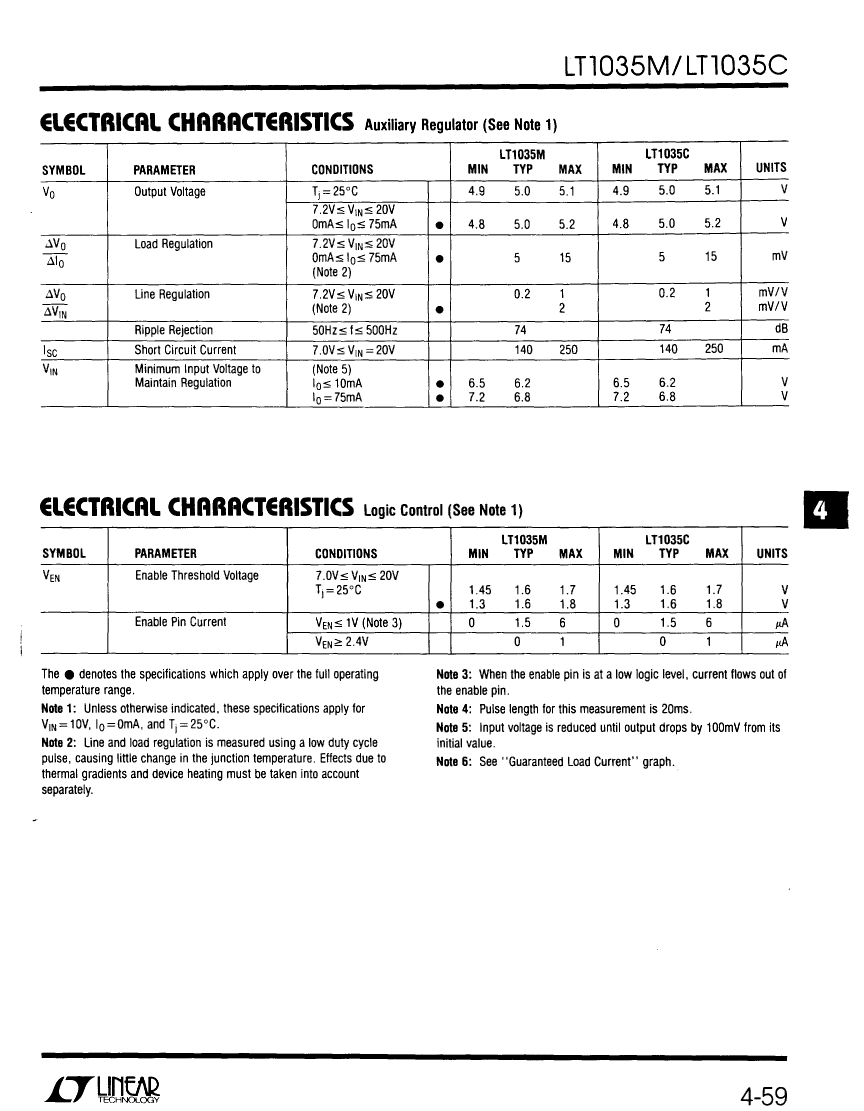

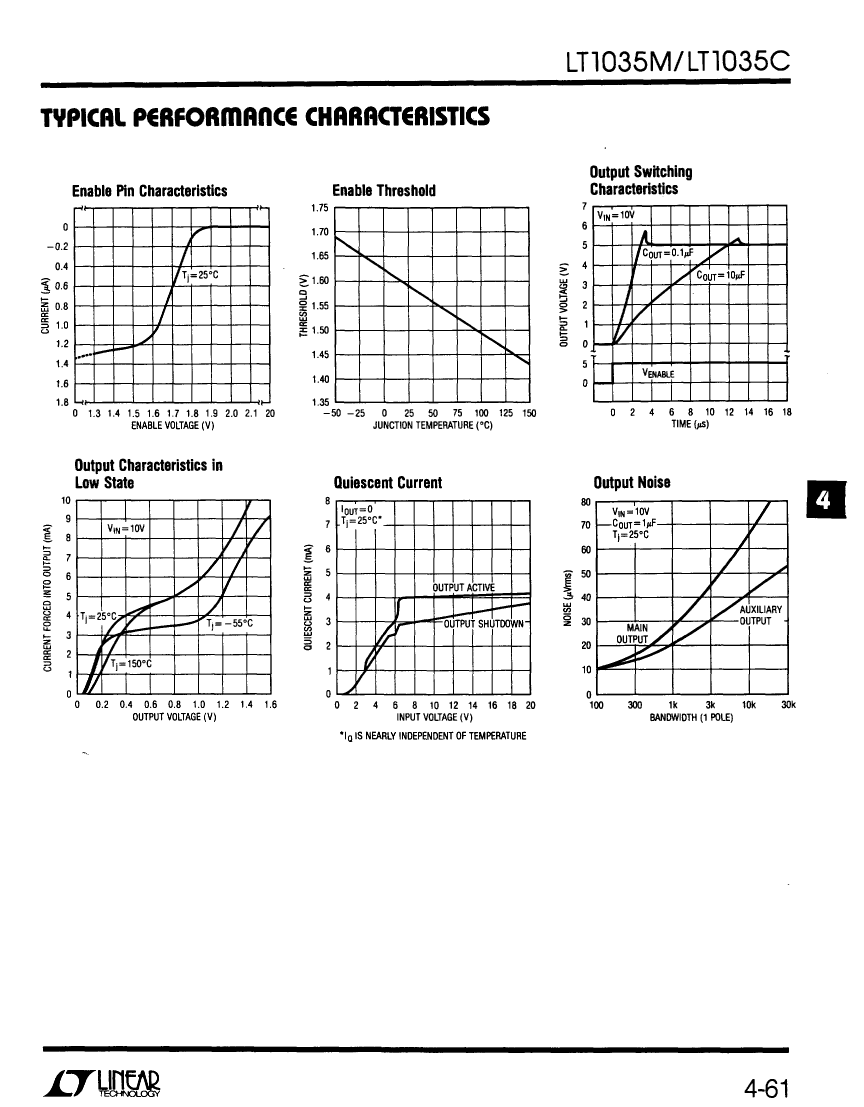

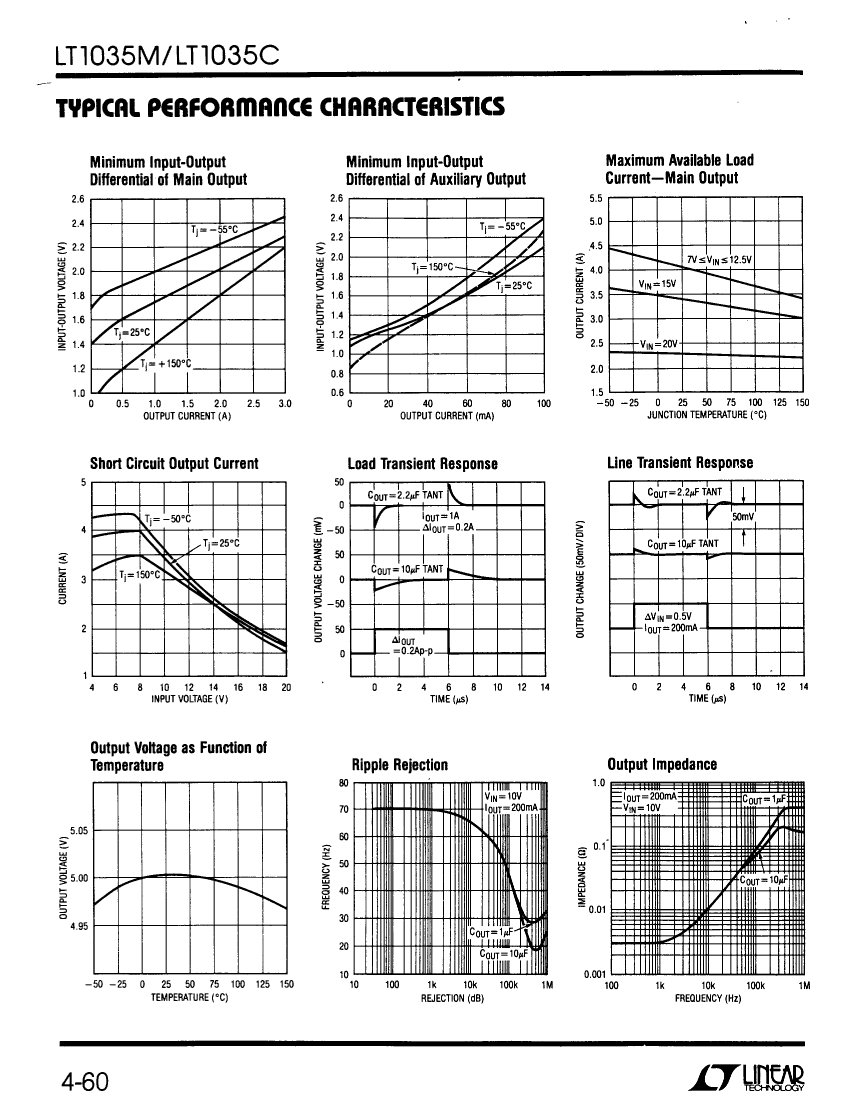

Parameter Name	Attribute value
Maker	ADI
package instruction	TO-3, CAN4/5,.45FL
Reach Compliance Code	unknown
Adjustability	FIXED
Maximum absolute input voltage	20 V
Maximum input voltage	20 V
Minimum input voltage	7.4 V
JESD-30 code	O-MBFM-P4
Maximum grid adjustment rate	0.002%
Maximum load regulation	0.035%
Number of functions	1
Output times	2
Number of terminals	4
Working temperatureTJ-Max	150 °C
Working temperature TJ-Min	-55 °C
Maximum output current 1	1 A
Maximum output current 2	0.035 A
Maximum output voltage 1	5.2 V
Minimum output voltage 1	4.8 V
Nominal output voltage 1	5 V
Maximum output voltage 2	5.2 V
Minimum output voltage 2	4.8 V
Nominal output voltage 2	5 V
Package body material	METAL
encapsulated code	TO-3
Encapsulate equivalent code	CAN4/5,.45FL
Package shape	ROUND
Package form	FLANGE MOUNT
Regulator type	FIXED POSITIVE MULTIPLE OUTPUT STANDARD REGULATOR
surface mount	NO
Terminal form	PIN/PEG
Terminal location	BOTTOM
Maximum voltage tolerance	2%

Contact Linear Technology for Potential Replacement

FOR INFORMATION PURPOSES ONLY

OBSOLETE:

	LT1035MK	LT1035CT	LT1035CK
Description	Fixed Positive Standard Regulator	Fixed Positive Standard Regulator	Fixed Positive Standard Regulator
Maker	ADI	ADI	ADI
package instruction	TO-3, CAN4/5,.45FL	ZIP, ZIP5,.15,.2,67TB	TO-3, CAN4/5,.45FL
Reach Compliance Code	unknown	unknown	unknown
Adjustability	FIXED	FIXED	FIXED
Maximum absolute input voltage	20 V	20 V	20 V
Maximum input voltage	20 V	20 V	20 V
Minimum input voltage	7.4 V	7.4 V	7.4 V
JESD-30 code	O-MBFM-P4	R-XZFM-T5	O-MBFM-P4
Maximum grid adjustment rate	0.002%	0.002%	0.002%
Maximum load regulation	0.035%	0.035%	0.035%
Number of functions	1	1	1
Output times	2	2	2
Number of terminals	4	5	4
Working temperatureTJ-Max	150 °C	125 °C	125 °C
Maximum output current 1	1 A	1 A	1 A
Maximum output current 2	0.035 A	0.035 A	0.035 A
Maximum output voltage 1	5.2 V	5.2 V	5.2 V
Minimum output voltage 1	4.8 V	4.8 V	4.8 V
Nominal output voltage 1	5 V	5 V	5 V
Maximum output voltage 2	5.2 V	5.2 V	5.2 V
Minimum output voltage 2	4.8 V	4.8 V	4.8 V
Nominal output voltage 2	5 V	5 V	5 V
Package body material	METAL	UNSPECIFIED	METAL
encapsulated code	TO-3	ZIP	TO-3
Encapsulate equivalent code	CAN4/5,.45FL	ZIP5,.15,.2,67TB	CAN4/5,.45FL
Package shape	ROUND	RECTANGULAR	ROUND
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Regulator type	FIXED POSITIVE MULTIPLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE MULTIPLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE MULTIPLE OUTPUT STANDARD REGULATOR
surface mount	NO	NO	NO
Terminal form	PIN/PEG	THROUGH-HOLE	PIN/PEG
Terminal location	BOTTOM	ZIG-ZAG	BOTTOM
Maximum voltage tolerance	2%	2%	2%
