UDN2950Z datasheet, PDF - EEWORLD Datasheet

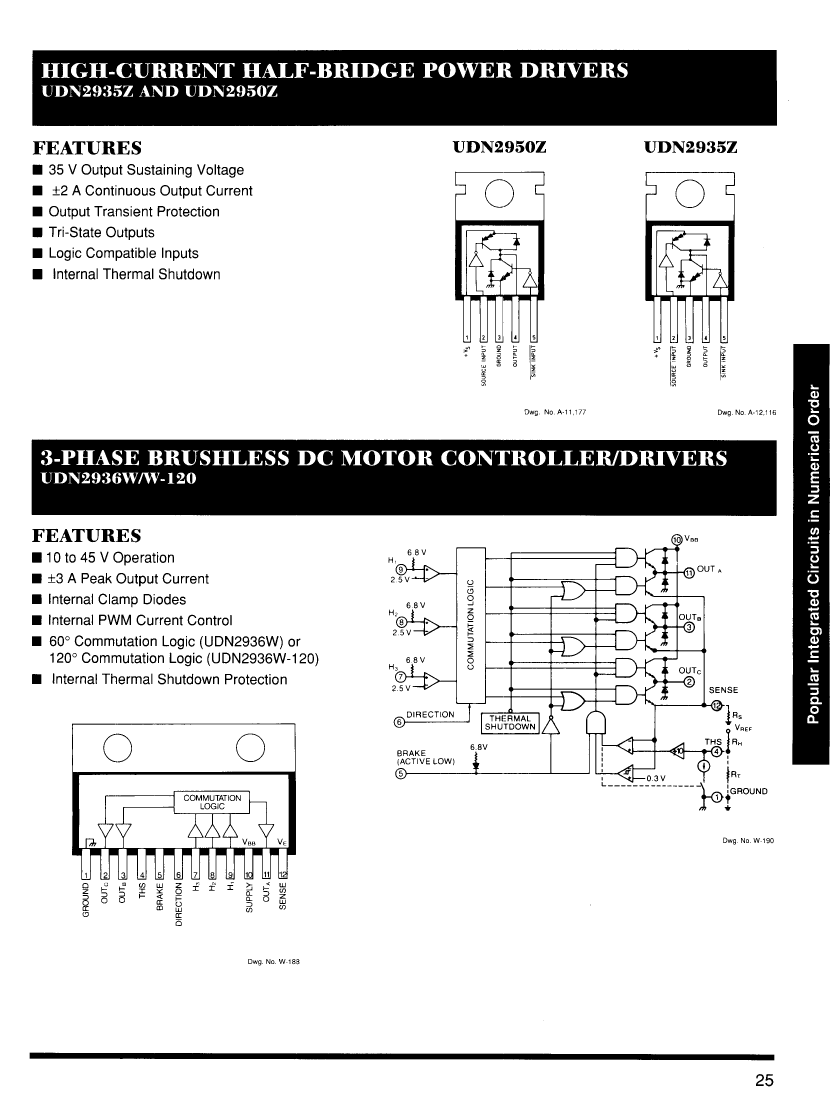

UDN2950Z: DescriptionBRUSHLESS DC MOTOR CONTROLLER, 3.5A, PSFM5, TO-220, 5 PIN; CategoryOther integrated circuit (IC) The signal circuit; File Size32KB，1 Pages; ManufacturerAllegro; Websitehttp://www.allegromicro.com/

Download Datasheet Parametric Compare View All

UDN2950Z Overview

BRUSHLESS DC MOTOR CONTROLLER, 3.5A, PSFM5, TO-220, 5 PIN

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Allegro
Parts packaging code	SFM
package instruction	TO-220,
Contacts	3
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	BRUSHLESS DC MOTOR CONTROLLER
JESD-30 code	R-PSFM-T5
JESD-609 code	e0
Number of functions	1
Number of terminals	5
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Maximum output current	3.5 A
Package body material	PLASTIC/EPOXY
encapsulated code	TO-220
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	BIPOLAR
Temperature level	OTHER
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED

	UDN2950Z	UDN2936W	UDN2935Z
Description	BRUSHLESS DC MOTOR CONTROLLER, 3.5A, PSFM5, TO-220, 5 PIN	Brushless DC Motor Controller, 3A, BIPolar, PSFM12, POWER, SIP-12	BRUSHLESS DC MOTOR CONTROLLER, 3.5A, PSFM5, TO-220, 5 PIN
Is it Rohs certified?	incompatible	incompatible	incompatible
Parts packaging code	SFM	SFM	SFM
package instruction	TO-220,	, SIP12,.1TB	TO-220, 5 PIN
Contacts	3	12	3
Reach Compliance Code	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	BRUSHLESS DC MOTOR CONTROLLER	BRUSHLESS DC MOTOR CONTROLLER	BRUSHLESS DC MOTOR CONTROLLER
JESD-30 code	R-PSFM-T5	R-PSFM-T12	R-PSFM-T5
JESD-609 code	e0	e0	e0
Number of functions	1	1	1
Number of terminals	5	12	5
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C
Maximum output current	3.5 A	3 A	3.5 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	OTHER	OTHER	OTHER
Terminal surface	TIN LEAD	Tin/Lead (Sn/Pb)	TIN LEAD
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
encapsulated code	TO-220	-	TO-220
Base Number Matches	-	1	1
