XKTO1GELB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> XKTO1GELB

XKTO1GELB: DescriptionRCA socket acc. to JEITA RC-5231, straight version, with bend protection; CategoryThe connector The connector; File Size690KB，1 Pages; ManufacturerLumberg; Websitehttp://www.lumberg.com/zh/; Environmental Compliance

Download Datasheet Parametric Compare View All

XKTO1GELB Overview

RCA socket acc. to JEITA RC-5231, straight version, with bend protection

XKTO1GELB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Lumberg
Reach Compliance Code	compli
Other features	PE
Body/casing type	SOCKET
Configuration	1X1 VERTICAL
Connector type	AUDIO/RCA CONNECTOR
Contact to complete cooperation	NICKEL
Contact completed and terminated	NICKEL
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	XKTO1
Number of poles	2
Number of ports	1
Options	GENERAL PURPOSE
Termination type	SOLDER

Preview

Download Datasheet

View All

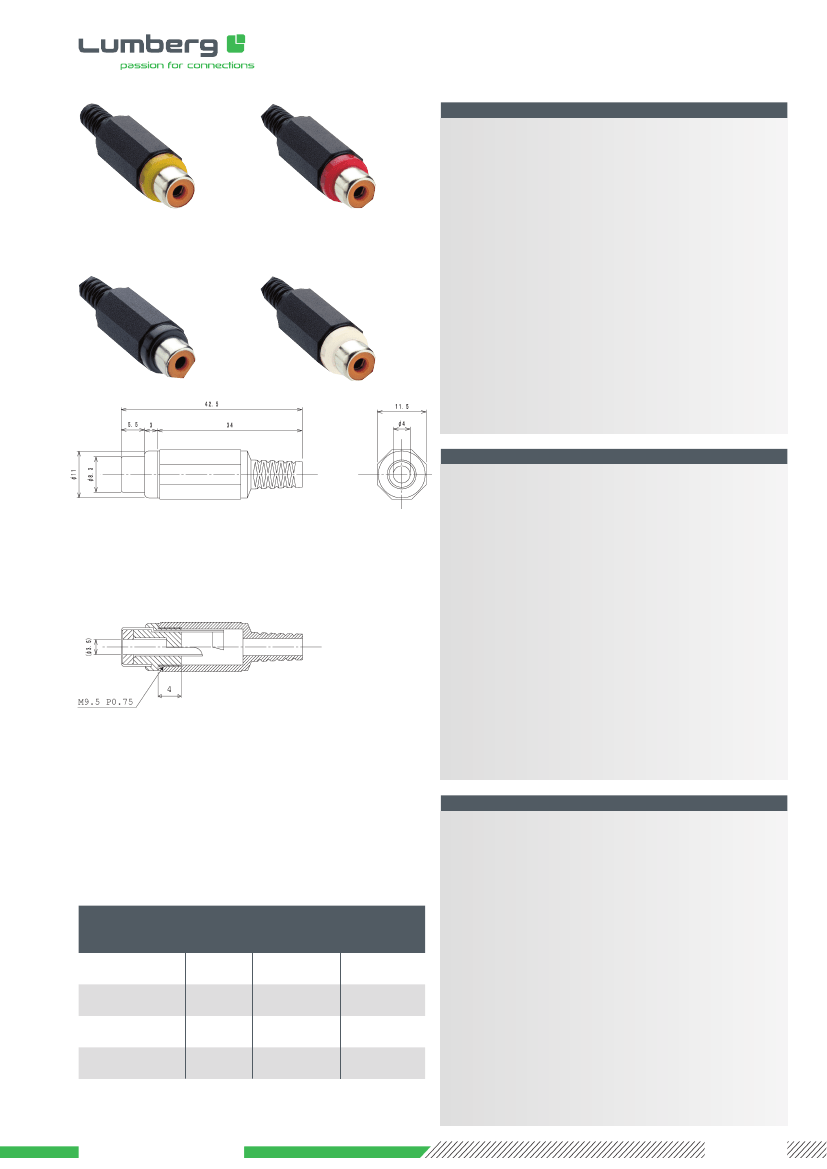

RCA-Steckverbinder nach JEITA RC-5231

RCA connectors according to JEITA RC-5231

Connecteurs RCA suivant JEITA RC-5231

XKTO 1

RCA-Kupplung nach JEITA RC-5231, gerade Ausführung,

mit Knickschutz und Lötanschlüssen

1. Temperaturbereich

2. Werkstoffe

Kontaktträger

Innerer Kontakt

Äußerer Kontakt

Gehäuse

3. Mechanische Daten

Steckkraft

Ziehkraft

Steckzyklen

Kontaktierung mit

4. Elektrische Daten

Durchgangswiderstand

Bemessungsstrom

Bemessungspannung

Prüfspannung

Isolationswiderstand

≤

30 mΩ

34 V AC/DC

250 V/60 s

≥

100 MΩ

≤

30 N

1–30 N

≥

5000

RCA-Steckern STO, XSTO

ABS

CuZn, vernickelt

Stahl, vernickelt

-20 °C/+70 °C

XKTO 1

RCA socket acc. to JEITA RC-5231, straight version, with

bend protection and solder terminals

1. Temperature range

2. Materials

Insulating body

Inner contact

Outer contact

Housing

3. Mechanical data

Insertion force

Withdrawal force

Mating cycles

Mating with

4. Electrical data

Contact resistance

Rated current

Rated voltage

Test voltage

Insulation resistance

≤

30 mΩ

34 V AC/DC

250 V/60 s

≥

100 MΩ

≤

30 N

1–30 N

≥

5000

RCA plugs STO, XSTO

ABS

CuZn, nickeled

steel, nickeled

-20 °C/+70 °C

XKTO 1

Connecteur femelle RCA suivant JEITA RC-5231, version

droite, avec protection contre pliage et connexion par sou-

dure

1. Température d’utilisation

2. Matériaux

Bestellbezeichnung

Designation

Désignation

Farbe

Color

Couleur

gelb

yellow

jaune

rot

red

rouge

schwarz

black

noir

weiß

white

blanc

Polzahl Verpackungseinheit

Poles

Package unit

Pôles

Unité d’emballage

Corps isolant

Contact intérieur

Contact extérieur

Boîtier

3. Caractéristiques mécaniques

Force d’insertion

Force de séparation

Nombre de manœuvres

Raccordement avec

4. Caractéristiques électriques

Résistance de contact

Courant assigné

Tension assignée

Tension d’éssai

Résistance d’isolement

≤

30 mΩ

34 V AC/DC

250 V/60 s

≥

100 MΩ

≤

30 N

1–30 N

≥

5000

connecteurs mâles RCA STO, XSTO

ABS

CuZn, nickelé

acier, nickelé

-20 °C/+70 °C

XKTO 1 GELB

XKTO 1 ROT

XKTO 1 SCHWARZ

XKTO 1 WEISS

100

Verpackung: lose im Karton oder Kunststoffbeutel

Packaging: in bulk in a cardboard box or a plastic bag

Emballage: en vrac dans un carton ou sachet en plastique

www.lumberg.com

02/2013

XKTO1GELB Related Products

	XKTO1GELB	XKTO1	XKTO1ROT	XKTO1SCHWARZ	XKTO1WEISS
Description	RCA socket acc. to JEITA RC-5231, straight version, with bend protection	RCA socket acc. to JEITA RC-5231, straight version, with bend protection	RCA socket acc. to JEITA RC-5231, straight version, with bend protection	RCA socket acc. to JEITA RC-5231, straight version, with bend protection	RCA socket acc. to JEITA RC-5231, straight version, with bend protection
Is it Rohs certified?	conform to	-	conform to	conform to	conform to
Maker	Lumberg	-	Lumberg	Lumberg	Lumberg
Reach Compliance Code	compli	-	compli	compli	compli
Other features	PE	-	PE	PE	PE
Body/casing type	SOCKET	-	SOCKET	SOCKET	SOCKET
Configuration	1X1 VERTICAL	-	1X1 VERTICAL	1X1 VERTICAL	1X1 VERTICAL
Connector type	AUDIO/RCA CONNECTOR	-	AUDIO/RCA CONNECTOR	AUDIO/RCA CONNECTOR	AUDIO/RCA CONNECTOR
Contact to complete cooperation	NICKEL	-	NICKEL	NICKEL	NICKEL
Contact completed and terminated	NICKEL	-	NICKEL	NICKEL	NICKEL
DIN compliance	NO	-	NO	NO	NO
IEC compliance	NO	-	NO	NO	NO
MIL compliance	NO	-	NO	NO	NO
Manufacturer's serial number	XKTO1	-	XKTO1	XKTO1	XKTO1
Number of poles	2	-	2	2	2
Number of ports	1	-	1	1	1
Options	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	SOLDER	-	SOLDER	SOLDER	SOLDER
