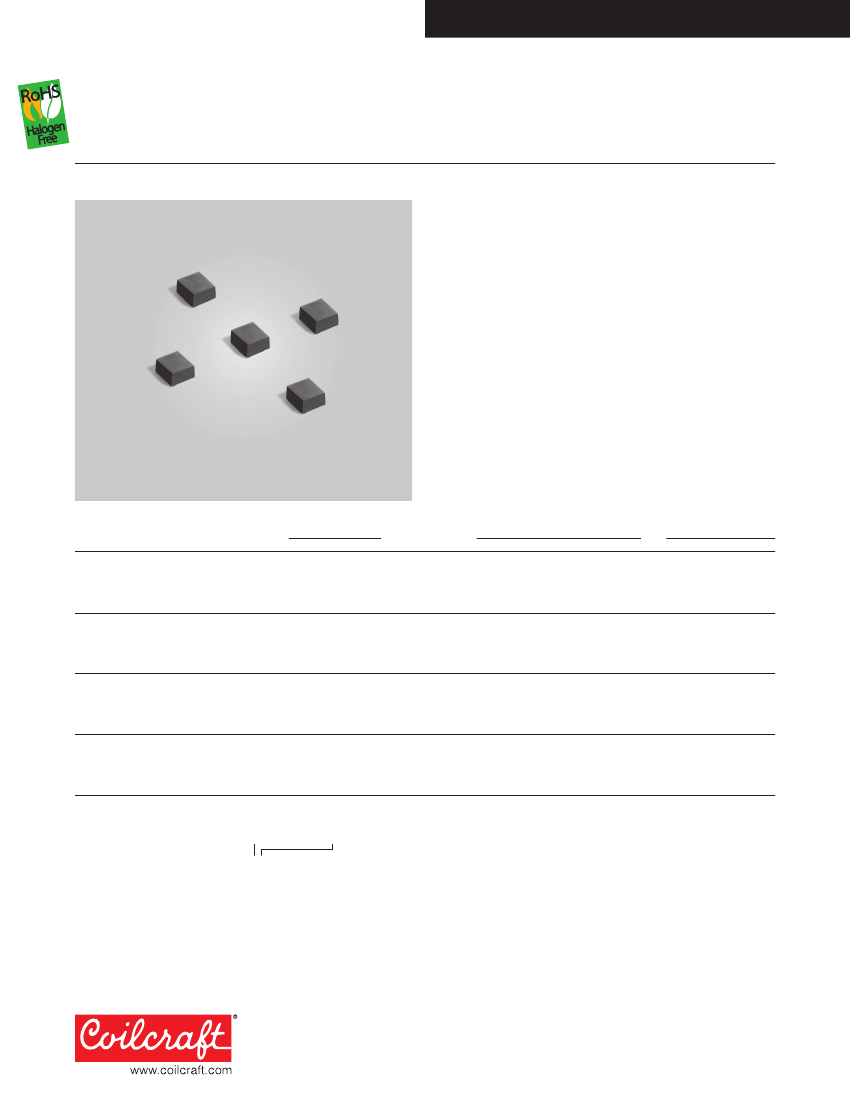

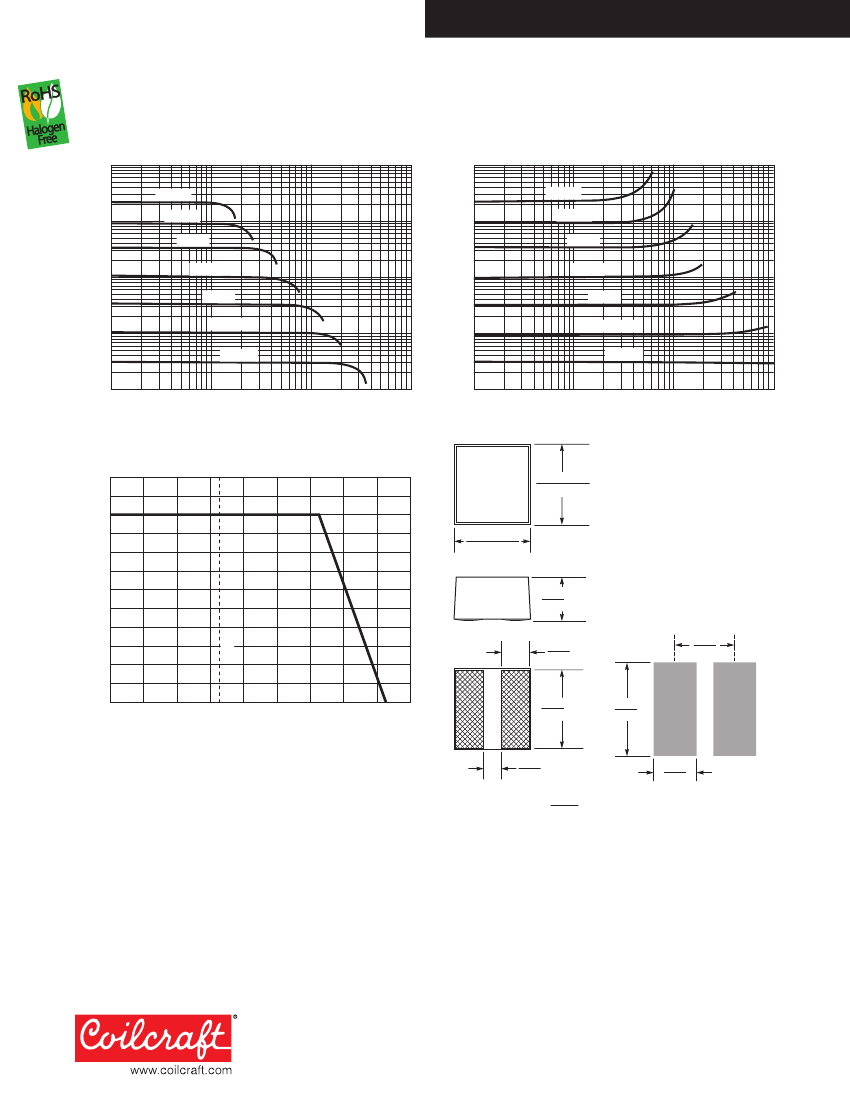

Power Inductors – XPL2010 Series

• Utra-miniature, magnetically shielded power inductors

• Very low DCR and excellent current handling.

• Soft saturation makes them ideal for VRM/VRD applications.

Designer’s Kit C428

contains 5 each of all values

Core material

Composite

Core and winding loss

See www.coilcraft.com/coreloss

Weight

20 mg

Environmental

RoHS compliant, halogen free

Terminations

RoHS compliant tin-silver-copper (96.5/3/0.5) over tin over

nickel over silver-platinum. Other terminations available at additional cost.

Ambient temperature

–40°C to +85°C with

Irms

current, +85°C to

+125°C with derated current

Storage temperature

Component: –40°C to +125°C.

Tape and reel packaging: –40°C to +80°C

Resistance to soldering heat

Max three 40 second reflows at

+260°C, parts cooled to room temperature between cycles

Moisture Sensitivity Level (MSL)

1 (unlimited floor life at <30°C /

85% relative humidity)

Failures in Time (FIT) / Mean Time Between Failures (MTBF)

38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

Packaging

2000/7″reel; 7500/13″ reel Plastic tape: 8 mm wide,

0.23 mm thick, 4 mm pocket spacing, 1.19 mm pocket depth

PCB washing

Only pure water or alcohol recommended

Inductance

±20% (µH)

0.20

0.33

0.50

0.68

0.82

1.0

1.5

2.2

3.3

4.7

6.8

8.2

100

220

DCR (Ohms)

nom

max

0.024

0.027

0.031

0.035

0.040

0.045

0.057

0.063

0.068

0.075

0.081

0.089

0.105

0.116

0.156

0.173

0.207

0.228

0.336

0.370

0.421

0.463

0.457

0.503

0.555

0.611

1.47

1.60

1.89

2.00

2.59

2.85

3.96

4.25

4.48

4.82

6.14

6.56

6.45

6.90

8.48

9.27

19.2

21.1

SRF typ

(MHz)

408

309

218

152

132

117

7.1

Isat

(A)

10% drop 20% drop 30% drop

2.80

3.45

3.75

1.90

2.75

3.05

1.80

2.35

2.64

1.55

1.95

2.19

1.25

1.65

1.90

1.20

1.60

1.80

0.950

1.30

1.50

0.940

1.20

1.35

0.700

0.925

1.05

0.580

0.750

0.845

0.450

0.620

0.725

0.440

0.600

0.670

0.390

0.525

0.610

0.500

0.560

0.590

0.410

0.470

0.510

0.330

0.380

0.410

0.270

0.300

0.320

0.240

0.280

0.300

0.210

0.250

0.280

0.200

0.240

0.260

0.180

0.214

0.232

0.122

0.143

0.161

Irms

(A)

20°C rise 40°C rise

2.2

2.8

1.9

2.6

1.7

2.3

1.5

2.1

1.3

1.7

1.1

1.6

1.0

1.4

0.96

1.3

0.79

1.1

0.74

1.0

0.64

0.87

0.55

0.75

0.49

0.66

0.32

0.43

0.28

0.39

0.23

0.31

0.18

0.25

0.17

0.24

0.15

0.20

0.15

0.20

0.13

0.17

0.086

0.116

Part number

XPL2010-201ML_

XPL2010-331ML_

XPL2010-501ML_

XPL2010-681ML_

XPL2010-821ML_

XPL2010-102ML_

XPL2010-152ML_

XPL2010-222ML_

XPL2010-332ML_

XPL2010-472ML_

XPL2010-682ML_

XPL2010-822ML_

XPL2010-103ML_

XPL2010-183ML_

XPL2010-223ML_

XPL2010-333ML_

XPL2010-473ML_

XPL2010-563ML_

XPL2010-683ML_

XPL2010-823ML_

XPL2010-104ML_

XPL2010-224ML_

1. When ordering, please specify

termination

and

packaging

codes:

XPL2010-103MLC

Termination: L

= RoHS compliant tin-silver-copper (96.5/3/0.5) over

tin over nickel over silver.

Special order: S

= non-RoHS tin-lead (63/37).

Packaging: C

= 7″ machine-ready reel. EIA-481 embossed plastic

tape (2000 parts per full reel).

= Less than full reel. In tape, but not machine ready.

To have a leader and trailer added ($25 charge),

use code letter C instead.

= 13″ machine-ready reel. EIA-481 embossed plastic

tape. Factory order only, not stocked (7500 parts per

full reel).

2. Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc.

3. DCR measured on a micro-ohmmeter.

4. SRF measured using Agilent/HP 4395A or equivalent.

5. DC current at which the inductance drops the specified amount from its

value without current.

6. Current that causes the specified temperature rise from 25°C ambient.

7. Electrical specifications at 25°C.

Refer to Doc 362 “Soldering Surface Mount Components” before soldering.

+1-847-639-6400 sales@coilcraft.com

+44-1236-730595 sales@coilcraft-europe.com

Taiwan

+886-2-2264 3646 sales@coilcraft.com.tw

China

+86-21-6218 8074 sales@coilcraft.com.cn

Singapore

+ 65-6484 8412 sales@coilcraft.com.sg

Document 646-1

Revised 06/15/12

This product may not be used in medical or high

risk applications without prior Coilcraft approval.

Specification subject to change without notice.

Please check out web site for latest information.
