P36S802TR

Description
Rotary Coded Switch, 10 Positions, BCD Complement, Latched, 0.4A, 24VDC, Solder Terminal, Slotted Spindle Actuator, Surface Mount-straight
CategoryMechanical and electronic products    switch
File Size107KB，2 Pages
ManufacturerAPEM
Environmental Compliance
Download Datasheet Parametric Compare View All

P36S802TR Overview

Rotary Coded Switch, 10 Positions, BCD Complement, Latched, 0.4A, 24VDC, Solder Terminal, Slotted Spindle Actuator, Surface Mount-straight

P36S802TR Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerAPEM
Reach Compliance Codecompliant
ECCN codeEAR99
Actuator typeSLOTTED SPINDLE
body width7.4 mm
body height3.65 mm
Body length or diameter7.4 mm
Maximum contact current (DC)0.4 A
Contact (DC) maximum rated R load.4A@24VDC
Maximum contact voltage (DC)24 V
JESD-609 codee3
Manufacturer's serial numberP36
Installation featuresSURFACE MOUNT-STRAIGHT
Number of positions10
Number of switching segments1
Maximum operating temperature90 °C
Minimum operating temperature-30 °C
method of packingTAPE AND REEL
sealWATERPROOF
surface mountNO
Switch actionLATCHED
switch functionBCD COMPLEMENT
Switch typeROTARY CODED SWITCH
Terminal surfaceMatte Tin (Sn)
Termination typeSOLDER

Preview

Download Datasheet
S
the U
tside
s ou UK.
erie
36 s and the
CR

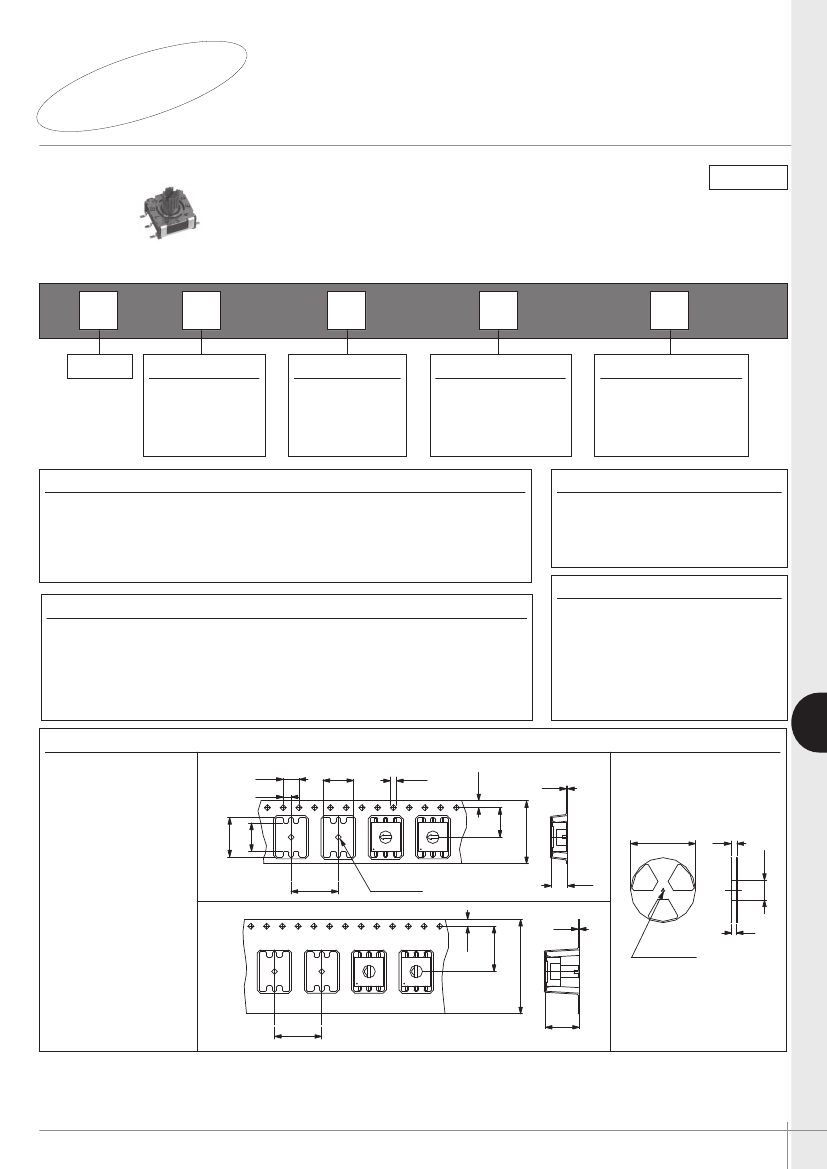

P36 series
Low profile rotary code switches
Surface mount or through-hole
❑
❑
❑
❑
P36
3 actuator types
Save board space
Highly reliable
Solder and flux sealed, washable
UG1006-A

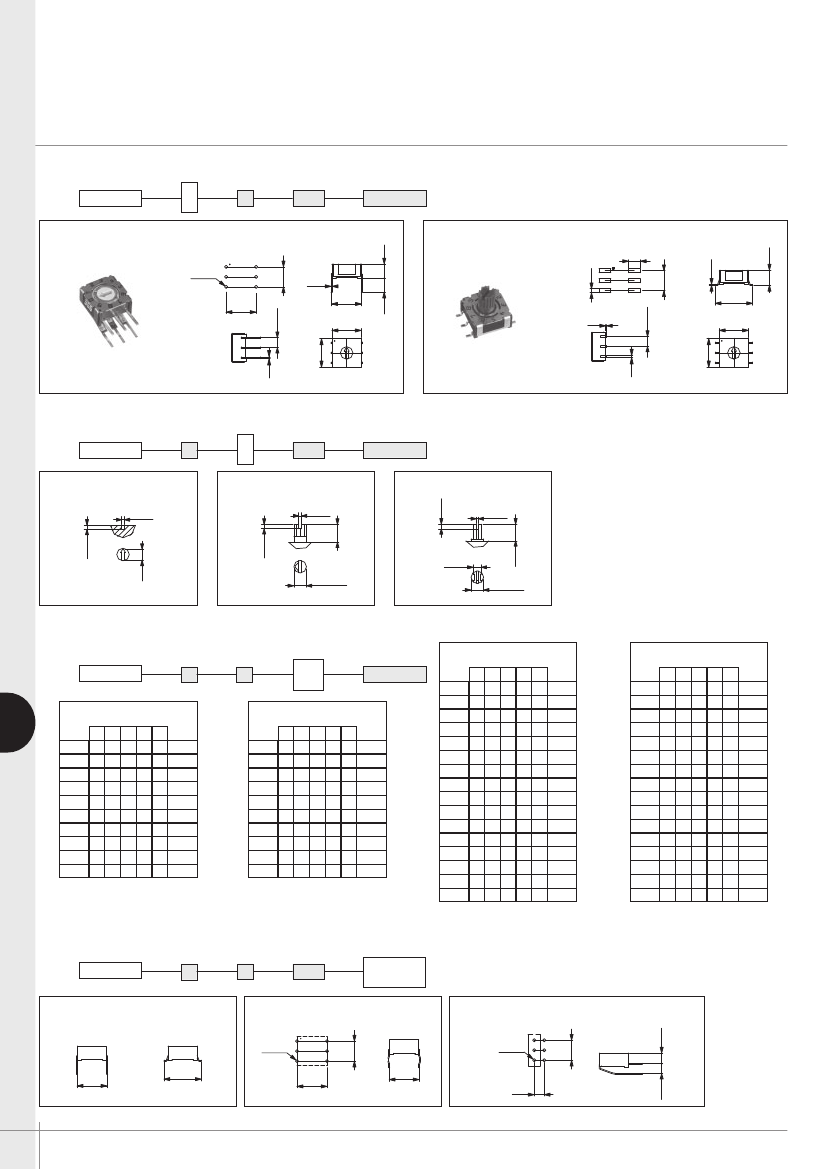

SERIES
Mounting
(none)
Through-hole
S
Surface mount
1
3
8
Actuators
Screwdriver
Spindle
Slotted spindle
01
02
03
06
Codes
BCD
BCD complement
Hexadecimal
Hexadec. complement
Terminals
(none)
Straight or SMT
V
Crimped
L254
Right angle,
spacing 2,54 (.100)
MECHANICAL AND THERMAL SPECS
ELECTRICAL SPECIFICATIONS
• Operating voltage : 24 VDC max.
• Contact load, static : 400mA max.
• Contact load, dynamic : 100mA max.
• Initial contact resistance : 100 mΩ max.
• Insulation resistance : 100 MΩ min.
MATERIALS
• Torque : 0,7 Ncm min.
• Expected life : 10.000 cycles min.
• Operating temperature :
-30°C to +90°C
SOLDER RECOMMENDATIONS
• Base : UL94-V0, high temperature thermoplastic
• Cover : stainless steel
• Actuator : PA 4.6 nylon
• Contacts : gold over nickel plated phosphor bronze
• Terminals : tin plated
(DIN CEI 68-2-20)
• Manual soldering : 340°C max.for
2 seconds max.
• Wave soldering : 280°C max. for
5 seconds max.
• Reflow soldering : 260°C max. for
10 seconds max.
F
PACKAGING
1.75
(.068)
4.00
(.157)
2.00
(.078)
7.80
(.307)
1.55
(.061)
0.30
(.011)
12.00
(.472)
Ø 1.50 mini
(.059DIA min)
1.75
(.068)
11.50
(.452)
12.00
(.472)
• Reels : see above. To order a SMT product with tape & reel packaging, add “TR” at the end of its part number.
• Tubes : 50 pieces (through-hole or SMT) per tube.
Dimensions
: first dimensions are in mm while inches are shown as bracketted numbers.
APEM
www.apem.com
F-3
78
78
P36S3..
P36S8..
600 pieces per reel
(dim.A = 30,4 mm
dim B = 24,4 mm)
24.00
(.944)
9
0
1
9
0
1
23
23
78
78
P36S1..
1300 pieces per reel
(dim.A = 22,4 mm
dim B = 16,4 mm)
16.00
(.629)
10.00
(.393)
7.20
(.283)
9
0
1
9
0
1
23
23
7.50
(.295)
A
4.15
(.163)
0.30
(.011)
Ø13.00±0.20
(.511 DIA±.007)
8.65
(.340)
Ø100.00
(3.937DIA)
Ø330.00 Maxi
(12.992DIA MAX)
4
5
6
4
5
6
B
4
5
6
4
5
6

P36S802TR Related Products

P36S802TR P36S306TR P36S806TR P36S303TR P36S301TR P36S801TR P36S102TR P36S803TR P36S302TR
Description Rotary Coded Switch, 10 Positions, BCD Complement, Latched, 0.4A, 24VDC, Solder Terminal, Slotted Spindle Actuator, Surface Mount-straight Rotary Coded Switch, 16 Positions, Hexadecimal Complement, Latched, 0.4A, 24VDC, Solder Terminal, Spindle Actuator, Surface Mount-straight Rotary Coded Switch, 16 Positions, Hexadecimal Complement, Latched, 0.4A, 24VDC, Solder Terminal, Slotted Spindle Actuator, Surface Mount-straight Rotary Coded Switch, 16 Positions, Hexadecimal, Latched, 0.4A, 24VDC, Solder Terminal, Spindle Actuator, Surface Mount-straight Rotary Coded Switch, 10 Positions, Binary Coded Decimal, Latched, 0.4A, 24VDC, Solder Terminal, Spindle Actuator, Surface Mount-straight Rotary Coded Switch, 10 Positions, Binary Coded Decimal, Latched, 0.4A, 24VDC, Solder Terminal, Slotted Spindle Actuator, Surface Mount-straight Rotary Coded Switch, 10 Positions, BCD Complement, Latched, 0.4A, 24VDC, Solder Terminal, Screw Driver Actuator, Surface Mount-straight, Rotary Coded Switch, 16 Positions, Hexadecimal, Latched, 0.4A, 24VDC, Solder Terminal, Slotted Spindle Actuator, Surface Mount-straight Rotary Coded Switch, 10 Positions, BCD Complement, Latched, 0.4A, 24VDC, Solder Terminal, Spindle Actuator, Surface Mount-straight
Is it lead-free? Lead free Lead free Lead free Lead free Lead free Lead free Lead free Lead free Lead free
Is it Rohs certified? conform to conform to conform to conform to conform to conform to conform to conform to conform to
Reach Compliance Code compliant compliant compliant compliant compliant compliant compliant compliant compliant
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Actuator type SLOTTED SPINDLE SPINDLE SLOTTED SPINDLE SPINDLE SPINDLE SLOTTED SPINDLE SCREW DRIVER SLOTTED SPINDLE SPINDLE
body width 7.4 mm 7.4 mm 7.4 mm 7.4 mm 7.4 mm 7.4 mm 7.4 mm 7.4 mm 7.4 mm
body height 3.65 mm 3.65 mm 3.65 mm 3.65 mm 3.65 mm 3.65 mm 3.65 mm 3.65 mm 3.65 mm
Body length or diameter 7.4 mm 7.4 mm 7.4 mm 7.4 mm 7.4 mm 7.4 mm 7.4 mm 7.4 mm 7.4 mm
Maximum contact current (DC) 0.4 A 0.4 A 0.4 A 0.4 A 0.4 A 0.4 A 0.4 A 0.4 A 0.4 A
Contact (DC) maximum rated R load .4A@24VDC .4A@24VDC .4A@24VDC .4A@24VDC .4A@24VDC .4A@24VDC .4A@24VDC .4A@24VDC .4A@24VDC
Maximum contact voltage (DC) 24 V 24 V 24 V 24 V 24 V 24 V 24 V 24 V 24 V
JESD-609 code e3 e3 e3 e3 e3 e3 e3 e3 e3
Installation features SURFACE MOUNT-STRAIGHT SURFACE MOUNT-STRAIGHT SURFACE MOUNT-STRAIGHT SURFACE MOUNT-STRAIGHT SURFACE MOUNT-STRAIGHT SURFACE MOUNT-STRAIGHT SURFACE MOUNT-STRAIGHT SURFACE MOUNT-STRAIGHT SURFACE MOUNT-STRAIGHT
Number of positions 10 16 16 16 10 10 10 16 10
Number of switching segments 1 1 1 1 1 1 1 1 1
Maximum operating temperature 90 °C 90 °C 90 °C 90 °C 90 °C 90 °C 90 °C 90 °C 90 °C
Minimum operating temperature -30 °C -30 °C -30 °C -30 °C -30 °C -30 °C -30 °C -30 °C -30 °C
method of packing TAPE AND REEL TAPE AND REEL TAPE AND REEL TAPE AND REEL TAPE AND REEL TAPE AND REEL TAPE AND REEL TAPE AND REEL TAPE AND REEL
seal WATERPROOF WATERPROOF WATERPROOF WATERPROOF WATERPROOF WATERPROOF WATERPROOF WATERPROOF WATERPROOF
surface mount NO NO NO NO NO NO NO NO NO
Switch action LATCHED LATCHED LATCHED LATCHED LATCHED LATCHED LATCHED LATCHED LATCHED
switch function BCD COMPLEMENT HEXADECIMAL COMPLEMENT HEXADECIMAL COMPLEMENT HEXADECIMAL BINARY CODED DECIMAL BINARY CODED DECIMAL BCD COMPLEMENT HEXADECIMAL BCD COMPLEMENT
Switch type ROTARY CODED SWITCH ROTARY CODED SWITCH ROTARY CODED SWITCH ROTARY CODED SWITCH ROTARY CODED SWITCH ROTARY CODED SWITCH ROTARY CODED SWITCH ROTARY CODED SWITCH ROTARY CODED SWITCH
Terminal surface Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn)
Termination type SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER
Maker APEM - - APEM APEM APEM APEM APEM APEM
Manufacturer's serial number P36 P36 P36 P36 P36 P36 - P36 P36
