UA339DC datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> UA339DC

PDF

UA339DC: DescriptionComparator, 9000uV Offset-Max, 1300ns Response Time, BIPolar, CDIP14,; CategoryAnalog mixed-signal IC Amplifier circuit; File Size263KB，10 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

UA339DC Overview

Comparator, 9000uV Offset-Max, 1300ns Response Time, BIPolar, CDIP14,

UA339DC Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Fairchild
Parts packaging code	DIP
package instruction	DIP, DIP14,.3
Contacts	14
Reach Compliance Code	compliant
ECCN code	EAR99
Amplifier type	COMPARATOR
Maximum input offset voltage	9000 µV
JESD-30 code	R-XDIP-T14
JESD-609 code	e0
Humidity sensitivity level	2A
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	250
power supply	5 V
Certification status	Not Qualified
Nominal response time	1300 ns
Maximum slew rate	2 mA
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30

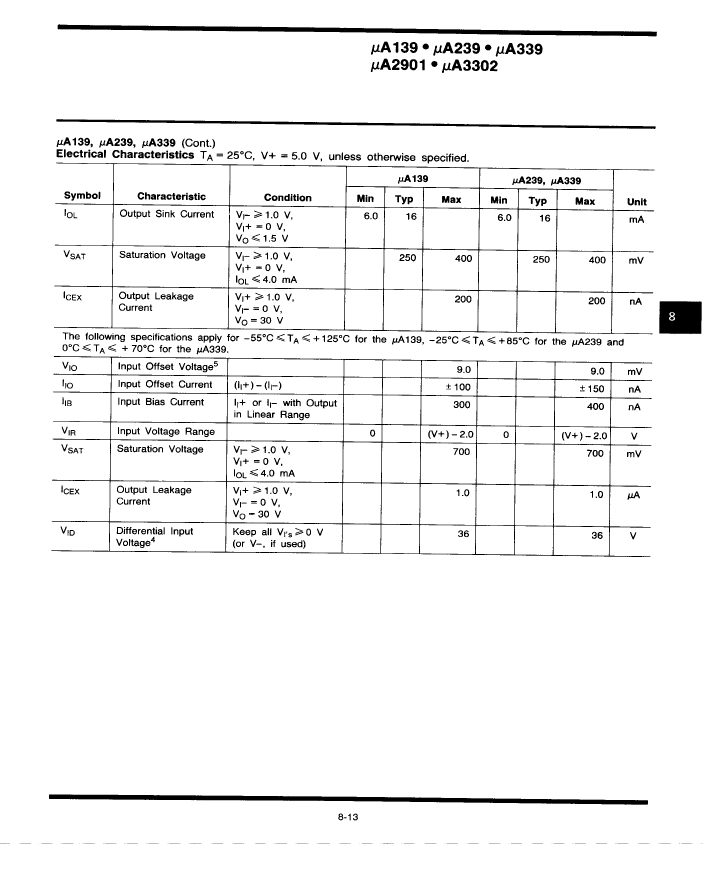

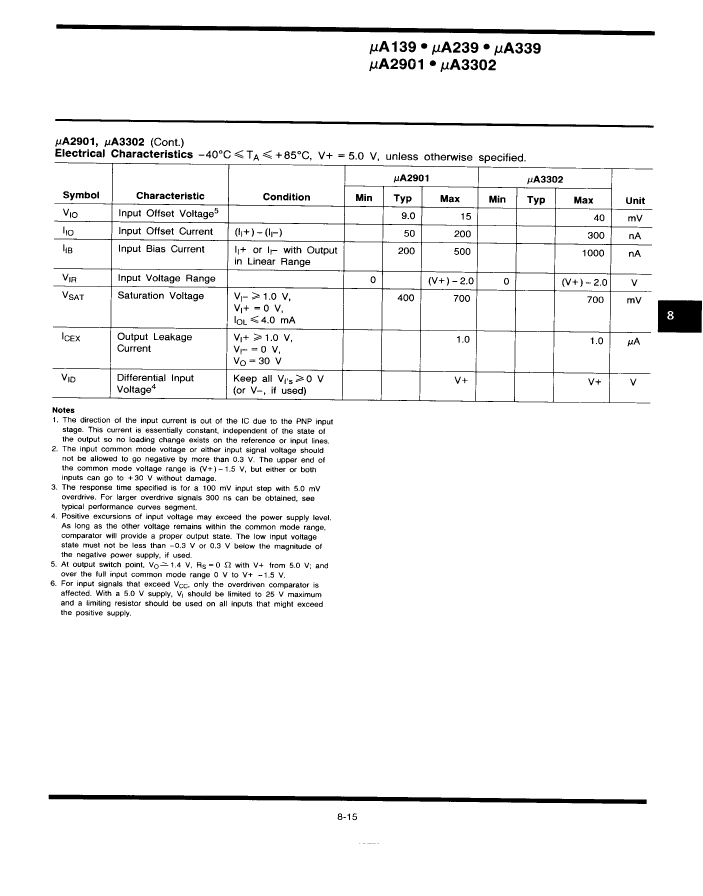

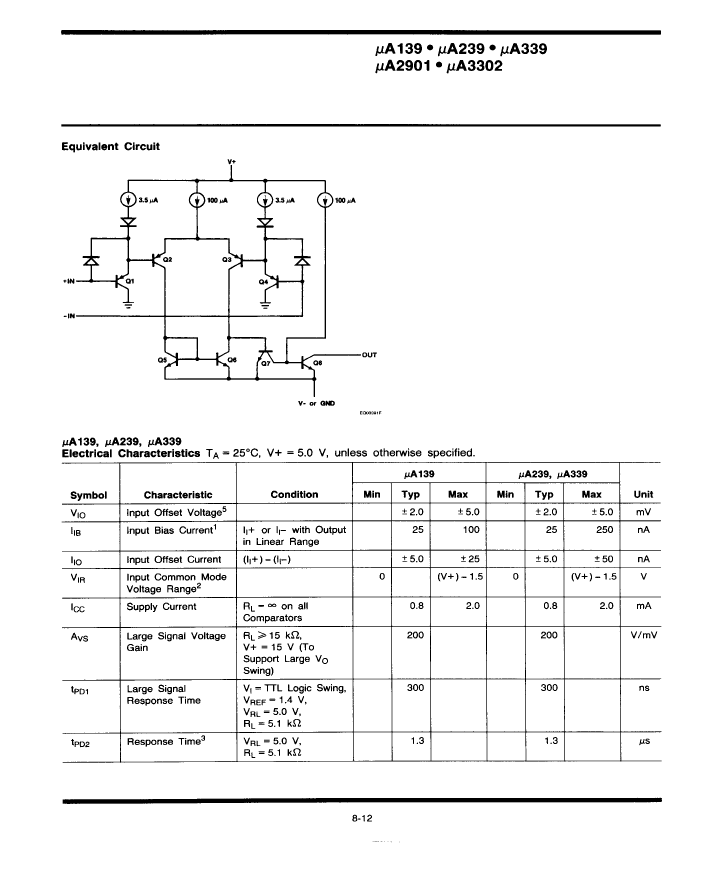

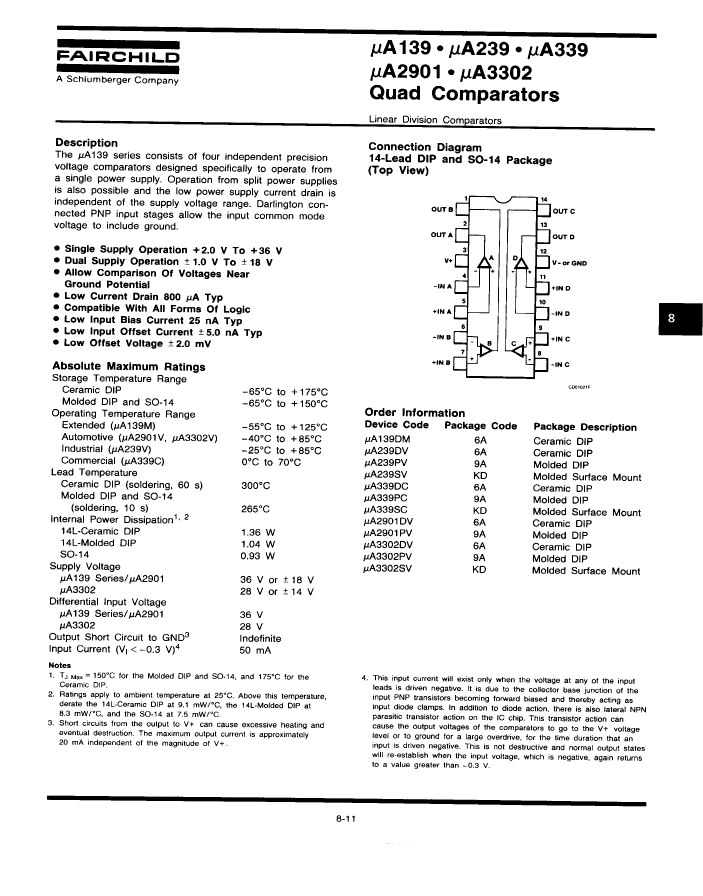

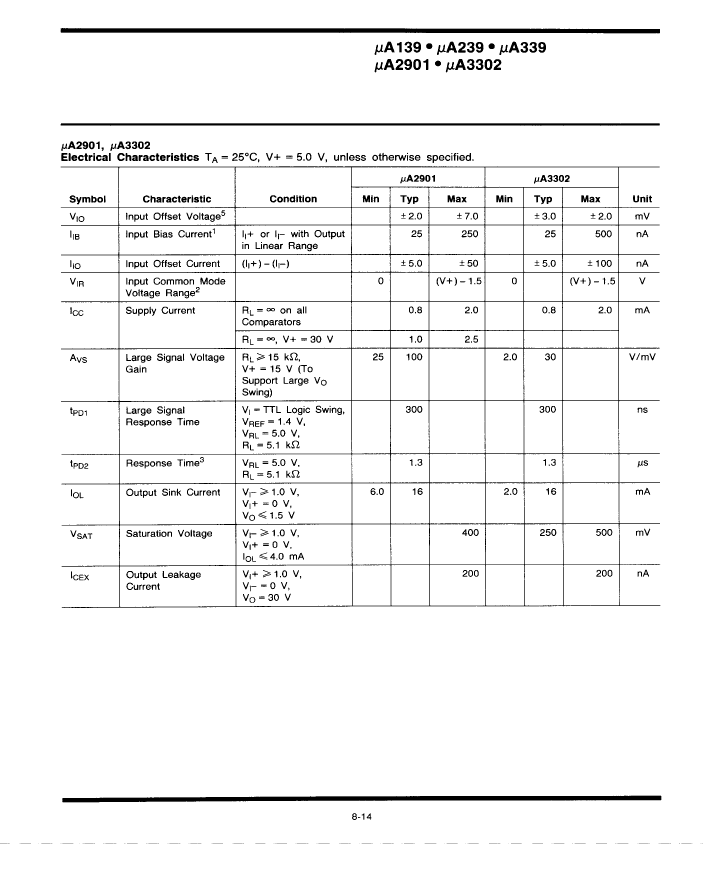

UA339DC Preview
