UA78H05SMQB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> UA78H05SMQB

UA78H05SMQB: DescriptionRegulator, 1 Output, Hybrid,; CategoryPower/power management The power supply circuit; File Size264KB，4 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

UA78H05SMQB Overview

Regulator, 1 Output, Hybrid,

UA78H05SMQB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
package instruction	, TO-204/-3
Reach Compliance Code	compliant
Adjustability	FIXED
Nominal dropback voltage 1	3.6 V
Maximum absolute input voltage	40 V
JESD-609 code	e0
Maximum grid adjustment rate	0.05%
Maximum load regulation	0.05%
Output times	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current 1	5 A
Nominal output voltage 1	5 V
Package body material	METAL
Encapsulate equivalent code	TO-204/-3
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
technology	HYBRID
Terminal surface	Tin/Lead (Sn/Pb)
Maximum voltage tolerance	5%

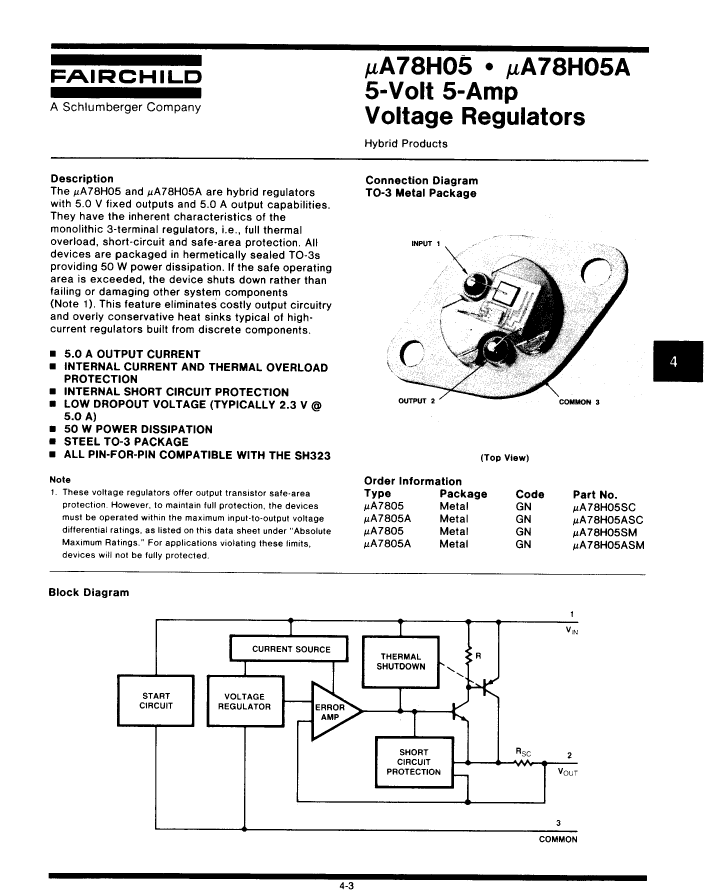

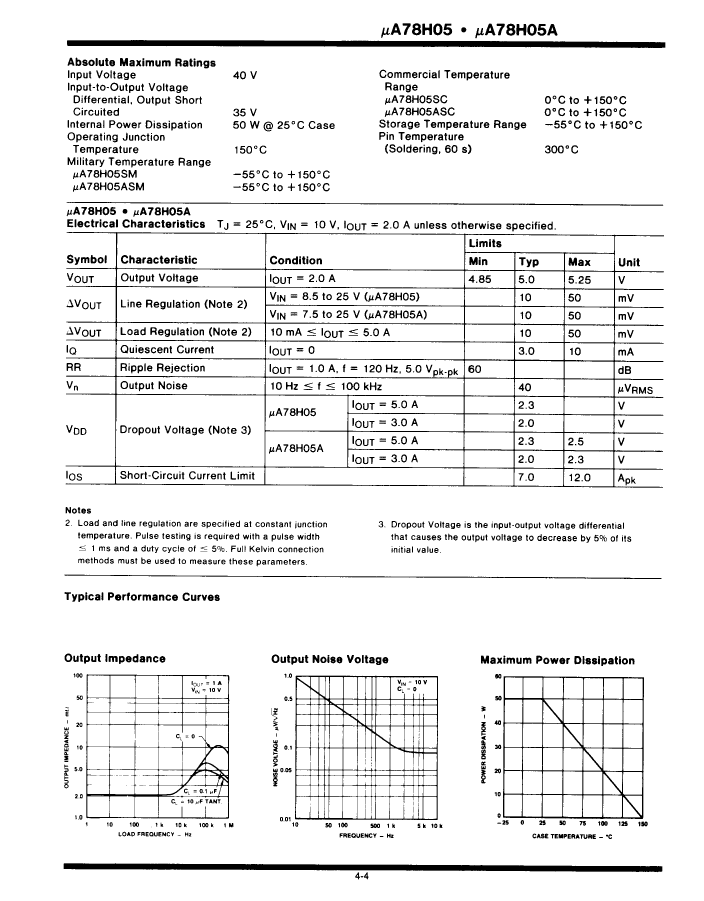

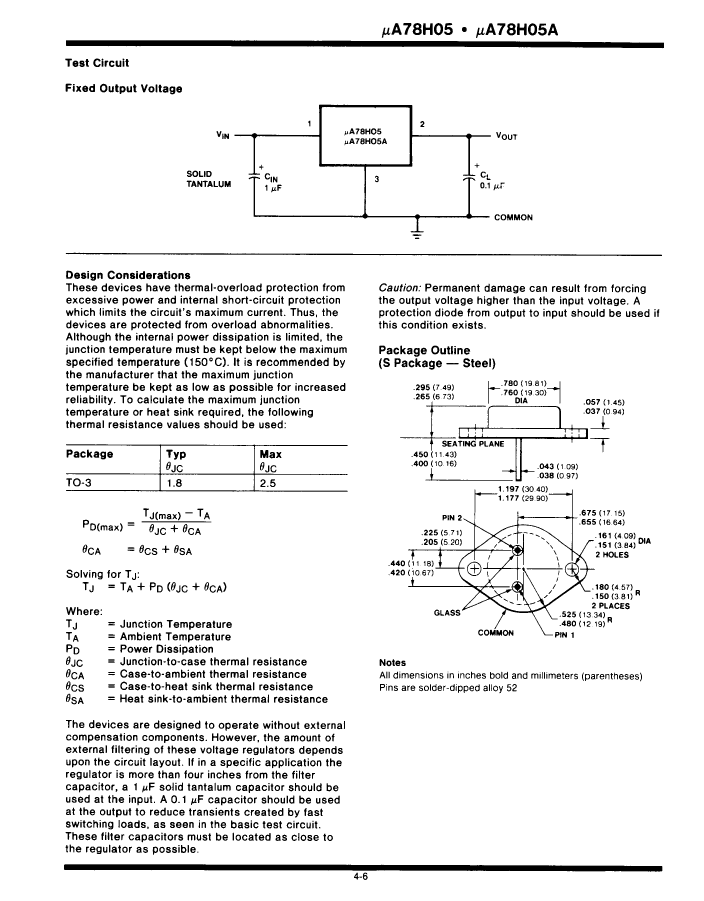

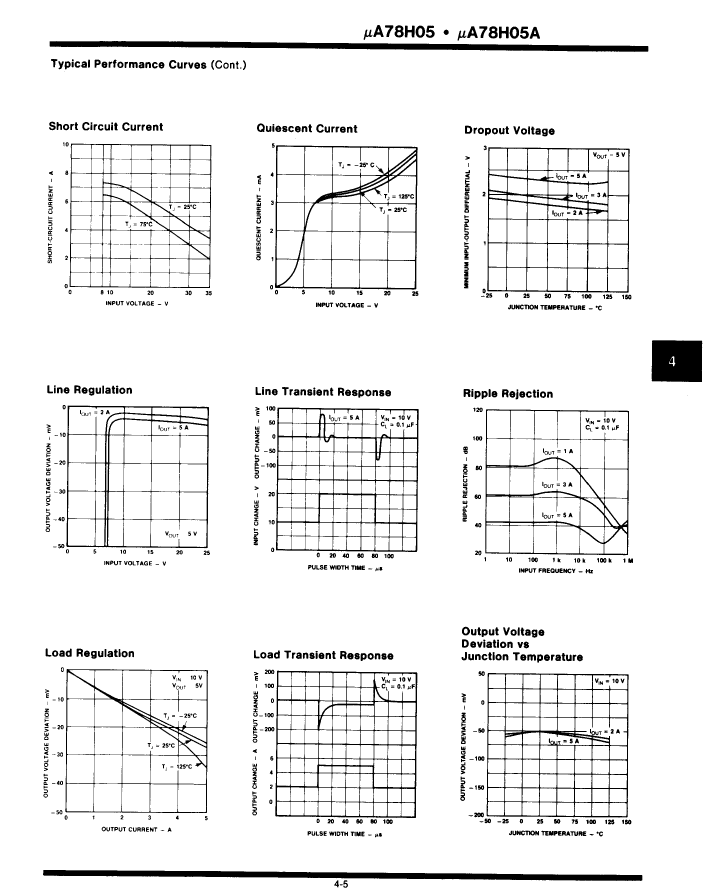

Preview

Download Datasheet

View All

UA78H05SMQB Related Products

	UA78H05SMQB	UA78H05SCQM	UA78H05ASCQR	UA78H05KCQR	UA78H05KCQM	UA78H05SCQR	UA78H05ASCQM	UA78H05ASMQB
Description	Regulator, 1 Output, Hybrid,	Regulator, 1 Output, Hybrid,	Regulator, 1 Output, Hybrid,	Regulator, 1 Output, Hybrid,	Regulator, 1 Output, Hybrid,	Regulator, 1 Output, Hybrid,	Regulator, 1 Output, Hybrid,	Regulator, 1 Output, Hybrid,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild
package instruction	, TO-204/-3	, TO-204/-3	, TO-204/-3	, TO-204/-3	, TO-204/-3	, TO-204/-3	, TO-204/-3	, TO-204/-3
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Adjustability	FIXED	FIXED	FIXED	FIXED	FIXED	FIXED	FIXED	FIXED
Nominal dropback voltage 1	3.6 V	3.6 V	2.5 V	3.6 V	3.6 V	3.6 V	2.5 V	2.5 V
Maximum absolute input voltage	40 V	40 V	40 V	40 V	40 V	40 V	40 V	40 V
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Maximum grid adjustment rate	0.05%	0.05%	0.05%	0.05%	0.05%	0.05%	0.05%	0.05%
Maximum load regulation	0.05%	0.05%	0.05%	0.05%	0.05%	0.05%	0.05%	0.05%
Output times	1	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current 1	5 A	5 A	5 A	5 A	5 A	5 A	5 A	5 A
Nominal output voltage 1	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL
Encapsulate equivalent code	TO-204/-3	TO-204/-3	TO-204/-3	TO-204/-3	TO-204/-3	TO-204/-3	TO-204/-3	TO-204/-3
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maximum voltage tolerance	5%	5%	5%	5%	5%	5%	5%	5%
Certification status	Not Qualified	Not Qualified	-	-	Not Qualified	-	Not Qualified	Not Qualified
