72442-101S Overview

Telecom and Datacom Connector, 80 Contact(s), Female, Straight, Press Fit Terminal, Locking, Receptacle

72442-101S Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	POLARIZED, STAGGERED CONFIGURATION
Board mount options	POLARIZATION POST
body width	0.276 inch
subject depth	0.689 inch
body length	2.717 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN LEAD (60) OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	500VDC V
Durability	500 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	.8896 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
JESD-609 code	e0
MIL compliance	NO
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	CSA, UL
reliability	COMMERCIAL
Shell material	NYLON
Termination type	PRESS FIT
Total number of contacts	80
UL Flammability Code	94V-0
Evacuation force-minimum value	.139 N

Preview

Download Datasheet

View All

SCA2 Connector

Systems

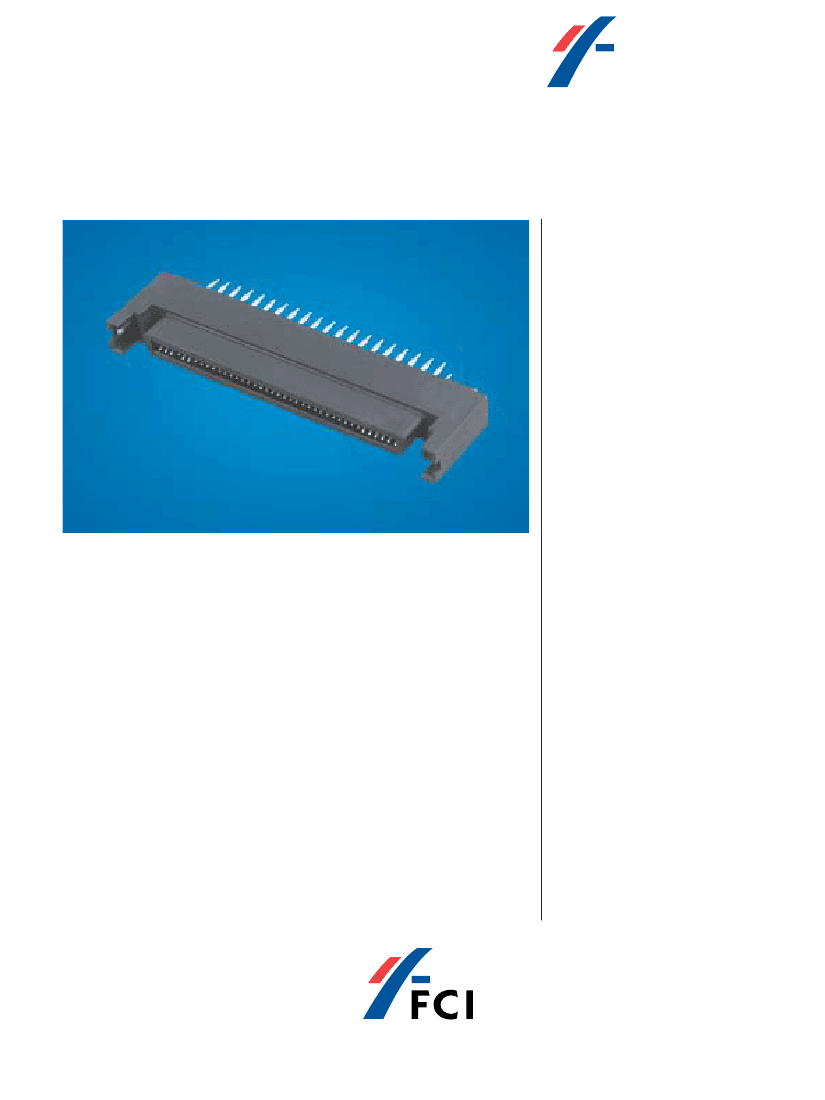

SCA2 Vertical Receptacles

Features

• High reliability blade-on-beam

contact design

• Alignment features provide blind

mating

• First-Mate-Last-Break (FMLB)

contacts in accordance with

SFF Standards pattern

• Dual ESD contacts for static

discharge paths

• High temperature plastic suitable for

wave or reflow soldering

Benefits

• High density dual row on

1mm centerlines

• High performance contacts: 60

grams min. normal force 1.0 amps

per contacts

• FMLB contacts for hot-mating

pattern per SFF standard

• Multiple configurations

• Receptacles:

• Vertical through hole

• Press fit two heights for

11.5mm and 17.5mm plugs

• Plugs:

• Straddle mount and

surface mount in-line

• Robust design

• Blade-on-beam contacts

• High temperature plastic

• Low mating force

• Au-plating

• Built-in guidance and polarization

• Compatible with IR and

convection reflow soldering

Description

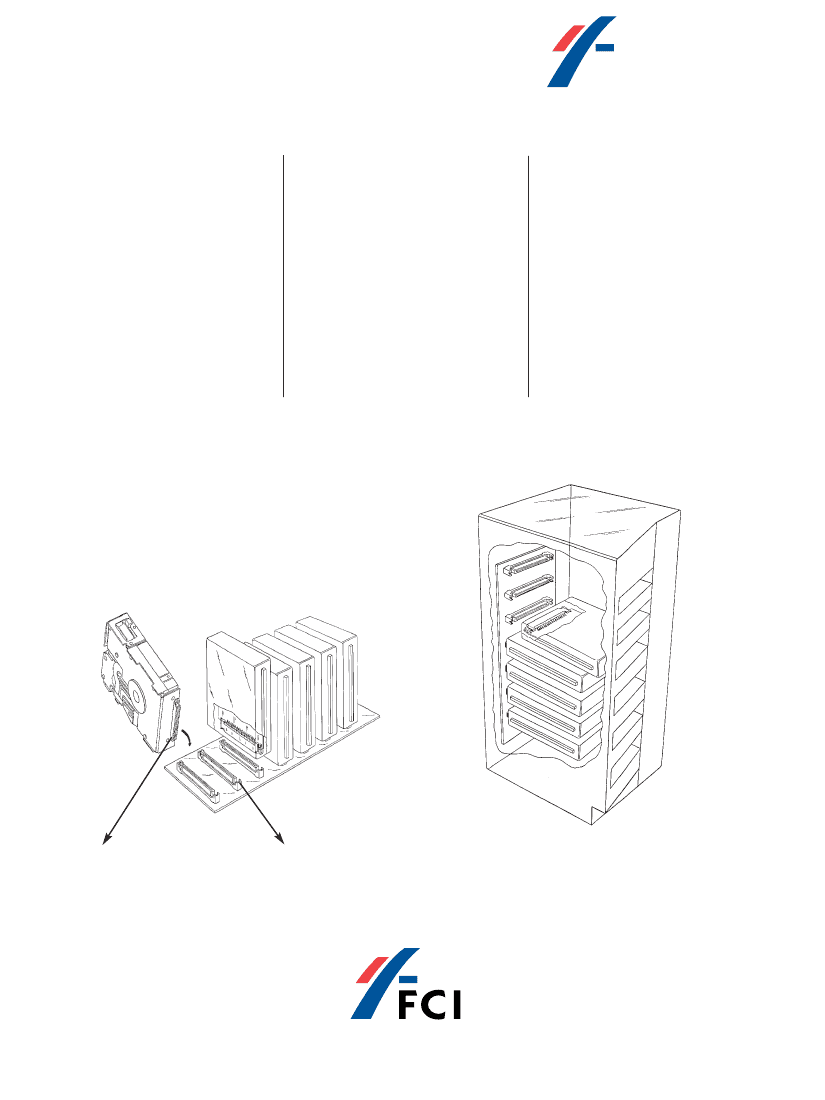

The SCA2 (Single Connect Attachment) connector system consists of plugs

and receptacles designed to meet the industry’s requirement for standard

drive to backpanel interface in RAID (Redundant Array of Independent Disks)

and Fibre Channel applications. The plug resides in the disk drive, while the

receptacle is on the backpanel. The interface is governed by the Small Form

Factor (SFF) standard.

FCI’s SCA2 connectors feature high reliability dual-row blade-on-beam

contacts on 1mm centerlines and alignment guides for “hot-mating”

respectively.

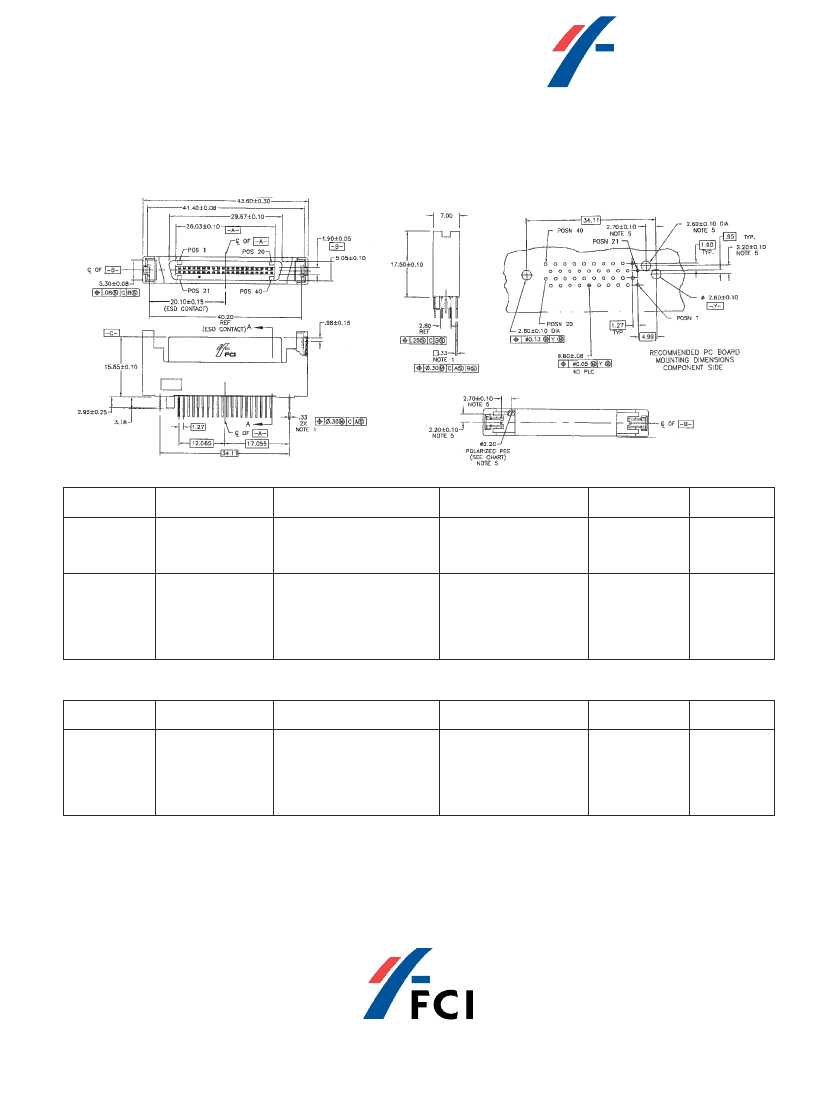

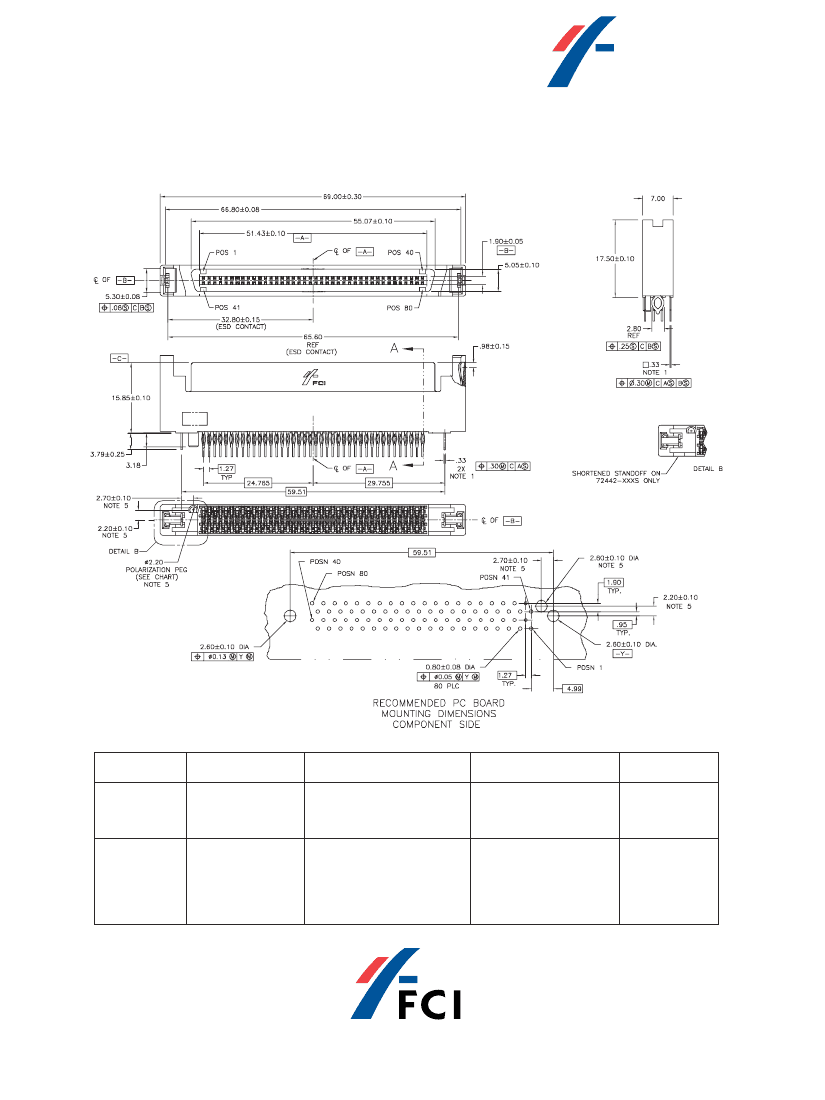

Receptacles are available in 80 and 40 positions with two body heights, both

vertical solder-to-boards and vertical press fit contacts tails. Edge-cards plugs

are available in 80 and 40 position straddle mount or surface mount-in-line.

Target Markets

• Data

• Storage

Target Applications

• Disk drives

• Enterprise servers

• Disk array

Available in Asia/Pacific only

http://www.fciconnect.com

A s i a / Pa c i f i c Te l . : 6 5 5 4 9 6 6 6 6
