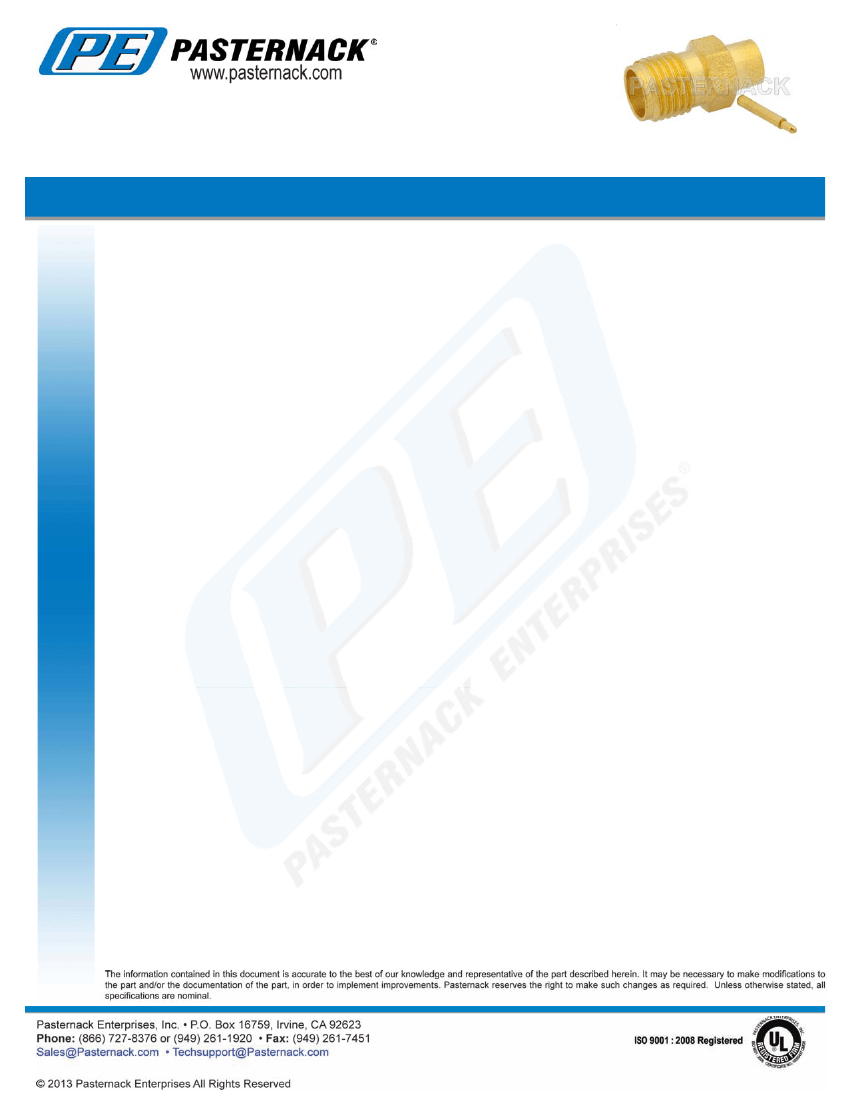

RP SMA Female Connector Solder Attachment
For PE-SR402AL, PE-SR402FL, RG402
TECHNICAL DATA SHEET
RP SMA Female Connector Solder Attachment For PE-SR402AL, PE-SR402FL, RG402
Configuration
Connector
Connector Specification
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
SMA Female Reverse Polarity
MIL-STD-348
PE-SR402AL,PE-SR402FL,RG402
Solder/Solder
Straight
PE4852
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum VSWR
DC to 18
50
1.25:1
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
.
0.498 [12.65]
0.25 [6.35]
0.006 [2.72]
SMA Female Reverse Polarity
Beryllium Copper, Gold
MIL-G-45204, Type II, Class 2
Stainless Steel, Gold
Teflon
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Contact Plating Specification
Body Material and Plating
Dielectric Type
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
RP SMA Female Connector Solder Attachment For PE-SR402AL, PE-SR402FL, RG402 from Pasternack Enterprises has
same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%
availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
RP SMA Female Connector Solder Attachment For PE-SR402AL, PE-SR402FL, RG402 PE4852
URL:
http://www.pasternack.com/sma-female-reverse-polarity-pe-sr402al-pe-sr402fl-rg402-connector-pe4852-p.aspx
PE4852 REV
1
