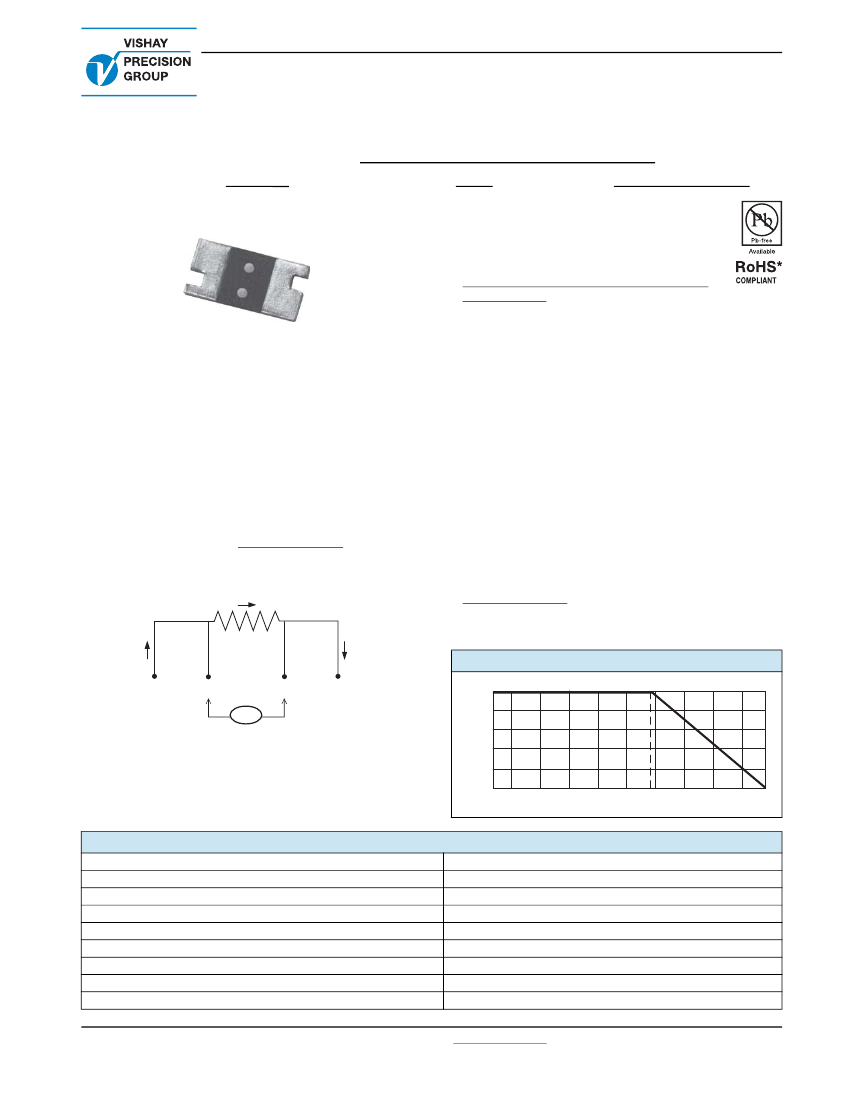

CSM2512S
Vishay Foil Resistors
Bulk Metal
®
Technology High Precision, Current Sensing, Power Surface
Mount, Metal Strip Resistor with Improved Stability 0.05 %, Resistance
Value from 10 mΩ, Rated Power to 1 W and TCR to 0 ± 15 ppm/°C
FEATURES
•
Temperature coefficient of resistance (TCR):
(- 55 °C to + 125 °C, + 25 °C ref.)
± 15 ppm/°C maximum
± 10 ppm/°C maximum on special request
•
Load life stability to ± 0.05 % (70 °C, 2000 h
at rated power)
•
Power rating: 1 W
•
Resistance tolerance: ± 0.1 %
•
Resistance range: 10 mΩ to 100 mΩ
•
Vishay Foil resistors are not restricted to standard values,
we can supply specific “as required” values at no extra cost
or delivery (e.g. 10.2345 mΩ vs. 10 mΩ)
•
Short time overload: ± 0.1 % typical
•
Thermal EMF: < 3 µV/°C
•
Maximum current: up to 10 A
•
Surface mount configuration
•
Four terminal (Kelvin) design: allows for precision accurate
measurements
•
Terminal finishes available: lead (Pb)-free, tin/lead alloy
•
Screening in accordance with EEE-INST002 available
(Per MIL-PRF-55342 and MIL-PRF-49465; see
datasheets of 303144 and 303145 )
•
Prototype quantities available in just 5 working days or
sooner. For more information, please contact
foil@vishaypg.com
•
For better performances please contact Application
Engineering
The CSM’s series of low value current sense resistors
provides power and precision in a four terminal, surface
mount configuration. Its all welded construction is made
up of a Bulk Metal
®
resistive element with plated copper
terminations.
Vishay Foil Resistors’ application engineering department is
available to advise and make recommendations.
For non-standard technical requirements and special
applications, please contact
foil@vishaypg.com.
IM
PR
O
VE
D
B
C
I
R
I
A
D
Zin
~
∞
=
V
Rated Power (%)
TABLE 1 - PERFORMANCE SPECIFICATIONS
PARAMETER
Resistance Range
Maximum Current
Power Rating at 70 °C
Maximum Working Voltage
Tightest Tolerance
Temperature Coefficient Maximum (- 55 °C to + 125 °C, + 25 °C ref.)
Operating Temperature Range
Weight (maximum)
* Pb containing terminations are RoHS compliant, exemptions may apply
Document Number: 63145
Revision: 3-May-11
For any questions, contact:
foil@vishaypg.com
PR
O
DU
CT
FIGURE 1 - POWER DERATING CURVE
+ 70 °C
100
80
60
40
20
0
- 65 - 50
- 25
0
25
50
75
100
125
150
170
Ambient Temperature (°C)
CSM2512S
10 mΩ to 100 mΩ
1W
10 A
(P x R)
1/2
± 0.1 %
± 15 ppm/°C, ± 10 ppm/°C is available
- 65 °C to + 170 °C
0.09 g
www.vishayfoilresistors.com
1
CSM2512S
Vishay Foil Resistors
ABOUT CSM
(Low Ohm Value 10 mΩ to 100 mΩ)
The CSM2512S series of low value current sense resistors
provides power and precision in a four terminal, surface
mount configuration. Its all welded construction is made up
of a Bulk Metal
®
resistive element with plated copper
terminations. For low value resistors in precision applications
it is necessary to use four-terminal Kelvin connections to
obtain a precise voltage drop across the resistive element.
element, thereby minimizing temperature variations. Also,
the resistor element is designed to uniformly dissipate power
without creating hot spots, and the welded terminations
material is compatible with the element material. These
design factors result in a very low thermal-EMF(<3 µV/°C)
resistor, because in addition to the low thermal EMF
compatibility of the metals, the uniformity and thermal
efficiency of the design minimizes the temperature
differential across the resistor, thereby assuring low thermal
EMF generation at the leads. This further reduces the
“battery effect” exhibited by most current-sensing or
voltage-reference resistors. Thus, the parasitic voltage
generated at the junction of two dissimilar metals, which is
especially important in low-value current-sensing resistors, is
minimized, while the pure current-to-voltage conversion is
protected from such interference in DC applications.
In these applications, the contact resistance and the terminal
resistance may have the same order of magnitude or be
even greater than that of the element resistance itself. Thus,
significant error is introduced because the high temperature
coefficient of resistance of the leads and the contact
resistance are unavoidably incorporated into the
measurements when the current sense resistor has only two
leads.
IM
PR
O
VE
D
Measurement equipment is available from a number of
sources with varying stated accuracies. Traditional passive
current sensors and shunts generate heat under power,
which changes their resistance, and thus their voltage
output. The CSM’s low absolute TCR reduces errors due to
temperature gradients, thus reducing a major source of
uncertainty in current measurement. The CSM can withstand
unconventional environmental conditions, including the
extremely
high
temperatures
and
radiation-rich
environments of down-hole oil exploration and well logging,
or the deep-sea underwater repeaters in cross-ocean
communications. The stability of the CSM can be further
enhanced by post-manufacturing operations (PMO), such as
temperature cycling, short-time overload, and accelerated
load life which are uniquely applicable to Bulk Metal
®
Foil
resistors. The device features a low thermal electromotive
force (EMF) that is critical in many precision applications.
Thermal EMF in DC applications induces a voltage offset in
the resistor that is equivalent to adding a small battery into
the circuit.
The CSM’s all-welded construction is a Bulk Metal
®
resistive
element with welded copper terminations, plated for
soldering. The terminations make a true continuous contact
with the resistive layer along the entire side of the resistive
www.vishayfoilresistors.com
2
Because the ability to measure low values to tolerances of
0.1% or tighter is a concern to both the manufacturer and the
user, many situations require coordination of measurement
standards between both parties. Coordination is often
accomplished by exchange of serialized units with recorded
readings to align measurement practices and specific
reference standards. The problem is compounded when
high-precision current sensors under moderate to high
power experience self-heating (Joule effect) which causes
the in-service resistance value to be different from that
obtained using low current measurement equipment.
Therefore, the measurement conditions must be defined and
accepted at the time of spec preparation-that is, resistance
value as determined by specified current and measured
IR-drop following a specified period of stabilization.
For any questions, contact:
foil@vishaypg.com
PR
O
DU
CT
The stability problems associated with analog circuits are
very pervasive, but knowledgeable selection of a few
high-quality resistors, networks, or trimming potentiometers
in critical locations can greatly improve circuit performance,
long-term application-related performance, as well as the
designer’s peace-of-mind. Additionally, the overall system
cost is often reduced when a knowledgeable designer
concentrates costs in a few exceptionally stable components
with minimal deviation and whose load and environmental
stability can often eliminate the necessity of additional
compensating circuitry or temperature-controlling systems.
The higher reliability and better overall system performances
also achieve excellent product results in the field, enhancing
market acceptance and product reputation. Designers often
unnecessarily pay for tighter tolerances than required simply
to accommodate the resistance stability shifts they know to
be imminent in an application due to the large
application-related changes in the components they
selected. Selection of a high-stability component like the
CSM in these applications eliminates the need for shift
allowance due to “planned instability” and allows the use of
looser initial tolerances than would otherwise be necessary.
Document Number: 63145
Revision: 3-May-11
CSM2512S
Vishay Foil Resistors

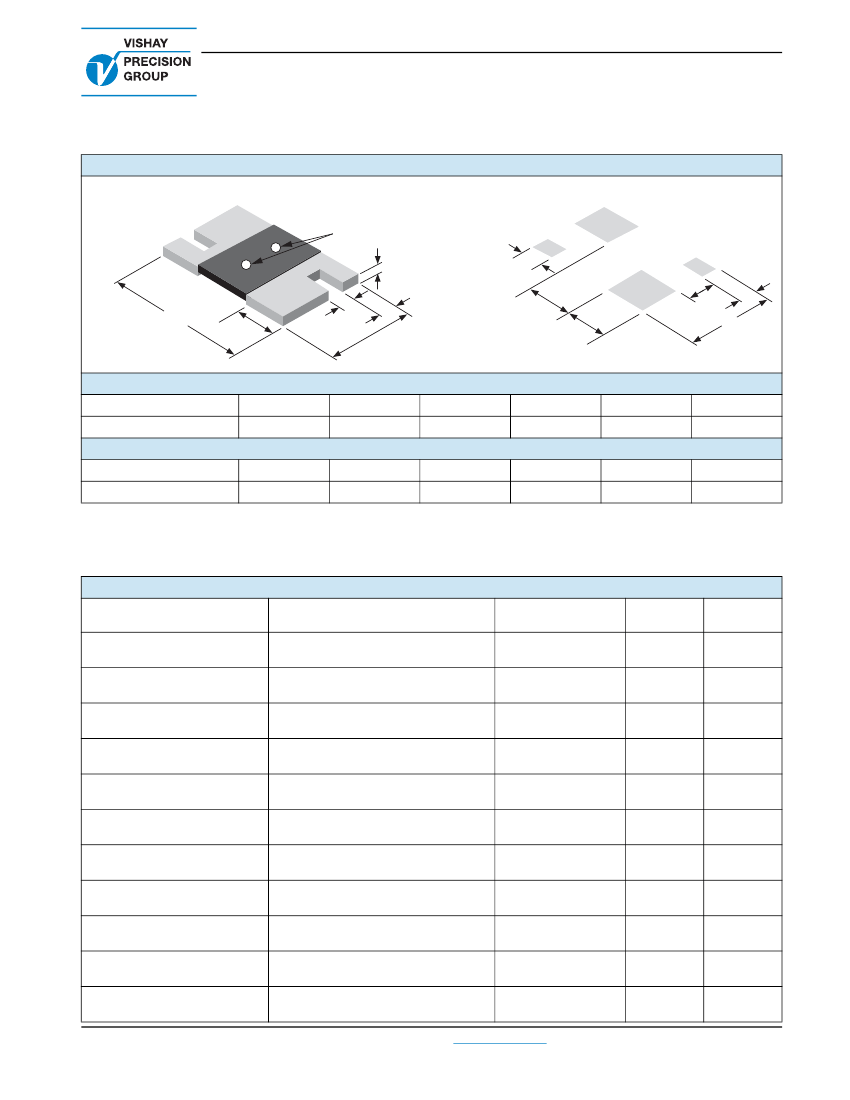

FIGURE 2 - DIMENSIONS AND IMPRINTING
in inches (millimeters)
CSM2512S DIMENSIONS
(1)
CSM2512S LAND PATTERN
H
B
L
T
W
A
DIMENSIONS - TOLERANCES ± 0.010 (± 0.254), * ± 0.015 (± 0.381)
RESISTANCE RANGE (Ω)
0.01 to 0.1
L
0.250 (6.350)
W
H
T
0.125 (3.175)
0.025 (0.635)
LAND PATTERN DIMENSIONS - TOLERANCES ± 0.003 (± 0.076)
RESISTANCE RANGE (Ω)
0.01 to 0.1
l
0.160 (4.06)
b
e
a
0.145 (3.68)
0.055 (1.39)
Note
(1)
White dots indicate top side of part for mounting purposes
IM
PR
O
VE
D
TABLE 2 - CSM2512S PERFORMANCE SPECIFICATIONS
TEST
CONDITIONS
MIL-PRF-49465B
ΔR
LIMITS
± (0.5 % + 0.0005R)
± (1.0 % + 0.0005R)
± (0.5 % + 0.0005R)
± (0.5 % + 0.0005R)
± (1.0 % + 0.0005R)
± (0.5 % + 0.0005R)
± (0.5 % + 0.0005R)
± (0.1 % + 0.0005R)
± (0.1 % + 0.0005R)
± (0.25 % + 0.0005R)
95 % coverage
TYPICAL
ΔR
LIMITS
0.1 %
0.05 %
0.05 %
0.1 %
0.2 %
0.05 %
0.02 %
0.02 %
0.02 %
0.05 %
-
www.vishayfoilresistors.com
3
MAXIMUM
ΔR
LIMITS
0.2 %
0.2 %
0.2 %
0.2 %
0.3 %
0.1 %
0.05 %
0.05 %
0.05 %
0.1 %
Thermal Shock
- 55 °C to + 150 °C, 1000 cycles, 15 min at
each extreme
2000 h, 70 °C at rated power
85 °C, 85 % humidity
10 % bias, 1000 h
Load Life Stability
Bias Humidity
Short Time Overload
5 x rated power for 5 s
1000 h, 170 °C
High Temperature Exposure
Low Temperature Storage
Moisture resistance
MIL-PRF-49465
MIL-STD-202, method 106, 0 % power,
7a and 7b not required
100 g, 6 ms
Shock
Vibration
(10 Hz to 2000 Hz) 20 g
10 s to 12 s at + 260 °C
MIL-STD-202
Resistance to Soldering Heat
Solderability
Document Number: 63145
Revision: 3-May-11
For any questions, contact:
foil@vishaypg.com
PR
O
DU
CT
e
E
1
E
2
I
2
d
c
I
Kelvin Connection
I
1
, I
2
- Current
E
1
, E
2
- Sense
a
b
A
B
0.030 (0.762)
0.030 (0.762)*
0.032 (0.813)*
c
d
0.065 (1.65)
0.045 (1.14)
0.021 (0.53)
I
1
CSM2512S
Vishay Foil Resistors
FIGURE 3 - LOAD LIFE RESULTS OF CSM2512S VS. CSM2512
CSM2512S 0R05
Load Life 2000 HRS @ 1 W @ +70°C (15 units)
1500
1000
500
3000
2500
2000
1500
1000
500
0
CSM2512 0R05
Load Life 2000 HRS @ 1 W @ +70°C (15 units)
0
0
-500
-1000
-1500
500
1000
1500
2000
Time (Hours)
TABLE 3 - GLOBAL PART NUMBER INFORMATION
DENOTES PRECISION
Y
VALUE
R
=
Ω
NEW GLOBAL PART NUMBER: Y44870R10000B0R (preferred part number format)
Y
4
4
8
7
0
R
IM
PR
O
VE
D
PRODUCT CODE
RESISTANCE TOLERANCE
B
C
D
F
= ± 0.1 %
= ± 0.25 %
= ± 0.5 %
= ± 1.0 %
4487
= CSM2512S
FOR EXAMPLE: ABOVE GLOBAL ORDER Y4487 0R10000 B 0 R:
TYPE: CSM2512S
VALUE: 100.0 mΩ
ABSOLUTE TOLERANCE: ± 0.1 %
TERMINATION: standard tin/lead
PACKAGING: tape and reel
HISTORICAL PART NUMBER: CSM2512S 0R1000 B B T (will continue to be used)
CSM2512S
MODEL
0R1000
B
B
TERMINATION
S
= lead (Pb)-free
B
= tin/lead
T
PACKAGING
T
= tape and reel
W
= waffle pack
OHMIC VALUE
ABS. TOLERANCE
B
C
D
F
= ± 0.1 %
= ± 0.25 %
= ± 0.5 %
= ± 1.0 %
0R1000
= 0.100
Ω
Note
(1)
For non-standard requests, please contact application engineering.
www.vishayfoilresistors.com
4
For any questions, contact:
foil@vishaypg.com
PR
O
DU
CT
2500 -500 0
-1000
-1500
-2000
-2500
-3000
R/R (ppm)
R/R (ppm)
500
1000
1500
2000
Time (Hours)
CHARACTERISTICS
(1)
0
= standard part, tin/lead termination
9
= standard part, lead (Pb)-free termination
1 - 999
= custom
1
0
0
0
0
B
0
R
PACKAGING
W
= waffle pack
R
= tape and reel
Document Number: 63145
Revision: 3-May-11
Legal Disclaimer Notice
Vishay Precision Group
Disclaimer
ALL PRODUCTS, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Vishay Precision Group, Inc., its affiliates, agents, and employees, and all persons acting on its or their
behalf (collectively, “Vishay Precision Group”), disclaim any and all liability for any errors, inaccuracies or
incompleteness contained herein or in any other disclosure relating to any product.
The product specifications do not expand or otherwise modify Vishay Precision Group’s terms and
conditions of purchase, including but not limited to, the warranty expressed therein.
Vishay Precision Group makes no warranty, representation or guarantee other than as set forth in the terms
and conditions of purchase.
To the maximum extent permitted by applicable law, Vishay Precision
Group disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and
all liability, including without limitation special, consequential or incidental damages, and (iii) any and
all implied warranties, including warranties of fitness for particular purpose, non-infringement and
merchantability.
Information provided in datasheets and/or specifications may vary from actual results in different
applications and performance may vary over time. Statements regarding the suitability of products for
certain types of applications are based on Vishay Precision Group’s knowledge of typical requirements that
are often placed on Vishay Precision Group products. It is the customer’s responsibility to validate that a
particular product with the properties described in the product specification is suitable for use in a particular
application.
No license, express, implied, or otherwise, to any intellectual property rights is granted by this document, or
by any conduct of Vishay Precision Group.
The products shown herein are not designed for use in life-saving or life-sustaining applications unless
otherwise expressly indicated. Customers using or selling Vishay Precision Group products not expressly
indicated for use in such applications do so entirely at their own risk and agree to fully indemnify Vishay
Precision Group for any damages arising or resulting from such use or sale. Please contact authorized
Vishay Precision Group personnel to obtain written terms and conditions regarding products designed for
such applications.
Product names and markings noted herein may be trademarks of their respective owners.
Document No.: 63999
Revision: 27-Apr-2011
www.vishaypg.com
1
京公网安备 11010802033920号
EEWORLD
