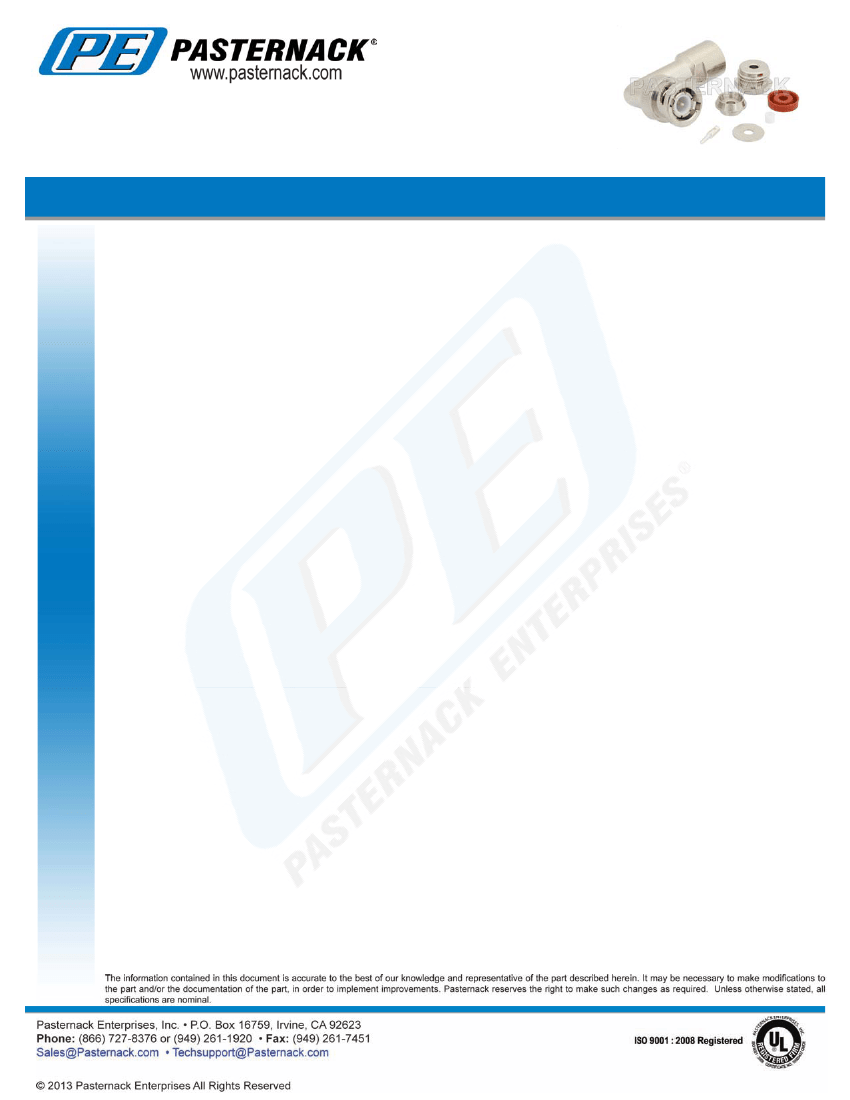

BNC Male Right Angle Connector Clamp/Solder
Attachment For RG174, RG316, RG188
TECHNICAL DATA SHEET
BNC Male Right Angle Connector Clamp/Solder Attachment For RG174, RG316, RG188
Configuration
Connector
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
BNC Male
RG174,RG316,RG188
Clamp/Solder
Right Angle
PE4307
Electrical Specifications
Impedance, Ohms
50

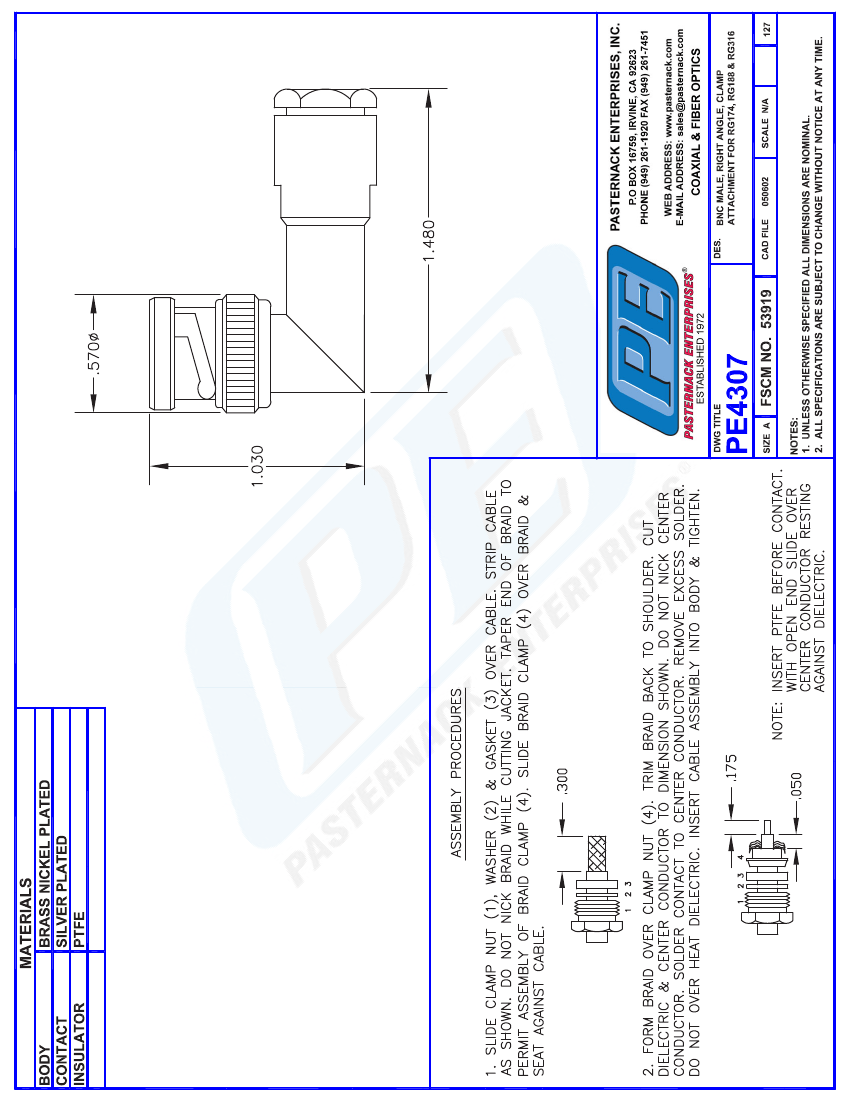

Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
1.48 [37.59]
0.57 [14.48]
1.03 [26.16]
0.068 [30.84]
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Coupling Nut Material and Plating
Body Material and Plating
Dielectric Type
BNC Male
Silver
Brass, Nickel
Brass, Nickel
PTFE
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
BNC Male Right Angle Connector Clamp/Solder Attachment For RG174, RG316, RG188 from Pasternack Enterprises has
same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%
availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
BNC Male Right Angle Connector Clamp/Solder Attachment For RG174, RG316, RG188 PE4307
URL:
http://www.pasternack.com/bnc-male-standard-rg174-rg316-rg188-connector-pe4307-p.aspx
PE4307 REV
1
