TMDA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> TMDA

TMDA: DescriptionTRIAC, 600V V(DRM), 1A I(T)RMS, TO-92,; CategoryAnalog mixed-signal IC Trigger device; File Size199KB，2 Pages; ManufacturerHutson Industries

Download Datasheet Parametric Compare View All

TMDA Overview

TRIAC, 600V V(DRM), 1A I(T)RMS, TO-92,

TMDA Parametric

Parameter Name	Attribute value
Maker	Hutson Industries
package instruction	CYLINDRICAL, O-PBCY-W3
Reach Compliance Code	unknown
Other features	SENSITIVE GATE
Configuration	SINGLE
Critical rise rate of commutation voltage - minimum value	1 V/us
Critical rise rate of minimum off-state voltage	10 V/us
Maximum DC gate trigger current	5 mA
Maximum DC gate trigger voltage	2 V
Maximum holding current	10 mA
JEDEC-95 code	TO-92
JESD-30 code	O-PBCY-W3
Number of components	1
Number of terminals	3
Maximum operating temperature	110 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Certification status	Not Qualified
Maximum rms on-state current	1 A
Maximum repetitive peak off-state leakage current	100 µA
Off-state repetitive peak voltage	600 V
surface mount	NO
Terminal form	WIRE
Terminal location	BOTTOM
Trigger device type	TRIAC

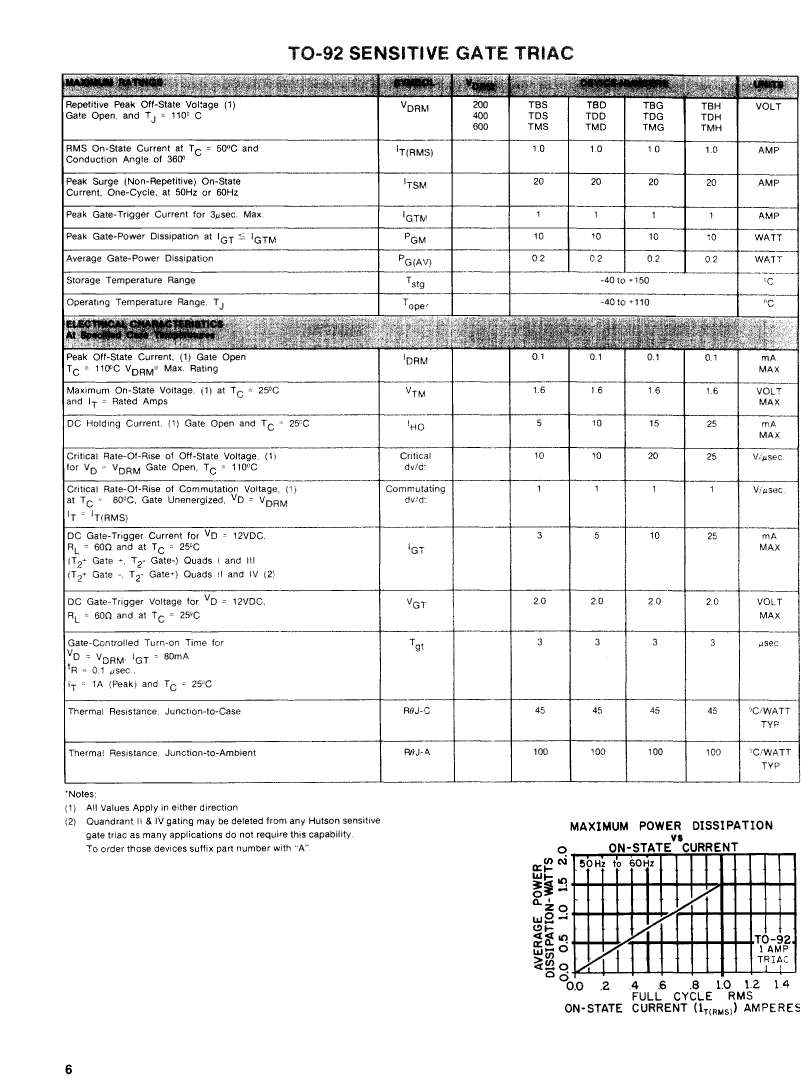

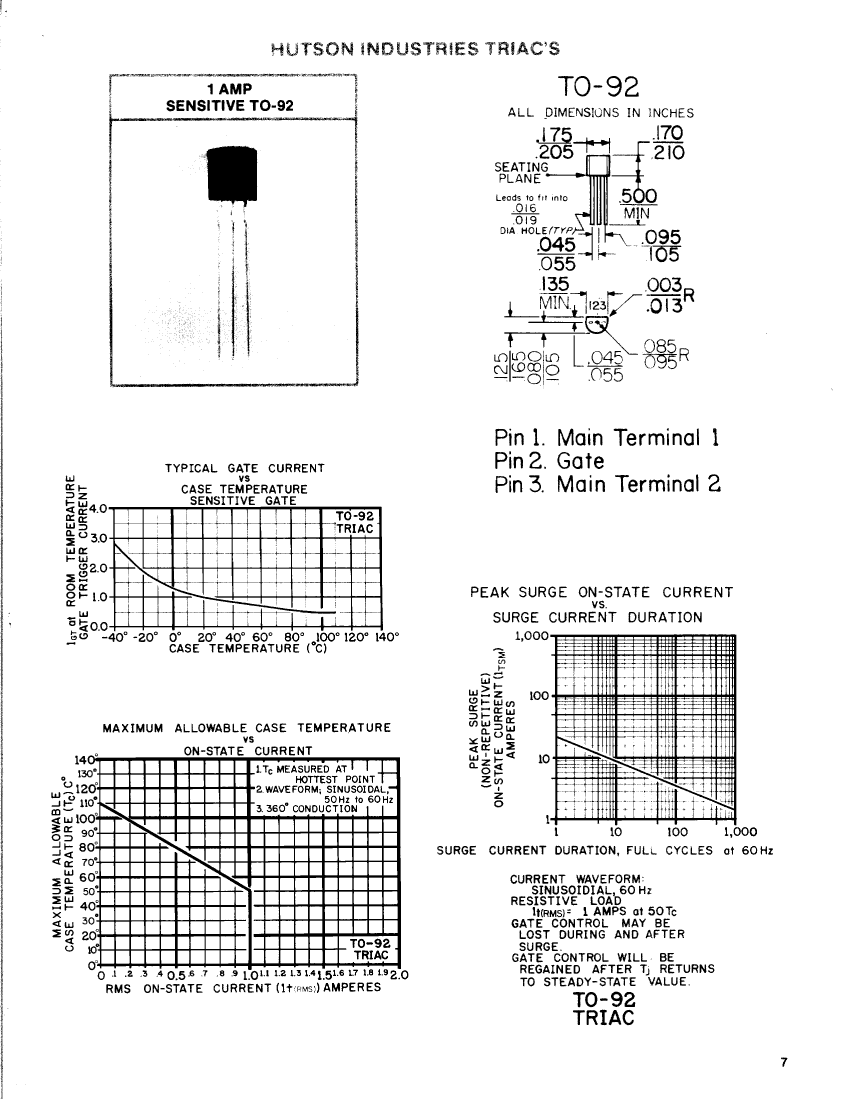

Preview

Download Datasheet

View All

TMDA Related Products

	TMDA	TDHA	TMGA	TMHA	TBHA	TBSA	TDDA	TDGA	TDSA	TMSA
Description	TRIAC, 600V V(DRM), 1A I(T)RMS, TO-92,	TRIAC, 400V V(DRM), 1A I(T)RMS, TO-92,	TRIAC, 600V V(DRM), 1A I(T)RMS, TO-92,	TRIAC, 600V V(DRM), 1A I(T)RMS, TO-92,	TRIAC, 200V V(DRM), 1A I(T)RMS, TO-92,	TRIAC, 200V V(DRM), 1A I(T)RMS, TO-92,	TRIAC, 400V V(DRM), 1A I(T)RMS, TO-92,	TRIAC, 400V V(DRM), 1A I(T)RMS, TO-92,	TRIAC, 400V V(DRM), 1A I(T)RMS, TO-92,	TRIAC, 600V V(DRM), 1A I(T)RMS, TO-92,
Maker	Hutson Industries	Hutson Industries	Hutson Industries	Hutson Industries	Hutson Industries	Hutson Industries	Hutson Industries	Hutson Industries	Hutson Industries	Hutson Industries
package instruction	CYLINDRICAL, O-PBCY-W3	CYLINDRICAL, O-PBCY-W3	CYLINDRICAL, O-PBCY-W3	CYLINDRICAL, O-PBCY-W3	CYLINDRICAL, O-PBCY-W3	CYLINDRICAL, O-PBCY-W3	CYLINDRICAL, O-PBCY-W3	CYLINDRICAL, O-PBCY-W3	CYLINDRICAL, O-PBCY-W3	CYLINDRICAL, O-PBCY-W3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	SENSITIVE GATE	SENSITIVE GATE	SENSITIVE GATE	SENSITIVE GATE	SENSITIVE GATE	SENSITIVE GATE	SENSITIVE GATE	SENSITIVE GATE	SENSITIVE GATE	SENSITIVE GATE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Critical rise rate of commutation voltage - minimum value	1 V/us	1 V/us	1 V/us	1 V/us	1 V/us	1 V/us	1 V/us	1 V/us	1 V/us	1 V/us
Critical rise rate of minimum off-state voltage	10 V/us	25 V/us	20 V/us	25 V/us	25 V/us	10 V/us	10 V/us	20 V/us	10 V/us	10 V/us
Maximum DC gate trigger current	5 mA	25 mA	10 mA	25 mA	25 mA	3 mA	5 mA	10 mA	3 mA	3 mA
Maximum DC gate trigger voltage	2 V	2 V	2 V	2 V	2 V	2 V	2 V	2 V	2 V	2 V
Maximum holding current	10 mA	25 mA	15 mA	25 mA	25 mA	5 mA	10 mA	15 mA	5 mA	5 mA
JEDEC-95 code	TO-92	TO-92	TO-92	TO-92	TO-92	TO-92	TO-92	TO-92	TO-92	TO-92
JESD-30 code	O-PBCY-W3	O-PBCY-W3	O-PBCY-W3	O-PBCY-W3	O-PBCY-W3	O-PBCY-W3	O-PBCY-W3	O-PBCY-W3	O-PBCY-W3	O-PBCY-W3
Number of components	1	1	1	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3	3	3	3
Maximum operating temperature	110 °C	110 °C	110 °C	110 °C	110 °C	110 °C	110 °C	110 °C	110 °C	110 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Maximum repetitive peak off-state leakage current	100 µA	100 µA	100 µA	100 µA	100 µA	100 µA	100 µA	100 µA	100 µA	100 µA
Off-state repetitive peak voltage	600 V	400 V	600 V	600 V	200 V	200 V	400 V	400 V	400 V	600 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Trigger device type	TRIAC	TRIAC	TRIAC	TRIAC	TRIAC	TRIAC	TRIAC	TRIAC	TRIAC	TRIAC
