TGF149-400A datasheet, PDF - EEWORLD Datasheet

TGF149-400A: Description63A, 400V, SCR, TO-65; CategoryAnalog mixed-signal IC Trigger device; File Size125KB，6 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

TGF149-400A Overview

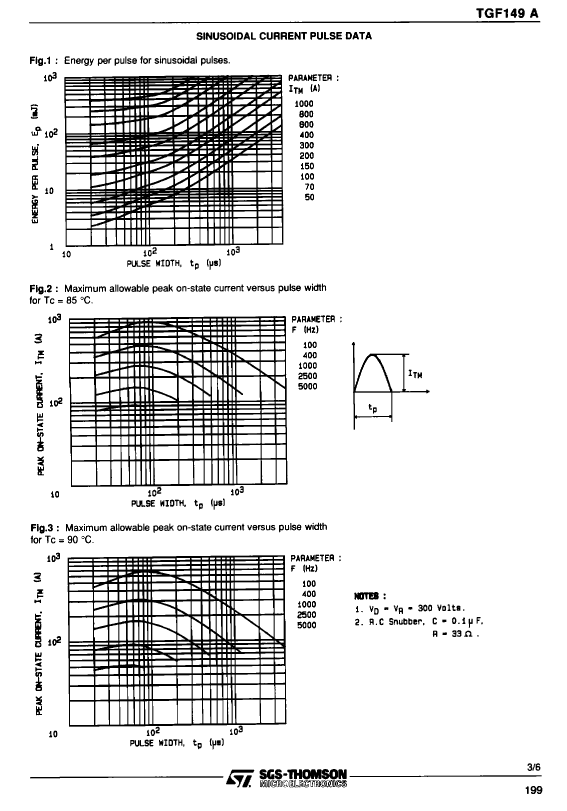

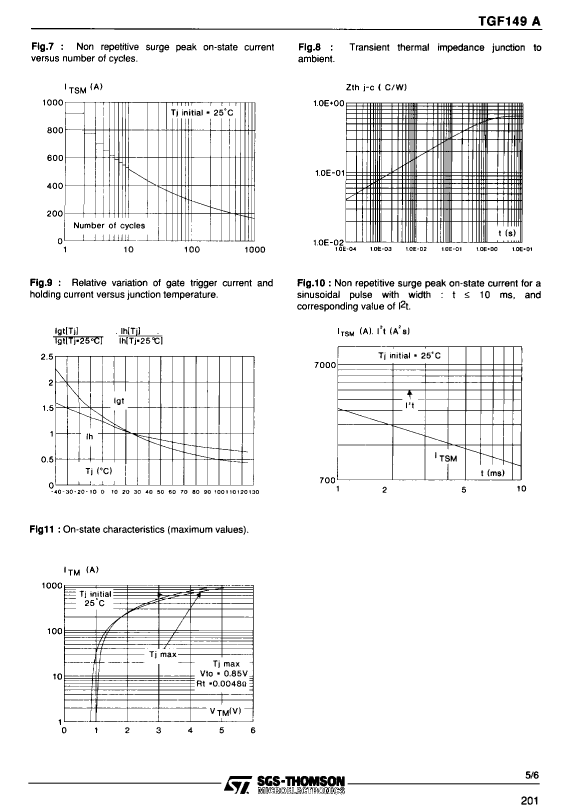

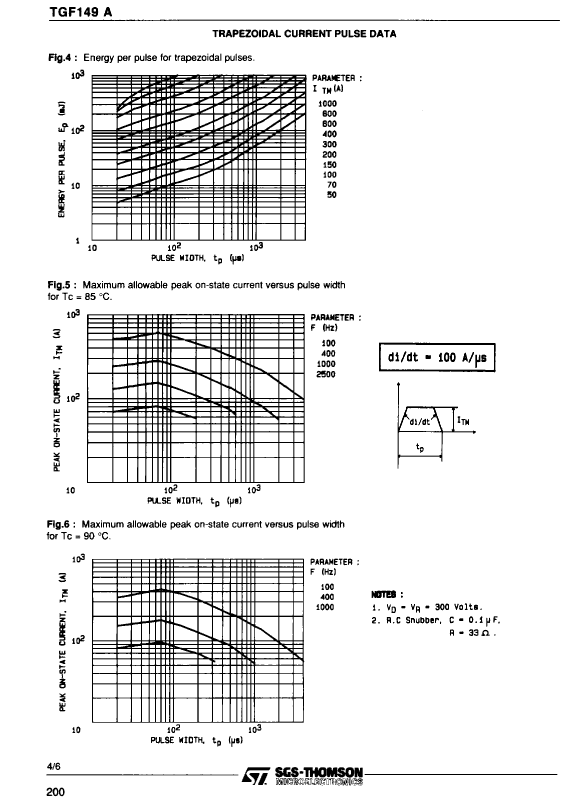

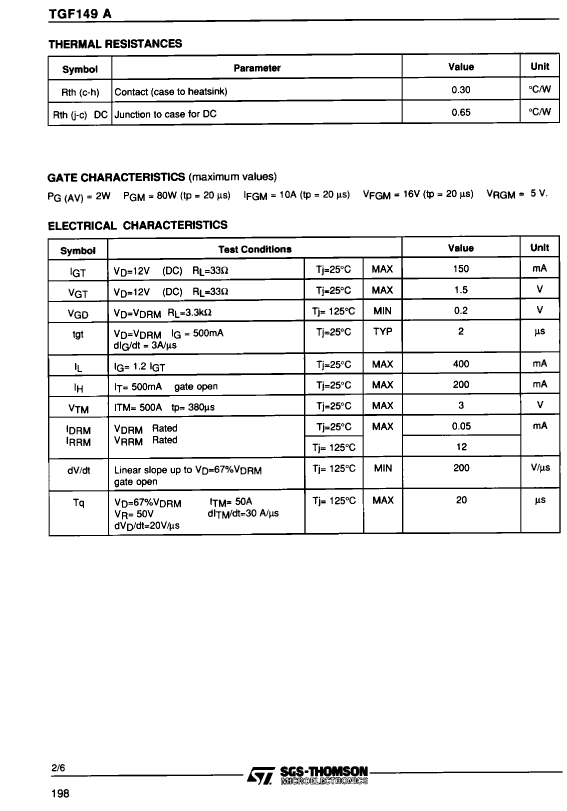

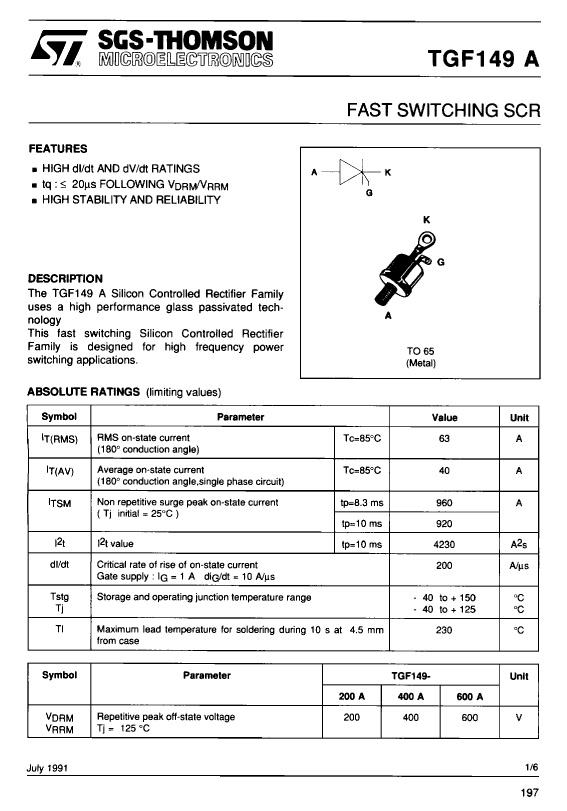

63A, 400V, SCR, TO-65

Parameter Name	Attribute value
Maker	STMicroelectronics
package instruction	POST/STUD MOUNT, O-MUPM-D2
Reach Compliance Code	compliant
Other features	FAST
Shell connection	ANODE
Nominal circuit commutation break time	20 µs
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	200 V/us
Maximum DC gate trigger current	150 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	200 mA
JEDEC-95 code	TO-65
JESD-30 code	O-MUPM-D2
Maximum leakage current	12 mA
On-state non-repetitive peak current	920 A
Number of components	1
Number of terminals	2
Maximum on-state current	63000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Certification status	Not Qualified
Maximum rms on-state current	63 A
Maximum repetitive peak off-state leakage current	50 µA
Off-state repetitive peak voltage	400 V
Repeated peak reverse voltage	400 V
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER
Trigger device type	SCR

	TGF149-400A	TGF149-200A
Description	63A, 400V, SCR, TO-65	63A, 200V, SCR, TO-65
Maker	STMicroelectronics	STMicroelectronics
Reach Compliance Code	compliant	compliant
Other features	FAST	FAST
Shell connection	ANODE	ANODE
Nominal circuit commutation break time	20 µs	20 µs
Configuration	SINGLE	SINGLE
Critical rise rate of minimum off-state voltage	200 V/us	200 V/us
Maximum DC gate trigger current	150 mA	150 mA
Maximum DC gate trigger voltage	1.5 V	1.5 V
Maximum holding current	200 mA	200 mA
JEDEC-95 code	TO-65	TO-65
JESD-30 code	O-MUPM-D2	O-MUPM-D2
Maximum leakage current	12 mA	12 mA
On-state non-repetitive peak current	920 A	920 A
Number of components	1	1
Number of terminals	2	2
Maximum on-state current	63000 A	63000 A
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	METAL	METAL
Package shape	ROUND	ROUND
Package form	POST/STUD MOUNT	POST/STUD MOUNT
Certification status	Not Qualified	Not Qualified
Maximum rms on-state current	63 A	63 A
Maximum repetitive peak off-state leakage current	50 µA	50 µA
Off-state repetitive peak voltage	400 V	200 V
Repeated peak reverse voltage	400 V	200 V
surface mount	NO	NO
Terminal form	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER
Trigger device type	SCR	SCR
